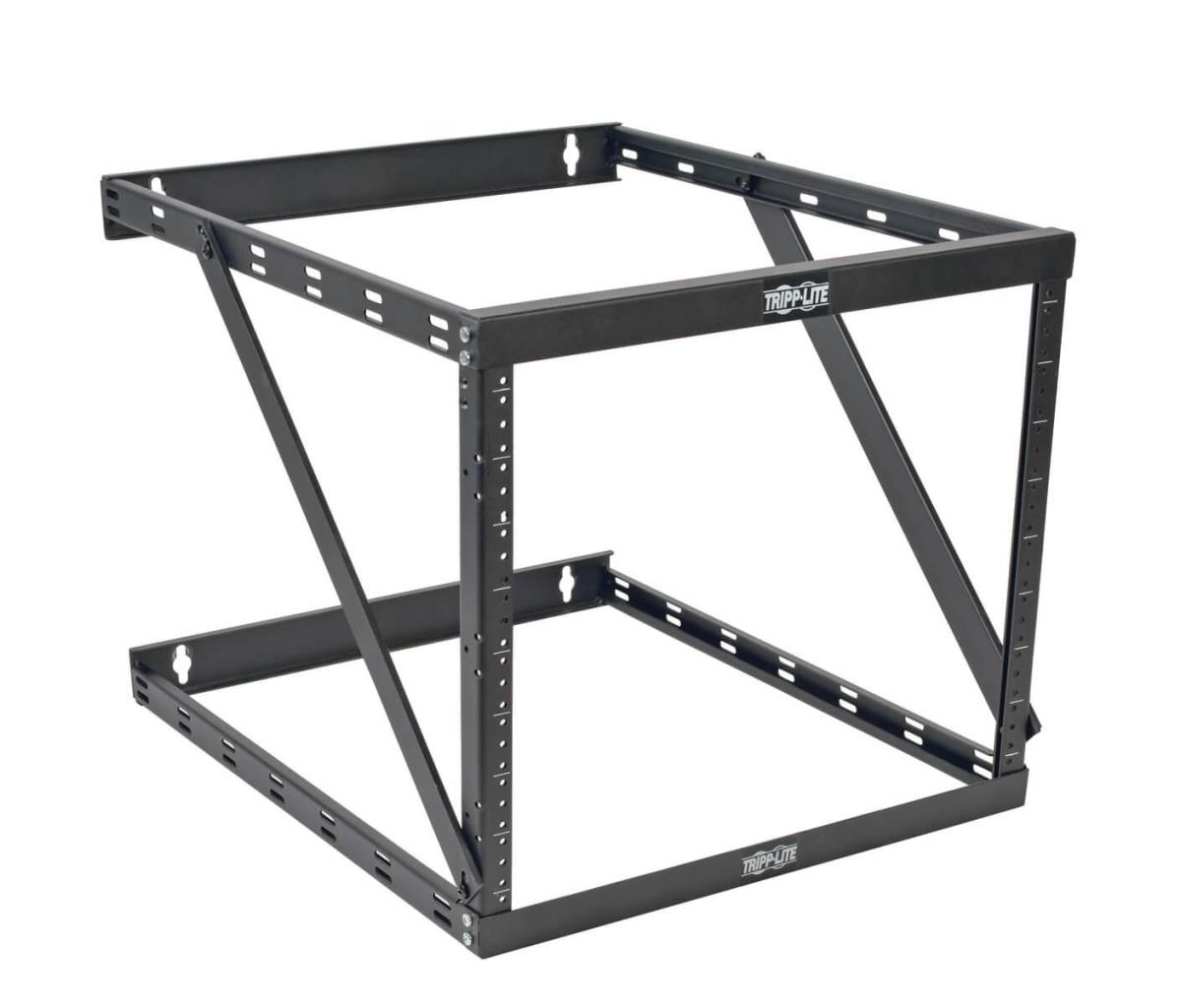

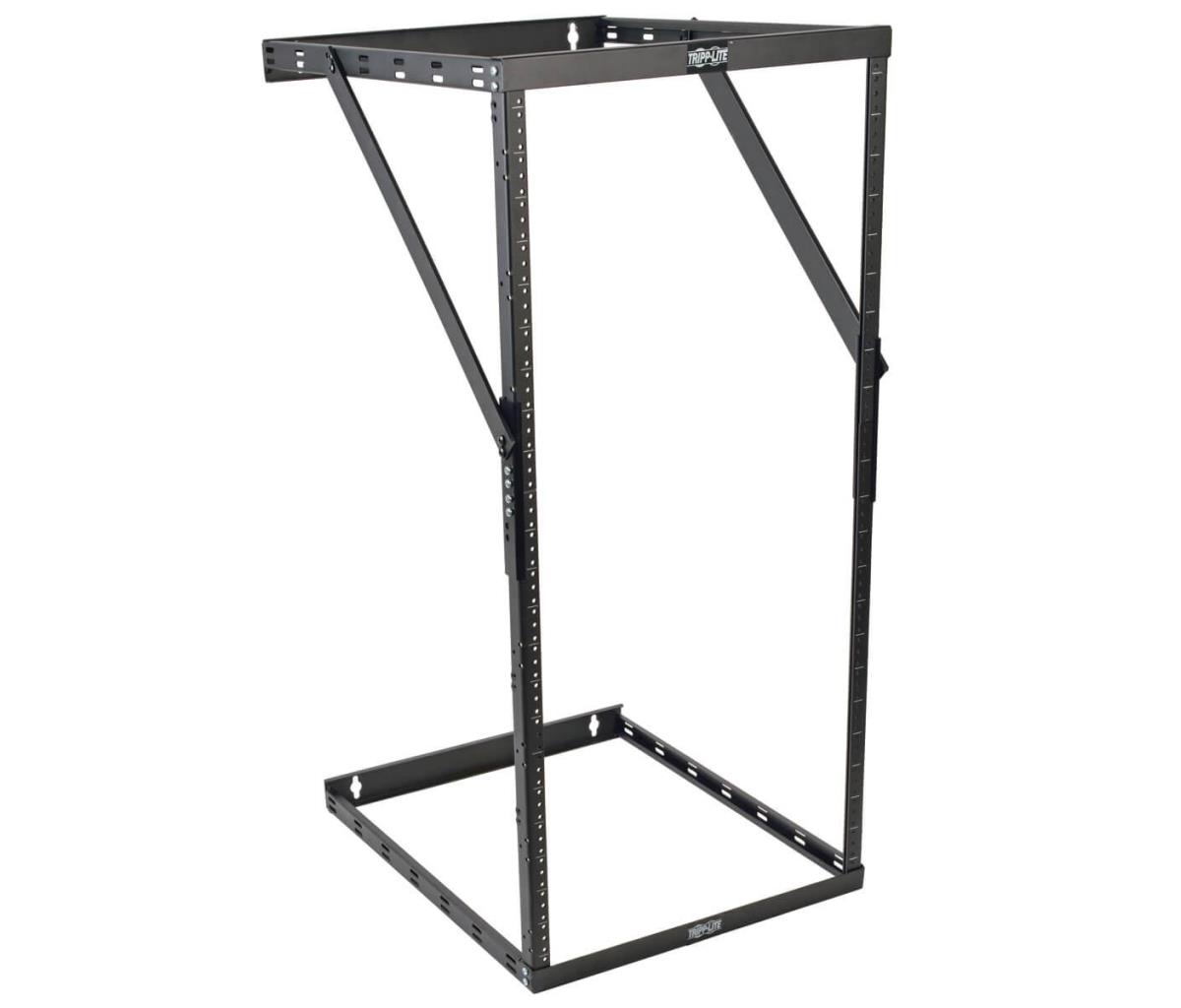

TRIPP LITE SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack
ITCurry #: 57904532 | Article #: SRWO8U22DP-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The SRWO8U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack is ideal for storing UPS systems, battery packs, power cords, network switches, patch panels and related cabling in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 23.5 inches.
Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 lbs (68 kgs). The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.
The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.
| Kenmerken | |
| Rackcapaciteit | 22U |
| Soort | Wandrek |
| Maximale gewichtscapaciteit | 67,5 kg |
| Kleur van het product | Zwart |
| Materiaal | Staal |
| Frame type | Open |
| Productontwerp | 2 palen |
| Gewicht en omvang | |
| Maat | 48,3 cm (19") |
| Breedte | 518,7 mm |
| Diepte | 609,6 mm |
| Hoogte | 1074,7 mm |
| Gewicht | 7,8 kg |
| Verpakking | |
| Wand montagekit | Ja |
| Montage gereedschap | Ja |
| Gebruikershandleiding | Ja |
| Breedte verpakking | 96,5 mm |
| Diepte verpakking | 551,2 mm |
| Hoogte verpakking | 551,2 mm |
| Gewicht verpakking | 9,07 kg |
| Technische details | |
| GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking | 10037332187427 |
| Logistieke gegevens | |
| Land van herkomst | China |
| Code geharmoniseerd systeem (HS) | 8517,79,0000 |
| (Buitenste) hoofdverpakking breedte | 730 mm |
| (Buitenste) hoofdverpakking lengte | 914,9 mm |
| (Buitenste) hoofdverpakking hoogte | 560,1 mm |
| (Buitenste) hoofdverpakking brutogewicht | 88,9 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 10 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
