TRIPP LITE SmartRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet Hinged Back
ITCurry #: 57905129 | Article #: SRW15US-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

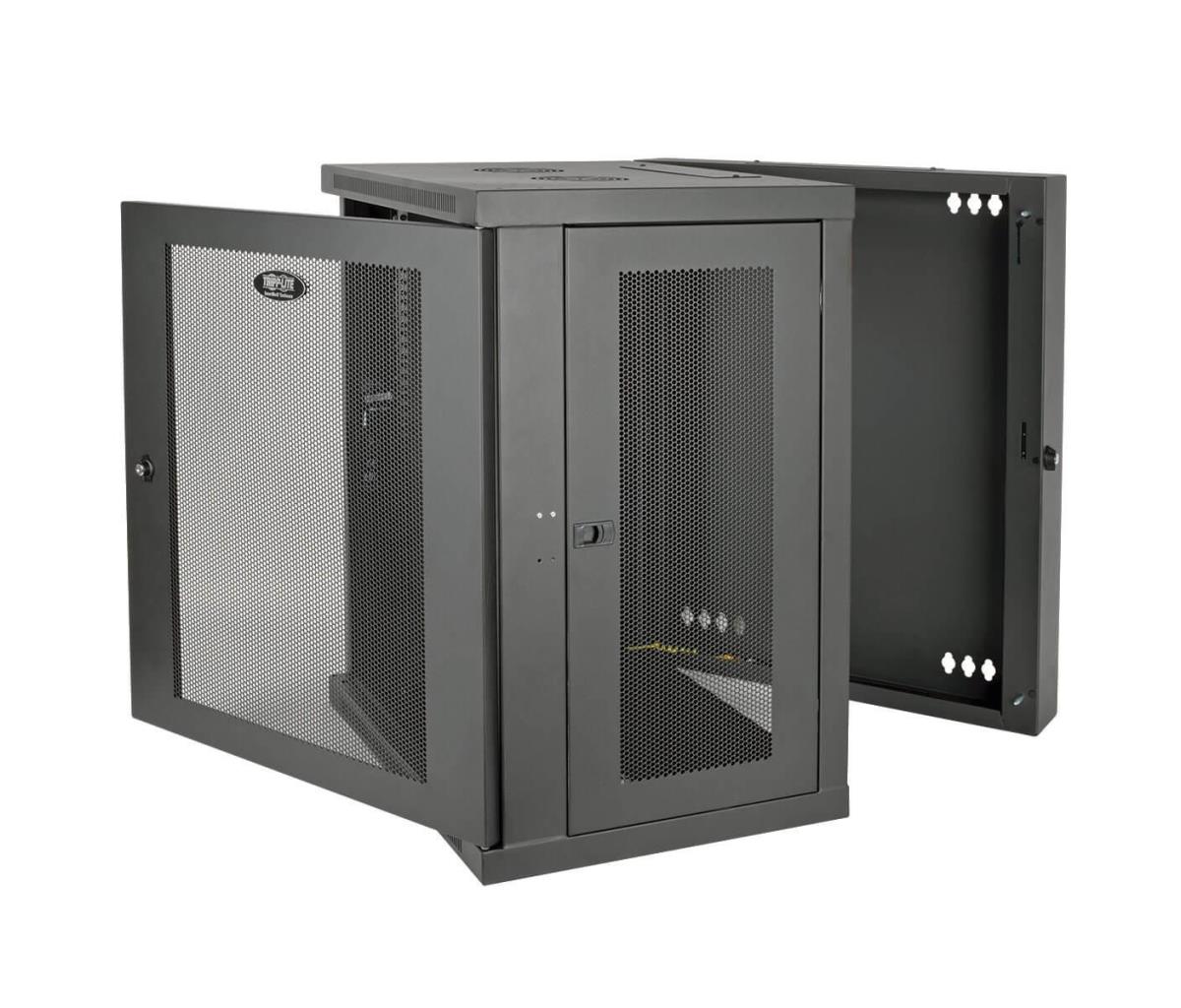

The SRW15US SmartRack® 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.

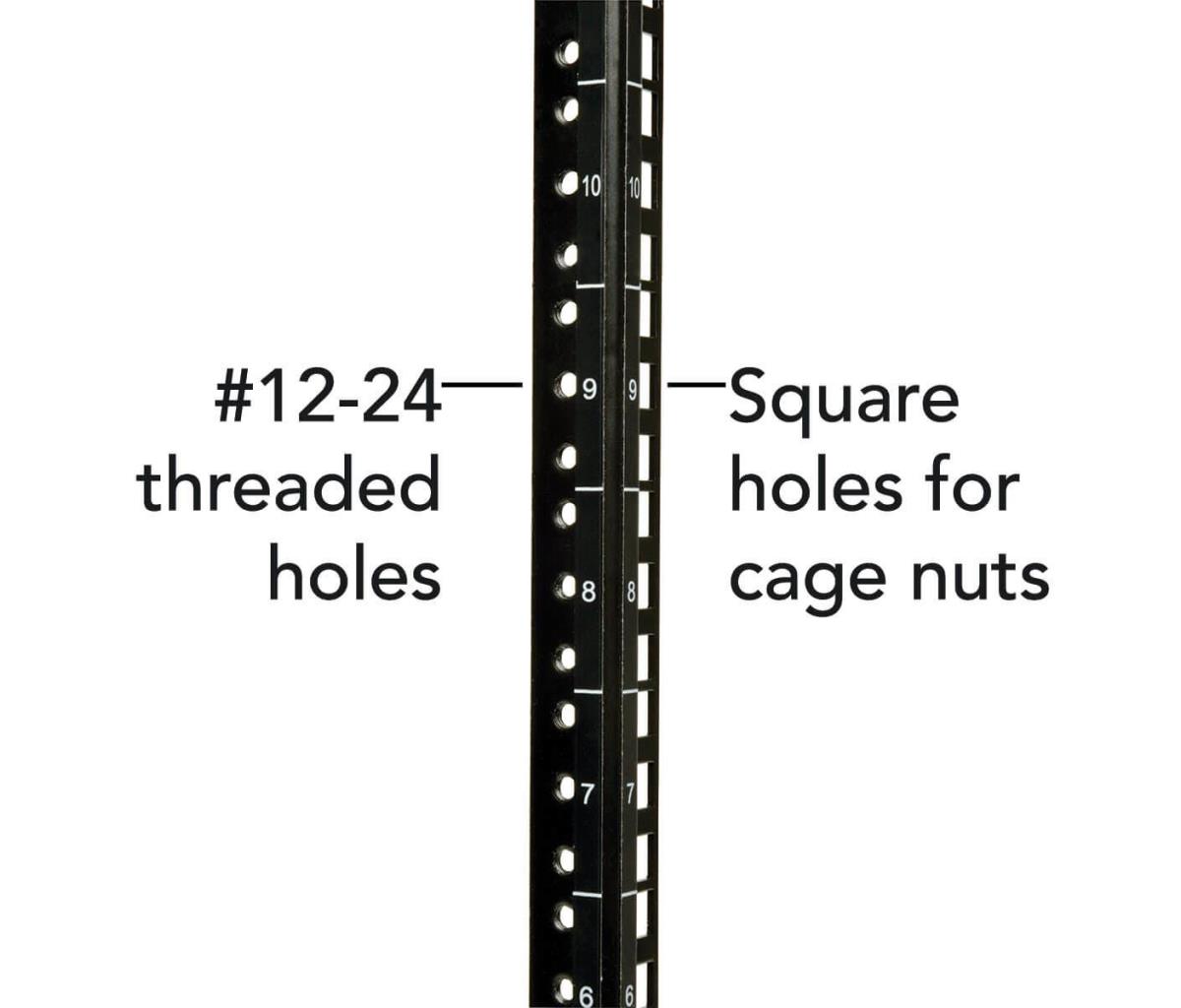

The SRW15US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
| Kenmerken | |
| Rackcapaciteit | 15U |
| Soort | Wandrek |
| Maximale gewichtscapaciteit | 102,1 kg |
| Kleur van het product | Zwart |
| Certificering | NOM, EIA-310-E, IEC 60297-3-100, DIN 41494, IP20, RoHS |
| Warranty | |
| Base Warranty | Non Non |
| Gewicht en omvang | |
| Breedte | 599,9 mm |
| Diepte | 548,6 mm |
| Hoogte | 770,4 mm |
| Gewicht | 33,1 kg |
| Verpakking | |
| Breedte verpakking | 840 mm |
| Diepte verpakking | 670,1 mm |
| Hoogte verpakking | 612,1 mm |
| Gewicht verpakking | 33,1 kg |
| Logistieke gegevens | |
| Land van herkomst | China |
| Code geharmoniseerd systeem (HS) | 8517,79,0000 |
| (Buitenste) hoofdverpakking breedte | 840 mm |
| (Buitenste) hoofdverpakking lengte | 670,1 mm |
| (Buitenste) hoofdverpakking hoogte | 612,1 mm |
| (Buitenste) hoofdverpakking brutogewicht | 33,1 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 1 stuk(s) |
