TRIPP LITE KVM Switch 2-Port HDMI/USB - 4K 60 Hz, HDR, HDCP 2.2, IR, USB Sharing, USB 3.0 Cables
ITCurry #: 57906859 | Article #: B005-HUA2-K-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Connects 2 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and Mouse
This KVM switch lets you access, control, boot and reboot two computers with HDMI ports and switch between them. In addition to desktop and notebook computers, the switch also connects up to two media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. Both computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Switching Between Computers Is Fast and Easy

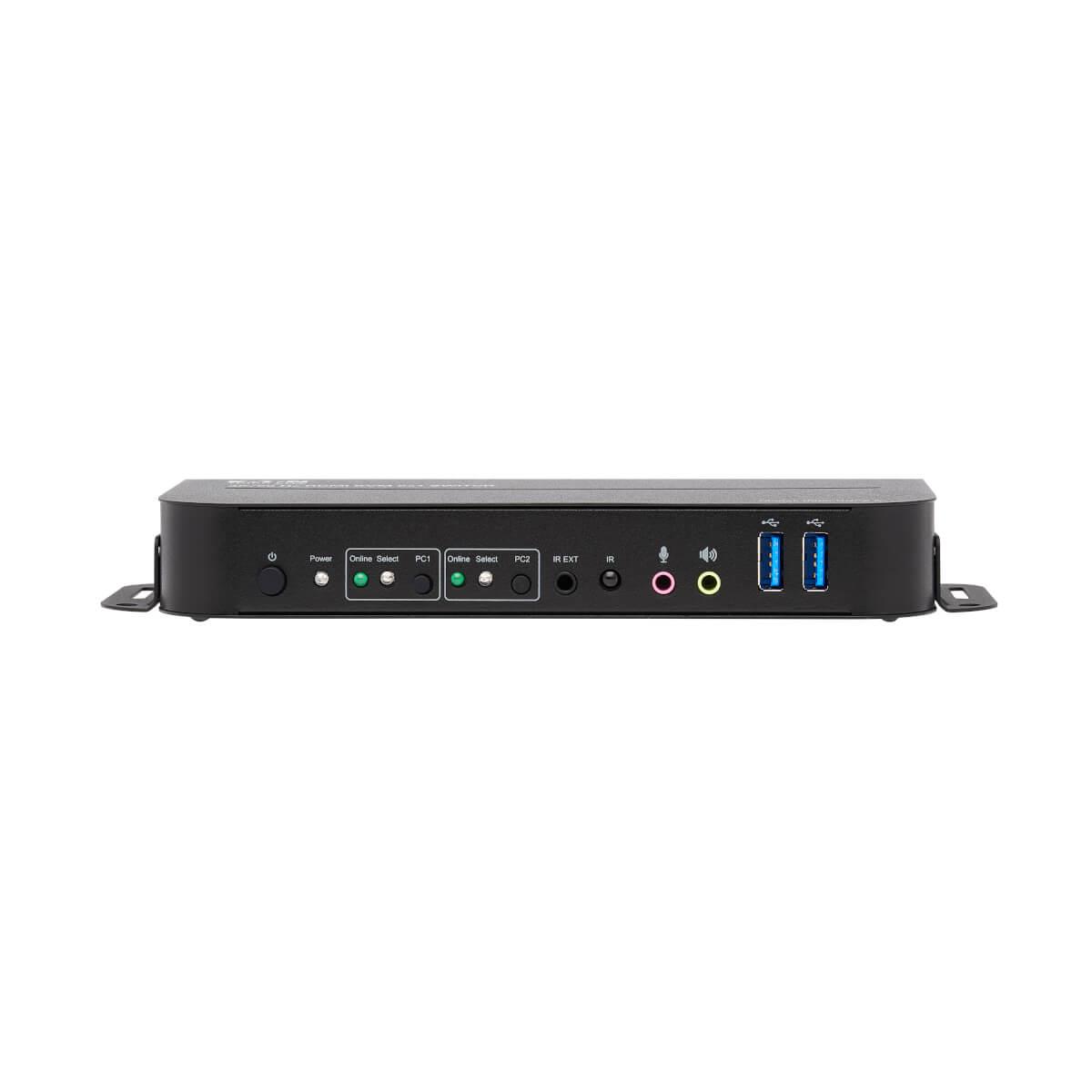

Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: Mouse Traversal is a permanent feature and cannot be disabled
USB Cables Are Included to Facilitate a Simple Setup
Use the included USB 3.0 cables to connect your computers to the KVM switch. The plug-and-play B005-HUA2-K requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS and Linux.
USB Hub Lets You Share Peripherals between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. The hub is backward compatible with USB 1.1 devices.
Transmits True 4K Video with HDR and 4:4:4 Color
The B005-HUA2-K supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as 7.1-channel surround sound and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

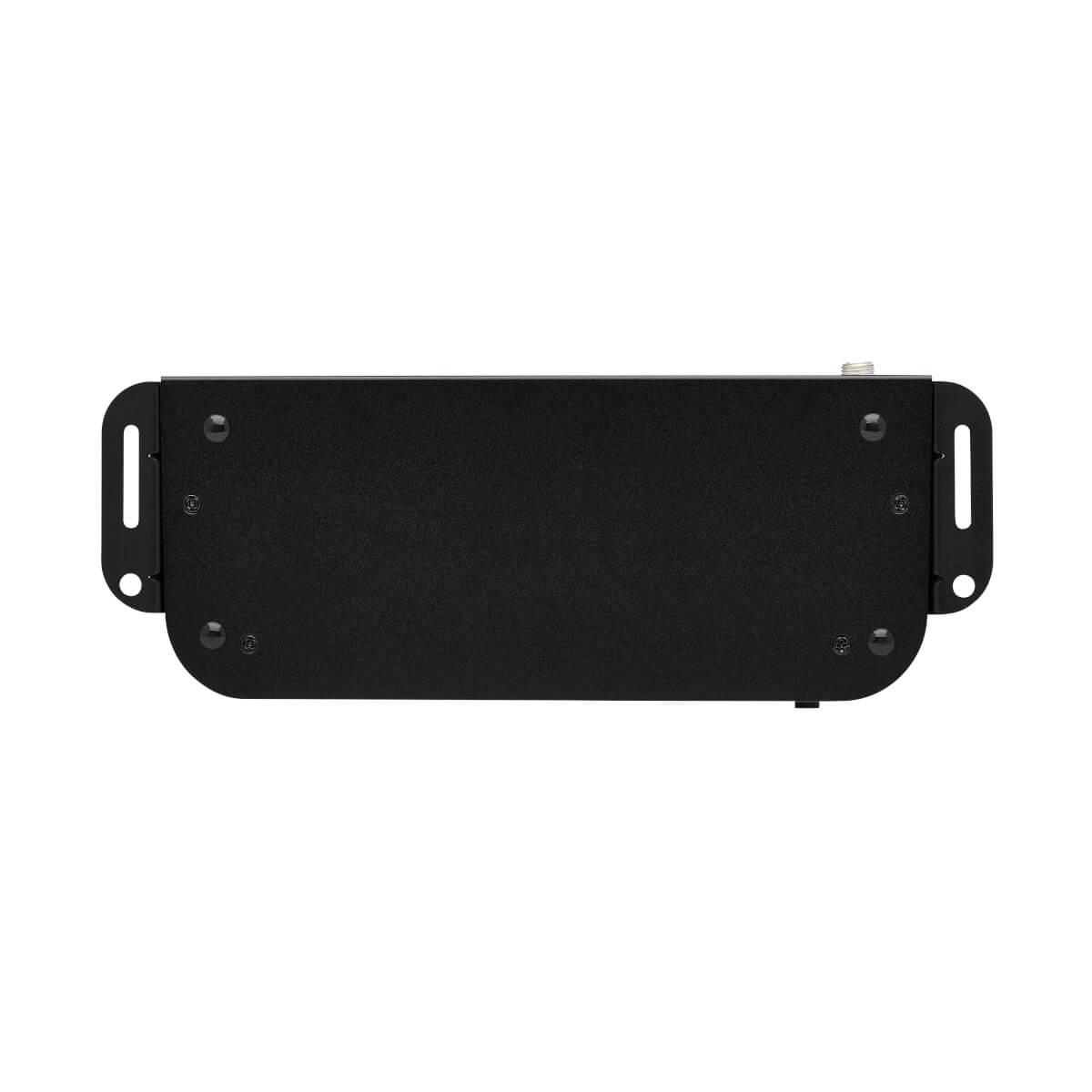

Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source.
| Poorten & interfaces | |
| Aantal computers | 2 |
| Aansluiting toetsenbord | USB |
| Aansluiting muis | USB |
| Aansluiting video | HDMI |
| Aantal HDMI-poorten | 3 |
| HDMI versie | 2.0 |
| Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-B poorten | 2 |
| Console-poorten | 3.5mm hoofdtelefoon, 3.5mm mic, HDMI, USB A |
| USB-hub | Ja |
| Aantal USB 3.2-hubpoorten type A (3.1 Gen 1) | 2 |
| Audio-aansluitingen | Ja |
| Hoofdtelefoonuitgangen | 4 |
| Aantal microfooningangen | 4 |
| Aansluiting voor netstroomadapter | Ja |
| Prestatie | |
| HD type | 4K Ultra HD |
| Maximum resolutie | 4096 x 2160 Pixels |
| Videobandbreedte | 60 Hz |
| Data transfer snelheid (max) | 5 Gbit/s |
| Automatische scanvertraging (min) | 5 s |
| Automatische scanvertraging (max) | 999 s |
| HDCP | Ja |
| Plug and play | Ja |
| Aantal gebruikers | 1 gebruiker(s) |
| Audiokanalen | 7.1 |
| Design | |
| Rack-montage | Nee |
| Kleur van het product | Zwart |
| Materiaal behuizing | Metaal |
| Snoerlengte | 1,2 m |
| LED-indicatoren | Ja |
| drukknop | Ja |
| Sneltoetsen | Ja |
| Certificering | CE, FCC, REACH |
| Beeldscherm | |
| Ingebouwd display | Nee |
| Energie | |
| Stroombron | AC |
| Ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroom | 0.6 A |
| Spanning | 5 V |
| Output current | 3 A |
| Stroomverbruik (typisch) | 11,75 W |
| Externe adapter | Ja |
| Compatibele soorten stopcontacten | AU, EU, UK, US |
| Duurzaamheid | |
| Duurzaamheidscertificaten | RoHS |
| Certificaten van naleving | RoHS |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -10 - 80 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 85 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Gewicht en omvang | |
| Breedte | 178,1 mm |
| Diepte | 74,9 mm |
| Hoogte | 25,9 mm |
| Gewicht | 370 g |
| Verpakking | |
| Breedte verpakking | 230,1 mm |
| Diepte verpakking | 200,4 mm |
| Hoogte verpakking | 65 mm |
| Gewicht verpakking | 550 g |
| Type verpakking | Doos |
| Inhoud van de verpakking | |
| Meegeleverde kabels | USB Type-A naar USB Type-B |
| Gebruikershandleiding | Ja |
| Inclusief AC-adapter | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176200 |
| (Buitenste) hoofdverpakking breedte | 340,1 mm |
| (Buitenste) hoofdverpakking lengte | 249,9 mm |
| (Buitenste) hoofdverpakking hoogte | 199,9 mm |
| (Buitenste) hoofdverpakking brutogewicht | 3,5 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 5 stuk(s) |
| GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking | 10037332254891 |
| Land van herkomst | Vietnam |
| Warranty | |
| Base Warranty | Non Non |
