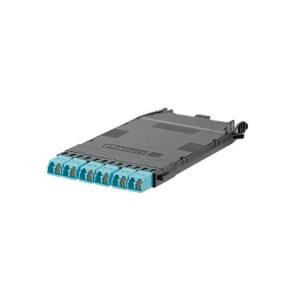

TRIPP LITE 40GB to 10GB Breakout Cassette - (x2) 12-Fiber OM4 MTP/MPO to (x12) LC
ITCurry #: 57904132 | Article #: N482-2M12-LC12-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The N482-2M12-LC12 is a high-density 40 Gb to 10 Gb Breakout Cassette with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. For use with N482-01U and N482-02U high-density Fiber Enclosure Panels. Up to five cassettes per N482-01U or up to 14 cassettes per N482-02U. 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended cabling, such as the N820-, N821-, N844- and N845-Series cables. Installation is simple, with the cassette being easily installed or removed using push/pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Complies with IEEE 802.3ae (10Gbe) and ANSI T11.2 (Fibre Channel) requirements, with a maximum insertion loss of 0.35dB falling well under the IEEE 802.3ae maximum channel loss spec of <25dB. Constructed of heavy-duty steel housing.
| Warranty | |
| Base Warranty | Non Non |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3ae |
| Ethernet interface type | 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Maximale overdrachtssnelheid van gegevens | 40000 Mbit/s |
| Aantal poorten | 12 |
| Aansluiting(en) | LC |
| Design | |
| Kleur van het product | Zwart |
| Materiaal | Staal |
| Technische details | |
| Certificaten van naleving | RoHS |
| Gewicht en omvang | |
| Breedte | 88,9 mm |
| Hoogte | 30,5 mm |
| Diepte | 119,4 mm |
| Gewicht | 250 g |
| Verpakking | |
| Breedte verpakking | 200,7 mm |
| Diepte verpakking | 119,4 mm |
| Hoogte verpakking | 50,8 mm |
| Gewicht verpakking | 330 g |
| Logistieke gegevens | |
| Land van herkomst | China |
| Code geharmoniseerd systeem (HS) | 85371098 |
| Producten per pallet | 1 stuk(s) |
| (Buitenste) hoofdverpakking breedte | 391,2 mm |
| (Buitenste) hoofdverpakking lengte | 325,1 mm |
| (Buitenste) hoofdverpakking hoogte | 325,1 mm |
| (Buitenste) hoofdverpakking brutogewicht | 9,3 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 27 stuk(s) |
| GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking | 10037332184549 |
