Product Informatie

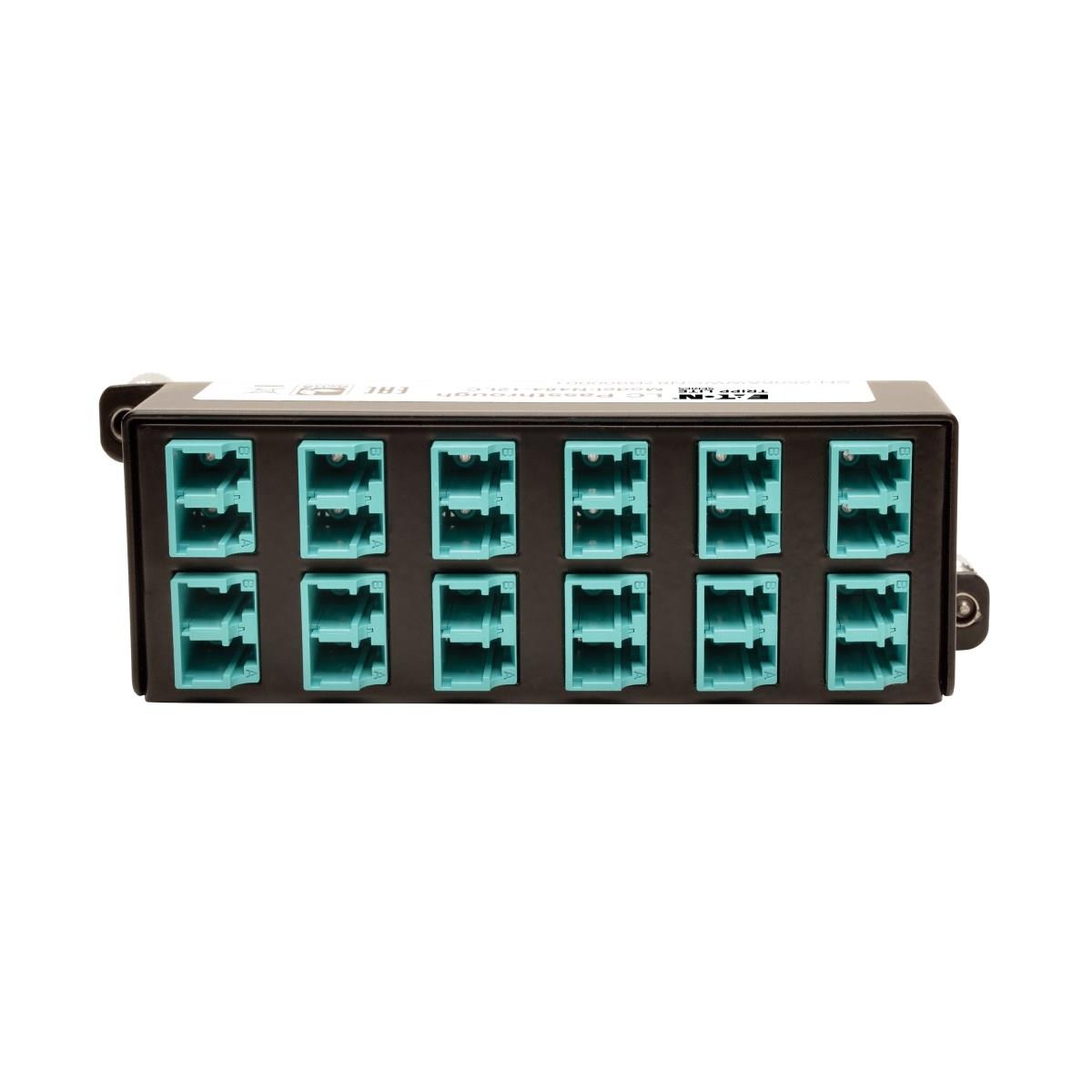

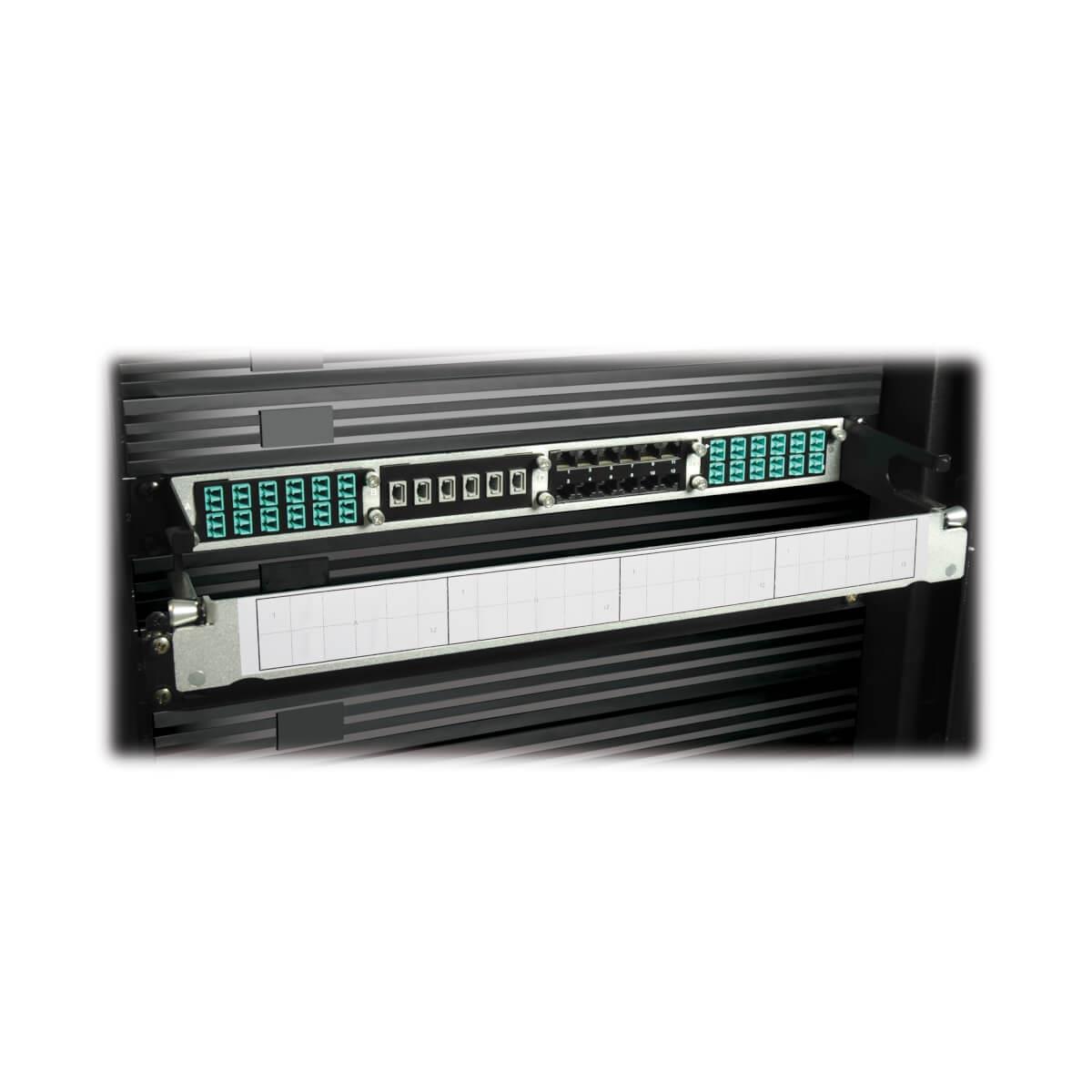

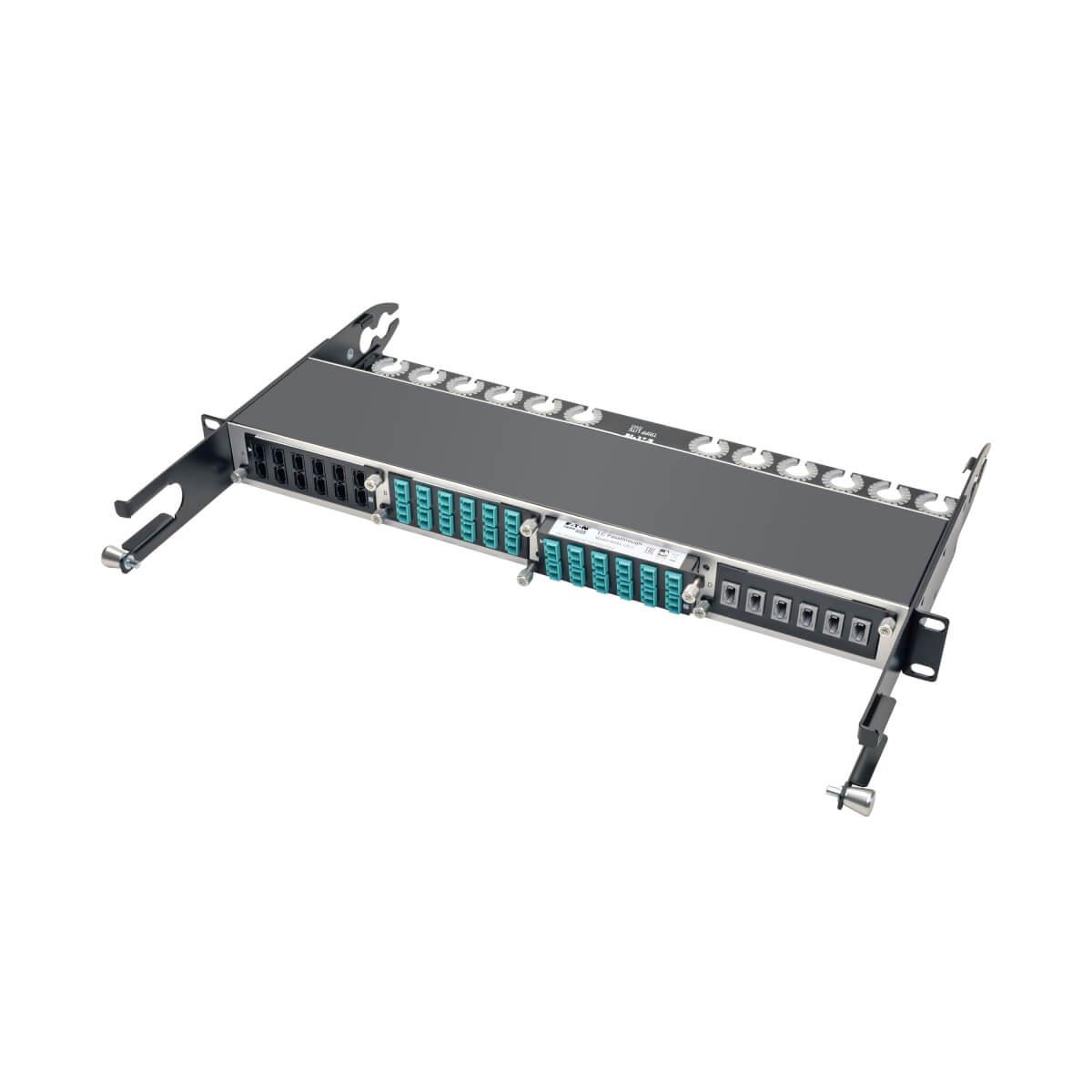

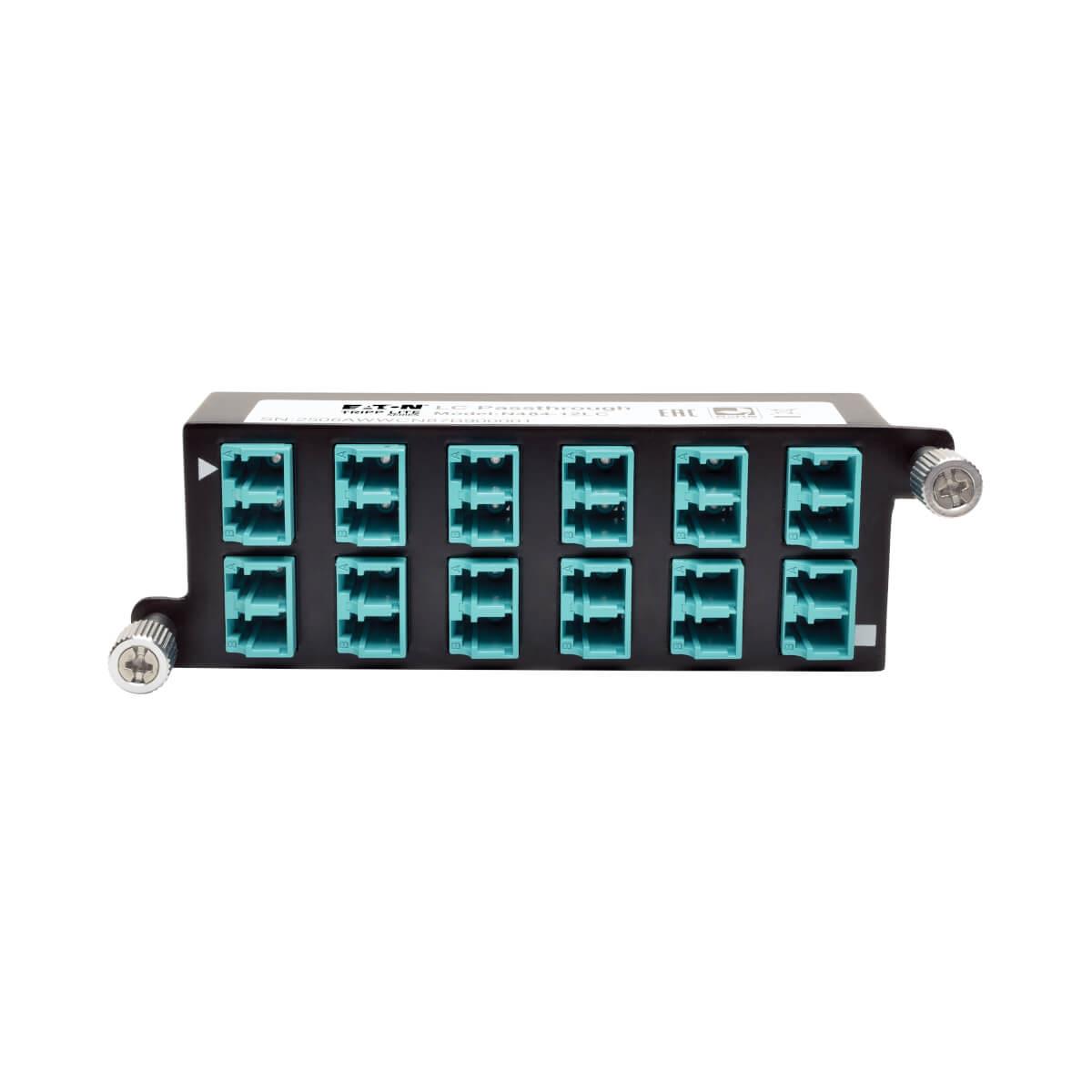

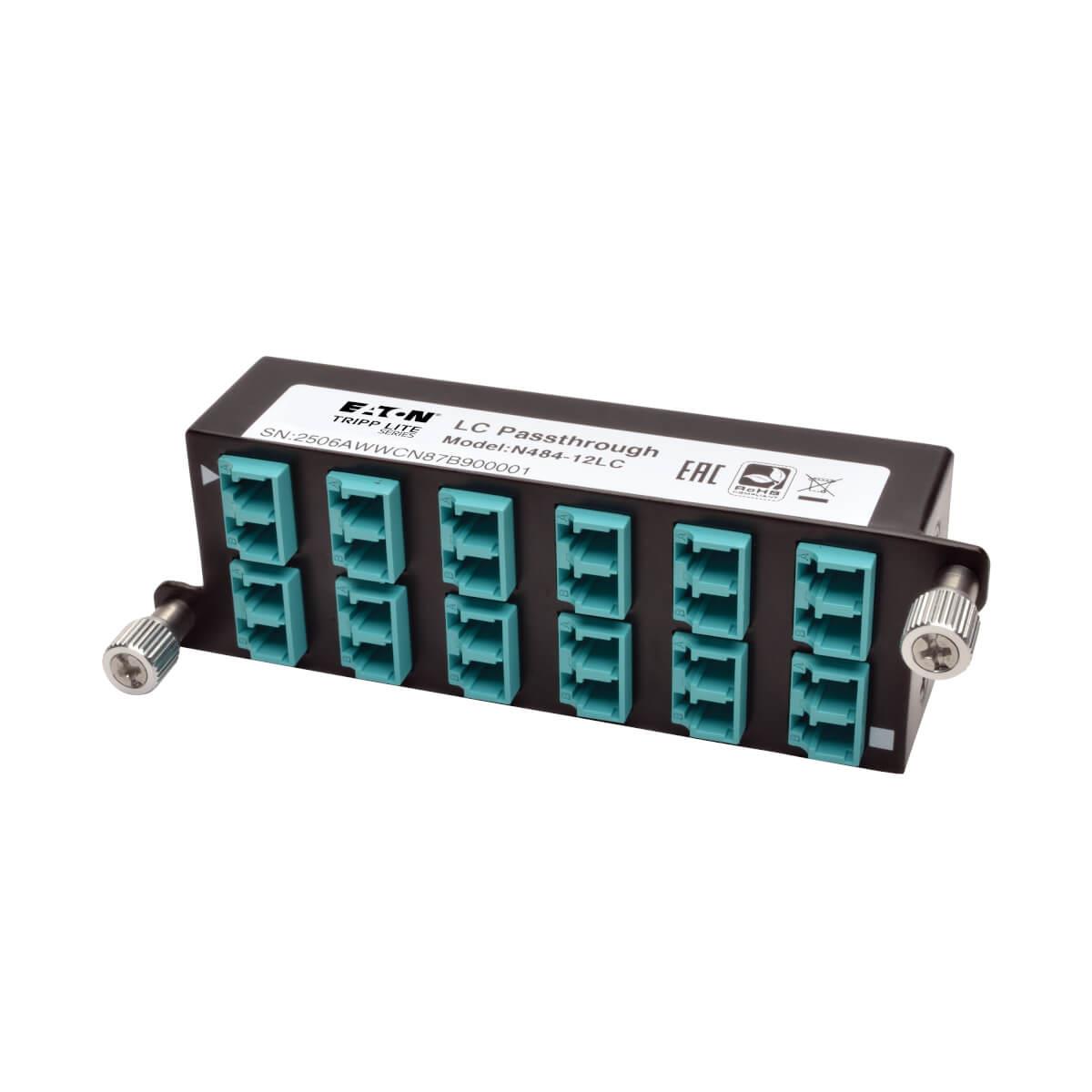

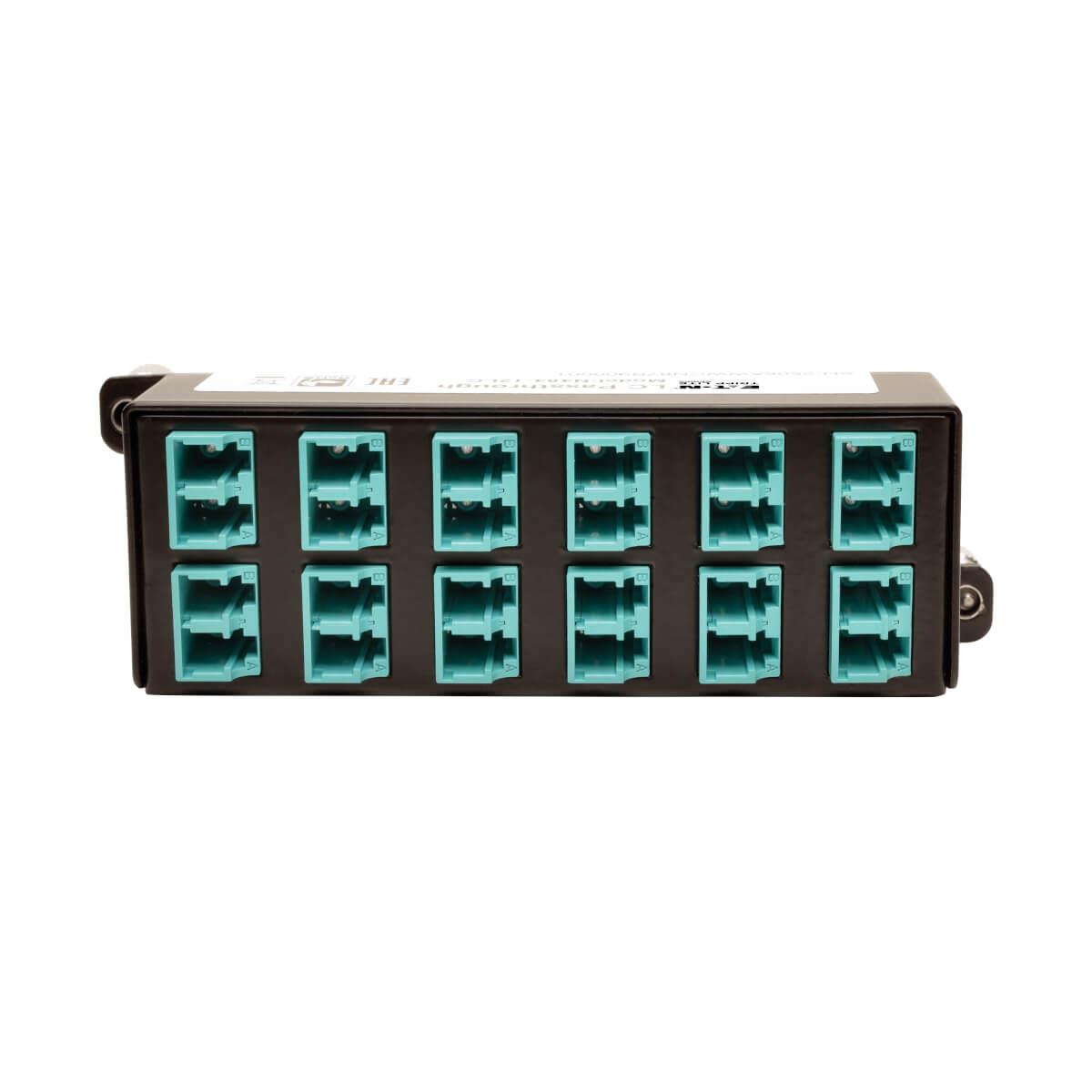

The N484-12LC is a high-density 10 Gb Pass-through Cassette with (x12) LC Duplex connections. Designed specifically for use with N484-00U and N484-01U chassis. Up to four cassettes per N484-01U or one cassette per N484-00U. Each duplex LC connection is rated for 10 GbE, with an extremely low max insertion loss of 0.35db, well under the IEEE 802.3ae maximum channel loss spec of <25db. Guaranteed compatibility when used with recommended cabling. Compatible with both singlemode and multimode fiber cables. Designed specifically for use with N820- and N821-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing is manufactured with heavy-duty 1.0mm cold-rolled steel.
| Warranty | |
| Base Warranty | Non Non |
| Netwerk | |
| Ethernet interface type | 10 Gigabit Ethernet |
| Maximale overdrachtssnelheid van gegevens | 10000 Mbit/s |
| Aantal poorten | 12 |
| Aansluiting(en) | LC |
| Design | |
| Kleur van het product | Zwart |
| Materiaal | Staal |
| Certificering | REACH |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 50 øC |
| Technische details | |
| Certificaten van naleving | RoHS |
| Gewicht en omvang | |
| Breedte | 88,9 mm |
| Hoogte | 30,5 mm |
| Diepte | 119,4 mm |
| Gewicht | 240 g |
| Verpakking | |
| Breedte verpakking | 130 mm |
| Diepte verpakking | 37,1 mm |
| Hoogte verpakking | 59,9 mm |
| Gewicht verpakking | 250 g |
| Logistieke gegevens | |
| Land van herkomst | China |
| Code geharmoniseerd systeem (HS) | 85371098 |
| Producten per pallet | 1 stuk(s) |
| (Buitenste) hoofdverpakking breedte | 225 mm |
| (Buitenste) hoofdverpakking lengte | 125 mm |
| (Buitenste) hoofdverpakking hoogte | 134,9 mm |
| (Buitenste) hoofdverpakking brutogewicht | 2,6 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 10 stuk(s) |
| GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking | 10037332187267 |
