TRIPP LITE 100Gb/120GB to10GB Breakout Cassette 24-Fiber OM4 MTP/MPO to ( x12 ) LC Duplex
ITCurry #: 57904142 | Article #: N484-1M24-LC12-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

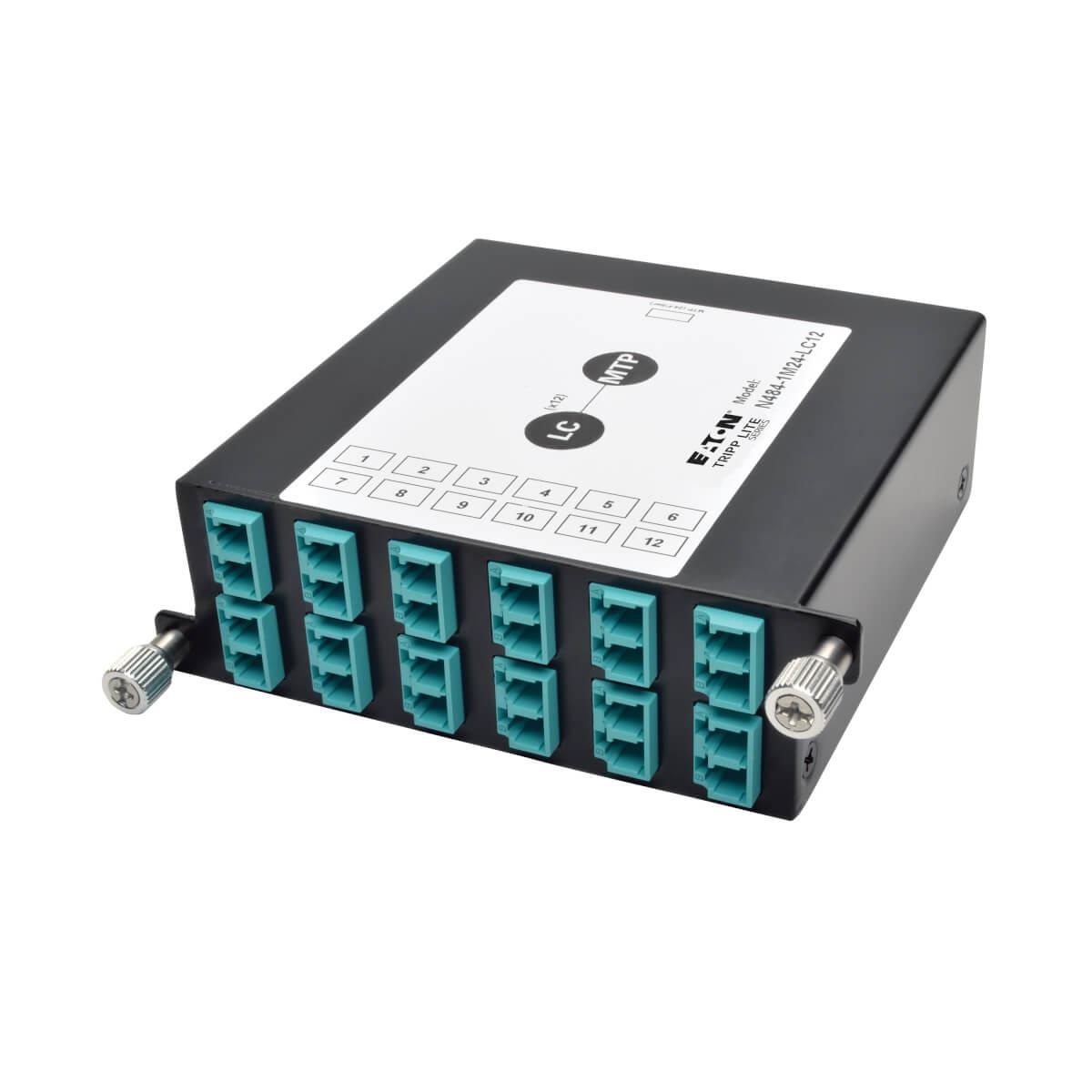

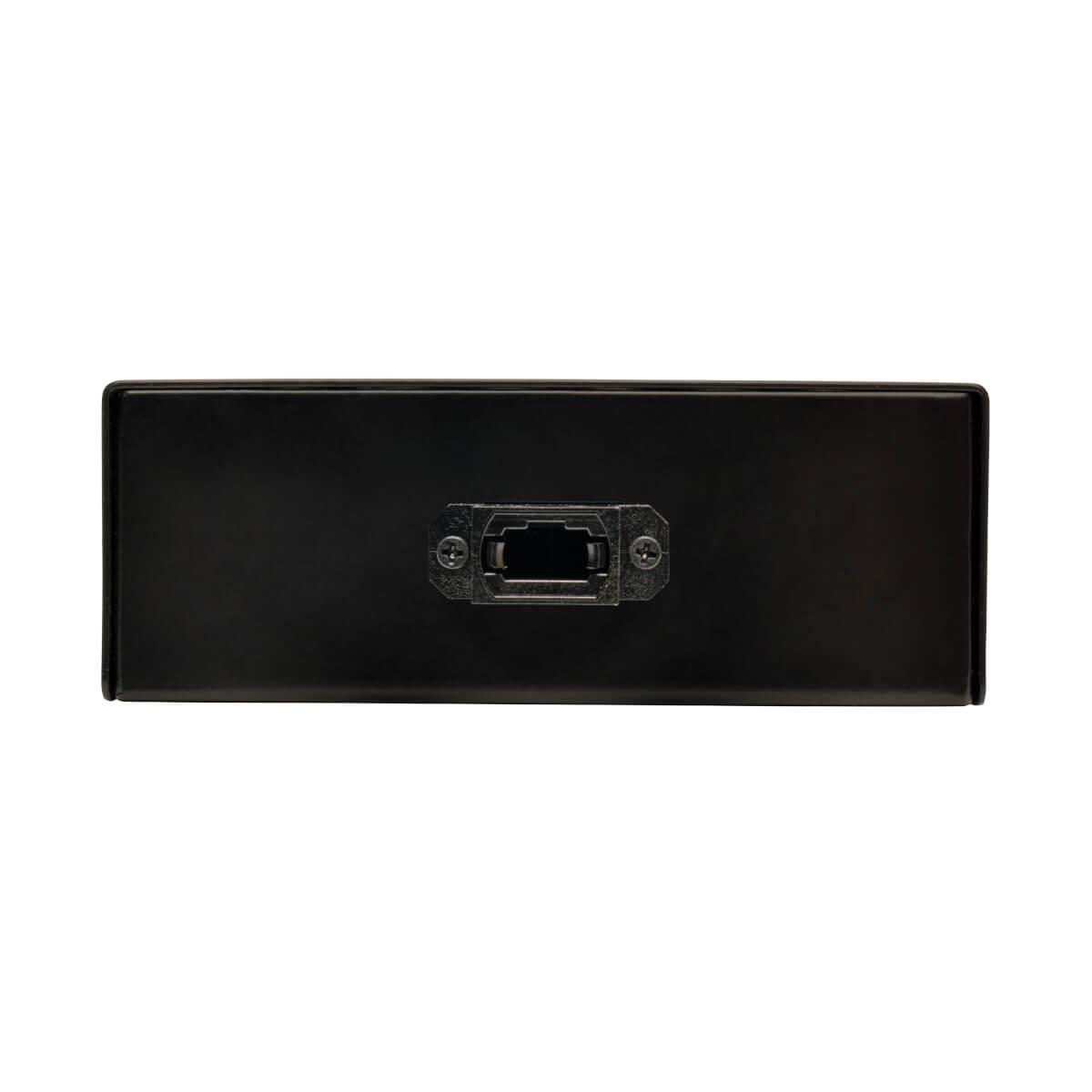

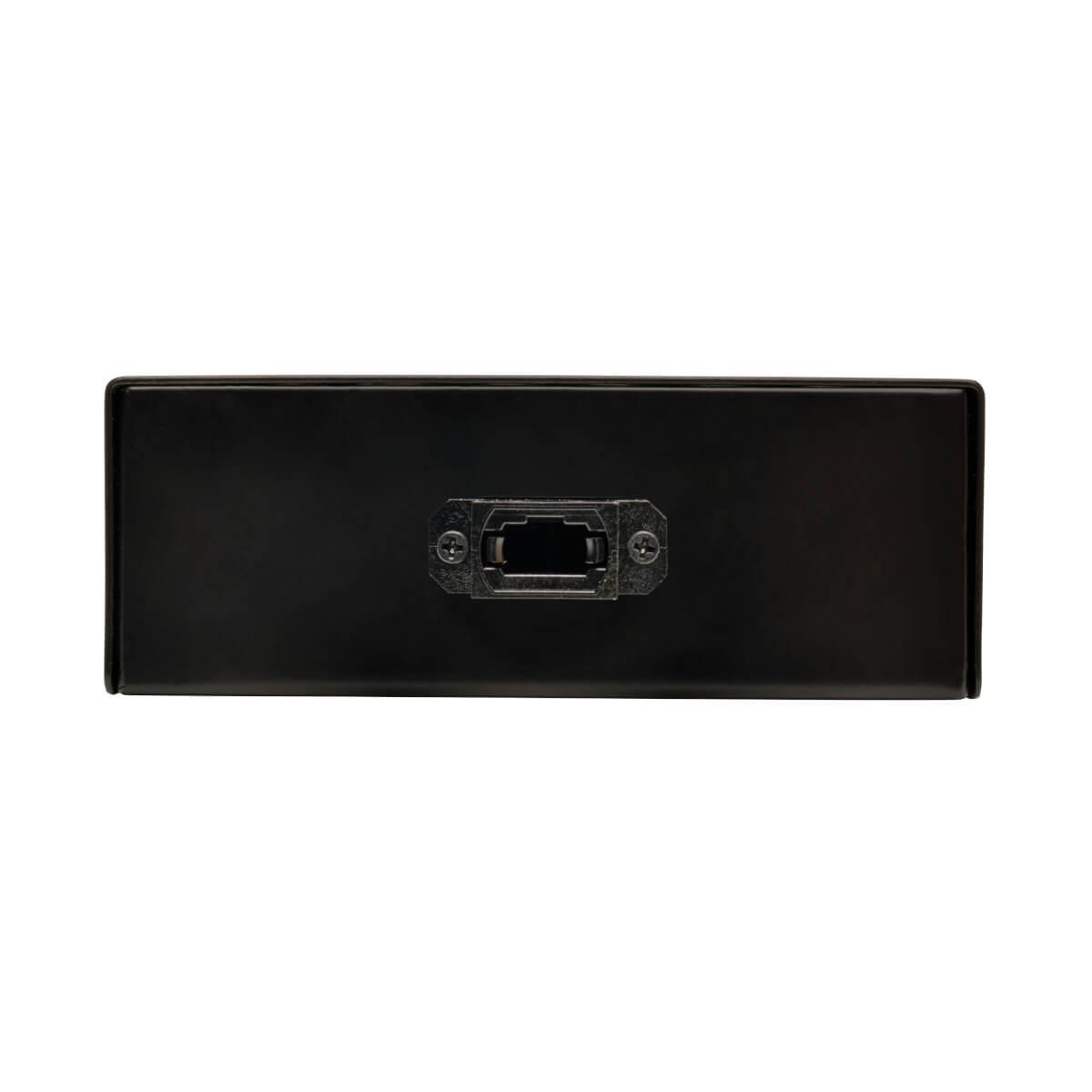

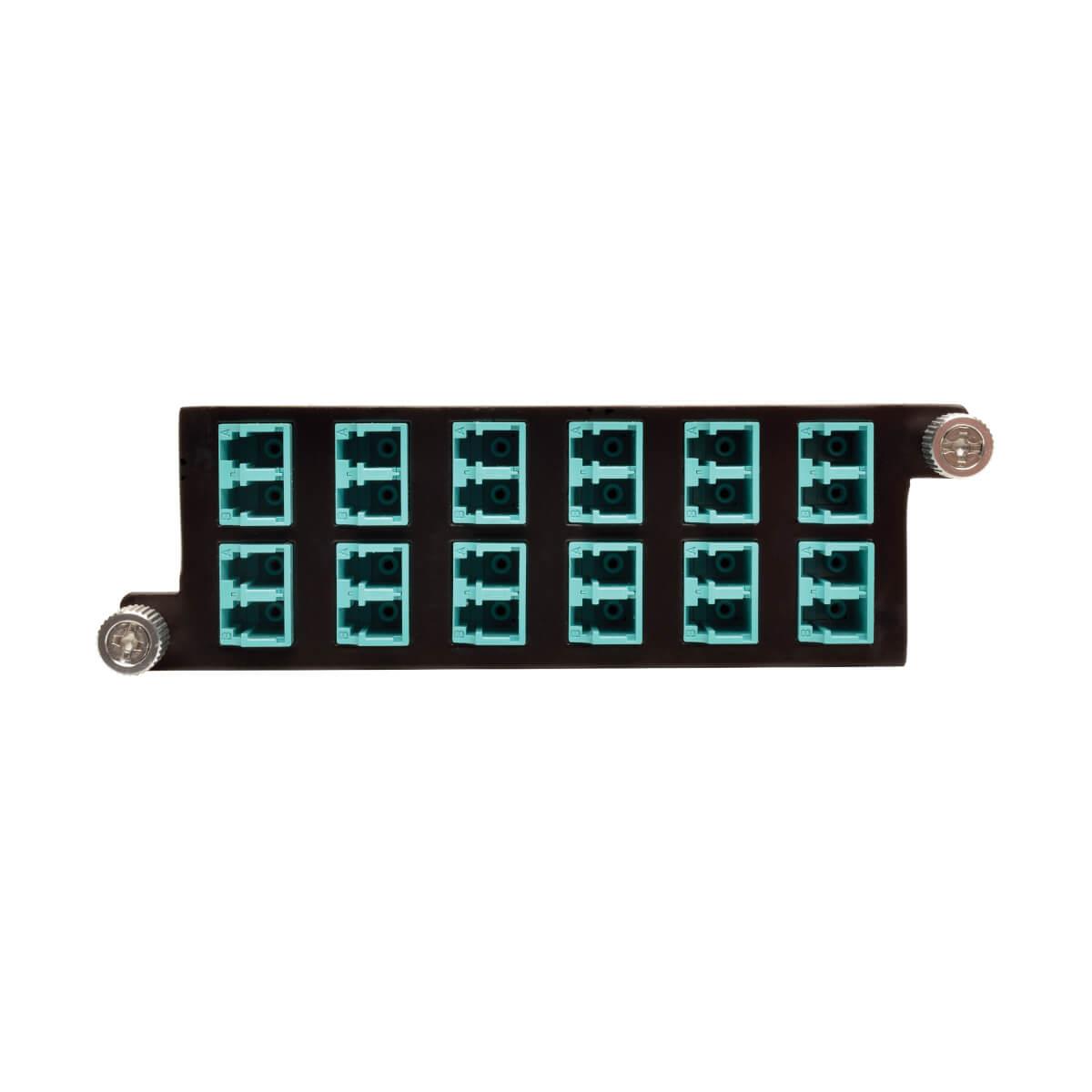

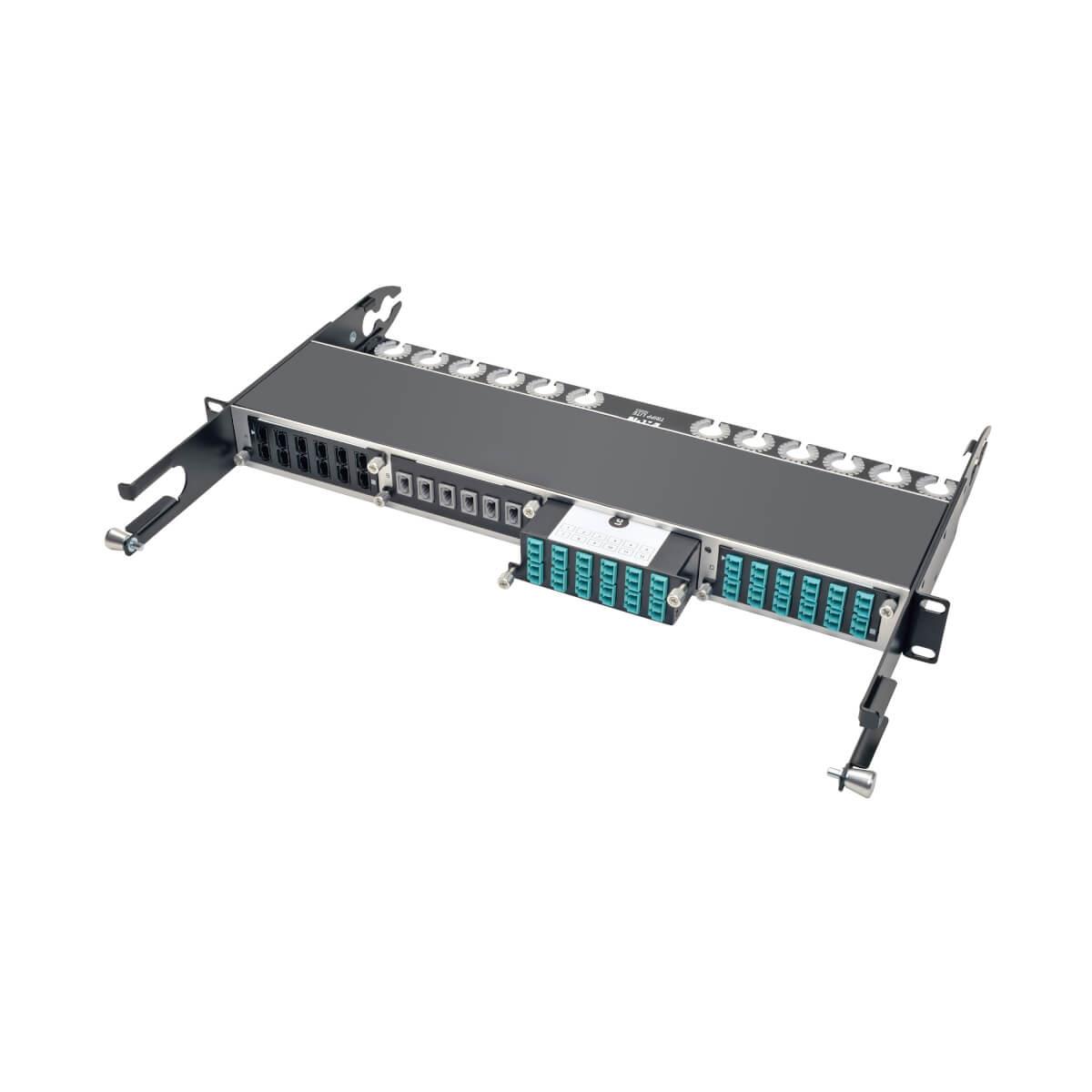

The N484-1M24-LC12 is a high-density 100/120 Gb to 10 Gb Breakout Cassette with (x12) LC connections to a 24-Fiber, OM4, MTP/MPO connection. For use with N484-00U and N484-01U chassis. You can connect up to four cassettes per N484-01U or one per N484-00U. Supports 100/120 GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of <25db. Effectively trunks 24-fibers between IDFs and MDFs with a single 24-fiber MTP/MPO cable, breaking out to (x12) LC Duplex fiber connections. 24-fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity. Guaranteed compatibility when used with recommended cabling. Cassette designed specifically for use with N820-, N821-, and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.
| Netwerk | |
| Netwerkstandaard | IEEE 802.3ae |
| Maximale overdrachtssnelheid van gegevens | 120000 Mbit/s |
| Aantal poorten | 12 |
| Aansluiting(en) | MTP |
| Design | |
| Kleur van het product | Zwart |
| Materiaal | Staal |
| Certificering | REACH |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 50 øC |
| Technische details | |
| Duurzaamheidscertificaten | RoHS |
| Certificaten van naleving | RoHS |
| Gewicht en omvang | |
| Breedte | 88,9 mm |
| Hoogte | 30,5 mm |
| Diepte | 119,4 mm |
| Gewicht | 240 g |
| Verpakking | |
| Breedte verpakking | 195,1 mm |
| Diepte verpakking | 39,9 mm |
| Hoogte verpakking | 150,1 mm |
| Gewicht verpakking | 380 g |
| Logistieke gegevens | |
| Land van herkomst | China |
| Producten per pallet | 1 stuk(s) |
| (Buitenste) hoofdverpakking breedte | 395 mm |
| (Buitenste) hoofdverpakking lengte | 160 mm |
| (Buitenste) hoofdverpakking hoogte | 225 mm |
| (Buitenste) hoofdverpakking brutogewicht | 4,28 kg |
| Hoeveelheid per (buitenste) hoofdverpakking | 10 stuk(s) |
| GTIN (EAN/UPC)-nummer (buitenste) hoofdverpakking | 10037332187175 |
| Warranty | |
| Base Warranty | Non Non |
