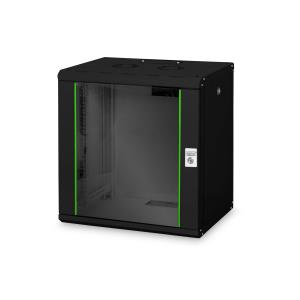

Wall mounting cabinet - 12U 607x600x600mm, black (RAL 9005)
ITCurry #: M9239097 | Article #: DN-19 12U-6/6-EC-SW-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
- 450 mm depth provides a space saving installation
- Optimized air ventilation and exhaustion
- Lockable safety-glass door with steel frame
The network cabinets for wall installation from the Dynamic series were developed for easy and especially cost-optimized network expansion. The roof, floor and back wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable side walls as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The mounting plate provided is bolted on the wall and then connected with the housing.
| Kenmerken | |
| Rackcapaciteit | 12U |
| Soort | Wandrek |
| Maximale gewichtscapaciteit | 60 kg |
| Kleur van het product | Zwart |
| Materiaal | Staal |
| Voordeurconstructie | Glas |
| Zijpaneelconstructie | Staal |
| Verwijderbare zijpanelen | Ja |
| Inbegrepen zijpanelen | Ja |
| Sleutelsleuf | Ja |
| Voordeur met sleutelvergrendeling | Ja |
| Internationale veiligheidscode (IP) | IP20 |
| Gewicht en omvang | |
| Breedte | 600 mm |
| Diepte | 600 mm |
| Hoogte | 638 mm |
| Gewicht | 29 kg |
| Verpakking | |
| Breedte verpakking | 630 mm |
| Diepte verpakking | 650 mm |
| Hoogte verpakking | 875 mm |
| Verpakkingsvolume | 253890 cmü |
| Gewicht verpakking | 23,5 kg |
| Logistieke gegevens | |
| Code UK-handelstarief | 94032080 |
| Land van herkomst | China |
| Code geharmoniseerd systeem (HS) | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
