12U wall mounting cabinet 643x600x450 mm, color black (RAL 9005)
ITCurry #: M9235814 | Article #: DN-19 12-U-SW-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The DIGITUS® Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany
- Robust steel construction for sturdy wall mounting

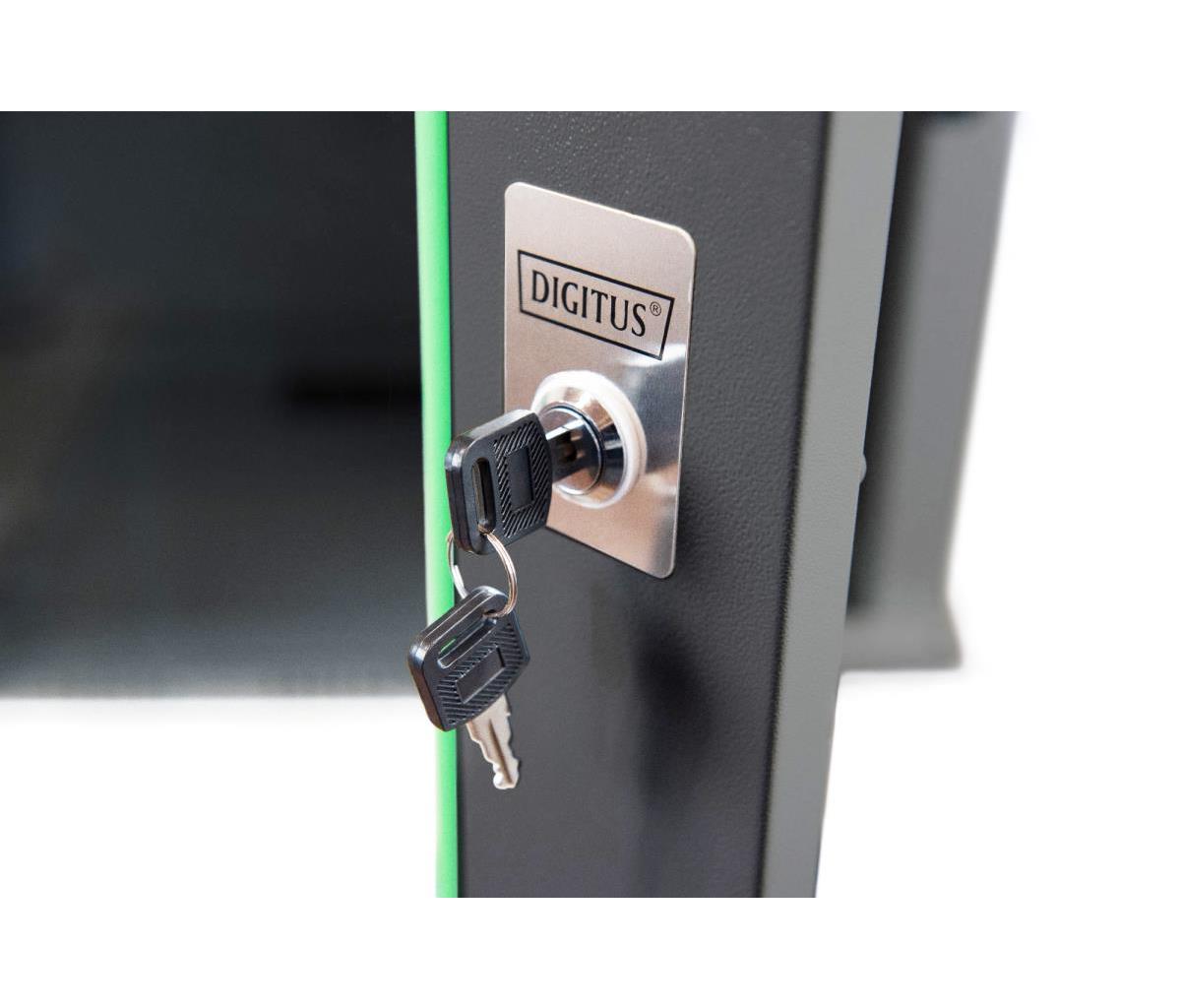

- Lockable safety-glass door with steel frame
- Side panels are lockable and removable

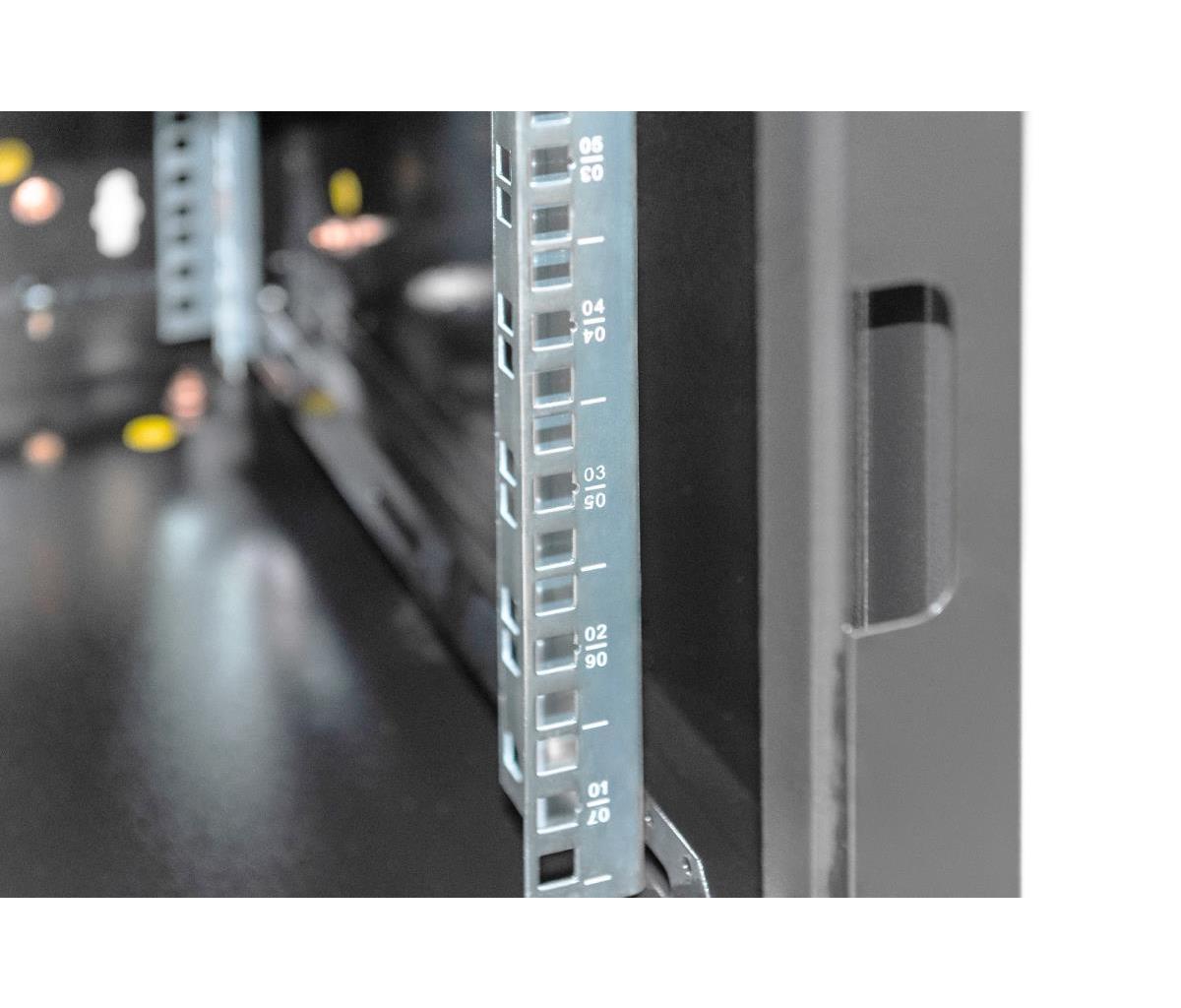

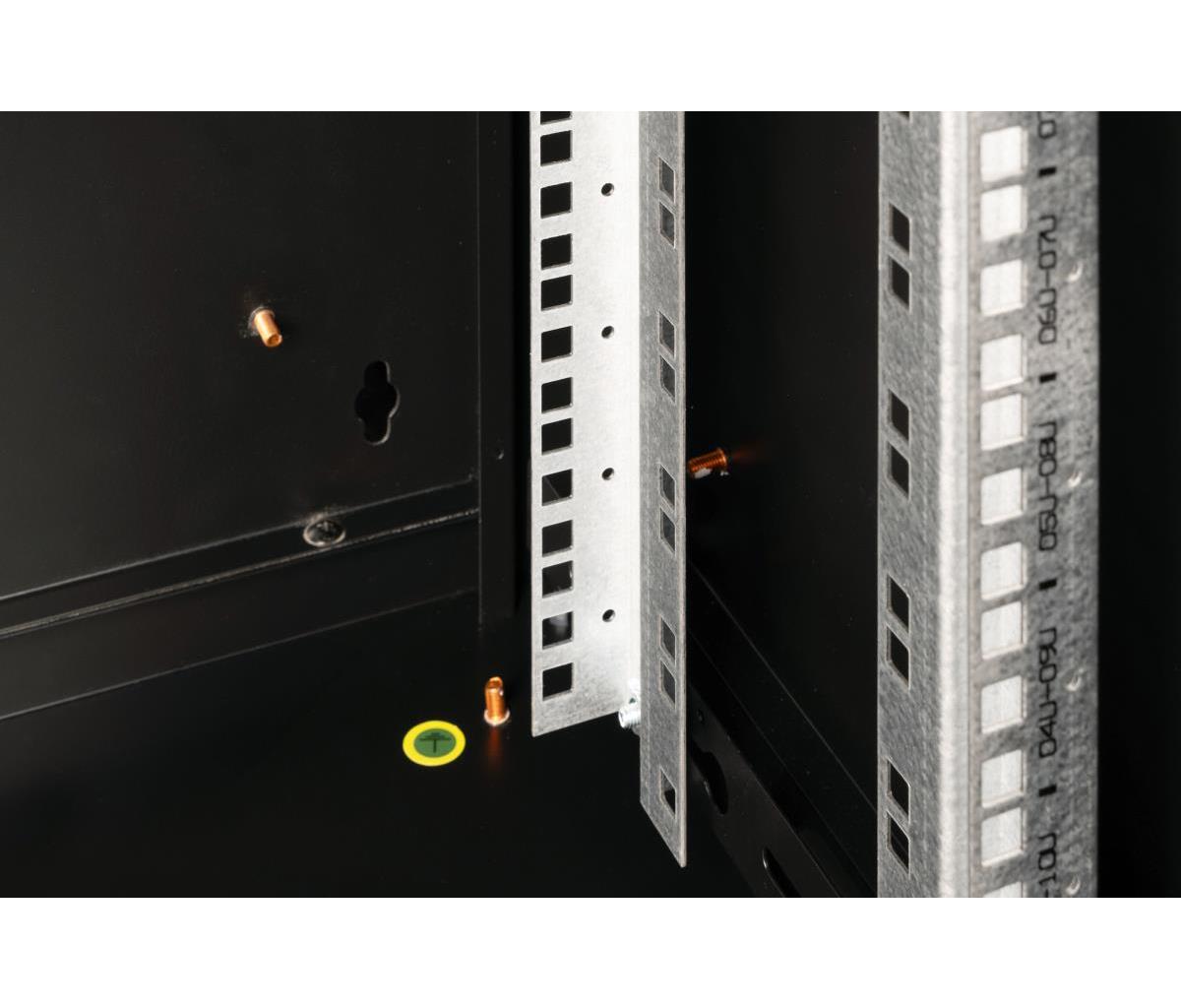

The network cabinets for wall installation from the Unique series were developed for especially convenient and flexible network cabling. There is a sliding cable inlet with foam rubber seal in the roof of each cabinet. The back wall and floor plate are equipped with pre-cut cable inlets with a plastic cover. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pair of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable and lockable side walls in a modular design as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The housing frame plate is bolted on the wall and then connected with the housing. With optionally available levelling feet or casters, the wall housings from the Unique series can also be used as a free-standing unit.
| Kenmerken | |
| Rackcapaciteit | 12U |
| Soort | Wandrek |
| Maximale gewichtscapaciteit | 100 kg |
| Kleur van het product | Zwart |
| Materiaal | Staal |
| Voordeurconstructie | Glas |
| Inbegrepen zijpanelen | Ja |
| Sleutelsleuf | Ja |
| Type koeling | Actief |
| Internationale veiligheidscode (IP) | IP20 |
| Gewicht en omvang | |
| Maat | 48,3 cm (19") |
| Breedte | 600 mm |
| Diepte | 450 mm |
| Hoogte | 643 mm |
| Verpakking | |
| Wand montagekit | Ja |
| Breedte verpakking | 650 mm |
| Diepte verpakking | 500 mm |
| Verpakkingsvolume | 225225 cmü |
| Gewicht verpakking | 26 kg |
| Logistieke gegevens | |
| Code UK-handelstarief | 94032080 |
| Land van herkomst | China |
| Code geharmoniseerd systeem (HS) | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
