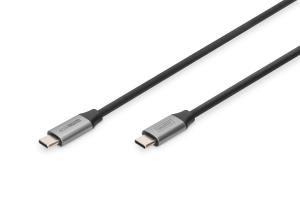

USB-C/M to USB-C/F PD60W Gen1 USB3.0 Extension Cable 1m 4K@60Hz
ITCurry #: M9238822 | Article #: DB-300230-010-S-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Supports the following transmission types audio/video/data transmission/charging function
- Supports data transfer rates of up to 5 Gbit/s
- Supports USB Power Delivery with 20V, 3A and 60W
- Backwards compatible with Thunderbolt 3 and USB 2.0
- Supports DisplayPort video/audio signals and PCi Express
- Video/audio support up to 4K at 60Hz
- USB version: USB 3.0 Gen. 1
- Aluminum housing
The Digitus® USB 3.0 Gen.1 extension cable is the all-rounder among cables. Thanks to the Thunderbolt 3 protocol, PCI Express, DisplayPort and host-to-host transmissions can be realized. You can use this cable to transfer audio/video signals, data and power. The data transfer speed is 5 Gbit/s. This allows you to transfer large data such as movies and music within seconds. The video signals are transmitted in max. 4K at a refresh rate of 60 Hz. Thanks to USB Power Delivery, the charging function is guaranteed. With the corresponding charger, you can charge your smart devices with max. 60 W (3 A / 20 V) in a short time. The USB Type-C interface enables broad compatibility with devices with this connection.
| Kenmerken | |
| USB-versie | USB 3.2 Gen 1 (3.1 Gen 1) |
| Aansluiting 1 | USB C |
| Aansluiting 2 | USB C |
| Aansluiting 1 type | Mannelijk |
| Aansluiting 2 type | Vrouwelijk |
| Connector 1 vormfactor | Recht |
| Connector 2 vormfactor | Recht |
| Connector-materiaal | Nikkel |
| Contact geleider materiaal | Nikkel |
| Kabelhulsmateriaal | Thermoplastische elastomeer (TPE) |
| Geleidermateriaal | Koper |
| Ferrietkraal | Nee |
| Maximale overdrachtssnelheid van gegevens | 5000 Mbit/s |
| Max. overdrachtssnelheid | 5 Gbit/s |
| Kleur van het product | Zwart |
| Soort kabel | Ronde kabel |
| Plug and play | Ja |
| USB Power Delivery (USB PD) | Ja |
| USB Power Delivery tot max. | 60 W |
| Energie | |
| Spanning | 20 V |
| Uitgangsstroom (max) | 3 A |
| Gewicht en omvang | |
| Snoerlengte | 1 m |
| Diameter van de kabel | 4,3 mm |
| Verpakking | |
| Breedte verpakking | 120 mm |
| Diepte verpakking | 110 mm |
| Hoogte verpakking | 30 mm |
| Gewicht verpakking | 45 g |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 60 øC |
| Temperatuur bij opslag | -10 - 50 øC |
| Logistieke gegevens | |
| Verpakkingsvolume | 396 cmü |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
