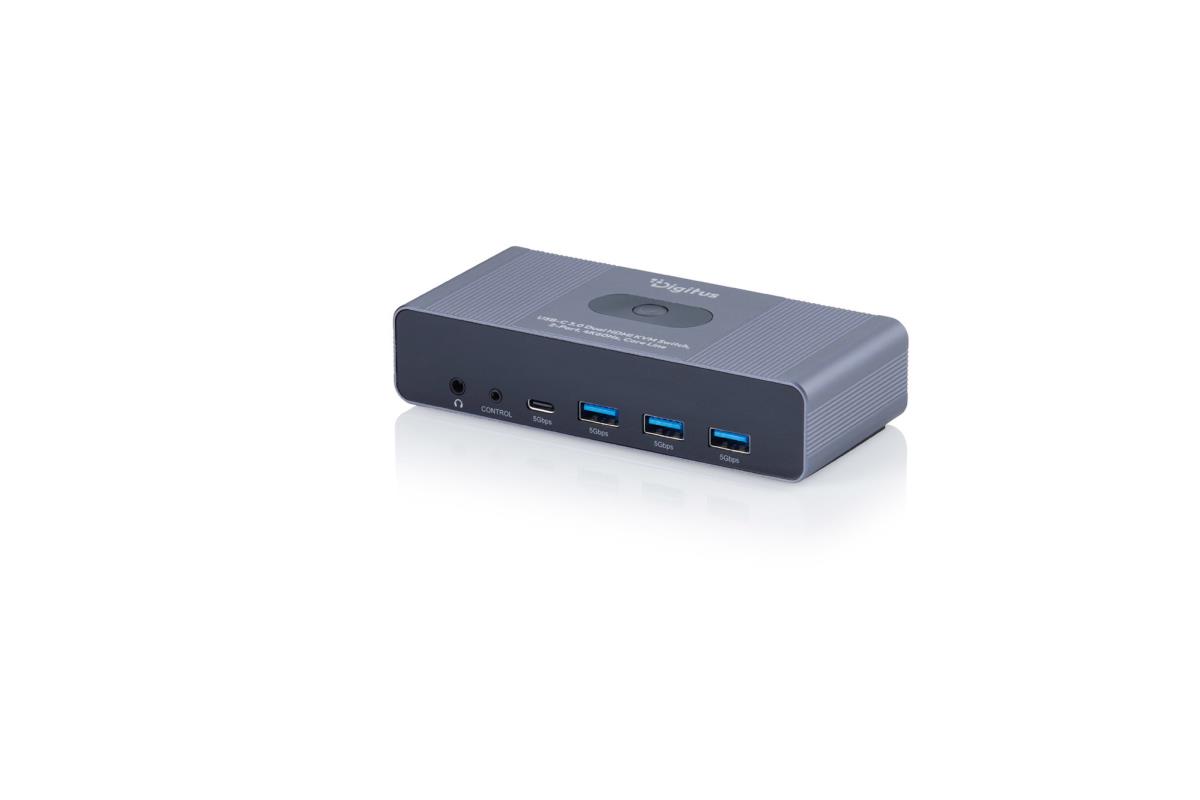

KVM Switch - 2x2 HDMI, 4K@60Hz 3x USB3.0, 1x USB C, Core Line
ITCurry #: M923A039 | Article #: DS-12856-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Switch seamlessly between two devices without having to reconnect - 4K@60Hz, USB 3.0, audio and compact design ensure efficient working and a tidy desk environment.
- KVM switch with dual HDMITM support for 2 monitors per PC
- Two HDMITM inputs and outputs per system - ideal for dual-view workstations
- USB 3.0 hub with 3x USB-A + 1x USB-C for peripheral devices (up to 5 Gbit/s)
- 3.5 mm audio output for stereo sound
- Simple switching via appliance switch or remote control with magnetic base
- Supports 4K@60Hz, HDR, HDCP 2.2/1.4, 3D, DTS, Dolby Digital and much more
- Plug & Play - no additional software required
- Power supply via USB or optionally via 5V/2A power supply unit
DIGITUS USB-C 3.0 Dual HDMI KVM Switch, 2-port, 4K60Hz, Core Line Two computers, two monitors - complete control via a single keyboard and mouse combination and razor-sharp 4K image quality. The DIGITUS® USB-C 3.0 Dual HDMI KVM Switch from the Core Line enables simultaneous control of two HDMITM-capable computers with dual display output - ideal for workstations with two monitors. Switching between the systems is effortless with the push of a button or via the supplied wired remote control. In addition to support for up to 4K@60Hz (YUV 4:4:4), HDR and HDCP, the switch also offers extended connection options for USB peripherals. Three USB-A 3.0 ports and one USB-C 3.0 port enable the shared use of storage devices, printers or input devices with data rates of up to 5 Gbit/s. Note: When using external hard disks or SSDs with higher power consumption, it is recommended to use an additional 5V/2A power adapter (not included). An integrated 3.5 mm audio output provides clear stereo sound. Power is supplied via USB-C; an optional connection for an external power supply is available for devices with higher power requirements.
| Poorten & interfaces | |
| Aantal computers | 2 |
| Aansluiting video | HDMI |
| Aantal HDMI-poorten | 6 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 3 |
| USB-hub | Ja |
| Aantal USB 3.2-hubpoorten type A (3.1 Gen 1) | 3 |
| USB-connectortype | USB Type-C, USB Type-A |
| USB-versie | 3.2 Gen 1 (3.1 Gen 1) |
| Audio-aansluitingen | Ja |
| Hoofdtelefoonuitgangen | 1 |
| Prestatie | |
| HD type | 4K Ultra HD |
| Maximum resolutie | 3840 x 2160 Pixels |
| Data transfer snelheid (max) | 18 Gbit/s |
| HDR-ondersteuning | Ja |
| HDCP | Ja |
| HDCP versie | 1.4/2.2 |
| Design | |
| Kleur van het product | Grijs |
| Materiaal behuizing | Aluminium |
| Beeldscherm | |
| Ingebouwd display | Nee |
| Energie | |
| Stroombron | USB |
| Externe adapter | Ja |
| Stroomvoorziening via USB | Ja |
| Gewicht en omvang | |
| Breedte | 135 mm |
| Diepte | 60 mm |
| Hoogte | 30 mm |
| Gewicht | 227 g |
| Verpakking | |
| Gewicht verpakking | 580 g |
| Inhoud van de verpakking | |
| Meegeleverde kabels | USB Type-a naar USB Type-C |
| Snelle installatiehandleiding | Ja |
| Afstandsbediening inbegrepen | Ja |
| Logistieke gegevens | |
| Code UK-handelstarief | 84718000 |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
