Server NIC 4 Port RJ45 RTL8125B 2.5 GBits
ITCurry #: M9238991 | Article #: DN-10136-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

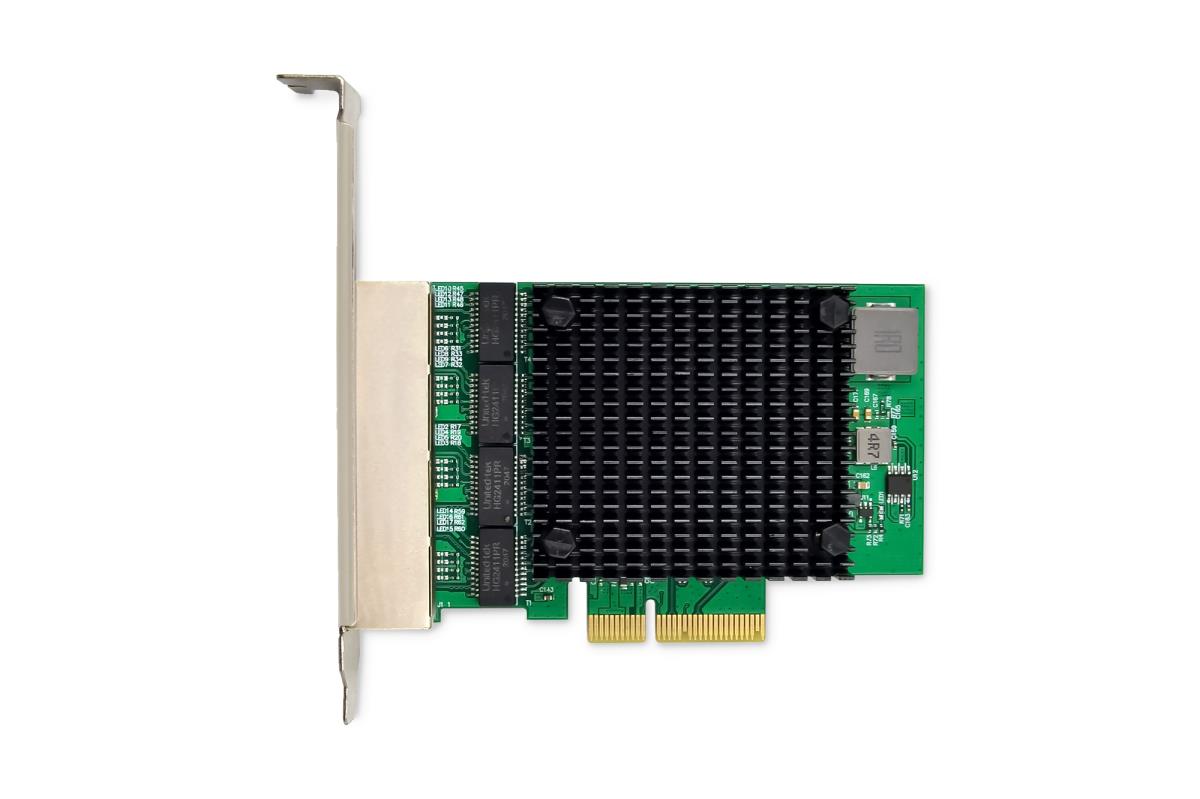

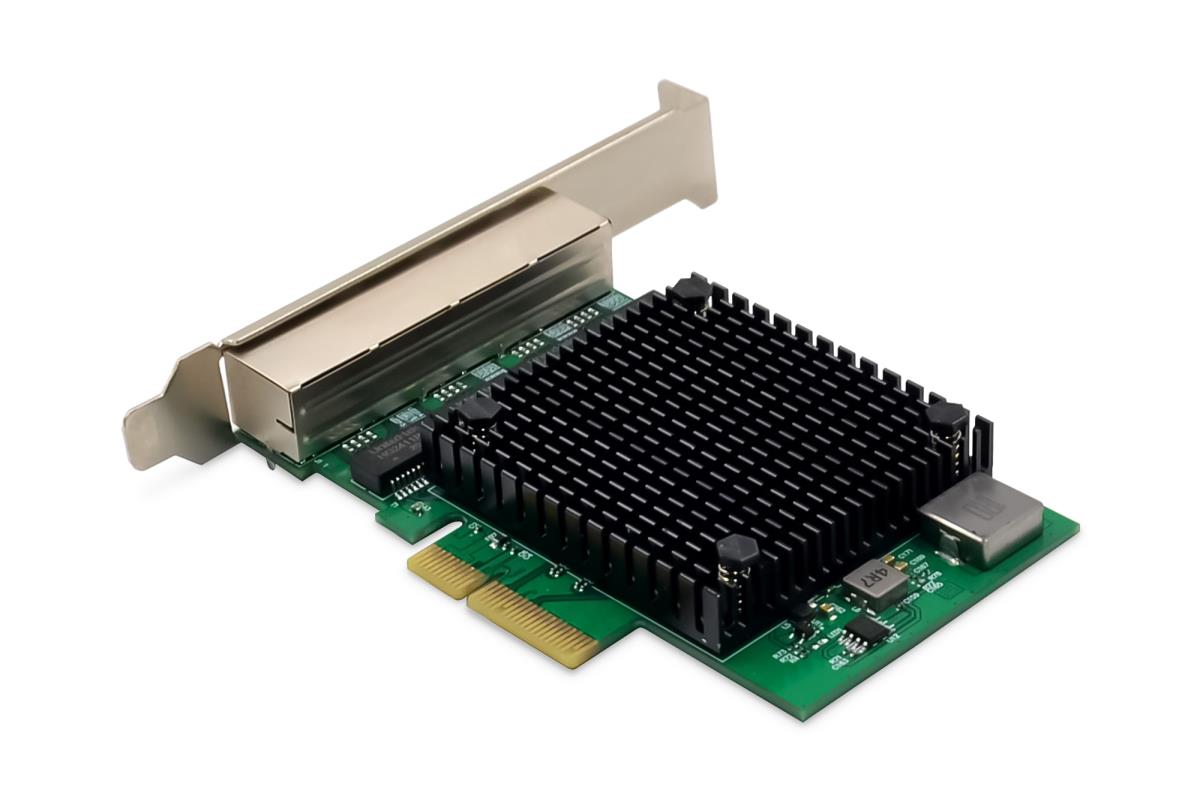

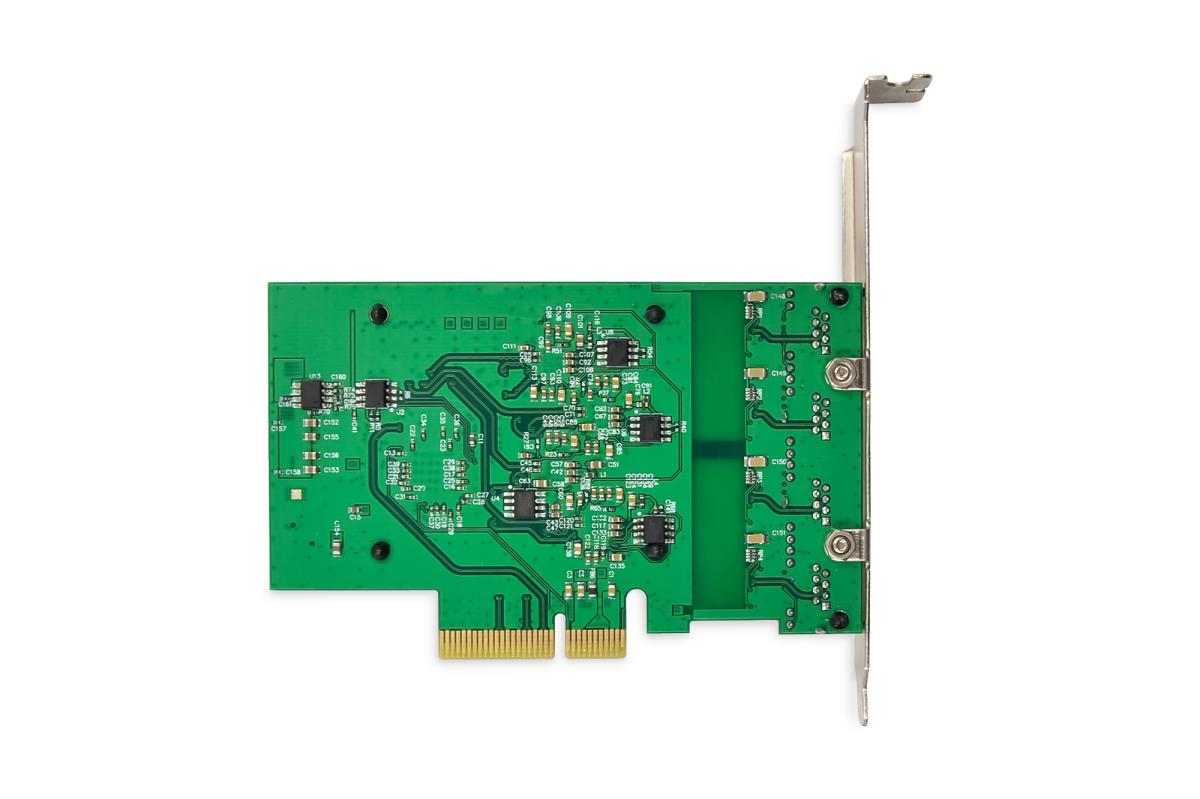

The DN-10136 PCIe Quad-Port 2.5G network adapter combines an IEEE802.3-compliant Media Access Controller with a four-speed Ethernet transceiver. It meets the IEEE802.3u, IEEE802.3ab, and IEEE802.3bz specifications, supports high-speed transmissions over CAT5e/ CAT3 UTP cables, and is suitable for desktops, workstations, servers, communication platforms, and embedded applications.
- 2-Lane PCI Express bus connecting with up to 10Gbps bus width
- PCI Express interface: x4
- Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
- Supports 2.5G and 1G Lite mode
- Supports pair swap/polarity/skew correction
- Crossover Detection& Auto-Correction
The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | PCI Express |
| Interface | Ethernet |
| Aantal Ethernet LAN (RJ-45)-poorten | 4 |
| PCI versie | 2.1 |
| Netwerk | |
| Maximale overdrachtssnelheid van gegevens | 10000 Mbit/s |
| Netwerkstandaard | IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 100,1000,2500 Mbit/s |
| Wake-on-LAN | Ja |
| Full duplex | Ja |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 16000 |
| Design | |
| Component voor | Pc/server |
| Kleur van het product | Zwart, Groen |
| Intern | Ja |
| Chipset | Realtek RTL8125B |
| LED-indicatoren | Ja |
| Land van herkomst | China |
| Energie | |
| Spanning | 5 - 12 V |
| Minimale systeemeisen | |
| Ondersteunt Windows | Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista |
| Ondersteunt Linux | Ja |
| Andere ondersteundende systemen | DOS |
| Ondersteunde server operating systems | Windows Server 2008, Windows Server 2012 |
| Gewicht en omvang | |
| Breedte | 70 mm |
| Diepte | 20 mm |
| Hoogte | 108 mm |
| Gewicht | 100 g |
| Verpakking | |
| Breedte verpakking | 155 mm |
| Diepte verpakking | 30 mm |
| Hoogte verpakking | 220 mm |
| Gewicht verpakking | 243,5 g |
| Inhoud van de verpakking | |
| Montagebeugels meegeleverd | Ja |
| Ondersteunings-cd | Ja |
| Gebruikershandleiding | Ja |
| Logistieke gegevens | |
| Code UK-handelstarief | 84718000 |
| Overige specificaties | |
| Verpakkingsvolume | 1023 cmü |
| Warranty | |
| Base Warranty | Non Non |
