Nim Switch Module 8-port 2.5mgig Rj45
ITCurry #: 0918AJ66 | Article #: C-NIM-8M=-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

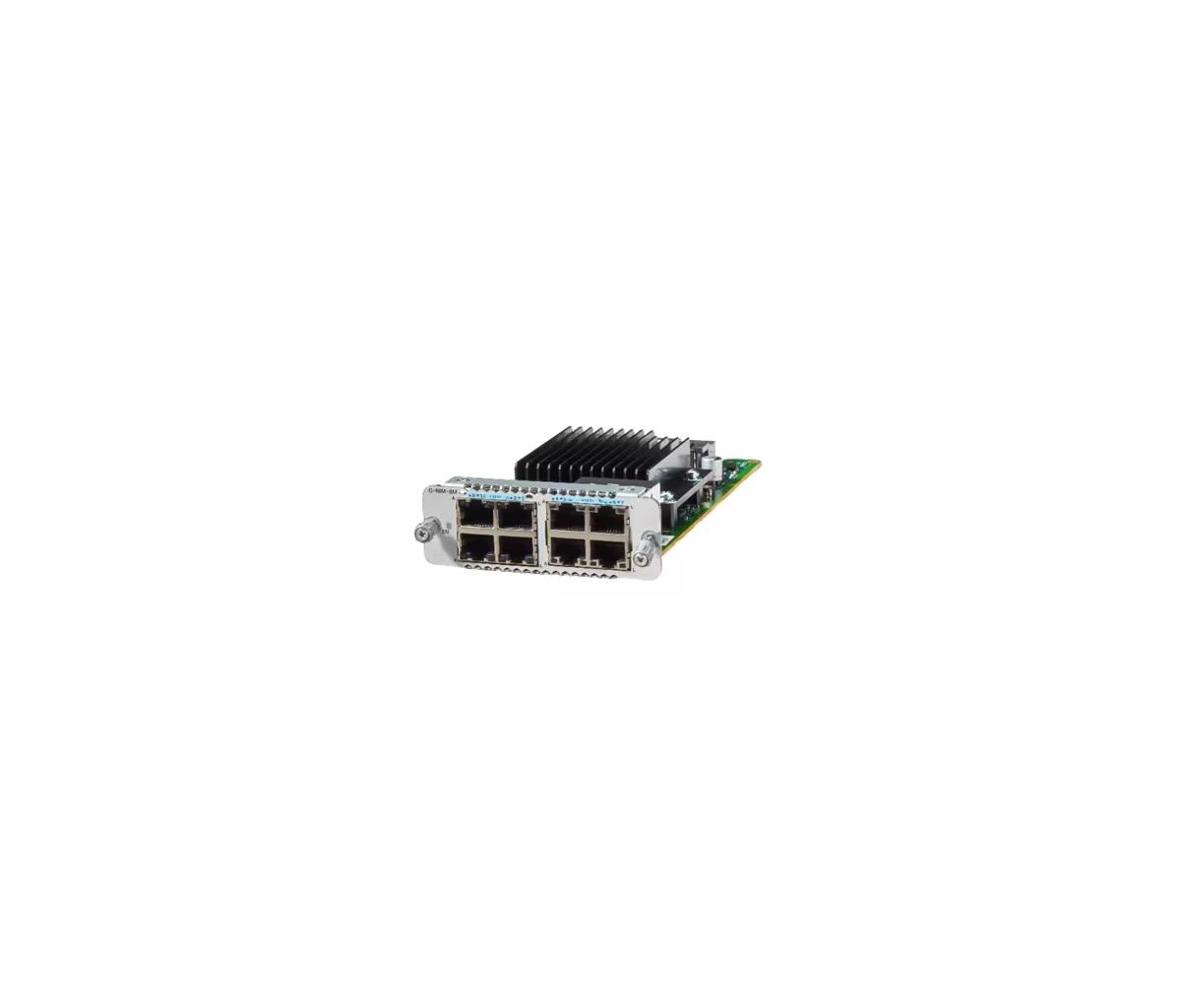

The C-NIM-8M is a LAN/WAN module with eight 2.5G BASE-T (Multigigabit) RJ-45 copper line ports. Its eight ports support 100M/1G/2.5G BASE-T connections also known as Multigigabit or “mGig” ports. The 2.5G mGig ports accommodate full-speed connections for new high-speed branch devices with 2.5G mGig uplinks, such as Wi-Fi 6 Wireless Access Points and Cellular Gateways. 10M (10BASE-T) is not supported on the C-NIM-8M. Four of its ports support up to 90W Cisco Universal Power over Ethernet Plus (Cisco UPOE®+; 802.3bt-compliant) while being backward compatible with PoE, PoE+, and UPOE. The capability for providing 90W UPOE+ can be used for powering even the most demanding devices, such as high-performance Wireless Access Points and Cellular Gateways directly from the host router. As with the other LAN/WAN modules in this family, this module’s two highest-numbered ports can be configured to operate in full Layer 3 mode with the added support of WAN MACsec.
The C-NIM-8M is supported on all Catalyst 8200 and 8300 Series platforms.
| Netwerk | |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 100,1000,2500 Mbit/s |
| Full duplex | Ja |
| Netwerkstandaard | IEEE 802.1AE, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1x |
| Jumbo Frames ondersteuning | Ja |
| Data-uitwisseling | |
| Aantal VLANs | 1024 |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 8 |
| Prestatie | |
| Quality of Service (QoS) | Ja |
| Compatibiliteit | Catalyst 8300/8200 Series/8200L |
| Energie | |
| Power over Ethernet (PoE) | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 55 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 85 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Bedrijfstemperatuur, bereik | 23 - 131 øF |
| Gewicht en omvang | |
| Breedte | 89 mm |
| Diepte | 184 mm |
| Hoogte | 32 mm |
| Gewicht | 300 g |
| Warranty | |
| Base Warranty | Non Non |
