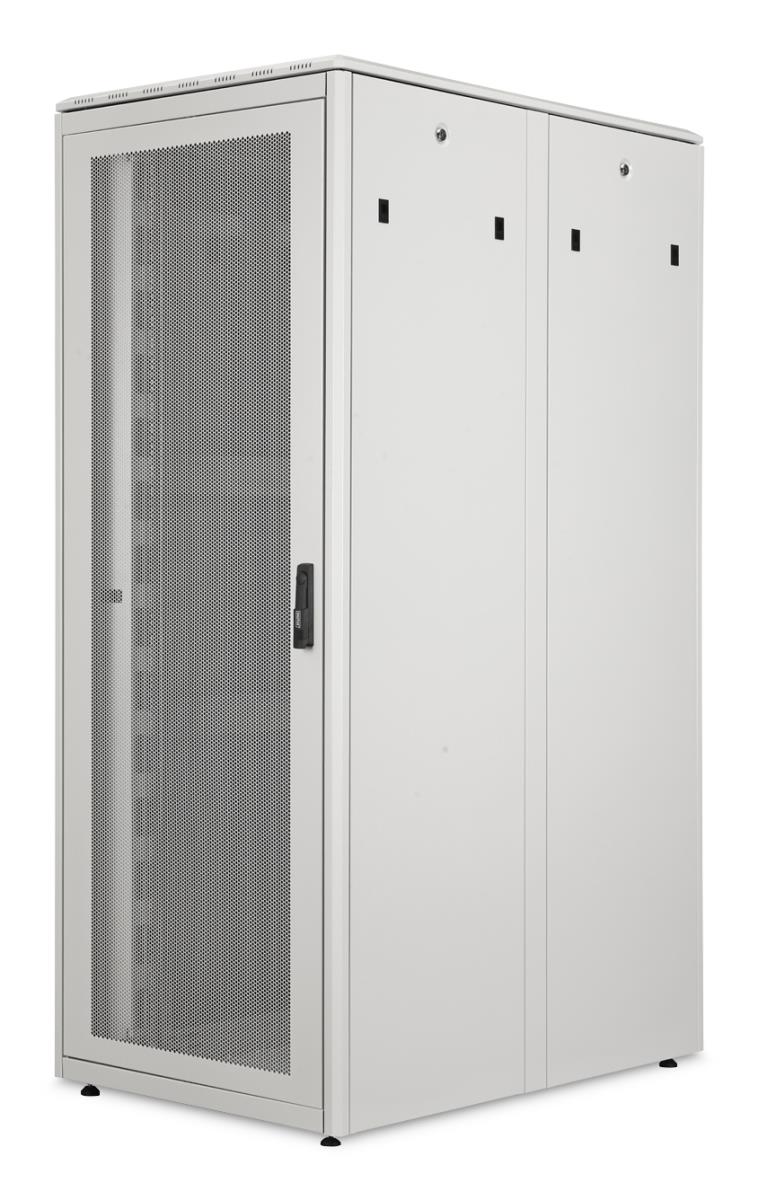

Server cabinet - 42U Unique Server-N2053x800x1200mm - grey (RAL 7035)
ITCurry #: M9239892 | Article #: DN-31304-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The DIGITUS® server cabinets of the Unique Server-N series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.
- High load capacity of the 483 mm (19") profile rails of up to 1200 kg
- Swivel handle with profile half-cylinder lock incl. type 333 key on the front and rear door
- Modular, openable base chassis with removable 19" blind panels
- Flexible cable routing options thanks to generous cable inlets with brushes in the floor and roof
- Vertical cable ducts with cable routing aids and cover installed in the front panel
- Integrated PDU holders in the rear cabinet area on the left and right
- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)
The server cabinets in the Unique Server-N series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. There are also cable inlets with brushes at the rear of the floor chassis. Generous vertical cable ducts with cable routing aids and covers, installed in the front (from 800 mm enclosure width), as well as integrated holders for socket strips in the rear enclosure area, perfectly round off the versatile features of the server enclosure. Perforated steel doors, both at the front and rear, ensure improved air circulation and therefore optimum passive cooling. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
| Kenmerken | |
| Rackcapaciteit | 42U |
| Soort | Vrijstaande rek |
| Maximale gewichtscapaciteit | 1200 kg |
| Kleur van het product | Grijs |
| Materiaal | Staal |
| Achterdeurconstructie | Staal |
| Voordeurconstructie | Geperforeerd |
| Zijpaneelconstructie | Staal |
| Afneembare voordeur | Ja |
| Verwijderbare zijpanelen | Ja |
| Inbegrepen zijpanelen | Ja |
| Zijpaneelstijl | Blind |
| Voordeurstijl | Blind |
| Sleutelsleuf | Ja |
| Sleutelvergrendeling achterdeur | Ja |
| Voordeur met sleutelvergrendeling | Ja |
| Zijpaneel met sleutelvergrendeling | Ja |
| Verstelbare voeten | Ja |
| Verbeterd kabelbeheer | Ja |
| Internationale veiligheidscode (IP) | IP20 |
| Gewicht en omvang | |
| Maat | 48,3 cm (19") |
| Breedte | 800 mm |
| Diepte | 1200 mm |
| Hoogte | 2053 mm |
| Gewicht | 150 kg |
| Inbouwdiepte (min) | 40 cm |
| Inbouwdiepte (max) | 113,5 cm |
| Verpakking | |
| Moeren inbegrepen | Ja |
| Inclusief schroeven | Ja |
| Breedte verpakking | 850 mm |
| Diepte verpakking | 1250 mm |
| Hoogte verpakking | 2103 mm |
| Gewicht verpakking | 153 kg |
| Warranty | |
| Base Warranty | Non Non |
