Product Informatie
Highest degree of flexibility during the administration of the server farm

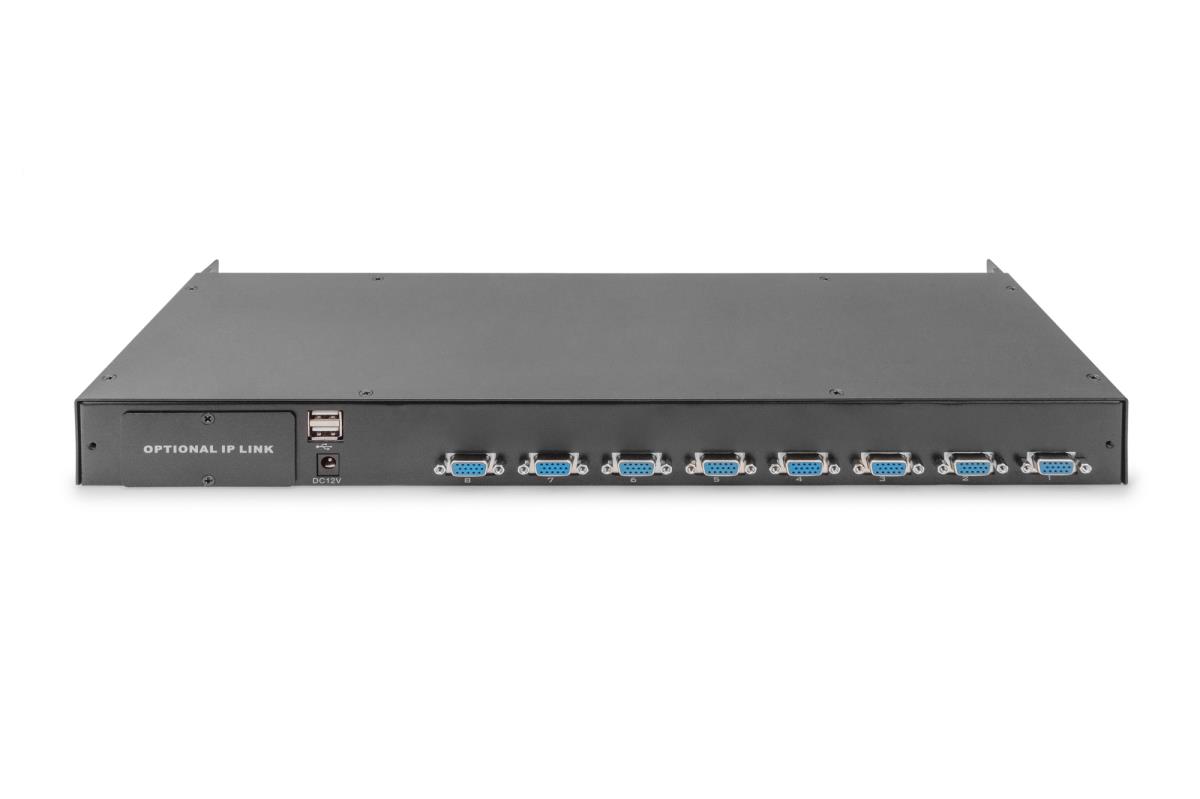

- Modular KVM switch for connecting up to 8 servers
- Space-saving casing with 1U design height

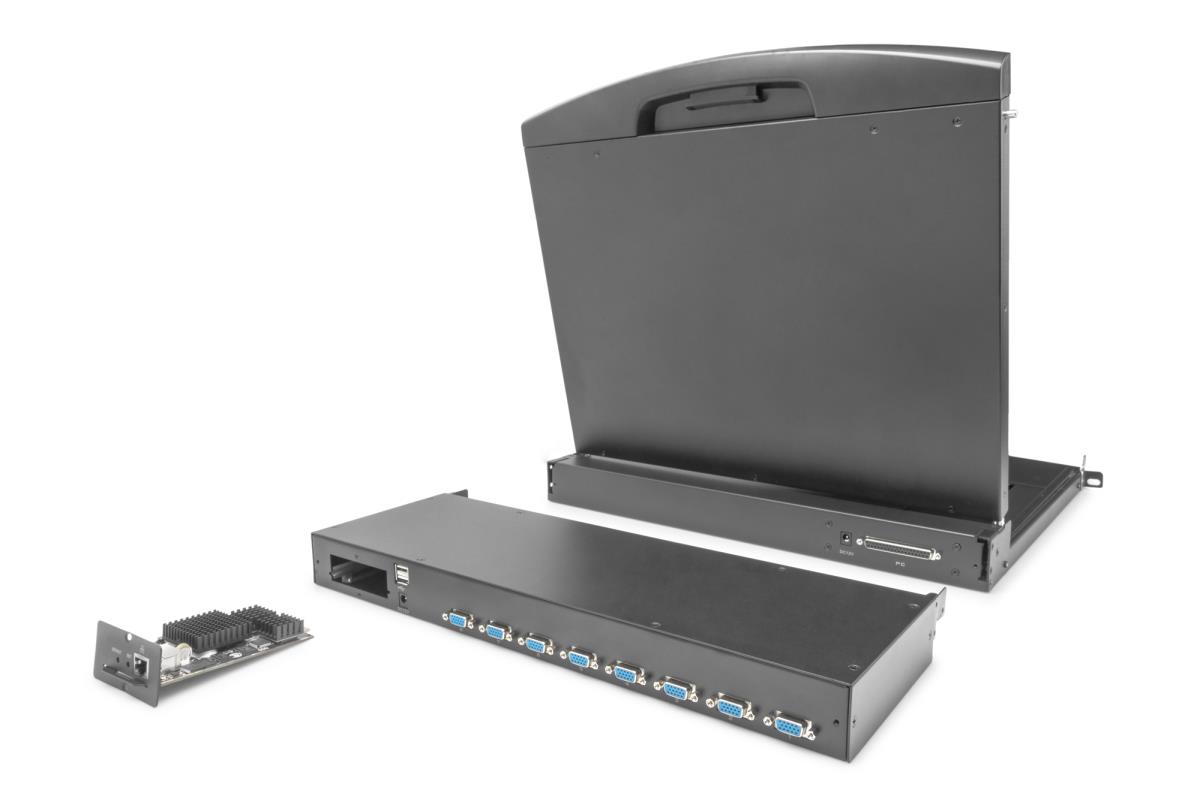

- Suitable for modular KVM consoles DS-72210 and DS-72211
The modular DIGITUS® KVM switch offers a multitude of individual configuration possibilities, so that it can be adjusted to the area in which the console is being used. As a result, the console is economical and can be upgraded and/or converted at any time with further modules. Due to the flexible configuration, a high level of future security of the console is thus guaranteed. The modular KVM switch offers the connection of a server via USB or PS/2, as well as VGA. The DIGITUS® 17“ oder 19“ modular console, a keyboard and the appropriate set of cables are required for operation. The high quality KVM switch modules with IP function (optional) are ideal for use in small to mid-sized server rooms in which access by the administrator must be guaranteed from any place at any time. They offer a direct connection from a local console or with the optional IP module with a browser via an existing internet connection. The accessories are offered in the most diverse versions.
| Poorten & interfaces | |
| Aantal computers | 8 |
| Aansluiting toetsenbord | USB |
| Aansluiting muis | USB |
| Aansluiting video | VGA |
| VGA (D-Sub)poort(en) | 8 |
| Netwerk | |
| Ethernet LAN | Nee |
| Prestatie | |
| Scaninterval | 5,90 s |
| Hot-plug ondersteuning | Ja |
| Plug and play | Ja |
| Design | |
| Rack-montage | Ja |
| Rackcapaciteit | 1U |
| Kleur van het product | Zwart |
| Stapelbaar | Ja |
| Beeldscherm | |
| Ingebouwd display | Nee |
| Gewicht en omvang | |
| Breedte | 148 mm |
| Diepte | 445 mm |
| Hoogte | 45 mm |
| Gewicht | 3,32 kg |
| Verpakking | |
| Breedte verpakking | 148 mm |
| Diepte verpakking | 445 mm |
| Hoogte verpakking | 220 mm |
| Verpakkingsvolume | 2963,7 cmü |
| Gewicht verpakking | 3,73 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | KVM |
| Snelle installatiehandleiding | Ja |
| Inclusief AC-adapter | Ja |
| Rekbevestigingspakket | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176200 |
| Code UK-handelstarief | 84718000 |
| (Buitenste) hoofdverpakking breedte | 330 mm |
| (Buitenste) hoofdverpakking lengte | 475 mm |
| (Buitenste) hoofdverpakking hoogte | 330 mm |
| (Buitenste) hoofdverpakking brutogewicht | 14,9 kg |
| (Buitenste) hoofdverpakking inhoud | 68970 cmü |
| Hoeveelheid per (buitenste) hoofdverpakking | 4 stuk(s) |
| Land van herkomst | China |
| Warranty | |
| Base Warranty | Non Non |
