8-port USB 4k DVI Secure KVM Switch

ITCurry #: 90314202 | Article #: CS1188D4-AT-G
Prijs:
756,43 Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 6 to 10 of 15

Product Informatie

ATEN PSD PP v4.0 Secure KVM Switch CS1188D4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1188D4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

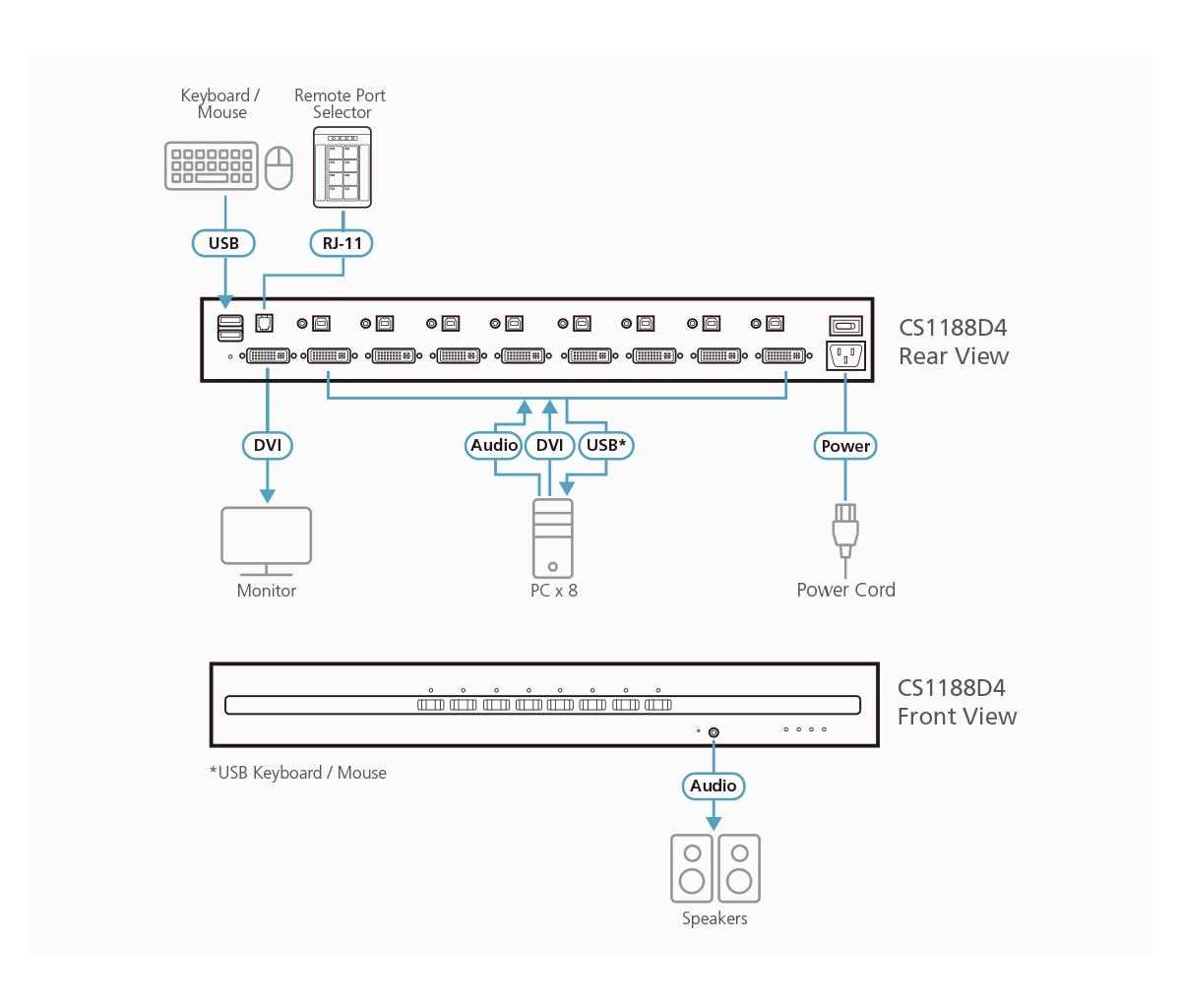

ATEN PSD PP v4.0 Secure KVM Switch CS1188D4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1188D4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi – layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1188D4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

Poorten & interfaces
Aantal computers 8
Aansluiting toetsenbord USB
Aansluiting muis USB
Aansluiting video DVI-I
DVI-I poorten 8
Aantal poorten USB 2.0 Type-B 8
Console-poorten DVI-I, USB A
Aantal USB-poorten console 2
Aantal Console DVI-I-poorten 1
USB-connectortype USB Type-A, USB Type-B
Audio-aansluitingen Ja
Hoofdtelefoonuitgangen 9
RJ-11 ports kwantiteit 1
Prestatie
HD type 4K Ultra HD
Maximum resolutie 3840 x 2160 Pixels
Videobandbreedte 30 Hz
Design
Rack-montage Ja
Kleur van het product Zwart
Materiaal behuizing Metaal
LED-indicatoren Ja
drukknop Ja
Beeldscherm
Ingebouwd display Nee
Energie
Stroombron AC
Ingangsspanning 100 - 240 V
AC-ingangsfrequentie 50/60 Hz
Stroom 1 A
Stroomverbruik (typisch) 11 W
Duurzaamheid
Certificaten van naleving RoHS
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 50 øC
Temperatuur bij opslag -20 - 60 øC
Relatieve vochtigheid in bedrijf (V-V) 0 - 80 procent
Gewicht en omvang
Breedte 432,4 mm
Diepte 204,9 mm
Hoogte 65,5 mm
Gewicht 2,95 kg
Inhoud van de verpakking
Meegeleverde kabels AC
Gebruikershandleiding Ja
Warranty
Base Warranty Non Non
