42U network cabinet. Varioflex-N 2022.6 x 800 x 1000 mm. grey
ITCurry #: M9239023 | Article #: DN-43001-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

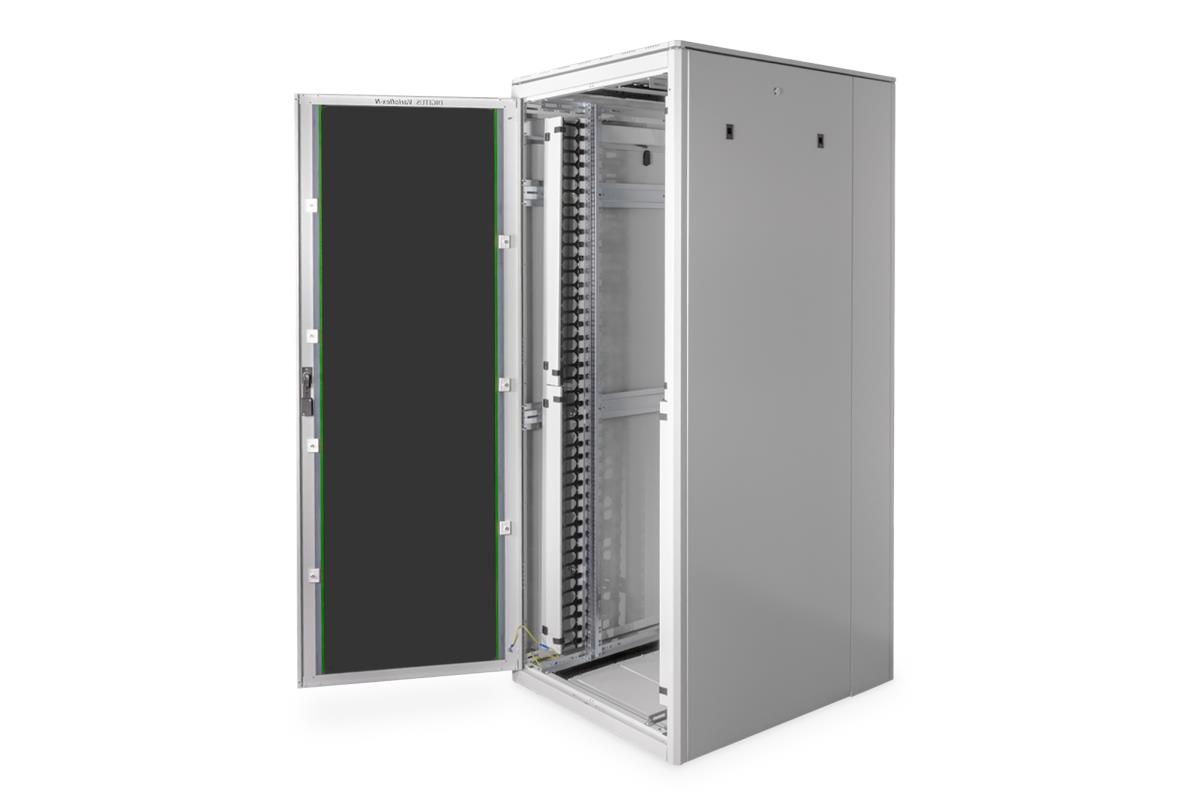

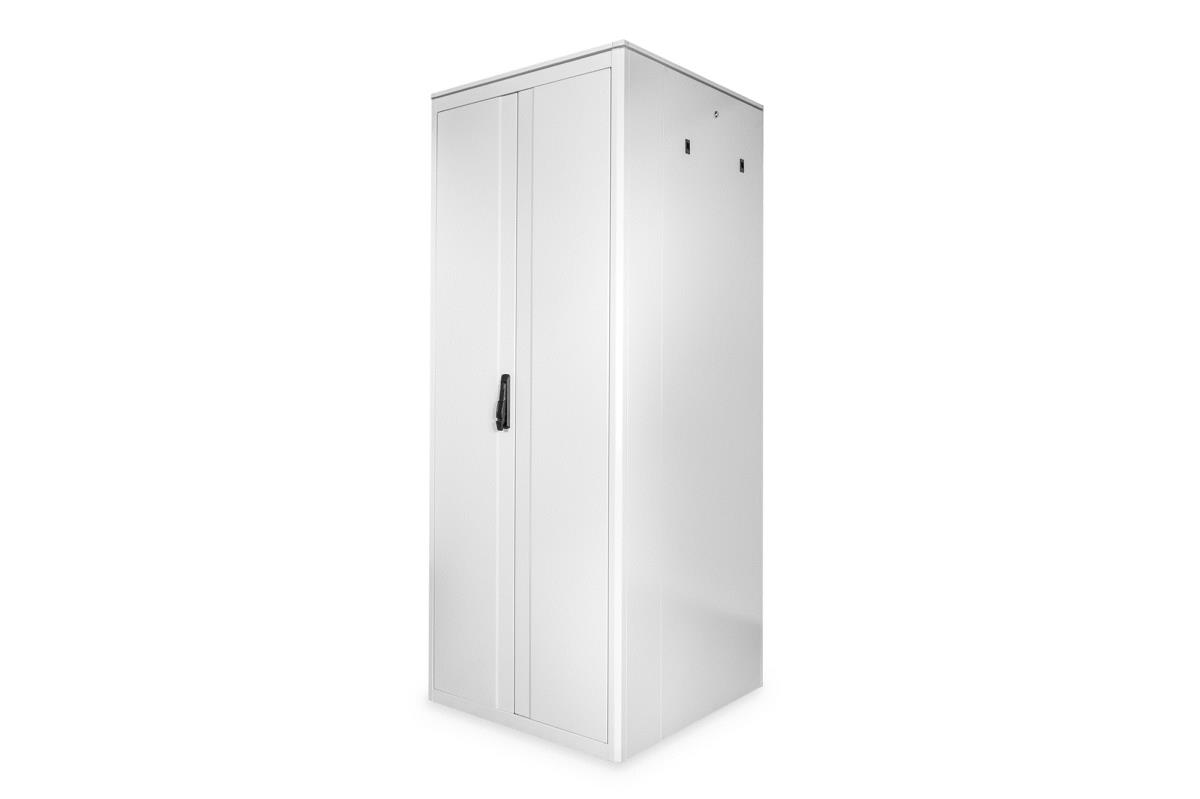

The Varioflex-N series has been designed and manufactured for the high demands of IT infrastructure. It offers maximum stability and flexibility in a wide range of usage scenarios.
- 483 mm (19") profile rails with high load capacity of up to 1200 kg

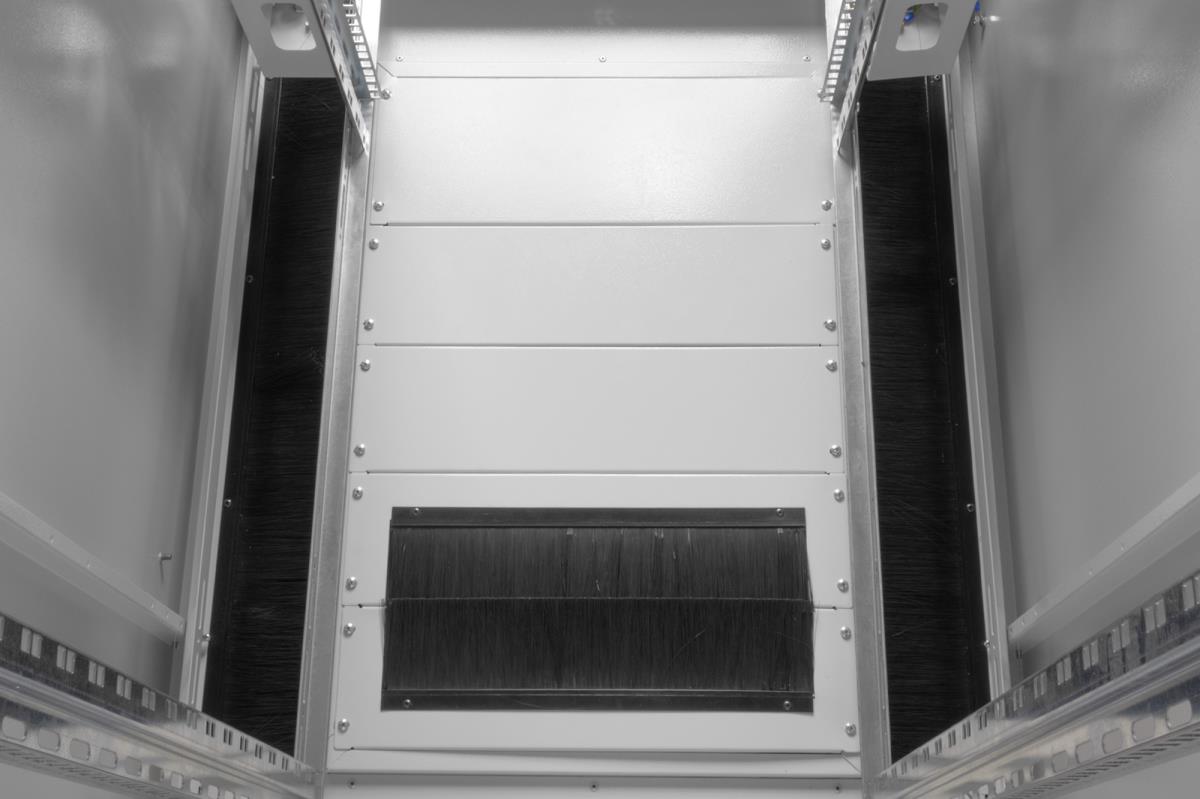

- Modular, openable base chassis with removable blank panels

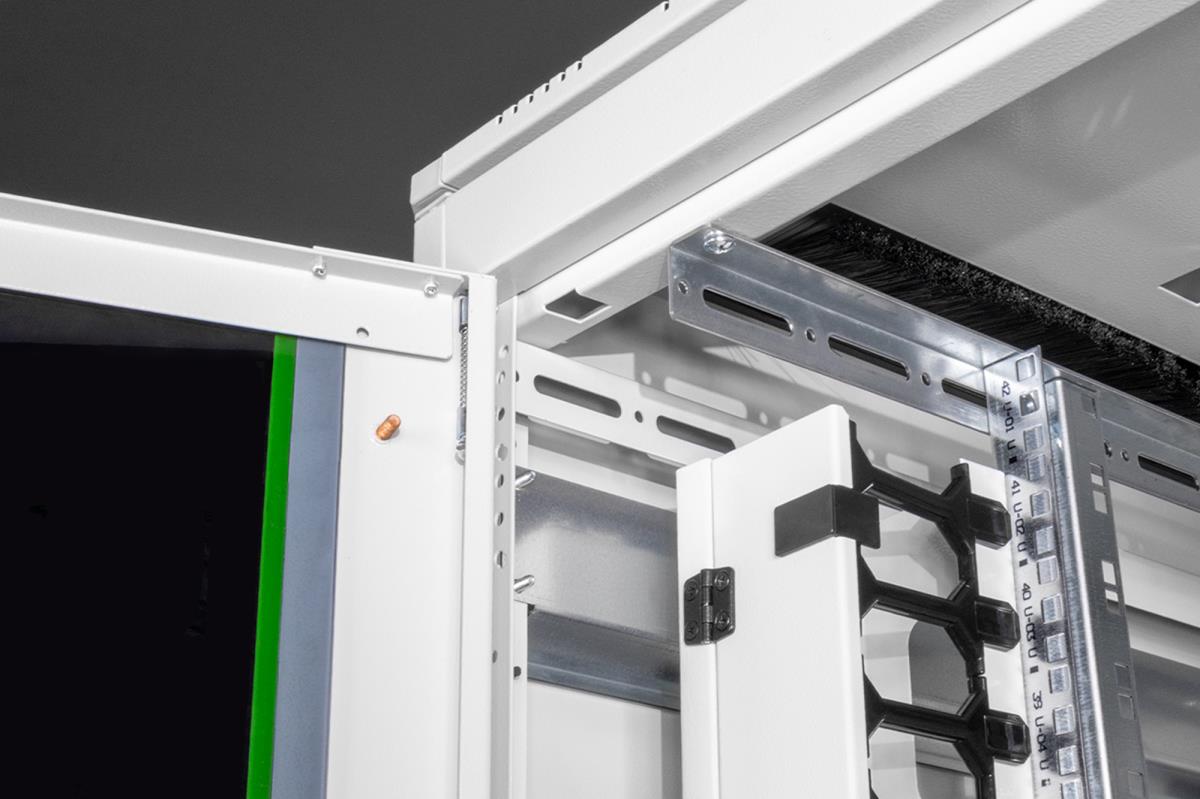

- Generously dimensioned vertical cable channels with cable routing and trim panel built into the front panel

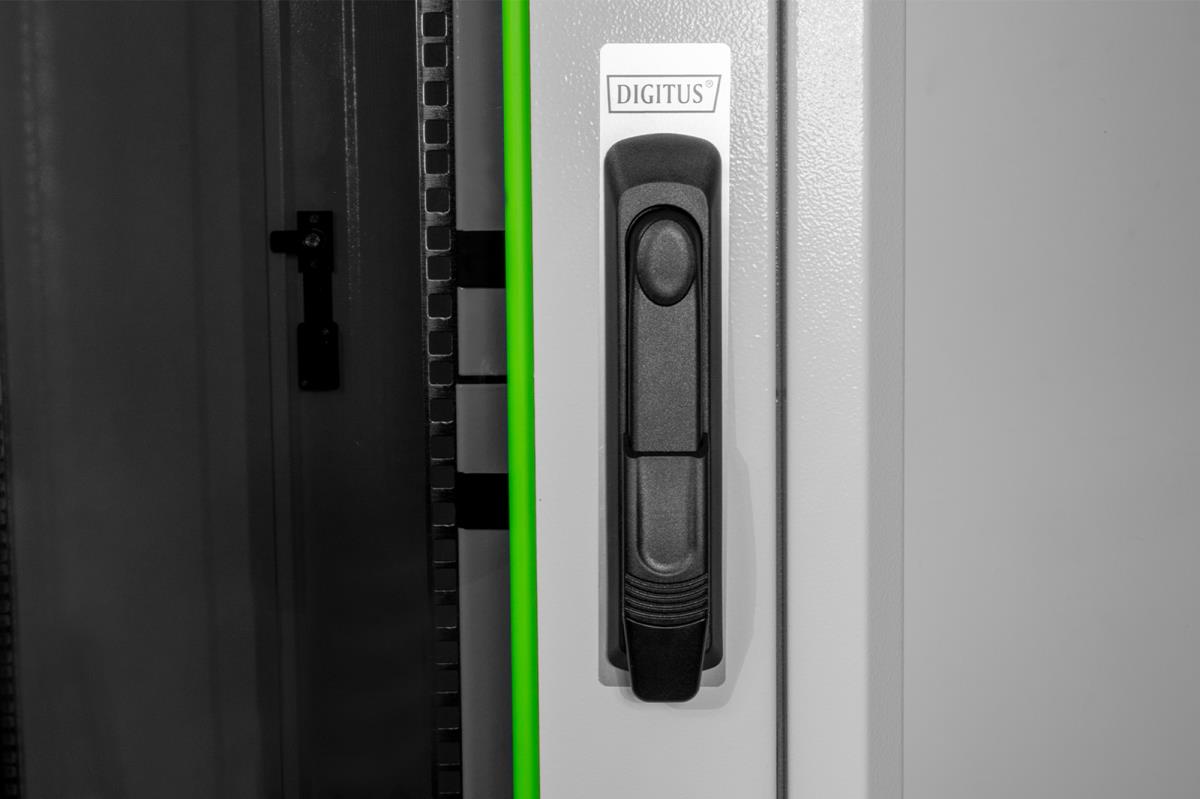

- Swing handle with profile half-cylinder lock incl. key on front and rear doors
- Protection type IP20

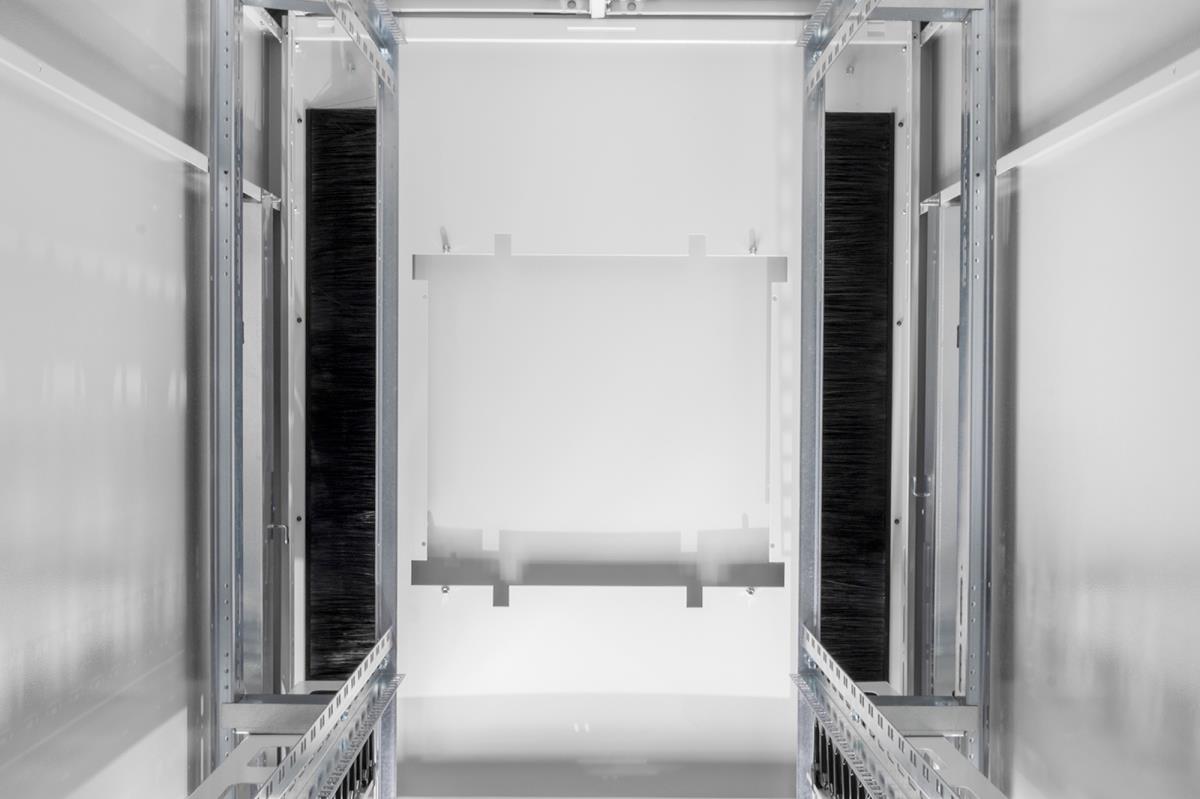

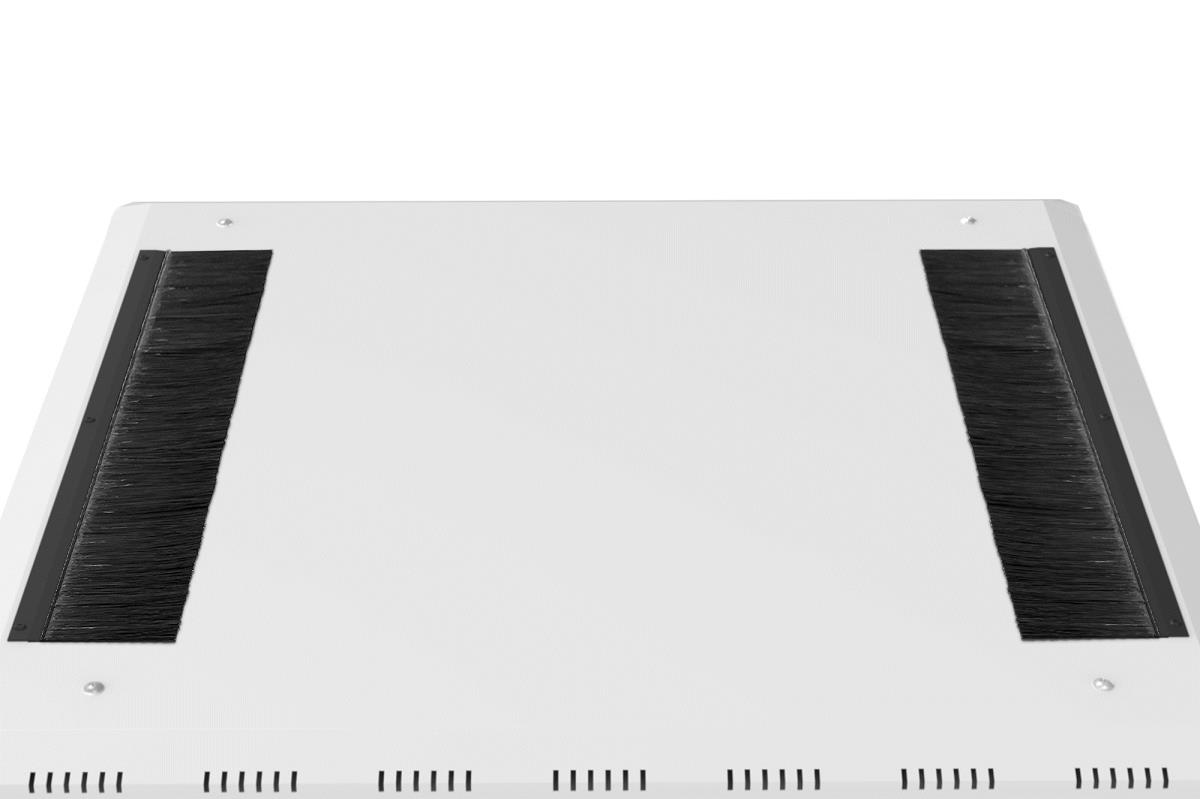

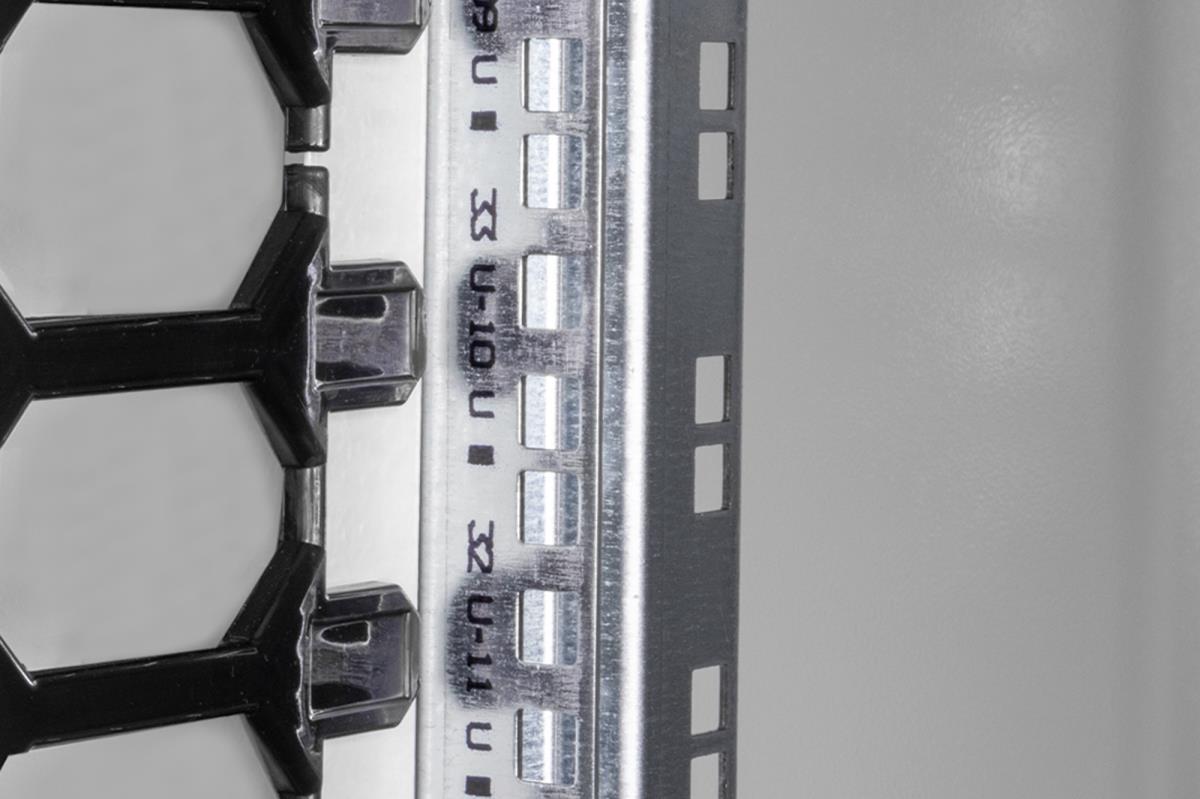

The network cabinets from the Varioflex-N series were designed and produced for optimum cabling of network components. Clever optimizations offer market-compliant stability with maximum flexibility. A modular floor structure that can be opened by means of bolted 483 mm (19”) blank panels offers plenty of space for cables of all kinds. Furthermore, there are two cable inlets with brushes at the top and bottom of the cabinet, as well as another at the back of the floor structure. The versatile features of the network cabinet are perfectly completed by generous vertical cable channels with plastic cable guides and trim panel, built into the front. An offset, removable cover with ventilation slits ensures enhanced air circulation. This features a special design for easy mounting of a fan module. Integrated inside the cabinet are four cranked, galvanized 483 mm (19”) profiles, which are connected to the base frame of the cabinet at several points using depth bars. The depth is adjustable, and they have markings for the respective rack unit, which can be read in both directions. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Side walls and doors that can be locked or removed in a modular design improve accessibility. The door hinges can be switched. Furthermore, the cabinets can be completely dismantled if necessary due to their collapsible design.
| Kenmerken | |
| Rackcapaciteit | 42U |
| Soort | Vrijstaande rek |
| Maximale gewichtscapaciteit | 1200 kg |
| Kleur van het product | Grijs |
| Materiaal | Metaal, Gehard glas |
| Frame type | Gesloten |
| Achterdeurconstructie | Staal |
| Voordeurconstructie | Glas |
| Zijpaneelconstructie | Staal |
| Verwijderbare zijpanelen | Ja |
| Inbegrepen zijpanelen | Ja |
| Zijpaneelstijl | Blind |
| Achterdeurstijl | Blind |
| Voordeurstijl | Glazen deur |
| Sleutelsleuf | Ja |
| Sleutelvergrendeling achterdeur | Ja |
| Voordeur met sleutelvergrendeling | Ja |
| Zijpaneel met sleutelvergrendeling | Ja |
| Rekrails | Ja |
| Verstelbare montagerails | Ja |
| Verstelbare voeten | Ja |
| Deur openingshoek | 120ø |
| Internationale veiligheidscode (IP) | IP20 |
| Gewicht en omvang | |
| Maat | 48,3 cm (19") |
| Breedte | 800 mm |
| Diepte | 1000 mm |
| Hoogte | 2022,6 mm |
| Verpakking | |
| Moeren inbegrepen | Ja |
| Inclusief schroeven | Ja |
| Montage gereedschap | Ja |
| Breedte verpakking | 825 mm |
| Diepte verpakking | 1035 mm |
| Hoogte verpakking | 2072,6 mm |
| Verpakkingsvolume | 1752150 cmü |
| Gewicht verpakking | 124 kg |
| Logistieke gegevens | |
| Code UK-handelstarief | 94032080 |
| Land van herkomst | Turkije |
| Warranty | |
| Base Warranty | Non Non |
