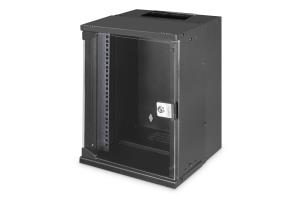

19IN 9U wall mounting cabinet - SOHO PRO 460 x 540 x 400mm black
ITCurry #: M9239238 | Article #: DN-49205-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
- Delivered unassembled in optimized flat pack
- Particularly easy to use, fast installation
- Compact housing for 483 mm (19”) network installations
Whether for private areas, office or sub-distribution units with limited space: With the compact 483 mm (19”) solutions from the SOHO PRO series, you can install your network wherever you like. The wall housings available in four rack units (4 rack units, 7 rack units, 9 rack units, 12 rack units) are equipped with a full glass door as well as a cable entry in the roof and floor. A pair of galvanized 483 mm (19”) profile rails labeled with easy-to-read rack units are installed on the inside. Their depth can be adjusted. Each cabinet features a robust steel design made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). The door hinges can be switched. The network are unassembled on delivery, in an optimized flat pack. Installation takes just a few steps and is extremely easy thanks to the step-by-step instructions included.
| Kenmerken | |
| Rackcapaciteit | 9U |
| Soort | Wandrek |
| Maximale gewichtscapaciteit | 60 kg |
| Kleur van het product | Zwart |
| Materiaal | Staal |
| Frame type | Gesloten |
| Achterdeurconstructie | Staal |
| Voordeurconstructie | Glas |
| Zijpaneelconstructie | Staal |
| Zijpaneelstijl | Blind |
| Achterdeurstijl | Blind |
| Voordeurstijl | Glazen deur |
| Sleutelsleuf | Ja |
| Voordeur met sleutelvergrendeling | Ja |
| Rekrails | Ja |
| Verstelbare montagerails | Ja |
| Verstelbare diepte | Ja |
| Type koeling | Passief |
| Verbeterd kabelbeheer | Ja |
| Deur openingshoek | 200ø |
| Vergrendelingspunten | 1 |
| Internationale veiligheidscode (IP) | IP20 |
| Gewicht en omvang | |
| Maat | 48,3 cm (19") |
| Breedte | 540 mm |
| Diepte | 400 mm |
| Hoogte | 460 mm |
| Gewicht | 10,6 kg |
| Verpakking | |
| Snelle installatiehandleiding | Ja |
| Breedte verpakking | 475 mm |
| Diepte verpakking | 580 mm |
| Hoogte verpakking | 175 mm |
| Gewicht verpakking | 11,4 kg |
| Warranty | |
| Base Warranty | Non Non |
