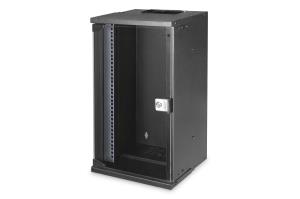

19IN 12U wall mounting cabinet - SOHO PRO 595 x 540 x 400mm black
ITCurry #: M9239240 | Article #: DN-49207-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The DIGITUS® wall-mounted enclosure SOHO PRO series is characterized by its efficient delivery in an optimized flat pack and particularly user-friendly installation.
- Compact housing for 483 mm (19") installations
- Simplified logistics: delivered unassembled in an optimized flat pack
- Quickly ready for use: Particularly user-friendly, quick installation with just a few screws
- Flexible cable routing options thanks to protected openings in the roof and floor
- Lockable safety glass door with 200° door opening angle
- Depth-adjustable 483 mm (19") profile rails
- Load capacity for the installation of components: 60 kg
Whether in the home, office or for sub-distribution boards with limited space: With the compact 483 mm (19") solutions from the SOHO PRO series, you can install your network wherever you want. Available in four height units (4U, 7U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry in the top and bottom. A pair of galvanized 483 mm (19") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). The door hinges can be changed. The network enclosures are supplied unassembled in an optimized flat pack. Assembly takes place in just a few steps and is child's play thanks to the enclosed step-by-step instructions.
| Kenmerken | |
| Rackcapaciteit | 12U |
| Soort | Wandrek |
| Maximale gewichtscapaciteit | 60 kg |
| Kleur van het product | Zwart |
| Materiaal | Staal |
| Frame type | Gesloten |
| Achterdeurconstructie | Staal |
| Voordeurconstructie | Glas |
| Zijpaneelconstructie | Staal |
| Zijpaneelstijl | Blind |
| Achterdeurstijl | Blind |
| Voordeurstijl | Glazen deur |
| Sleutelsleuf | Ja |
| Voordeur met sleutelvergrendeling | Ja |
| Rekrails | Ja |
| Verstelbare montagerails | Ja |
| Verstelbare diepte | Ja |
| Type koeling | Passief |
| Verbeterd kabelbeheer | Ja |
| Deur openingshoek | 200ø |
| Internationale veiligheidscode (IP) | IP20 |
| Gewicht en omvang | |
| Maat | 48,3 cm (19") |
| Breedte | 540 mm |
| Diepte | 400 mm |
| Hoogte | 460 mm |
| Gewicht | 12,6 kg |
| Verpakking | |
| Snelle installatiehandleiding | Ja |
| Breedte verpakking | 580 mm |
| Diepte verpakking | 600 mm |
| Hoogte verpakking | 150 mm |
| Gewicht verpakking | 13,7 kg |
| Warranty | |
| Base Warranty | Non Non |
