Product Informatie

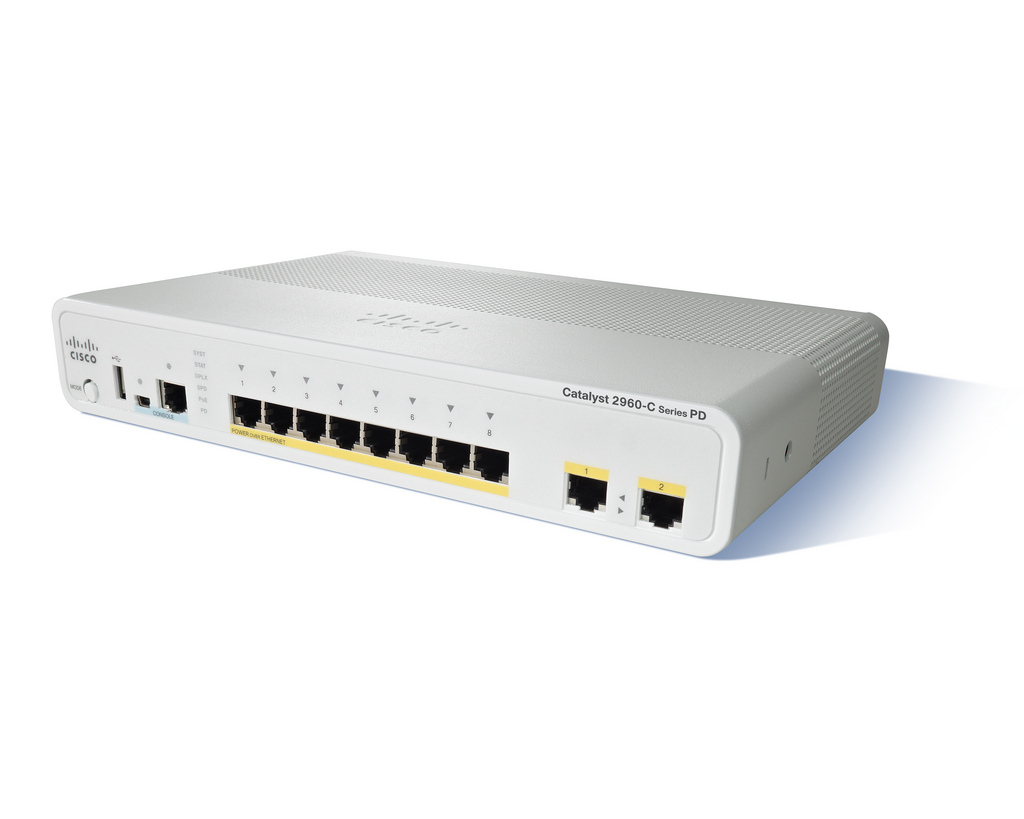

The Cisco® Catalyst® 3560-C and 2960-C Series Switches are compact switches designed to deliver unified communications, wireless, IP video, and other applications to the retail, hospitality, education, and enterprise customer. These new compact switches are designed specifically to be placed outside the wiring closet, and they contain a number of innovative features that give customers flexibility in switch placement and end device support with Power over Ethernet (PoE) pass-through, as well as advanced security services and ease-of-management features.
Primary Features and Benefits
Flexible Placement Options with PoE Pass-Through
PoE pass-through gives users the ability to power PoE end devices, as well as the switch itself, by drawing Cisco Universal Power Over Ethernet™ (Cisco UPOE™)/PoE+ power from a wiring closet switch. This ability is ideal for wiring-constrained and space-constrained applications.
Ease of Management with Cisco Smart Install and Configuration
Cisco Smart Install and Configuration is a transparent automated technology to configure the Cisco IOS® Software image and switch configuration without user intervention. It provides a single point of management for a group of switches.
Intelligent Power Management Capabilities with Cisco EnergyWise
Cisco Catalyst 3560-C and 2960-C switches use hardware components created by Cisco, providing optimum power-saving, low-power operations for industry best-in-class power management and power consumption capabilities.
Enhanced Security Features with Cisco TrustSec Technology
Cisco TrustSec® technology secures access to the network and resources, whether wired, wireless, or VPN, making sure those endpoint devices are authorized and healthy. The Cisco Catalyst 3560-C compact switches also support MACsec.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2 |
| Quality of Service (QoS) | Ja |
| ARP-inspectie | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 10 |
| Type basis-switching RJ-45 Ethernet-poorten | Fast Ethernet (10/100) |
| Fast Ethernet (koperen) ports kwantiteit | 8 |
| Aantal Gigabit Ethernet (koper)-poorten | 2 |
| Netstekker | DC-in ingang |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Ja |
| IP routing | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Spanning tree protocol | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Private VLAN, Protocol-based VLAN |
| Aantal VLANs | 255 |
| Data-uitwisseling | |
| Switchingcapaciteit | 10 Gbit/s |
| Throughput | 4,2 Mpps |
| MAC-adrestabel | 4000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9018 |
| Beveiliging | |
| DHCP-functies | DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | 802.1x RADIUS, SSH |
| SSH/SSL support | Ja |
| BPDU filtering / bescherming | Ja |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Beheerprotocollen | SNMP |
| Design | |
| Rack-montage | Nee |
| Kleur van het product | Wit |
| LED-indicatoren | Ja |
| Veiligheid | UL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825 |
| Elektromagnetische compatibiliteit | FCC, EN 55022 (CISPR22), EN 55024 (CISPR24), AS/NZS, VCCI, V-3/2007.04, KCC, ANATEL, CCC, GOST |
| Prestatie | |
| Intern geheugen | 128 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 346590 uur |
| Energie | |
| Stroomverbruik (typisch) | 43 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Hoeveelheid Power over Ethernet (PoE) ports | 8 |
| Aantal Power over Ethernet plus (PoE +)-poorten | 2 |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 45 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Hoogte, in bedrijf | 0 - 3048 m |
| Hoogte bij opslag | 0 - 4000 m |
| Gewicht en omvang | |
| Breedte | 269 mm |
| Diepte | 172 mm |
| Hoogte | 44,4 mm |
| Gewicht | 1,08 kg |
| Warranty | |
| Base Warranty | Non Non |
