Mds 9124v 64g Fc Switch W/ 24 Active Ports +32g Sw Intake
ITCurry #: 0918X454 | Article #: DS-C9124V-24PITK9-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

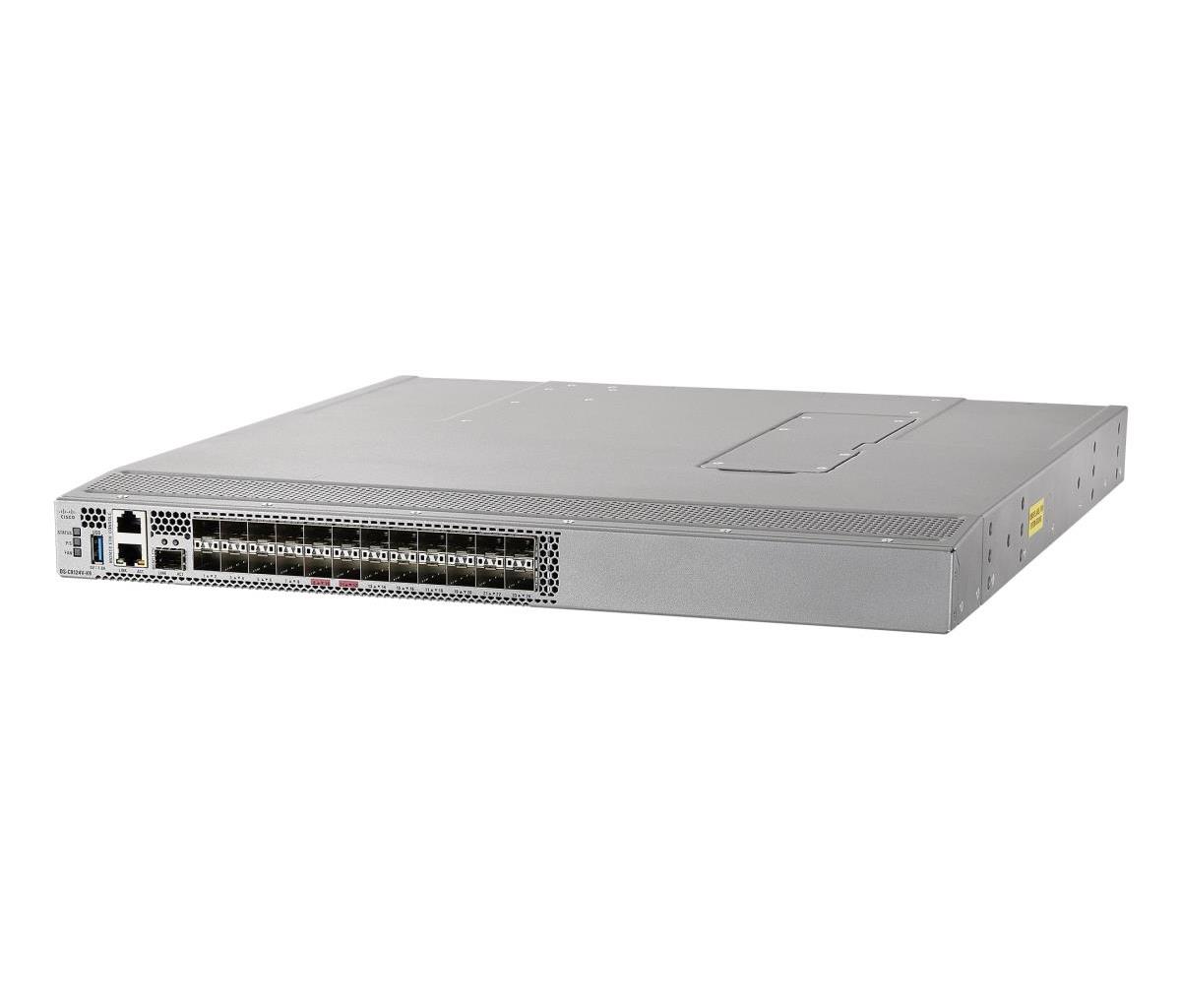

The next-generation Cisco MDS 9124V 64-Gbps 24-Port Fibre Channel Switch provides high-speed Fibre Channel connectivity for all-flash arrays and high-performance hosts. This switch offers state-of-the-art analytics and telemetry capabilities built into its next-generation Application-Specific Integrated Circuit (ASIC) chipset. This switch allows seamless transition to Fibre Channel Non-Volatile Memory Express (NVMe/FC) workloads whenever available without any hardware upgrade in the SAN. It empowers small, midsize, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the benefits of greater bandwidth, scale, and consolidation. Some of the main benefits for a small-scale Storage Area Network (SAN) are automatic zoning, nonblocking forwarding and a single port group of 24 ports. Benefits for a mid- to large-size SAN include higher scale for Fibre Channel control-plane functions, Virtual SANs, fabric login (FLOGI), device alias and name server scale, 24 ports of 64-Gbps non-oversubscribed line-rate ports, bidirectional airflow, and a fixed-form NVMe/FC-ready SAN switch with enhanced Buffer-to-Buffer (B2B) credits and capable of hardware-assisted Fibre Channel link encryption. Large-scale SAN architectures built with SAN core directors can expand 64-Gbps connectivity to the server rack using these switches configured in either switch mode or Network Port Virtualization (NPV) mode. Additionally, the switch supports enhanced diagnostic features such as Inter-Switch Link (ISL) and Host-Bus-Adapter (HBA) diagnostics, remote SFP (Read Diagnostic Parameter) diagnostics, remote port beaconing (Link Cable Beaconing) and advanced reliability features such as link level Forward Error Correction (FEC) with HBA ports.
| Beheerfuncties | |
| Switch type | Managed |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 2 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal USB Type-A-poorten | 1 |
| Aantal beheerpoorten | 1 stuk(s) |
| Fibre channel-poorten | 24 |
| Vezel-optische connector | SFP+ |
| Console port | RS-232 |
| Netstekker | AC-in-aansluiting |
| Netwerk | |
| 10G support | Ja |
| Full duplex | Ja |
| Rate limiting | Ja |
| Auto-sensing | Ja |
| Beveiliging | |
| Access Control List (ACL) | Ja |
| Authenticatie type | RADIUS, TACACS+ |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Kleur van het product | Grijs |
| LED-indicatoren | Systeem |
| Luchtstroomrichting | Luchtstroom van voren naar achteren |
| Aantal ventilatoren | 4 ventilator(en) |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| Aantal voedingen | 2 |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Stroomverbruik (typisch) | 146 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Overige specificaties | |
| Bandbreedte | 1500 Gbit/s |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 10 - 95 procent |
| Hoogte, in bedrijf | -60 - 2000 m |
| Gewicht en omvang | |
| Breedte | 439,4 mm |
| Diepte | 457,2 mm |
| Hoogte | 43,7 mm |
| Gewicht | 8,5 kg |
| Warranty | |
| Base Warranty | Non Non |
