Product Informatie

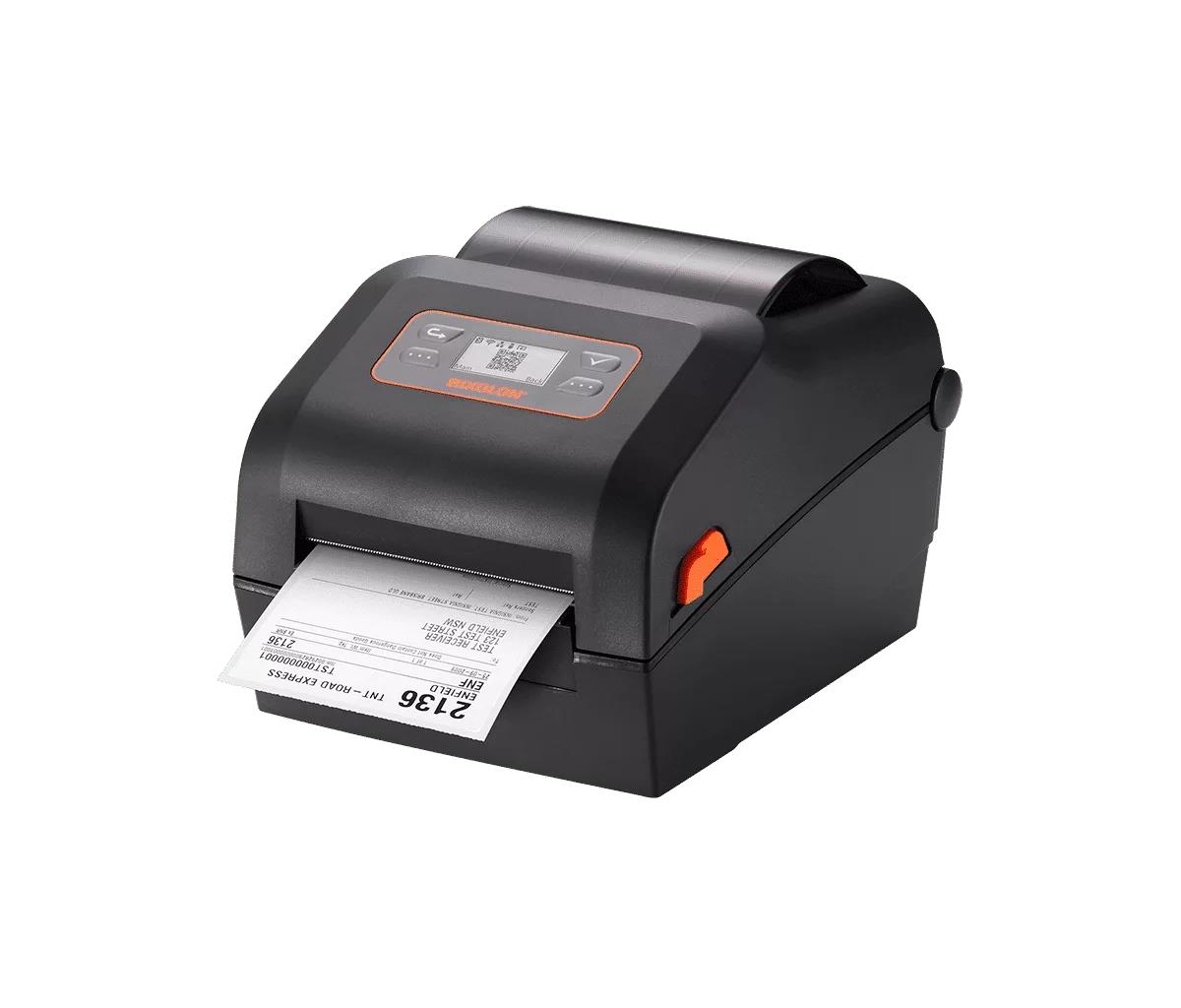

The XD5-40t is a 4-inch (118mm) mid-level Thermal Transfer Desktop Label Printer, featuring a rugged, compact, clamshell design and all-inclusive software features ideal for barcode and labelling applications for the Transport and Logistics, Manufacturing, Healthcare and Retail industries. Available as the XD5-40t (203dpi) and XD5-43t (300dpi) options, the XD5-40t’s standard model (XD5-40t) offers accelerated data processing and print speeds of up to 6 ips (152mm/sec), while boasting enhanced memory space of up to 256MB SDRAM and 256 MB Flash.

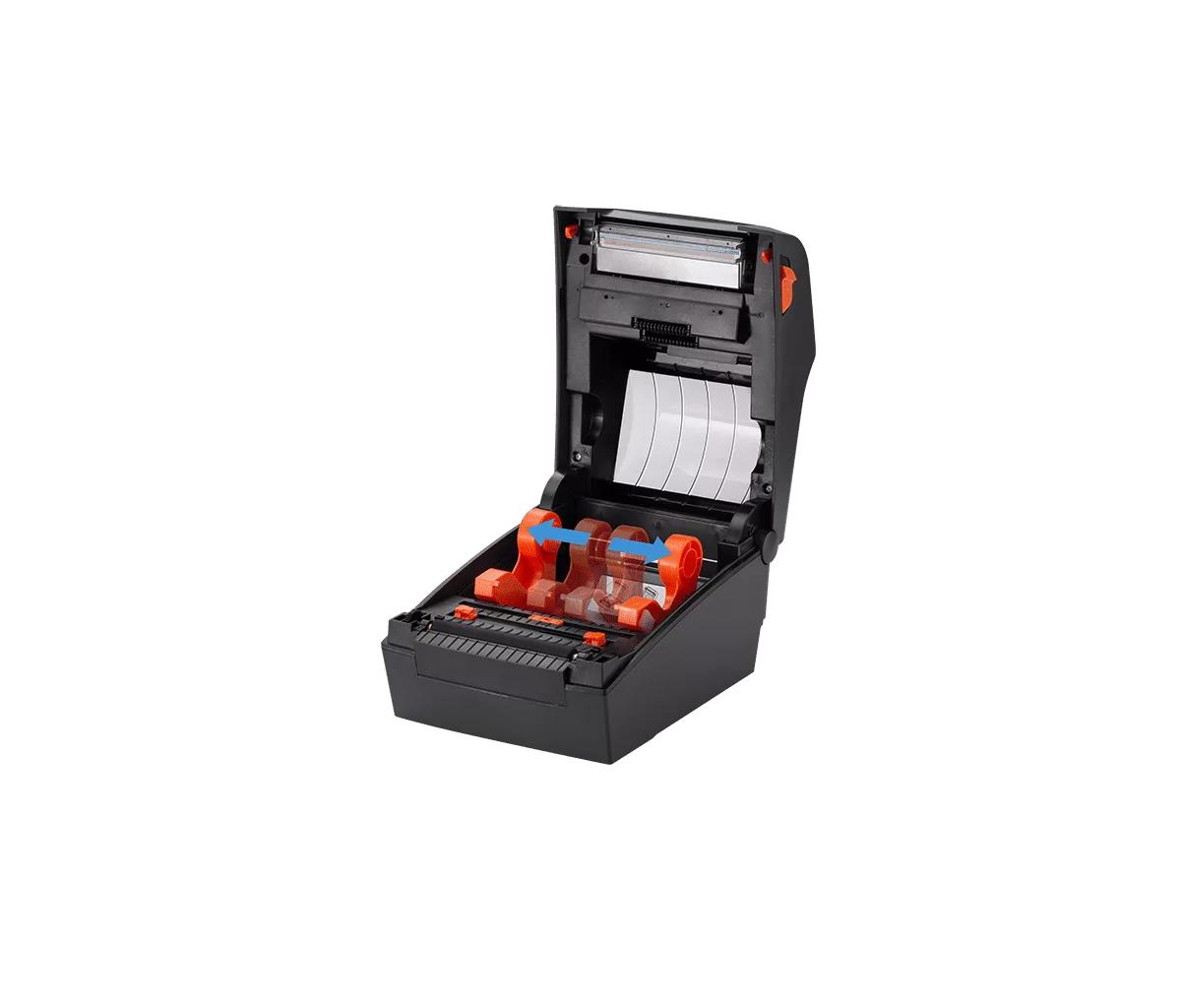

Providing printer flexibility, the XD5-40t offers a toolless field-installable Peeler, Auto Cutter and external paper supply. With an Optional LCD display, an adjustable paper guide and media roll diameter space of up to 127mm, suitability for both 1/2-inch and 1-inch core ribbons (74 m and 300m ribbon length) and enhanced ribbon handling with the new ribbon left-right balance adjustment. Alongside by Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 3-year warranty as standard.
Boasting multiple connectivity options, the XD5-40t comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The barcode and label is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file), alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
| Printsnelheid | |
| Printtechnologie | Direct thermisch/Thermische overdracht |
| Maximale resolutie | 203 x 203 DPI |
| Printsnelheid (metrisch) | 152 mm/sec |
| Maximale print breedte | 10,8 cm |
| Maximale printlengte | 1 m |
| Papier | |
| Autocutter | Ja |
| Lint-wijdte | 11 cm |
| Lint-lente | 300 m |
| Maximale label breedte | 11,8 cm |
| Maximum roll diameter | 12,7 cm |
| Mediadikte | 0.06 - 0.2 mm |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Ethernet LAN | Nee |
| Wifi | Nee |
| USB-poort | Ja |
| Prestatie | |
| Intern geheugen | 64 MB |
| Flash memory | 128 MB |
| Ingebouwde streepjescodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Datamatrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 |
| Design | |
| Kleur van het product | Zwart |
| Ingebouwd display | Ja |
| Beeldscherm | LCD |
| Resolutie | 200 x 100 Pixels |
| Kleurenscherm | Nee |
| Soort bediening | Knoppen |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Minimale systeemeisen | |
| Ondersteunt Windows | Ja |
| Ondersteunt Mac-besturingssysteem | Ja |
| Ondersteunde mobiele besturingssystemen | Android, iOS |
| Ondersteunt Linux | Ja |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 25 - 80 procent |
| Luchtvochtigheid bij opslag | 10 - 90 procent |
| Bedrijfstemperatuur (T-T) | 5 - 40 øC |
| Temperatuur bij opslag | -40 - 60 øC |
| Gewicht en omvang | |
| Breedte | 210 mm |
| Diepte | 284 mm |
| Hoogte | 188 mm |
| Gewicht | 2,48 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | USB |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84433210 |
| Technische details | |
| Duurzaamheidscertificaten | ENERGY STAR |
| Overige specificaties | |
| Character sets | 5 BPL-E, 16 BPL-Z, SLCS, Unicode |
| Warranty | |
| Base Warranty | Non Non |
