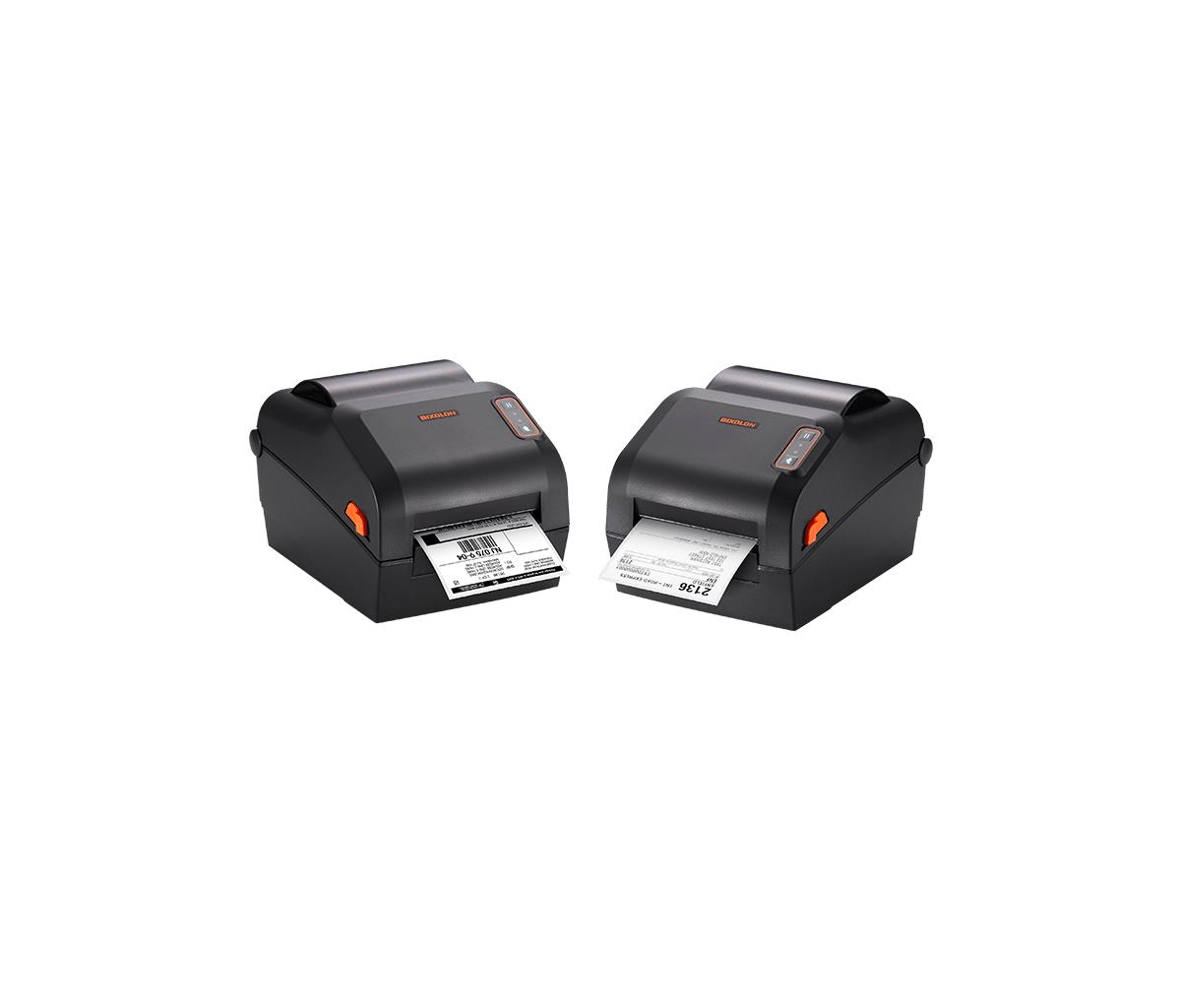

Xd5-40d - Label Printer - Thermal - 118mm 203dpi USB+USB Host Serial + Ethernet Dt Only Black
ITCurry #: Q2923062 | Article #: XD5-40DEK/BEG-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Robust and highly featured
The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.

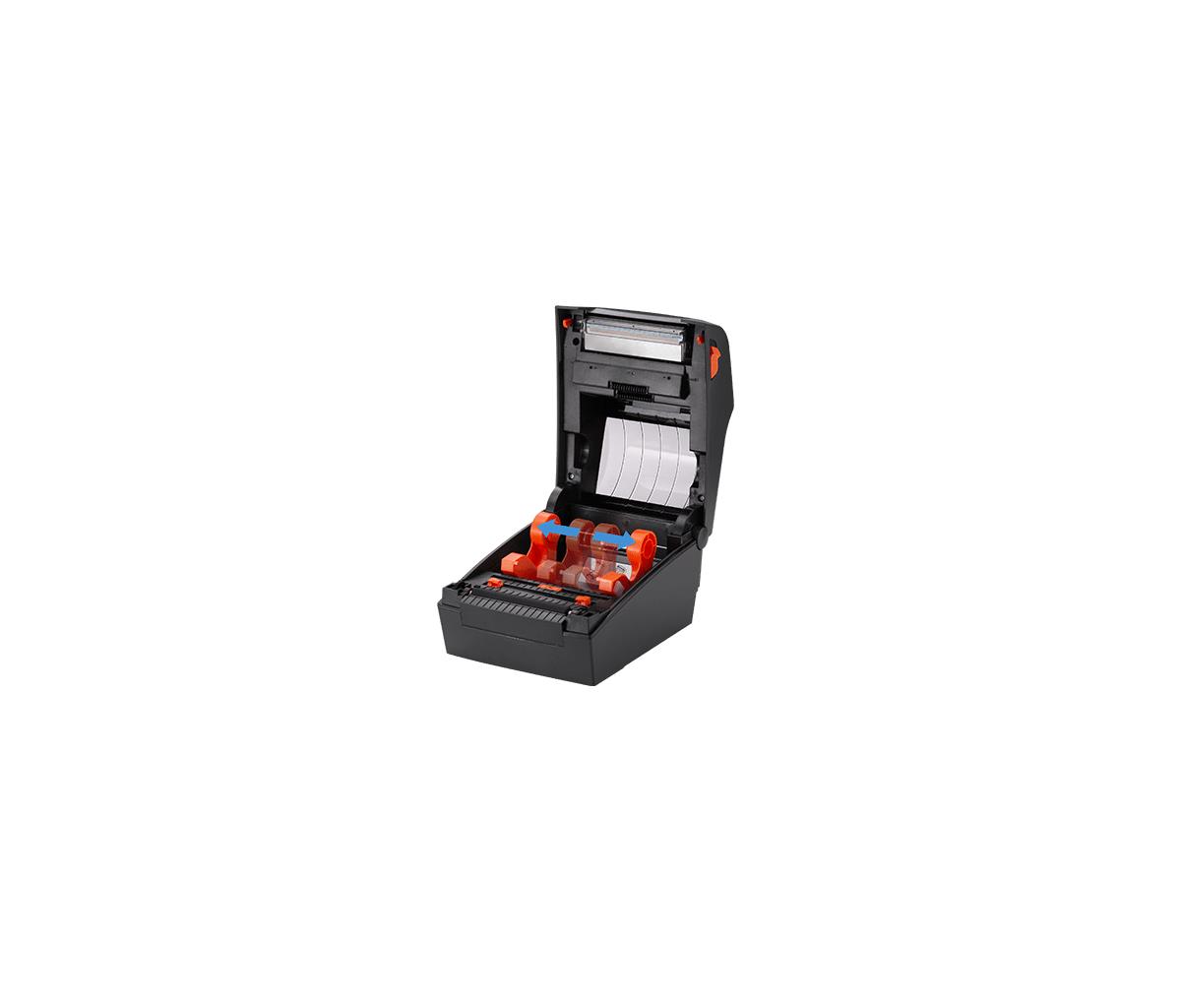

Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 2-year warranty as standard.
Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
| Printsnelheid | |
| Printtechnologie | Direct thermisch |
| Maximale resolutie | 203 x 203 DPI |
| Afdrukbare dot-nummers | 8 dot |
| Printsnelheid (metrisch) | 178 mm/sec |
| Maximale print breedte | 10,8 cm |
| Maximale printlengte | 1 m |
| Papier | |
| Autocutter | Ja |
| Lint-wijdte | 11 cm |
| Lint-lente | 300 m |
| Maximale label breedte | 11,8 cm |
| Maximum roll diameter | 12,7 cm |
| Mediadikte | 0.06 - 0.2 mm |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Ethernet LAN | Ja |
| Wifi | Nee |
| USB-poort | Ja |
| RS-232 port | 1 |
| Prestatie | |
| Intern geheugen | 64 MB |
| Flash memory | 128 MB |
| Ingebouwde streepjescodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Datamatrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Logmars, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 |
| Design | |
| Kleur van het product | Zwart |
| Ingebouwd display | Nee |
| Beeldscherm | Nee |
| Soort bediening | Knoppen |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Minimale systeemeisen | |
| Ondersteunt Windows | Ja |
| Ondersteunt Mac-besturingssysteem | Ja |
| Ondersteunde mobiele besturingssystemen | Android, iOS |
| Ondersteunt Linux | Ja |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 80 procent |
| Luchtvochtigheid bij opslag | 10 - 90 procent |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -20 - 60 øC |
| Gewicht en omvang | |
| Breedte | 194 mm |
| Diepte | 248 mm |
| Hoogte | 169 mm |
| Gewicht | 1,89 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | USB |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84433210 |
| Technische details | |
| Duurzaamheidscertificaten | ENERGY STAR |
| Overige specificaties | |
| Character sets | 5 BPL-E, 16 BPL-Z, SLCS, Unicode |
| Warranty | |
| Base Warranty | Non Non |
