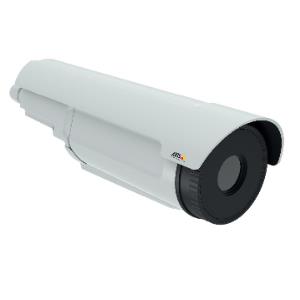

Q2901-e 19mm 8.3fps Temperature Alarm Camera
ITCurry #: 13833924 | Article #: 0647-001-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
- Temperature alarm
- Isothermal palettes
- Spot temperature reading
- High performance intelligent video
Temperature detection
AXIS Q2901-E PT Mount offers two kinds of alarms triggered by a deviation of the temperature: if the temperature goes above or below a set limit, or if the temperature increases too rapidly. The camera can detect the temperature of an object between -40 °C to 550 °C (-40 °F to 1022 °F).
Isothermal palettes
Isothermal imaging makes it possible to configure highlighted temperature-spans in the image. They help to define which temperature corresponds to which color. The Lower limit denotes the temperature where the colored part of the palette will start and all temperatures above this limit will stand out.
Spot temperature reading
This capability is used to view the temperature of a particular area of the image. The emissivity can also be adjusted (depending on the material characteristics) to get a more precise reading. Used as a visual aid for an operator
For a list of emissivity for different material, see here
More features
- MicroSD/SDHC memory card slot
- Network security using multiple user access levels, IP address filtering, HTTPS encryption, IEEE 802.1X authentication
- Supports Quality of Service (QoS) which helps secure the necessary bandwidth for streaming video and control commands over a network
- Supports Internet Protocol version 6 (IPv6) in addition to IP version 4 (IPv4)
| Prestatie | |
| Soort | IP-beveiligingscamera |
| Ondersteuning voor plaatsing | Buiten |
| Connectiviteitstechnologie | Bedraad |
| PTZ control | Nee |
| Certificering | EN 550 22 Class A, EN 50 12 1 - 4, EN 550 24, EN 6 1 000 - 3 - 2, EN 6 1 000 - 3 - 3, EN 6 1 000 - 6 - 1, EN 6 1 000 - 6 - 2, FCC, ICES - 003, VCCI, ITE, C - Tick AS/NZS CISPR22, KCC KN22, KN - 24 |
| Design | |
| Vormfactor | Bullet (shape) |
| Kleur van het product | Zwart, Wit |
| Materiaal behuizing | Metaal |
| Internationale veiligheidscode (IP) | IP66 |
| Camera | |
| Field of view (FOV) hoek | 17ø |
| Lenssysteem | |
| Zoomcapaciteit | Nee |
| Vaste focale lengte | 1,9 cm |
| Video | |
| Maximum resolutie | 336 x 256 Pixels |
| Ondersteunde videoformaten | H.264, MPEG4 |
| Maximaal 30 frames per seconde | 8,3 fps |
| Audio | |
| Ingebouwde microfoon | Nee |
| Netwerk | |
| Ethernet LAN | Ja |
| Ondersteunde netwerkprotocollen | IPv4/v6, HTTP , HTTPS c , SSL/TLS c , QoS Layer 3 DiffServ , FTP , CIFS/SMB, SMTP , Bonjour , UPnP T M , SNMP v1/v2c/v3(MIB - II), DNS, DynDNS, NTP , RTSP , RTP , T CP , UDP , IGMP , RT CP , ICMP , DHCP , ARP , SOCKS, SSH |
| Wifi | Nee |
| Bekabelingstechnologie | 10/100Base-T(X) |
| Opslagmedia | |
| Ingebouwde HDD | Nee |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 128 MB |
| Intern geheugen | 256 MB |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Interface | RJ-45 |
| Beveiliging | |
| Video bewegings-detectie | Ja |
| Actieve ombevoegde demontage alarm | Ja |
| IP-adresfilter | Ja |
| Ondersteunde beveiligingsalgoritmen | 802.1x RADIUS, HTTPS |
| HTTPS-encryptie | Ja |
| Bewegingssensor | Ja |
| Energie | |
| Type stroombron | Power over Ethernet (PoE) |
| Stroomverbruik (typisch) | 10 W |
| Power over Ethernet (PoE) | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 60 øC |
| Gewicht en omvang | |
| Gewicht | 1,8 kg |
| Inhoud van de verpakking | |
| Gebruiksaanwijzing | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85258900 |
| Warranty | |
| Base Warranty | Non Non |
