Ideal for patrolling large sites, this robust thermal camera lets you remotely monitor temperatures and trigger temperature-based events. It offers early fire detection analytics and built-in cybersecurity features.
What’s the temperature?

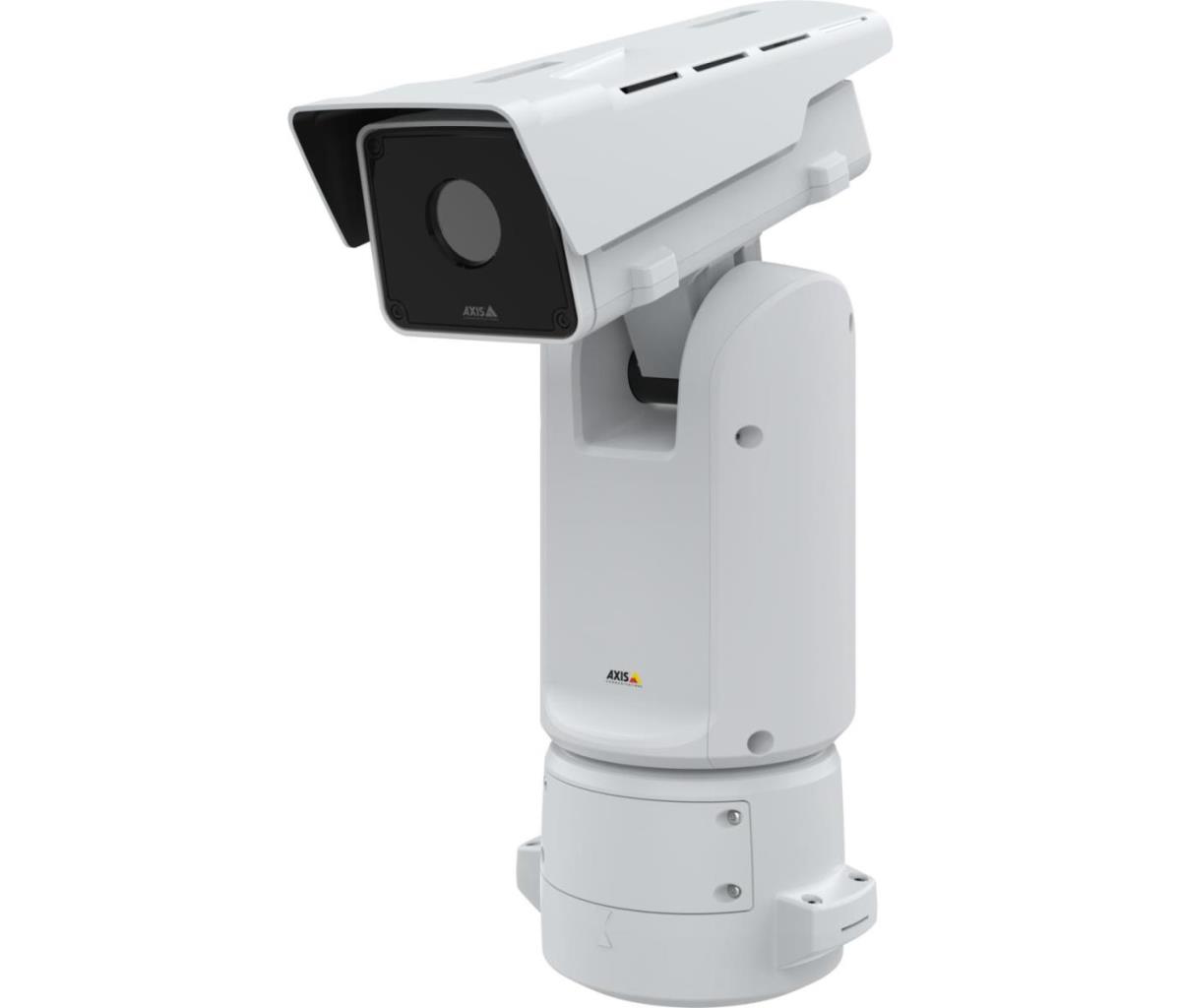

AXIS Q2101-TE lets you remotely monitor temperatures over large areas—automatically or manually with just one camera. It can monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F) with several trigger types such as lowest and highest temperature or temperature gradient. When mounted on a positioning unit (sold separately), this robust camera provides a 360° unobstructed field of view. This also enables thermometric guard tour with support for up to 256 presets with 10 polygonal detection areas each. Spot temperature reading acts as a visual aid and lets you see the exact temperature in a specific area. Additionally, temperature metadata enables statistics, follow up, and process analysis.
Detect early signs of fire
Built on ARTPEC 8, the latest Axis system-on-chip (SoC), AXIS Q2101-TE offers powerful analytics capabilities. It comes with early fire detection analytics preinstalled making it possible to set triggers and get warnings about early signs of fire or potential overheating. Using smart filtering, the analytics can disregard uninteresting hot objects such as the warm exhausts of passing work vehicles for reduced false alarms.
Depend on it - robust and secure
This reliable, IK10-, NEMA 4X-rated thermal camera is ideal for monitoring critical assets. It includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. It also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Thanks to electronic image stabilization (EIS), this robust camera provides smooth video even in scenes with vibrations. And, with four I/O ports and support for edge-to-edge technology it’s possible to connect a network speaker to enable audio alarms.
| Prestatie | |
| Soort | IP-beveiligingscamera |
| Ondersteuning voor plaatsing | Binnen |
| Connectiviteitstechnologie | Bedraad |
| Thermische module | Ja |
| Processormodel | ARTPEC-8 |
| Type processor | Ja |
| Aantal talen | 12 |
| Ondersteunde talen | Vereenvoudigd Chinees, Traditioneel Chinees, Duits, Engels, Spaans, Frans, Italiaans, Japans, Koreaans, Pools, Portugees, Russisch |
| Thermische gevoeligheid (NETD) | 40 mK |
| Certificering | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM |
| Design | |
| Vormfactor | Doos |
| Montagewijze | Muur |
| Kleur van het product | Wit |
| Materiaal behuizing | Aluminium |
| Internationale veiligheidscode (IP) | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Controle camerapanning | Ja |
| Kantelfunctie camera | Ja |
| Field of view (FOV) hoek | 19,4ø |
| Pixelgrootte camera | 17 æm |
| Beeldsensor | |
| Sensortype (thermomodule) | Noise equivalent temperature difference (NETD) |
| Type beeldsensor | Microbolometer |
| Lenssysteem | |
| Lens diameter | 1,9 cm |
| Maximum aperture number | 1,23 |
| Nachtkijker | |
| Nachtvisie | Nee |
| Video | |
| Maximum resolutie | 768 x 576 Pixels |
| Videocompressieformaten | H.264, H.265, M-JPEG |
| Video recording | Ja |
| Maximaal 30 frames per seconde | 8,3 fps |
| Videostreaming | Ja |
| Type sterkteregeling | Auto |
| Priv‚zone maskeren | Ja |
| Audio | |
| Audiosysteem | 2-weg |
| Audiosysteem full duplex | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | Gigabit Ethernet |
| Netwerkstandaard | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Wifi | Nee |
| Bluetooth | Nee |
| Quality of Service (QoS) | Ja |
| Opslagmedia | |
| Ingebouwde HDD | Nee |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| Intern geheugen | 2048 MB |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| RS-485 ports | 2 |
| Hoofdtelefoonuitgangen | 2 |
| Klemmenblokpoort | Ja |
| Aansluiting voor netstroomadapter | Ja |
| Beveiliging | |
| Temperatuursensor | Ja |
| Bereik temperatuurmeting | -40 - 350 øC |
| Nauwkeurigheid temperatuurmeting | 5 øC |
| Branddetectie | Ja |
| Wachtwoordbeveiliging | Ja |
| Video bewegings-detectie | Ja |
| Actieve ombevoegde demontage alarm | Ja |
| IP-adresfilter | Ja |
| Spiegel | Ja |
| Pixelteller | Ja |
| Samenvattingsverificatie | Ja |
| Netwerktoegangsopslag (NAS) | Ja |
| Energie | |
| Type stroombron | DC, Power over Ethernet (PoE) |
| Stroomverbruik (typisch) | 4,1 W |
| Vermogensverbruik (max) | 25,5 W |
| Stroomverbruik (voeding via Ethernet (PoE)) | 4,6 W |
| Stroomuitvoer (volt) | 8, 9, 10, 12, 15, 16, 24, 28 |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 50 øC |
| Temperatuur bij opslag | -40 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 100 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 150 mm |
| Diepte | 404 mm |
| Hoogte | 159 mm |
| Gewicht | 3,3 kg |
| Inhoud van de verpakking | |
| Aantal cameras | 1 |
| Gebruikershandleiding | Ja |
| Warranty | |
| Base Warranty | Non Non |
