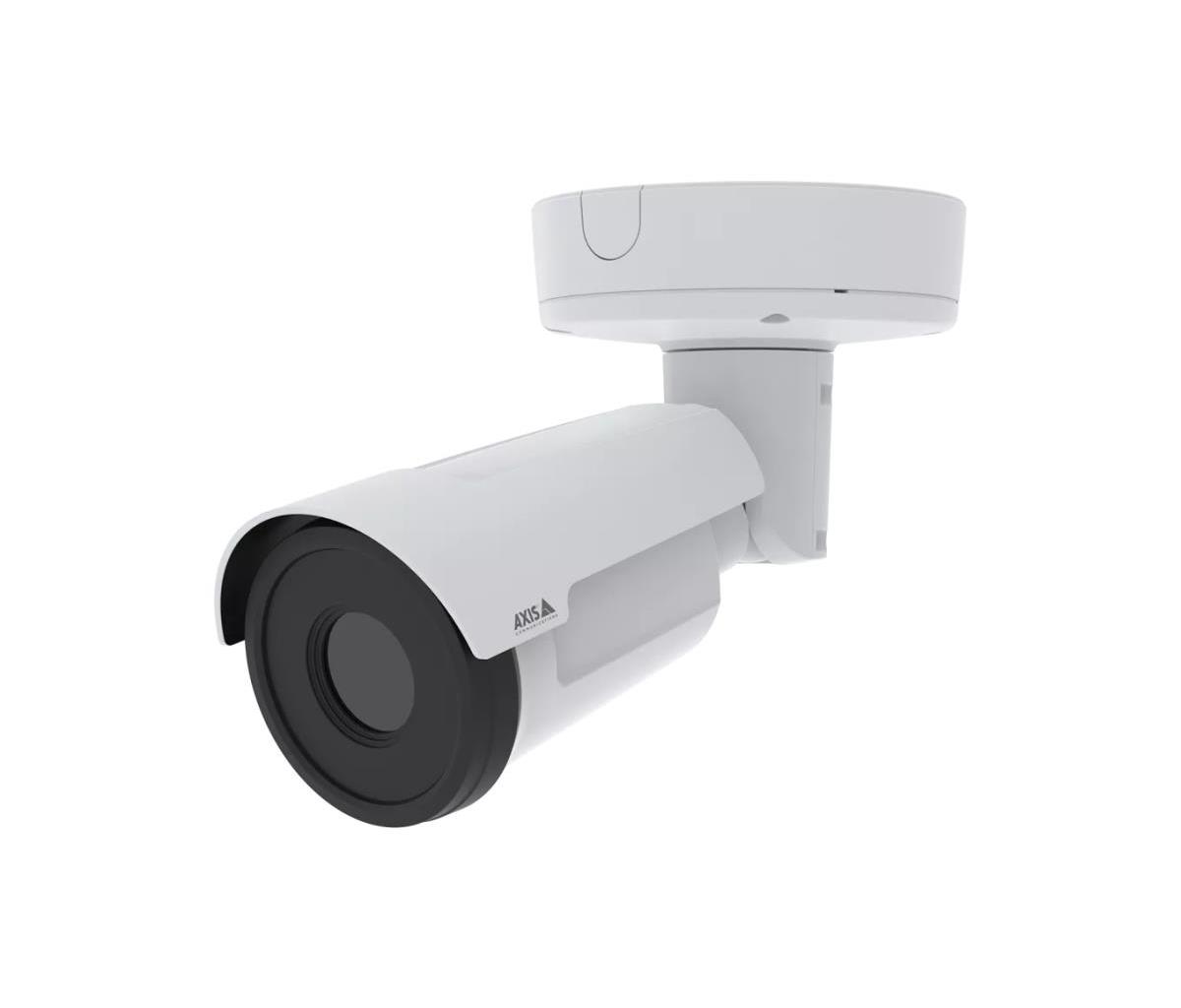

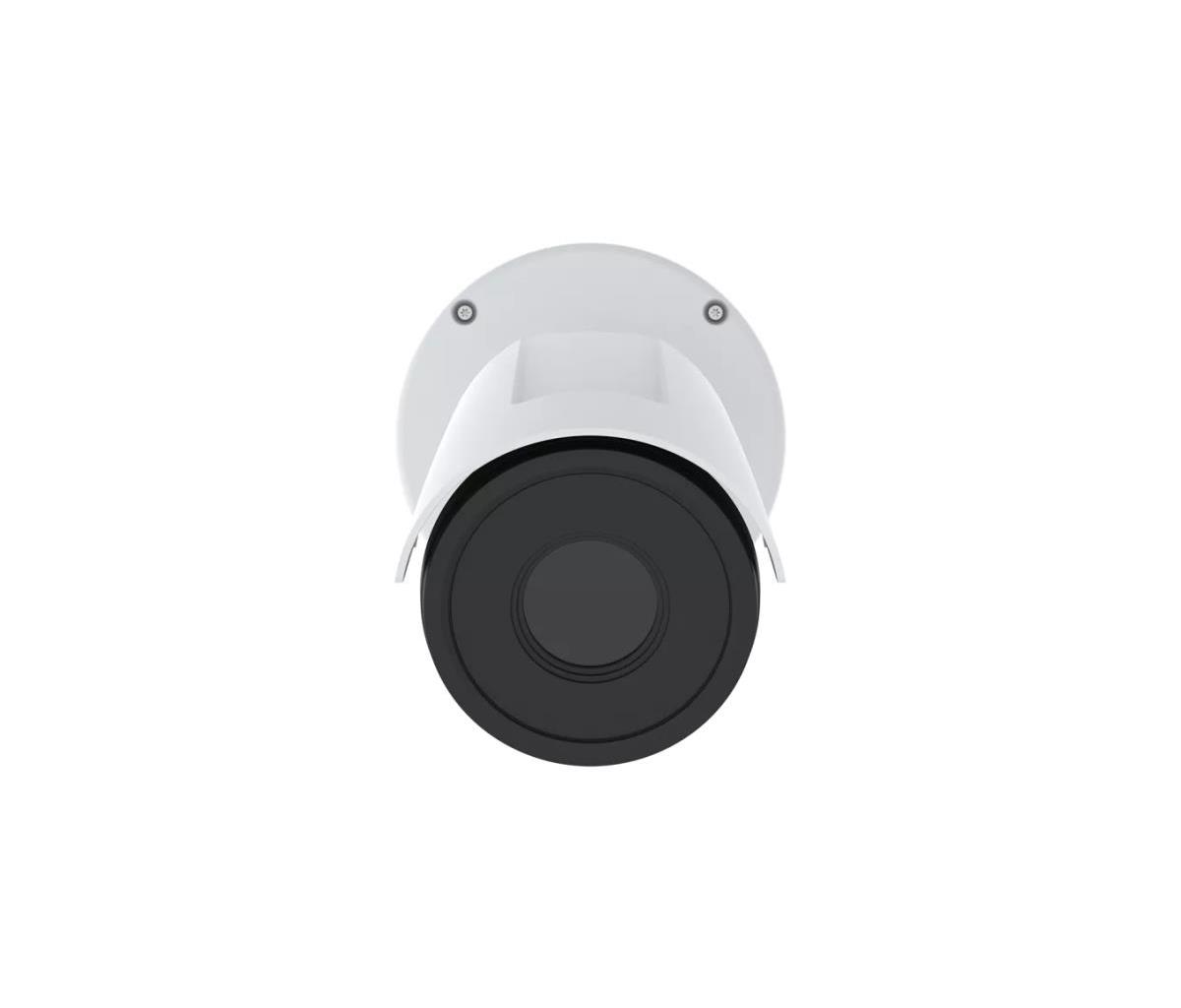

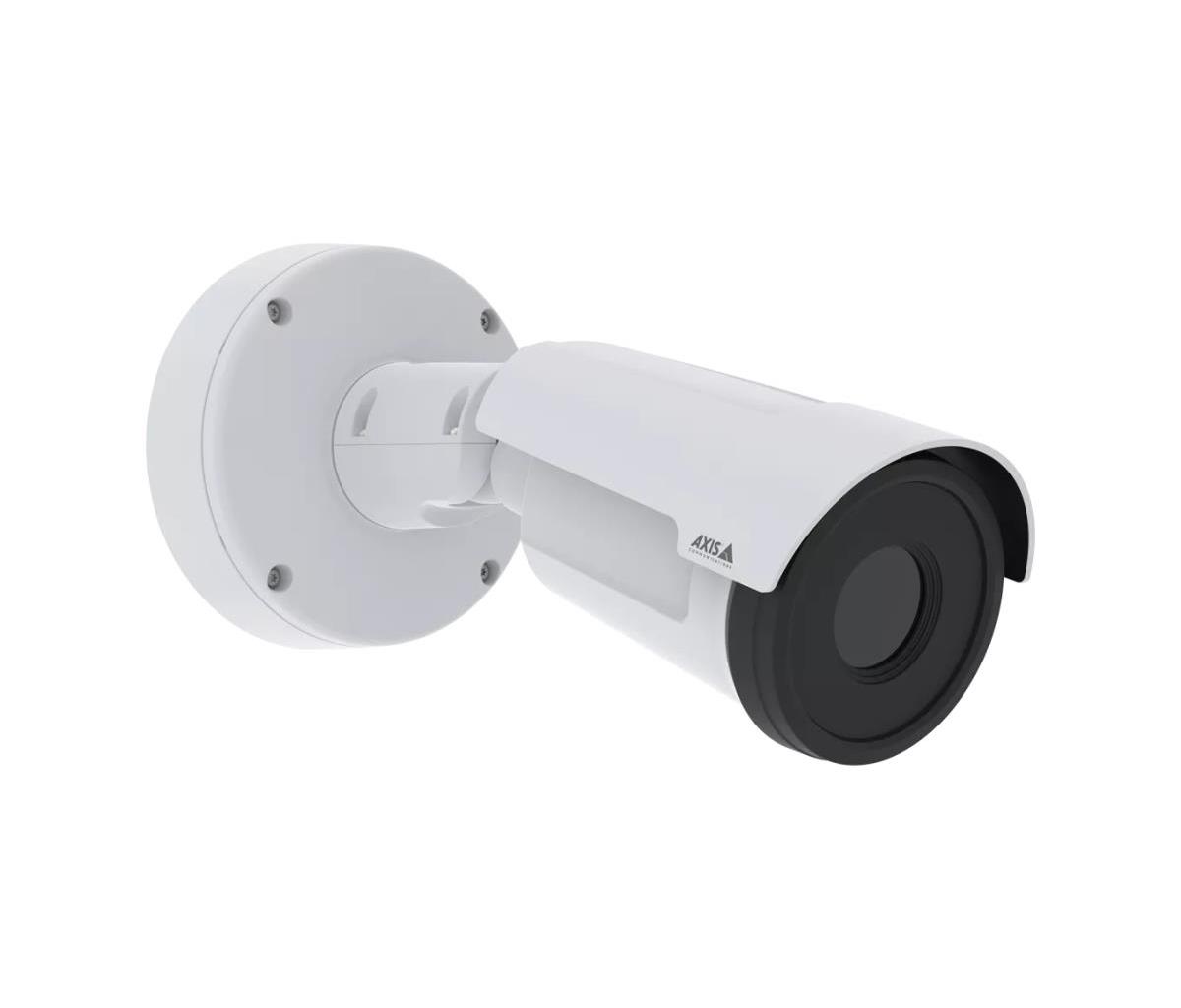

Q1972-e 19 Mm 8.3 Fps Thermal Camera
ITCurry #: 13836682 | Article #: 03030-001-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Reliable detection and visual verification- always
Using thermal technology, AXIS Q1972-E offers reliable detection and verification 24/7 even in low contrast scenes. It isn’t impacted by weather or light conditions ensuring a lower false alarm rate. With four lens alternatives (10 mm, 19 mm, 25 mm, and 35 mm), it offers optimal installation possibilities. Thermal palettes help you visually identify different heat sources making it easier and more efficient to interpret a scene. And electronic image stabilization (EIS) ensures stable, reliable video in all environments. Furthermore, because thermal imaging doesn’t deliver images that allow for identification, privacy is always guaranteed.
Powerful analytics platform
AXIS Q1972-E comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for enhanced detection capabilities allowing you to detect and classify humans and other objects. Built on a powerful platform, it’s possible to add third-party analytics to trigger events. It comes with two I/O ports for connecting external devices. Furthermore, edge-to-edge technology lets you connect, for instance, a hornspeaker to enable audio alarms that deter, warn, and notify. You can also connect a strobe siren to deter intruders with the power of light and sound.
Secure, robust, and sustainable
This powerful thermal camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. With IK10-, IP66/67-, NEMA TS2, and NEMA 4x ratings, it’s impact- and weather-resistant. What’s more, this robust, sustainable device offers a low carbon footprint. It’s made from halogen-free materials and there’s no need for lighting in dark scenes, ensuring lower system power consumption.
| Prestatie | |
| Soort | IP-beveiligingscamera |
| Ondersteuning voor plaatsing | Buiten |
| Connectiviteitstechnologie | Bedraad |
| Vooraf ingestelde punten | Ja |
| Thermische gevoeligheid (NETD) | 20 mK |
| Certificering | CSA, UL/cUL, CE, KC, TAA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10d , ISO 21207 Method B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), NIST SP500-267 |
| Design | |
| Vormfactor | Kogel (vorm) |
| Montagewijze | Muur |
| Kleur van het product | Zwart, Wit |
| LED-indicatoren | Ja |
| Materiaal behuizing | Aluminium, Polycarbonaat (PC) |
| Internationale veiligheidscode (IP) | IP66, IP67 |
| IK code | IK10 |
| Weerbestendig | Ja |
| Camera | |
| Kijkhoek lens, horizontaal | 31ø |
| Pixelgrootte camera | 17 æm |
| Beeldsensor | |
| Aantal sensoren | 1 |
| Effectieve sensorresolutie (thermische module) | 640 x 480 Pixels |
| Type beeldsensor | Microbolometer |
| Lenssysteem | |
| Aantal lenzen | 1 |
| Lens diameter | 1,9 cm |
| Maximum aperture number | 1 |
| Dichtstbijzijnde focus afstand | 8,5 m |
| Infrarode spectrale band | 8 - 14 æm |
| Video | |
| Maximum resolutie | 640 x 480 Pixels |
| Videocompressieformaten | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Maximaal 30 frames per seconde | 8,3 fps |
| Videostreaming | Ja |
| Type sterkteregeling | Auto |
| Aanpassing van de afbeeldingskwaliteit | Helderheid, Contrast, Scherpte |
| Draaien & spiegelen | Ja |
| Tekstoverlay | Ja |
| Beeldstabilisator | Ja |
| Bitratecontrole | Variabele bitsnelheid (VBR) |
| Audio | |
| Audiosysteem full duplex | Ja |
| Ondersteund audioformaat | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio detectie | Ja |
| Sample rates | 8 - 48 kHz |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Netwerkstandaard | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ondersteunde netwerkprotocollen | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSc , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Quality of Service (QoS) | Ja |
| Methode voor streaming | Multicast |
| Opslagmedia | |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM-capaciteit | 2048 MB |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| RS-422 ports | 1 |
| RS-485 ports | 1 |
| Microfoon, line-in ingang | Ja |
| Klemmenblokpoort | Ja |
| Aansluiting voor netstroomadapter | Ja |
| Beveiliging | |
| Video bewegings-detectie | Ja |
| Actieve ombevoegde demontage alarm | Ja |
| Ondersteunde beveiligingsalgoritmen | 256-bit AES-XTS, EAP-TLS, FIPS 140-2, MSCHAPv2, PEAP |
| Type waarschuwingsnotificatie | |
| Privacybescherming | Ja |
| Pixelteller | Ja |
| Samenvattingsverificatie | Ja |
| Energie | |
| Type stroombron | DC, Power over Ethernet (PoE) |
| Stroomverbruik (typisch) | 5 W |
| Vermogensverbruik (max) | 12,95 W |
| Stroomverbruik (voeding via Ethernet (PoE)) | 12,95 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 60 øC |
| Temperatuur bij opslag | -40 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 100 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 132 mm |
| Diepte | 264 mm |
| Hoogte | 132 mm |
| Gewicht | 1,4 kg |
| Duurzaamheid | |
| Certificaten van naleving | REACH, RoHS |
| Inhoud van de verpakking | |
| Aantal cameras | 1 |
| Gebruikershandleiding | Ja |
| Overige specificaties | |
| Bevat geen | CFR, PVC/BFR |
| Warranty | |
| Base Warranty | Non Non |
