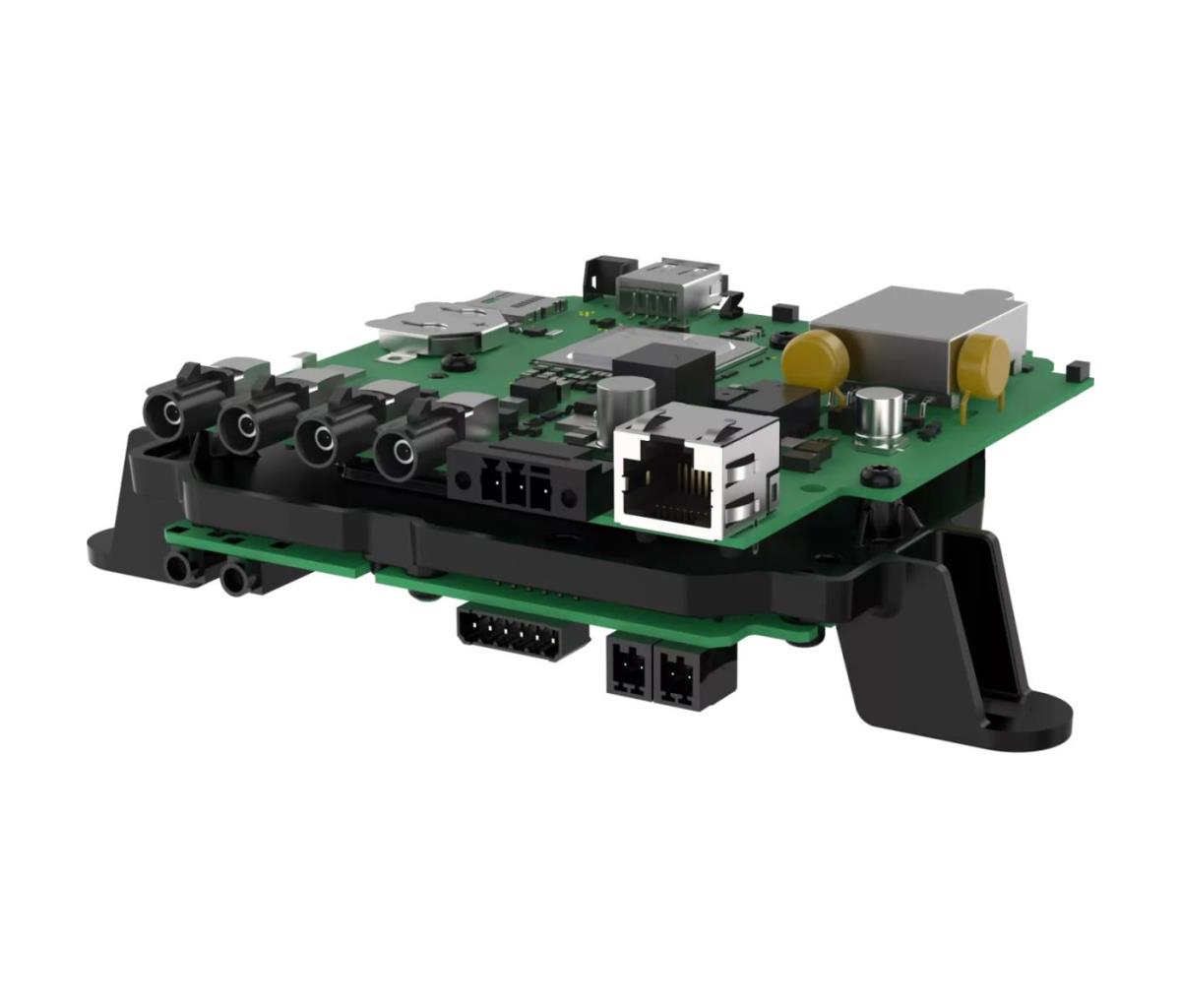

AXIS F9114-B Mk II Main Unit
This AI-powered, 4-channel barebone unit is ideal for integration into UL-certified end products. It offers up to 4K at 12/15 fps and includes two audio-in and four configurable I/O ports. Plus, FAKRA connectors ensure secure installation.
Flexible and cost-efficient
Sold without a casing, this UL-recognized barebone unit is perfect for integration into UL-certified end products. It offers up to four 4K channels at 12/15 fps per channel. With several sensor units to choose from, you can use up to four different sensor units simultaneously. Including two audio-in ports and four configurable I/O ports, it’s possible to connect external microphones and wired accessories. This barebone main unit also ensures lower total cost of ownership compared to conventional camera solutions. For instance, it requires only one video management software (VMS) license instead of four. What’s more, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements.
Gain valuable insights
Featuring a deep learning processing unit (DLPU), this AI-powered barebone unit lets you run advanced features and powerful analytics at the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also delivers valuable metadata facilitating efficient forensic search capabilities in live or recorded video. With AXIS Sensor Metrics Dashboard preinstalled, you can gather information from connected devices including the integrated accelerometer sensor, as well as external Modbus sensors and GPS devices. Furthermore, this barebone main unit includes a built-in USB port that’s prepared for future applications.
Protected from the inside and out
This four-channel barebone unit includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Lever 2 certified, secure cryptographic key storage and operations. Furthermore, FAKRA connectors provide a tight connection with the cable ensuring ruggedized installation.
| Prestatie | |
| Connectiviteitstechnologie | Bedraad |
| Wide Dynamic Range (WDR) | Ja |
| Design | |
| Kleur van het product | Zwart, Groen |
| LED-indicatoren | Ja |
| Video | |
| Maximum resolutie | 3840 x 2160 Pixels |
| Ondersteunde videoformaten | H.265, H.264, MPEG4, AVC, HEVC, M-JPEG |
| Videocompressieformaten | H.264, H.265 Pro, AVC, MPEG4, M-JPEG |
| Ondersteunde grafische resoluties | 3840 x 2160, 2560 x 1944, 1920 x 1080 (HD 1080) |
| Maximaal 30 frames per seconde | 60 fps |
| Videostreaming | Ja |
| Aanpassing van de afbeeldingskwaliteit | Contrast, Helderheid, Scherpte |
| Draaien & spiegelen | Ja |
| Tekstoverlay | Ja |
| Bitratecontrole | Variabele bitsnelheid (VBR) |
| Audio | |
| Audiosysteem | 1-weg |
| Ondersteund audioformaat | LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Signaal/ruis-verhouding | 55 dB |
| Audio detectie | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| Netwerkstandaard | IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at |
| Ondersteunde netwerkprotocollen | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Methode voor streaming | Multicast |
| Opslagmedia | |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM-capaciteit | 4096 MB |
| Poorten & interfaces | |
| RS-485 ports | 1 |
| Microfoon, line-in ingang | Ja |
| Klemmenblokpoort | Ja |
| Beveiliging | |
| Video bewegings-detectie | Ja |
| Ondersteunde beveiligingsalgoritmen | EAP-TLS, PEAP, MSCHAPv2, HTTPS, TLS |
| Privacybescherming | Ja |
| Systeemfuncties intelligente videobewaking (IVS) | Detectie van lijnoverschrijding, Achtergelaten voorwerp |
| Indeling van menselijke en voertuigdoelen | Ja |
| Beheerfuncties | |
| Cloud-beheerd | Ja |
| Energie | |
| Type stroombron | Power over Ethernet (PoE), DC |
| Stroomverbruik (typisch) | 12,7 W |
| Vermogensverbruik (max) | 25,5 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 60 øC |
| Temperatuur bij opslag | -40 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Gewicht | 185 g |
| Duurzaamheid | |
| Certificaten van naleving | UL, cUL, CE, KC, VCCI, Federal Communications Commission (FCC) |
| Inhoud van de verpakking | |
| Gebruikershandleiding | Ja |
| Warranty | |
| Base Warranty | Non Non |
