F9104-b Mk Ii Main Unit
ITCurry #: 13836719 | Article #: 03000-001-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

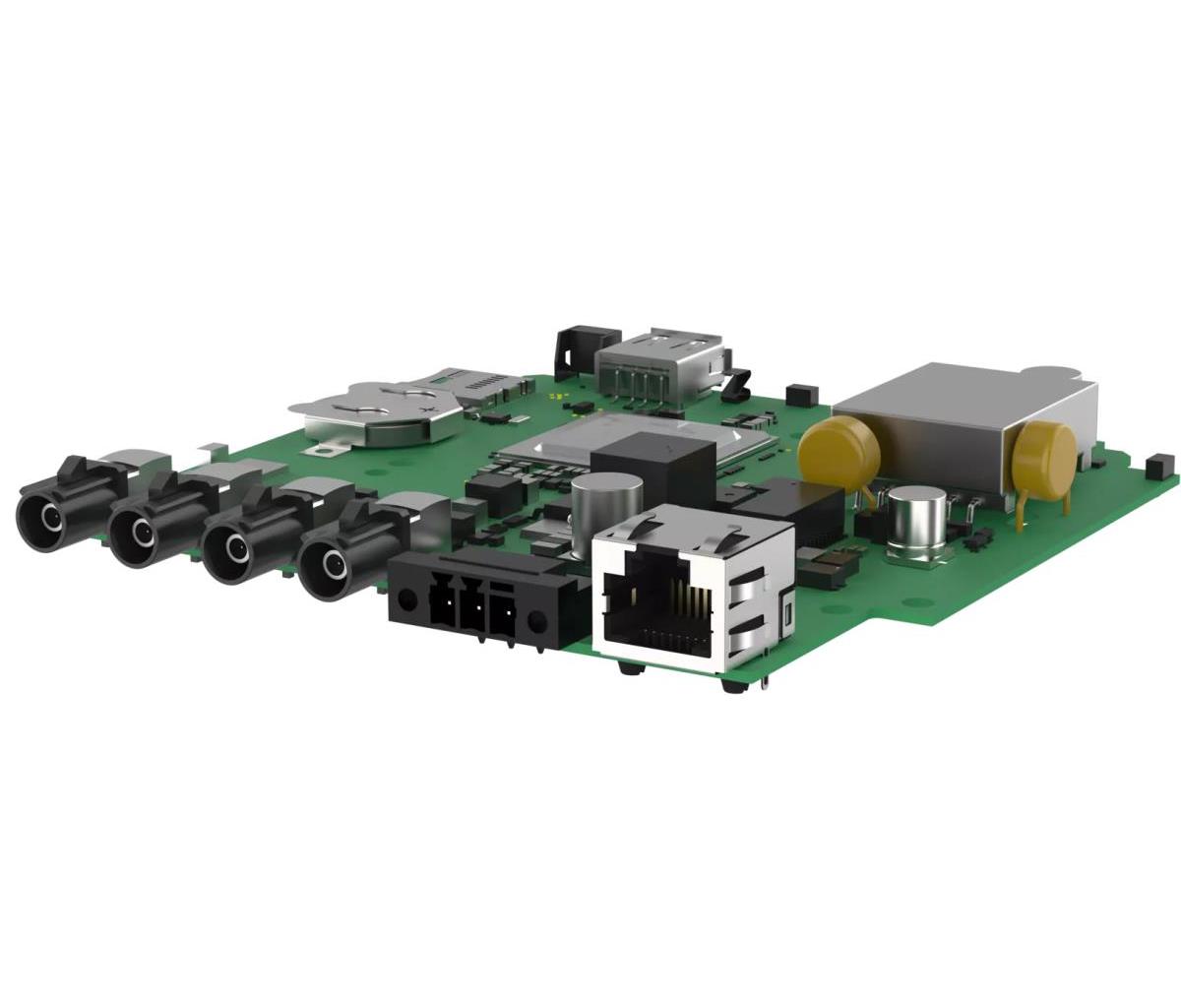

This AI-powered, 4-channel barebone unit is ideal for integration into UL-certified end products. It offers up to 4K at 12/15 fps. And Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.
Flexible and cost-efficient
Sold without a casing, this UL-recognized barebone unit is perfect for integration into UL-certified end products. It offers up to four 4K channels at 12/15 fps per channel. With seven sensor units to choose from, you can use up to four different sensor units simultaneously. This main unit also ensures an improved total cost of ownership compared to conventional camera solutions. For instance, it requires only one video management software (VMS) license instead of four. What’s more, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements. And storage profile ensures the optimal level of Zipstream for your video storage - regardless of your VMS.
Gain valuable insights
Featuring a deep learning processing unit (DLPU), this AI-powered main unit lets you run advanced features and powerful analytics at the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also delivers valuable metadata facilitating efficient forensic search capabilities in live or recorded video. Furthermore, this main unit includes a built-in USB port that’s prepared for future applications.
Protected from the inside and out
This four-channel barebone unit includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. Furthermore, FAKRA connectors provide a tight connection with the cable ensuring ruggedized installation.
| Kenmerken | |
| Soort | Basisstation |
| Ondersteuning voor plaatsing | Binnen |
| Merkcompatibiliteit | Axis |
| Kleur van het product | Groen |
| Netwerkstandaard | IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar |
| Wide Dynamic Range (WDR) | Ja |
| Geheugenkaartslot | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Type processor | Ja |
| Beeldsensor | |
| Resolutie | 3840 x 2160 Pixels |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Ethernet LAN | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| USB-poort | Ja |
| Aansluiting voor netstroomadapter | Ja |
| Energie | |
| Ingangsspanning | 10 - 48 V |
| Stroomverbruik (typisch) | 11,5 W |
| Vermogensverbruik (max) | 25,5 W |
| Gewicht en omvang | |
| Gewicht | 115 g |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 95 procent |
| Temperatuur bij opslag | -40 - 65 øC |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Technische details | |
| Garantieperiode | 5 jaar |
| Warranty | |
| Base Warranty | Non Non |
