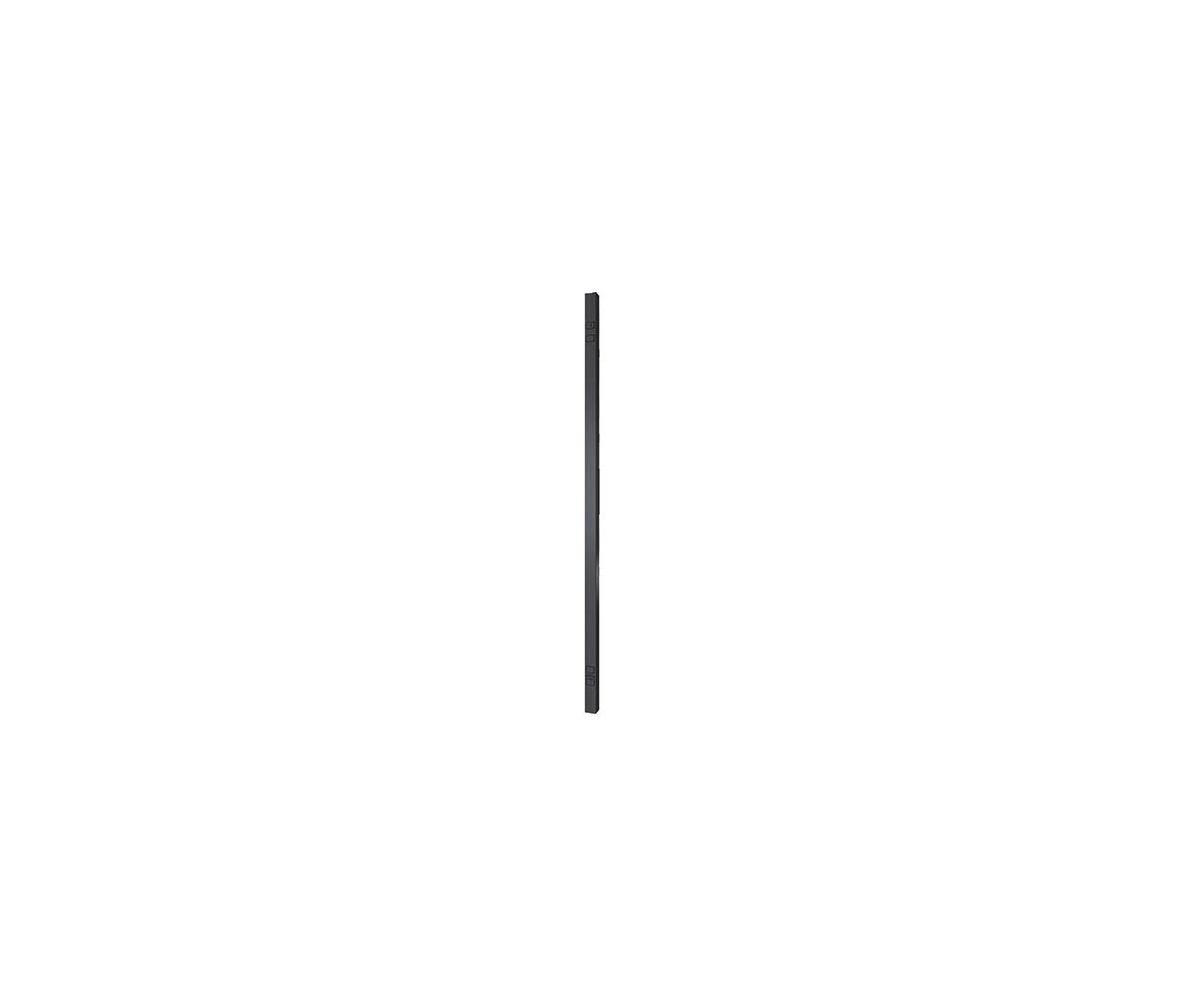

Rack PDU 2G Metered ZeroU 17.2kW 208V (30) C13
ITCurry #: 0280H750 | Article #: AP8867-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
- Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

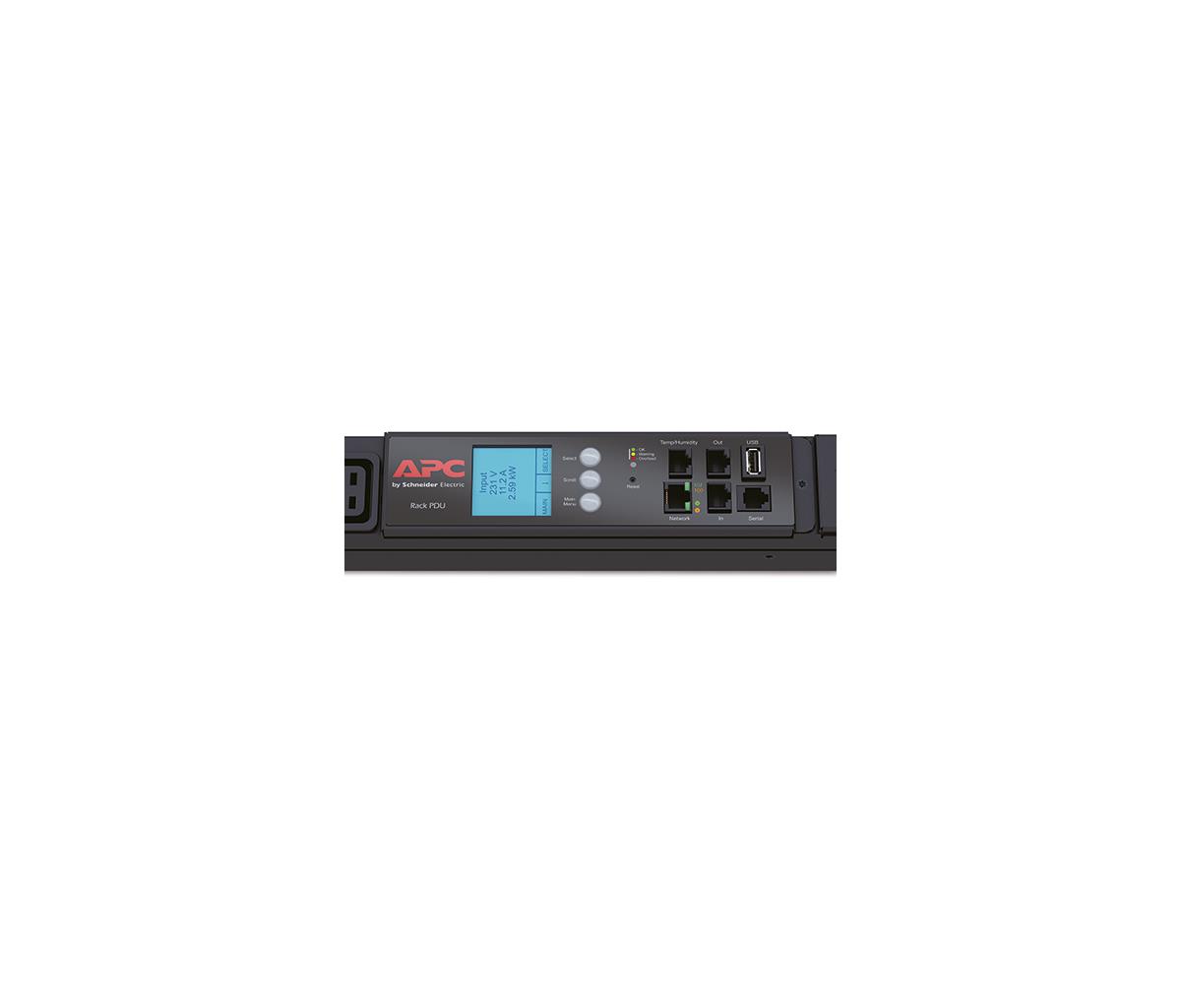

- The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
- Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
- Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
- An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
- Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
| Design | |
| PDU types | Gemeten |
| Rackcapaciteit | 0U |
| Montage | Horizontaal/Verticaal |
| Kleur van het product | Zwart |
| Beeldscherm | LCD |
| Poorten & interfaces | |
| Aantal AC uitgangen | 30 AC-uitgang(en) |
| Stopcontacttypes | C13 stekker |

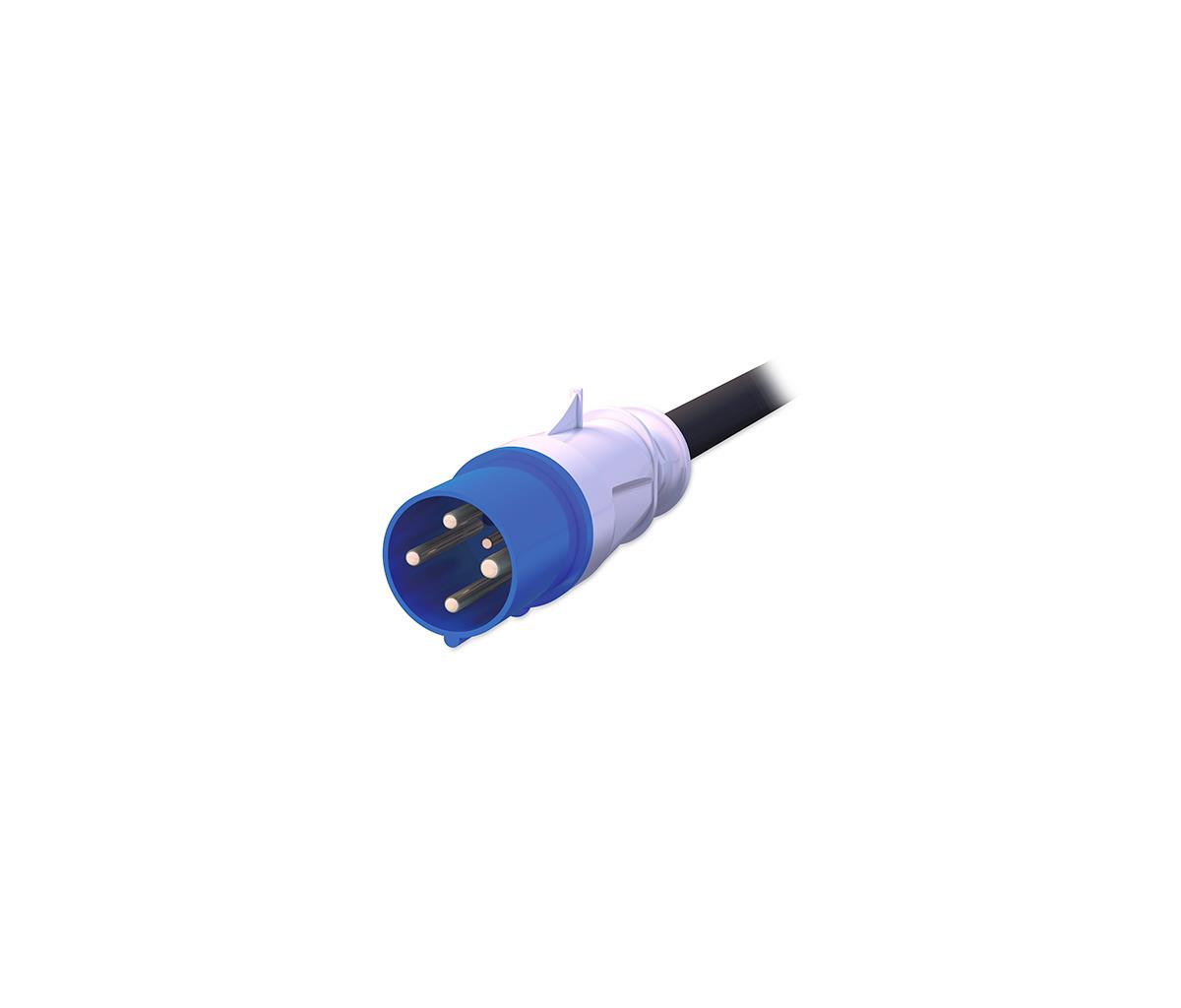

| Input-connectietype | IEC 309 60A 3P+PE |
| Kenmerken | |
| Snoerlengte | 1,83 m |
| Certificering | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A |
| Energie | |
| Nominale input voltage | 208 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroom (max.) | 60 A |
| Netspanning, in bedrijf | 208 V |
| Spanning | 208 V |
| Laad-capaciteit | 17300 VA |
| Maximale ingang stroom per fase | 48 A |
| Maximum totaalstroomverbruik per fase | 48 A |
| Stroomspanning bescherming | Overbelasting |
| Gewicht en omvang | |
| Afmetingen (B x D x H) | 56 x 51 x 1829 mm |
| Gewicht | 10,2 kg |
| Verpakking | |
| Afmetingen verpakking (BxDxH) | 221 x 112 x 2149 mm |
| Gewicht verpakking | 14,1 kg |
| Warranty | |
| Base Warranty | Non Non |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 55 øC |
| Temperatuur bij opslag | -25 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Hoogte bij opslag | 0 - 15000 m |
| Technische details | |
| Certificaten van naleving | RoHS |
