Rack PDU 2G, Metered ZeroU 10kW 208V (36) C13 & (6) C19
ITCurry #: 0280E034 | Article #: AP8868
Verwante producten
Product Informatie
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| Design | |
| PDU types | Gemeten |
| Rackcapaciteit | 0U |
| Montage | Verticaal |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Aantal AC uitgangen | 42 AC-uitgang(en) |

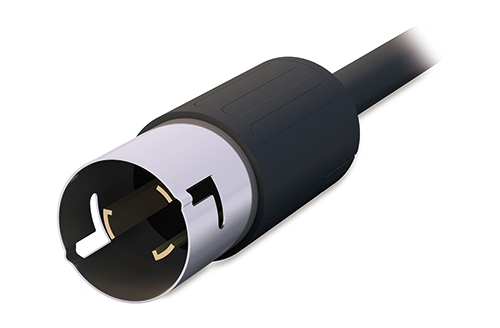

| Input-connectietype | CS8365 |
| Output-aansluitingen | 36 x IEC 320 C13 6 x IEC 320 C19 |
| Kenmerken | |
| Snoerlengte | 1,83 m |
| Energie | |
| Nominale input voltage | 208 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Netspanning, in bedrijf | 208 V |
| Laad-capaciteit | 10000 VA |
| Maximale ingang stroom per fase | 35 A |
| Maximum totaalstroomverbruik per fase | 35 A |
| Stroomspanning bescherming | Overbelasting |
| Certificaten | |
| Certificaten van naleving | RoHS |
| Certificering | cUL, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC, ICES-003, UL, VCCI |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 55 øC |
| Temperatuur bij opslag | -25 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Hoogte bij opslag | 0 - 15000 m |
| Gewicht en omvang | |
| Breedte | 56 mm |
| Diepte | 51 mm |
| Afmetingen (B x D x H) | 56 x 51 x 1829 mm |
| Hoogte | 1829 mm |
| Gewicht | 8,52 kg |
| Verpakking | |
| Afmetingen verpakking (BxDxH) | 170 x 112 x 2050 mm |
| Gewicht verpakking | 11,4 kg |
| Breedte verpakking | 170 mm |
| Diepte verpakking | 112 mm |
| Hoogte verpakking | 2050 mm |
| Logistieke gegevens | |
| Totale Koolstofvoetafdruk (kg of CO2e) | 51678,25 |
| Warranty | |
| Base Warranty | Non Non |
