Easy UPS On-Line SRV RM Extended Runtime 6000VA 230V No Battery
ITCurry #: 0280J050 | Article #: SRVPM6KRIL-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

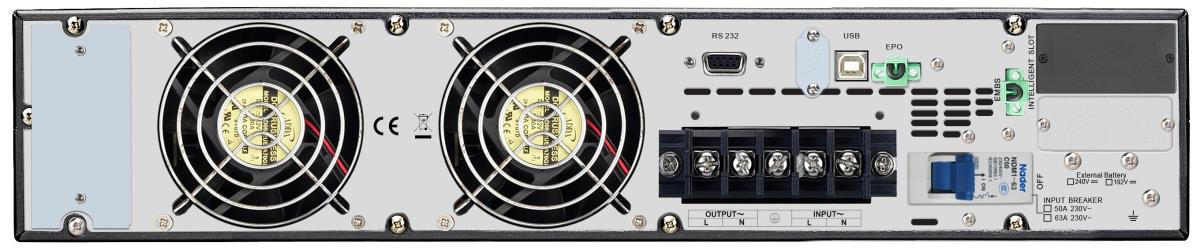

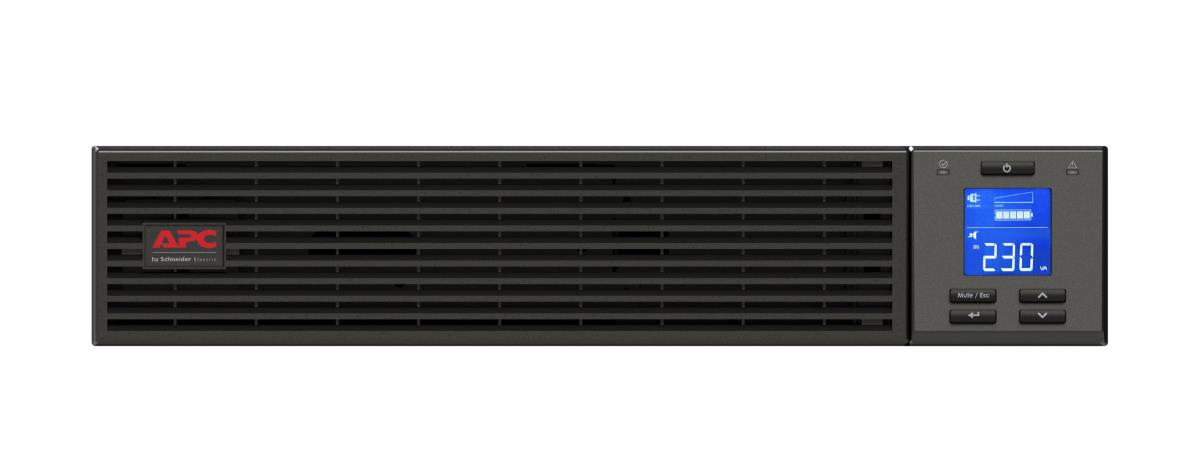

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and 1x hard wire 3-wire(1P+N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kit sold separately. The Easy UPS has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 6 kVA |
| Uitgangsvermogen | 6000 W |
| Golfvorm | Zuivere sinus |
| Frequentie | 40/70 Hz |
| Uitgang operation voltage (min) | 220 V |
| Uitgang operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Crest factor | 3:1 |
| ECO mode | Ja |
| Emergency Power Off (EPO) | Ja |
| Geluidsalarm(en) | Ja |
| Hoorbare alarmstanden | Alarm bij werking op batterij, Alarm bij laag batterijniveau, Alarm bij overbelasting |
| Auto-herstart | Ja |
| Onderhoudsvrij - geen olie nodig | Ja |
| Poorten & interfaces | |
| Stekker | Eindstation |
| USB-poort | Ja |
| Aantal USB 2.0-poorten | 1 |
| USB-poorttype | USB Type-B |
| Seri‰le interface | Ja |
| Seri‰le poort(en) | 1 |
| Noodstop-aansluiting (EPO) | Ja |
| SmartSlot | Ja |
| Accu/Batterij | |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Accu/Batterij oplaadtijd | 3 uur |
| Automatische batterij test | Ja |
| Design | |
| Vormfactor | Rackmontage |
| Rackcapaciteit | 2U |
| Kleur van het product | Zwart |
| Type beeldscherm | LCD |
| LED-indicatoren | Ja |
| Certificering | CE, IEC 62040-1-1, IEC 62040-1-2 REACH |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Hoogte bij opslag | 0 - 14763,6 m |
| Technische details | |
| Certificaten van naleving | RoHS |
| Gewicht en omvang | |
| Breedte | 438 mm |
| Diepte | 615 mm |
| Hoogte | 87 mm |
| Gewicht | 14 kg |
| Breedte verpakking | 600 mm |
| Diepte verpakking | 760 mm |
| Hoogte verpakking | 240 mm |
| Gewicht verpakking | 18 kg |
| Verpakking | |
| Meegeleverde kabels | USB-kabel |
| Gebruikershandleiding | Ja |
| Software-cd | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85078000 |
| Overige specificaties | |
| Netspanning, in bedrijf | 230 V |
| Nominale input voltage | 230 V |
| Warranty | |
| Base Warranty | Non Non |
