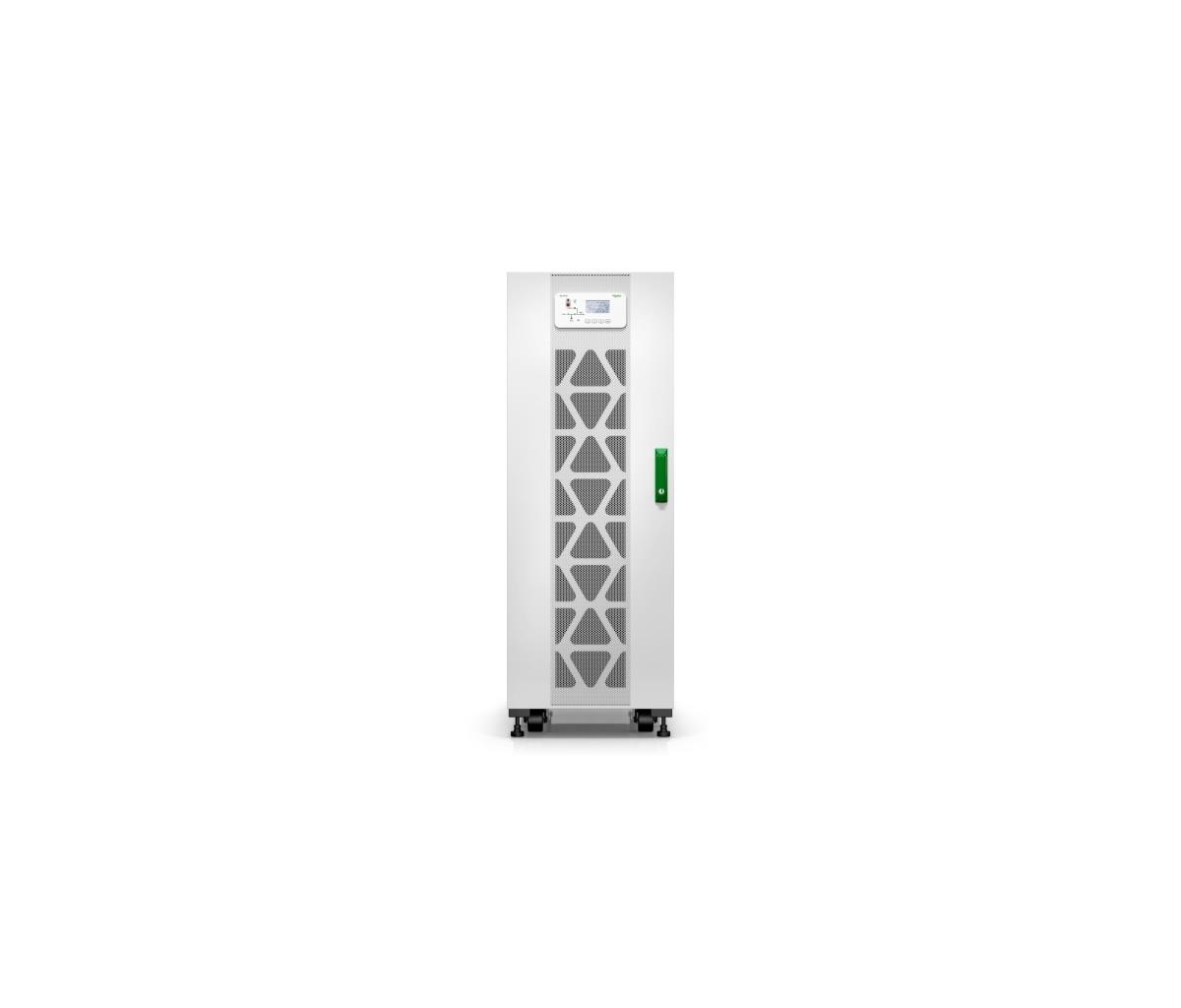

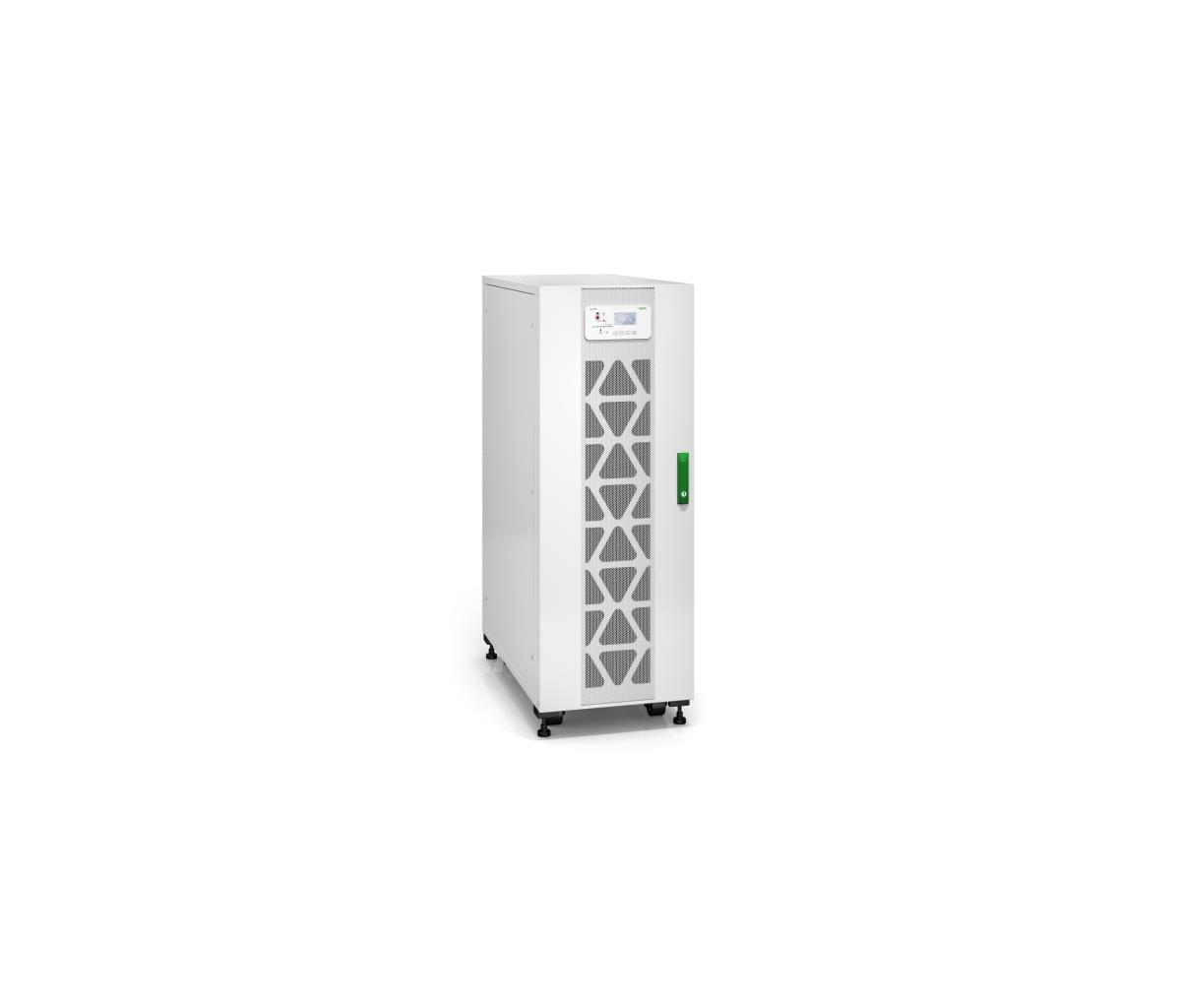

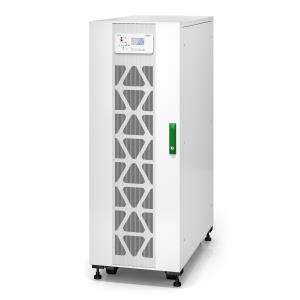

Easy UPS 3S 30kVA 400V 3:1 UPS 10 min
ITCurry #: 0280H740 | Article #: E3SUPS30K3IB1-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
High-efficiency 3-phase UPS with internal batteries providing a runtime of 9 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
Protection
Replaceable dust filters
protect the UPS in harsh environments.
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Convenience
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
| Warranty | |
| Base Warranty | Non Non |
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 30 kVA |
| Uitgangsvermogen | 30000 W |
| Ingang operation voltage (min) | 304 V |
| Ingang operation voltage (max) | 477 V |
| Frequentie | 45/65 Hz |
| Uitgang operation voltage (min) | 220 V |
| Uitgang operation voltage (max) | 240 V |
| Output frequentie | 50/60 Hz |
| Stroom (max.) | 55 A |
| Input vermogensfactor | 0,99 |
| Crest factor | 3:1 |
| Output voltage THD | 5,5 procent |
| Input stroom THD | 5 procent |
| Geluidsniveau | 63 dB |
| Stroomspanning bescherming | Overbelasting |
| Accu/Batterij | |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Accu/Batterij voltage | 240 V |
| Ondersteund aantal accu's/batterijen | 2 |
| Design | |
| Vormfactor | Tower |
| Kleur van het product | Wit |
| Internationale veiligheidscode (IP) | IP20 |
| Certificering | REACH CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -15 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 984,3 m |
| Hoogte bij opslag | 0 - 15000 m |
| Technische details | |
| Certificaten van naleving | RoHS |
| Gewicht en omvang | |
| Breedte | 500 mm |
| Diepte | 996 mm |
| Hoogte | 1400 mm |
| Gewicht | 212 kg |
| Batterijbreedte | 68,3 cm |
| Batterijdiepte | 111,4 cm |
| Batterijhoogte | 164 cm |
| Gewicht batterij | 213 kg |
| Verpakking | |
| Snelle installatiehandleiding | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85078000 |
