Easy UPS 3S 10kVA 400V 3:1 UPS High Tower
ITCurry #: 0280H741 | Article #: E3SUPS10K3IB-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

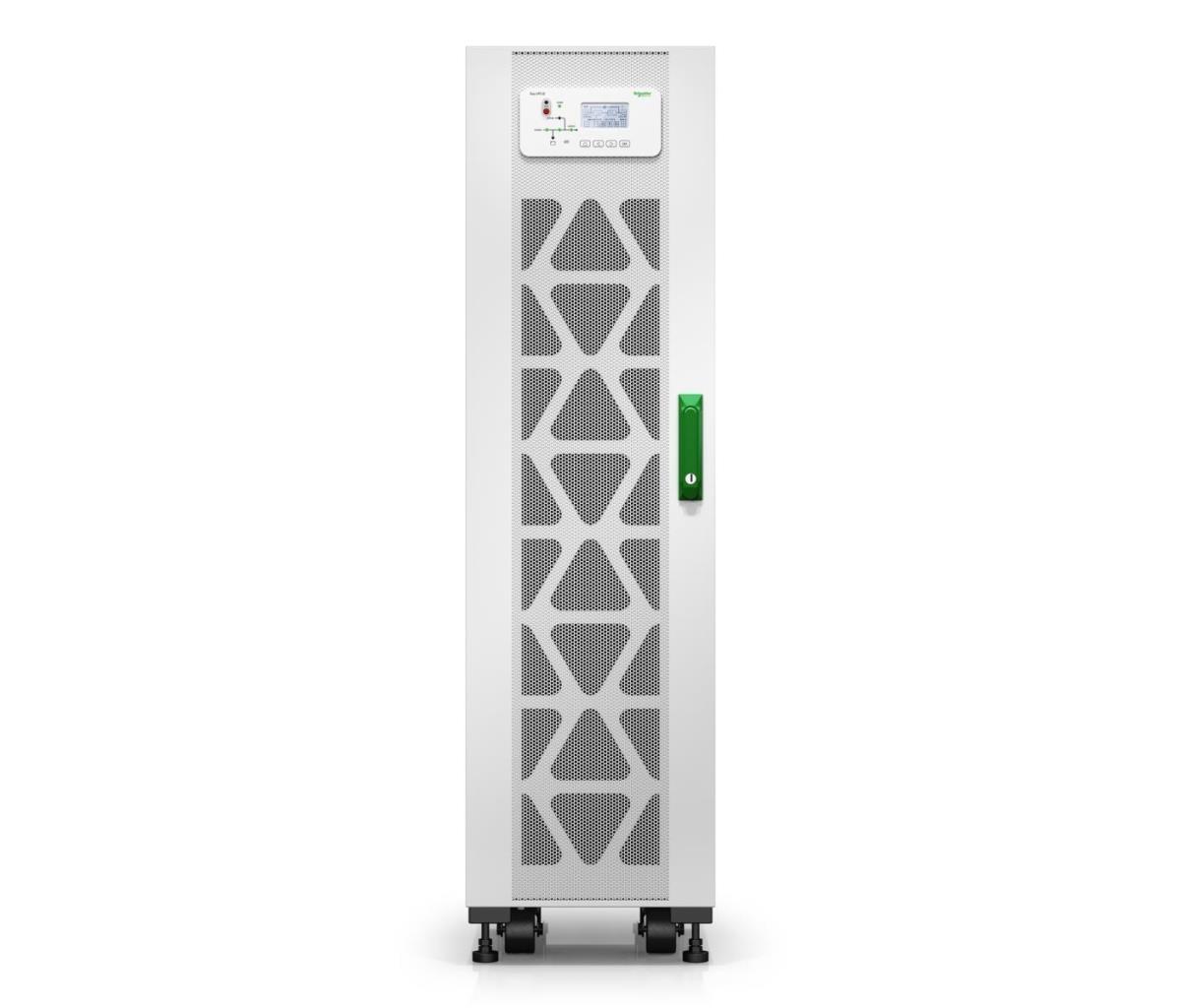

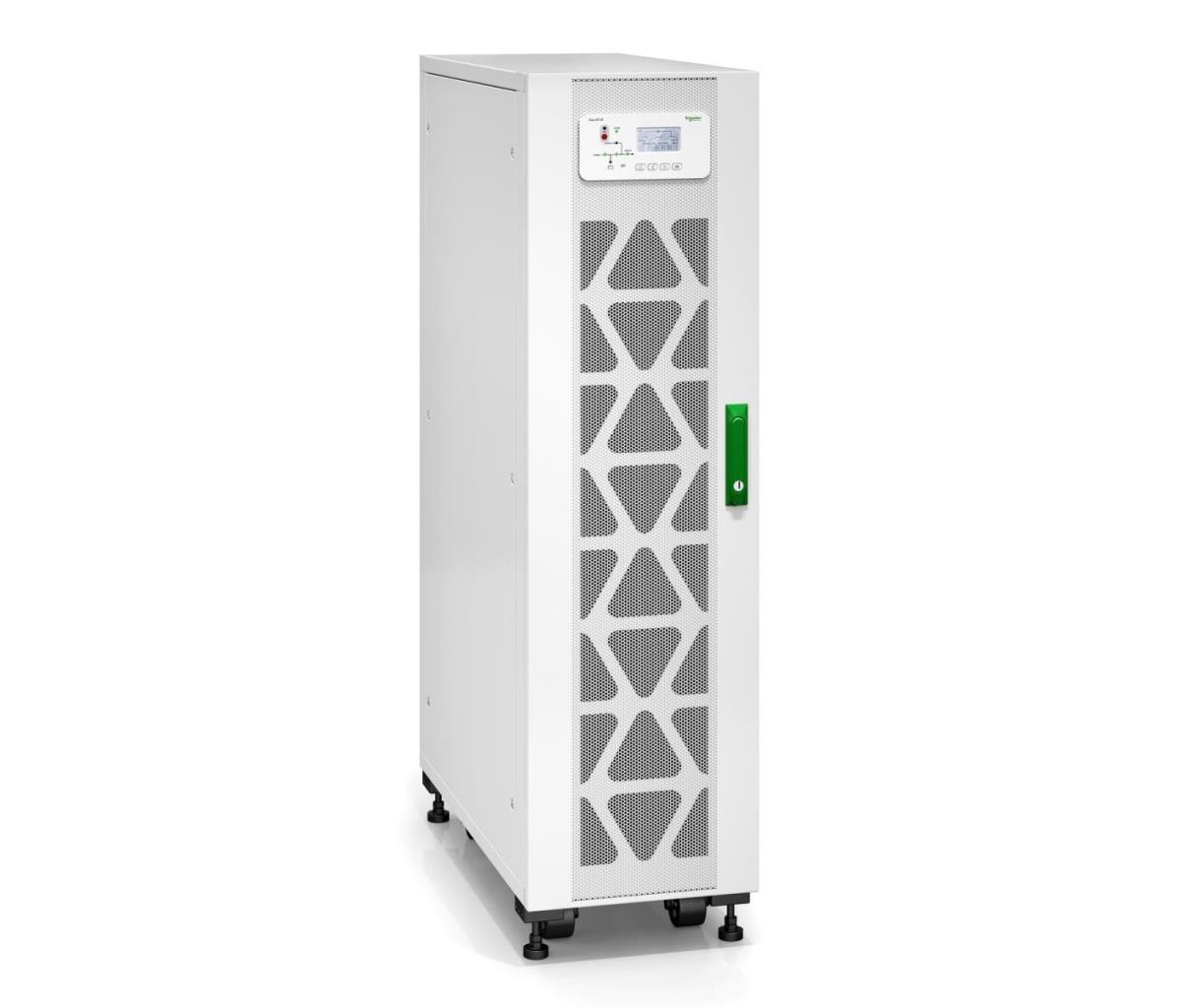

Easy UPS 3S 10 kVA 400 V 3:1 UPS for internal batteries
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Replaceable dust filters
protect the UPS in harsh environments.
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
| Warranty | |
| Base Warranty | Non Non |
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 10 kVA |
| Uitgangsvermogen | 10000 W |
| Ingang operation voltage (min) | 304 V |
| Ingang operation voltage (max) | 477 V |
| Frequentie | 45/65 Hz |
| Uitgang operation voltage (min) | 220 V |
| Uitgang operation voltage (max) | 240 V |
| Output frequentie | 50/60 Hz |
| Stroom (max.) | 18 A |
| Power factor | 0,99 |
| Crest factor | 3:1 |
| Output voltage THD | 5,5 procent |
| Accu/Batterij | |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Accu/Batterij voltage | 240 V |
| Design | |
| Vormfactor | Rackmontage |
| Kleur van het product | Wit |
| Internationale veiligheidscode (IP) | IP20 |
| Certificering | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -25 - 55 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Technische details | |
| Certificaten van naleving | RoHS |
| Gewicht en omvang | |
| Breedte | 380 mm |
| Diepte | 907 mm |
| Hoogte | 1400 mm |
| Gewicht | 130 kg |
| Breedte verpakking | 563 mm |
| Diepte verpakking | 1014 mm |
| Hoogte verpakking | 1640 mm |
| Gewicht verpakking | 145 kg |
| Verpakking | |
| Gebruikershandleiding | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85078000 |
