Easy UPS 3M 60kVA 400V 3:3 UPS for Internal Batteries, Start-Up 5x8
ITCurry #: 0280J318 | Article #: E3MUPS60KHBS-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

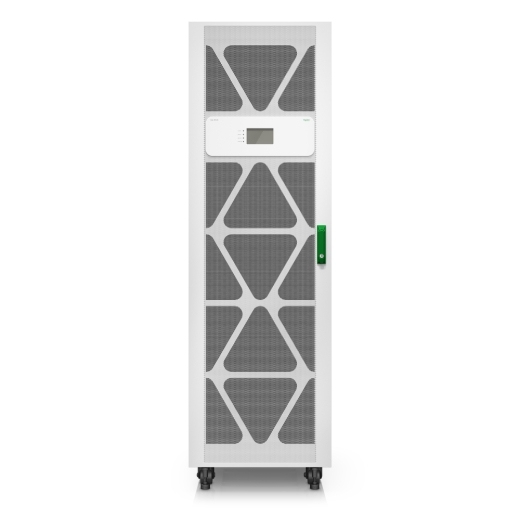

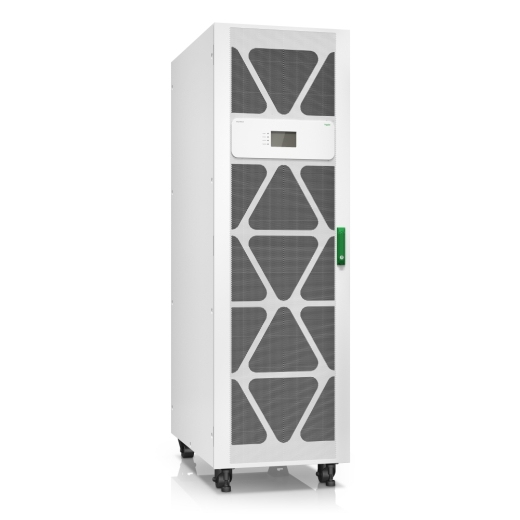

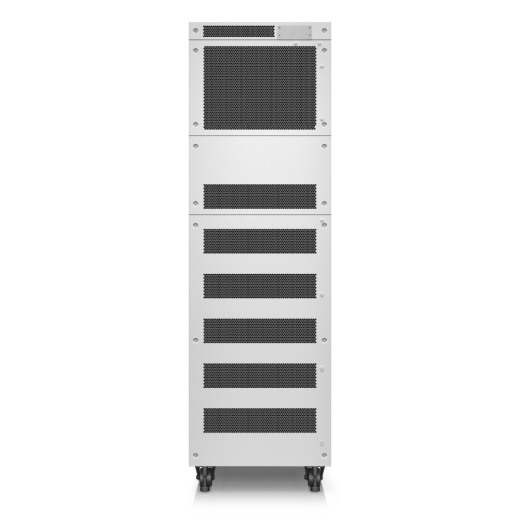

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 60 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab. Includes 5x8 start-up service.
Replaceable dust filters
protect the UPS in harsh environments.
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
| Warranty | |
| Base Warranty | Non Non |
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 60 kVA |
| Uitgangsvermogen | 60000 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 342 V |
| Ingang operation voltage (max) | 477 V |
| Frequentie | 40 - 70 Hz |
| Uitgang operation voltage (min) | 380 V |
| Uitgang operation voltage (max) | 415 V |
| Output frequentie | 50/60 Hz |
| Stroom (max.) | 104 A |
| Aantal input fases | 3 |
| Aantal output fases | 3 |
| Power factor | 0,99 |
| Spanningsbeveiliging | Ja |
| Geluidsalarm(en) | Ja |
| Accu/Batterij | |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Accu/Batterij voltage | 240 V |
| Design | |
| Vormfactor | Tower |
| Kleur van het product | Wit |
| Type beeldscherm | LCD |
| Internationale veiligheidscode (IP) | IP20 |
| Certificering | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -15 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 450 m |
| Hoogte bij opslag | 0 - 4500 m |
| Technische details | |
| Certificaten van naleving | RoHS |
| Gewicht en omvang | |
| Breedte | 600 mm |
| Diepte | 1000 mm |
| Hoogte | 1970 mm |
| Gewicht | 311 kg |
| Breedte verpakking | 750 mm |
| Diepte verpakking | 1125 mm |
| Hoogte verpakking | 2102 mm |
| Gewicht verpakking | 360 kg |
| Verpakking | |
| Snelle installatiehandleiding | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85078000 |
