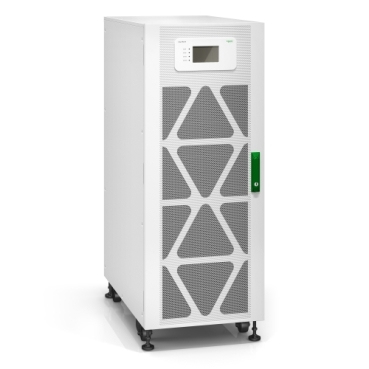

Easy UPS 3M 120kVA 400V 3:3 UPS for External Batteries, Start-Up 5x8
ITCurry #: 0280J636 | Article #: E3MUPS120KHS-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 120 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy." "Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management." "It is supplied without batteries, so you can easily customize your battery solution." "Includes 5x8 start-up service.
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 120 kVA |
| Uitgangsvermogen | 120000 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 342 V |
| Ingang operation voltage (max) | 477 V |
| Frequentie | 40/70 Hz |
| Uitgang operation voltage (min) | 380 V |
| Uitgang operation voltage (max) | 415 V |
| Output frequentie | 50/60 Hz |
| Uitgangsspanningsregeling | 1 procent |
| Stroom (max.) | 207 A |
| Aantal input fases | 3 |
| Aantal output fases | 3 |
| Power factor | 0,99 |
| Output voltage THD | 3 procent |
| Input stroom THD | 3 procent |
| Poorten & interfaces | |
| USB-poort | Ja |
| Design | |
| Vormfactor | Tower |
| Kleur van het product | Wit |
| Soort bediening | Touch |
| Type beeldscherm | LCD |
| Internationale veiligheidscode (IP) | IP20 |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -25 - 55 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 1500 m |
| Hoogte bij opslag | 0 - 15240 m |
| Inhoud van de verpakking | |
| Batterijen inbegrepen | Nee |
| Gebruikershandleiding | Ja |
| Snelle installatiehandleiding | Ja |
| Gewicht en omvang | |
| Breedte | 500 mm |
| Diepte | 850 mm |
| Hoogte | 1300 mm |
| Gewicht | 1,93 kg |
| Verpakking | |
| Breedte verpakking | 975 mm |
| Diepte verpakking | 625 mm |
| Hoogte verpakking | 1500 mm |
| Gewicht verpakking | 223 kg |
| Warranty | |
| Base Warranty | Non Non |
