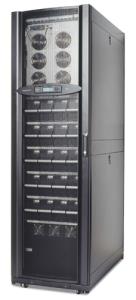

[EOL] SMART-UPS VT RACK MTD 208V W/384R121204001 ATA INFORMATION IN
ITCurry #: 0280L772 | Article #: SUVTR30KG3B5S-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Resettable circuit breakers
Enables a quick recovery from overload events.
Field-replaceable power distribution panel
Ensures compatibility with equipment that has different plug types.
Multiple cable-entry points
Provides flexibility of UPS placement in the room and easy access to install cabling to the terminal blocks.
Locking cabinet
Prevents unauthorized access to the UPS.
Availability
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Scalable runtime
Allows additional run time to be quickly added as needed.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
| Kenmerken | |
| Output power capacity | 30 kVA |
| Uitgangsvermogen | 24000 W |
| Frequentie | 40/70 Hz |
| Emergency Power Off (EPO) | Ja |
| Geluidsniveau | 58 dB |
| Geluidsalarm(en) | Ja |
| Accu/Batterij | |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Accu/Batterij oplaadtijd | 3 uur |
| Design | |
| Kleur van het product | Zwart |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -50 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Certificaten | |
| Certificering | cUL Listed,ISO 14001,ISO 9001,UL 1778 |
| Gewicht en omvang | |
| Gewicht | 859,1 kg |
| Overige specificaties | |
| Type batterij | VRLA |
| Interface | Smart-Slot |
| Output-aansluitingen | 1x Hard Wire 5-wire (3PH + N + G) 5x NEMA L21-20 |
| Input-connectietype | Hard Wire 4-wire (3PH + G) |
| Afmetingen (B x D x H) | 600 x 1075 x 1995 mm |
| Nominale input voltage | 480 V |
| Warranty | |
| Base Warranty | Non Non |
