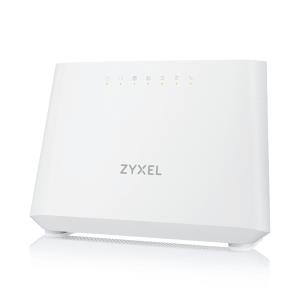

Dx3301 T0 - Wi-Fi6 Ax1800 Vdsl2 5port Super Vectoring Gateway
ITCurry #: 62305764 | Article #: DX3301-T0-EU01V1F-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Zyxel DX3301-T0/DX3300-T0/EX3301-T0/EX3300-T0 Series provides high-speed internet access with QoS support to meet the worldwide market demand for triple-play services. With the built-in 2x2 802.11ax WLAN function and Zyxel MPro Mesh TM Solutions, the Series provides seamless WiFi experience and superior, feature-rich WiFi connectivity for service providers to deliver high-performance internet access services.
WiFi 6 technology for superior lag-free performance
Supporting the latest WiFi 6 (11ax) standard, the Series offers speeds of up to 1200 Mbps* with 2x2 802.11ax and 574 Mbps* with 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) and beamforming technologies empower the Series to deliver high speed internet for multi-streaming data access and optimal WiFi experience without dead zones.
| WAN connection | |
| Ethernet WAN | Y |
| DSL WAN | Y |
| SIM card slot | N |
| 3G/4G USB modem compatibility | N |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q |
| Auto MDI/MDI-X | Y |
| Port forwarding | Y |
| Automatic channel selection | Y |
| Dynamic DNS (DDNS) | Y |
| Mobile network | |
| 3G | N |
| 4G | N |
| 5G | N |
| DSL features | |
| ADSL | Y |
| ADSL2+ | Y |
| VDSL | Y |
| VDSL2 | Y |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Y |
| USB 2.0 ports quantity | 1 |
| DC-in jack | Y |
| Management features | |
| Web-based management | Y |
| Wi-Fi Multimediaÿ(WMM)/(WME) | Y |
| Quality of Service (QoS) support | Y |
| Reset button | Y |
| Intelligent Mesh technology | Y |
| MU-MIMO technology | Y |
| MIMO | Y |
| Security | |
| Firewall | Y |
| MAC address filtering | Y |
| Network address translation (NAT) | Y |
| Protocols | |
| DHCP client | Y |
| DHCP server | Y |
| Universal Plug and Play (UPnP) | Y |
| Voice codecs | G.711a, G.722, G.726, G.729 |
| Design | |
| Product colour | White |
| Indication light | Y |
| LED indicators | LAN, Power, WAN, WLAN, WPS |
| On/off switch | Y |
| Product type | Tabletop router |
| Warranty | |
| Base Warranty | Non Non |
| Antenna | |
| Antenna design | Internal |
| Power | |
| Power source type | DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -30 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 35 mm |
| Height | 153 mm |
| Weight | 387 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
