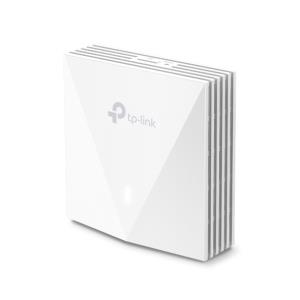

Wireless Dual Band Gigabit Ceiling Mount Wi-Fi6 Access Point Ax1800 Eap613
ITCurry #: P6043420 | Article #: EAP613-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Easily Upgrade to Business WiFi 6 Network
AX1800 Ceiling Mount WiFi 6 Access Point
AX1800 WiFi 6 Speed
574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz†
Seamless Roaming
Uninterrupted streaming when moving between APs§
Ultra-Slim Design
F160 mm × 33.6 mm elegant design brings more agility
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Omada Mesh Technology
More flexible and convenient wireless deployment
Gigabit Wired Performance
Boosts overall throughput with a Gigabit Ethernet port
Centralized Cloud Management
Manage the whole network locally or from the cloud
PoE+ Powered
Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations
Optimized WiFi Performance
With Portal Authentication, MU-MIMO, Band Steering, Airtime Fairness, and Load Balance
Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.
Superior WiFi 6 Speeds
Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5.† Every application feels more fluid with drastically improved Wi-Fi speeds
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.
Easy to Mount with Refined Industrial Design
Boosted Network Security and Efficiency
Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Guest Network with SMS Login
Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page
WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3) |
| Transmitting power (FCC) | <25 dBm (2.4 GHz); <25 dBm (5 GHz) |
| Security | |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3 |
| Number of SSID supported | 16 |
| Management features | |
| Web-based management | Yes |
| Management platform | Omada |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 9.6 W |
| Power consumption (max) | 10.6 W |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Performance | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 40% |
| Operating temperature (T-T) | 10 - 90 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Storage relative humidity (H-H) | 5 - 90% |
| Warranty | |
| Base Warranty | Non Non |
