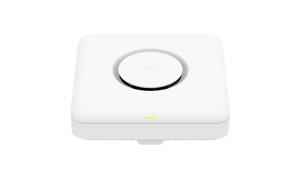

Wireless Wi-Fi Router Ax1800 Archer Nx200 Triband Band White
ITCurry #: P6043800 | Article #: ARCHER NX200-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Unrivaled Speed with 5G, Revolutionary Experience
Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX200 is backward compatible with 4G mode.§
Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer NX200 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!
Powerful Wi-Fi 6
Armed with WiFi 6 technology, NX200 is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.?
EasyMesh-Compatible Networking
Mesh networking creates smooth, fast, stable roaming. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.*
Available WAN Connection
The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you.
| WAN connection | |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1201 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| Modulation | 1024-QAM |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| VPN support | PPTP VPN, IPSec VPN , OpenVPN |
| Mobile network | |
| Mobile network generation | 5G |
| 3G standards | DC-HSDPA, HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 5G bands supported | 700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz |
| UMTS bands supported | 850,900,2100 MHz |
| 4G bands supported | 700,800,850,900,1500,1800,2100,2300,2500,2600,3500,3700 MHz |
| SIM card type | NanoSIM |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | No |
| Management features | |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Firewall security | IPv4 SPI Firewall, IPv6 Firewal |
| Access Control List (ACL) | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| DMZ support | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product colour | White |
| On/off switch | Yes |
| Product type | Tabletop router |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Antenna | |
| Antenna design | Internal |
| Antennas quantity | 10 |
| Detachable antenna(s) | Yes |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 12 V |
| Output current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 99 mm |
| Depth | 99 mm |
| Height | 190 mm |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Warranty | |
| Base Warranty | Non Non |
