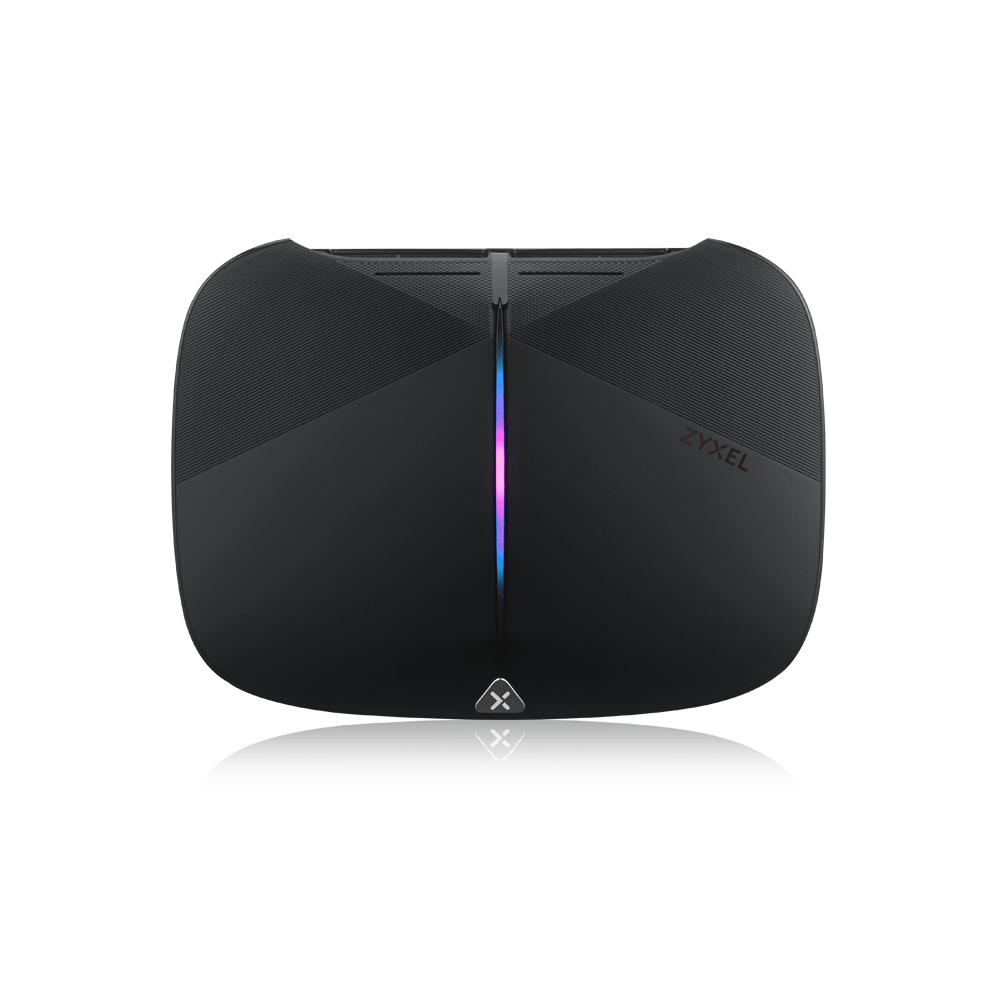

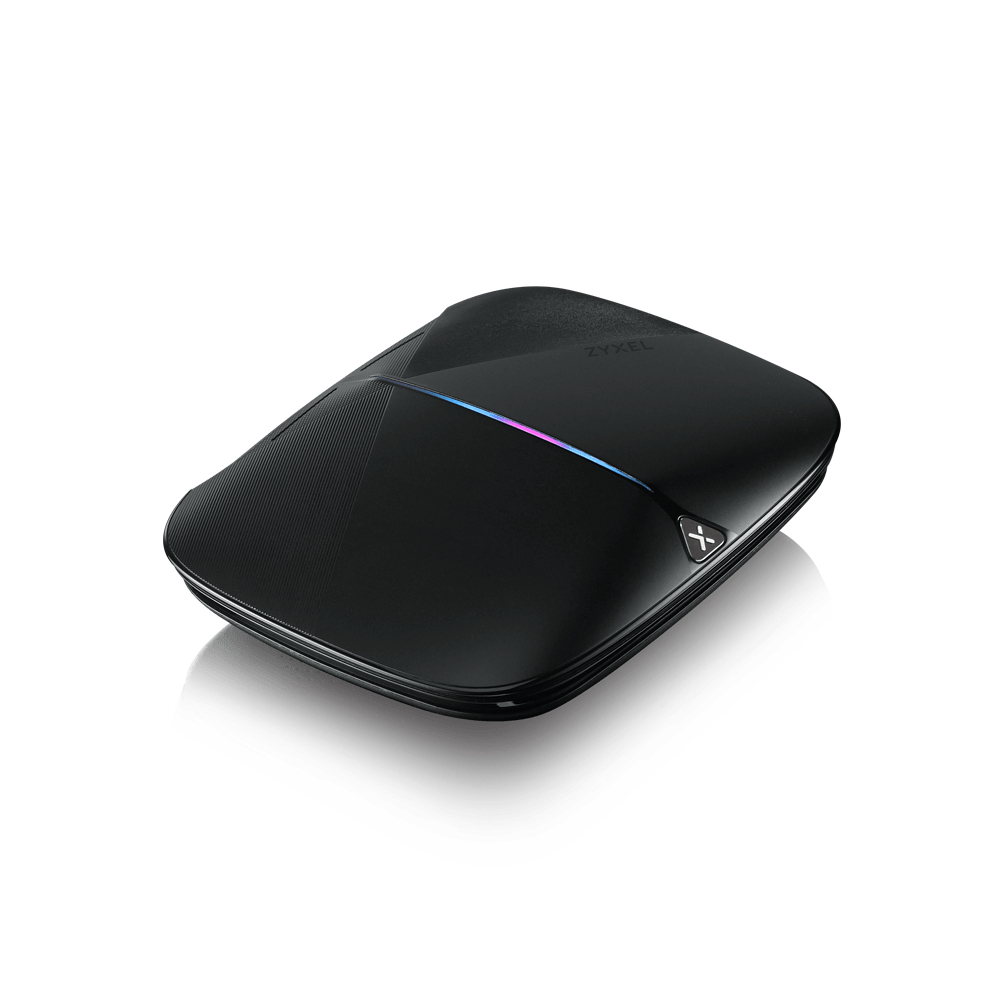

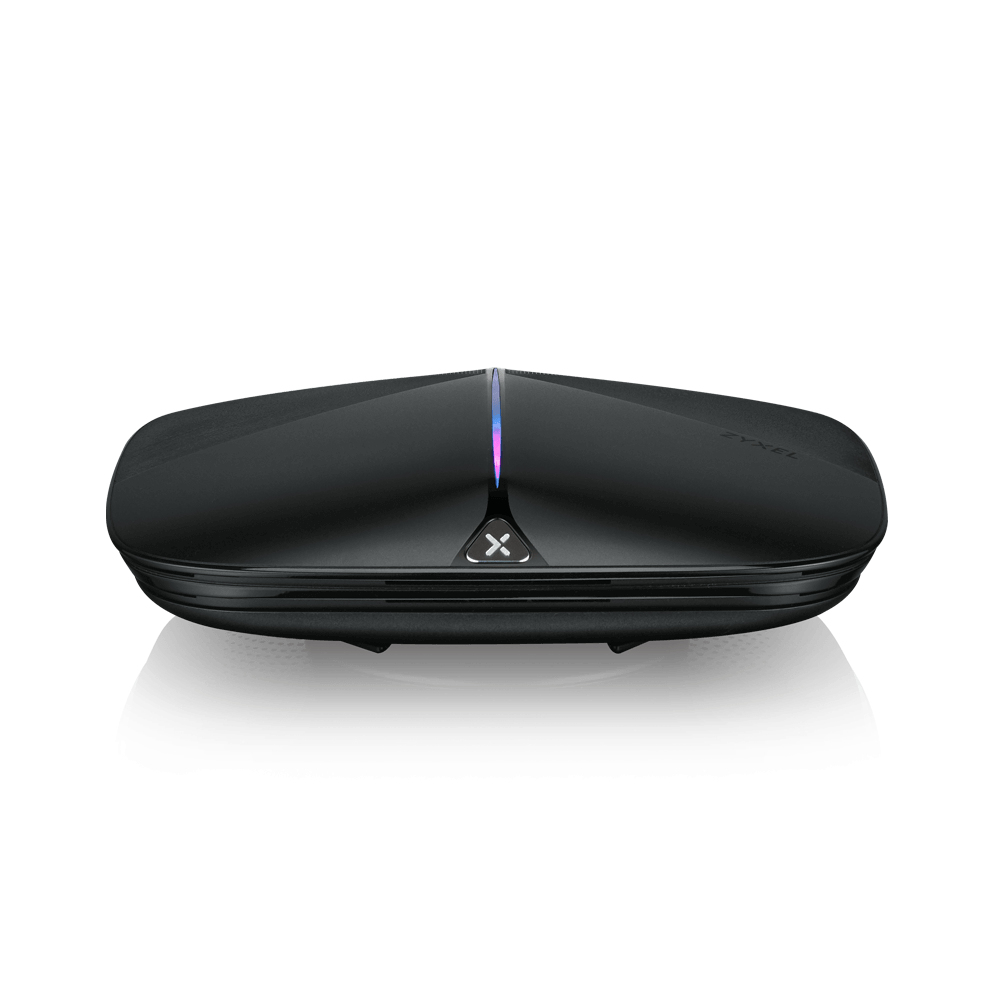

Armor G1 Ieee 802.11ac Ethernet Wireless Router
ITCurry #: 62305355 | Article #: NBG6818-EU0102F-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Connect with Extreme Speed
Flawless speed you’ve ever seen
Zyxel Armor G1 security router provides a reliable connection that allows you to enjoy the ultimate web browsing, file exchange, and multimedia streaming experience throughout your home.
5 GHz 8x8 optimized antennas for wider coverage
Armor G1 is equipped with high-powered ampli?ers to improve the wireless coverage and performance. 13 advanced internal antennas with high-ef?ciency helps eliminate interference, allowing you to get epic range and capacity.
Support up to 2.5 Gbps multi-gigabit Internet services
Equipped with a 2.5 Gbps Multi-Gigabit Ethernet port, the Armor G1 allows you to connect your Internet service provider at the maximum speed of 2.5 Gbps speeds. Perfect for streaming 8K video on smart TVs and intense online game matches. Just plug an Ethernet cable to your favorite device for maximum speed and get ready for a seamless, intuitive connection.
It’s all about the creators
Say goodbye to your old traffic jammed bandwidth and let the Armor G1 specially designed multi-stream WiFi provide you fast and reliable connection, so you can churn out those creative ideas out faster!
Setup is simple with Armor app
One Zyxel Armor app that does it all, follow the step-by-step installation to easily connect all your devices. Once installation is completed, the Armor app gives you full control over everything that happens in your connected devices, anytime and anywhere!
Reliable and flexible remote access OpenVPN
Armor G1 lets you to connect your private network safely with an easy-to-create OpenVPN, this allows you to build an encrypted tunnel to secure your traffic, giving you additional privacy and protection from prying eyes even when you’re out and about while connected to WiFi networks that aren’t your own.
Amazon Alexa voice controlled comfort and convenience
Armor G1 with Alexa voice command gives you an easy way to command your Amor to perform tasks such as turning on/off the Internet, guest WiFi and LED light, test Internet speed, or check your network's safety status.
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 2533 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 800 Mbit/s |
| WLAN data transfer rate (second band) | 1733 Mbit/s |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port triggering | Yes |
| Automatic channel selection | Yes |
| Dynamic DNS (DDNS) | Yes |
| Wireless Distribution System (WDS) bridge | Yes |
| VPN Passthrough | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB charging port | Yes |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| MU-MIMO technology | Yes |
| Security | |
| Security algorithms | IPSec, WPA3-PSK, WPS |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Schedule access | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Network address translation (NAT) | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Design | |
| Product colour | Black |
| Product type | Tabletop router |
| Certificates | |
| Certification | Safety: CE-LVD, BSMI EMC: CE, FCC, BSMI, EAC |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Antenna | |
| Antenna design | Internal |
| Antennas quantity | 13 |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Works with Amazon Alexa | Yes |
| Firmware upgradeable | Yes |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 3 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -30 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Mobile operating systems supported | Android 10, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
| Weight & dimensions | |
| Width | 248 mm |
| Depth | 182 mm |
| Height | 66 mm |
| Weight | 1 kg |
| Packaging data | |
| Package width | 382 mm |
| Package depth | 232 mm |
| Package height | 76 mm |
| Package weight | 1.8 kg |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
