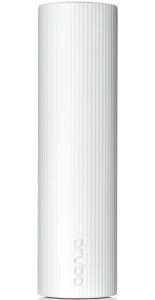

Long Range 802.11ac Wireless Bridge 20km
ITCurry #: 12135024 | Article #: DAP-3712-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Highlights
The DAP-3712 is the essential solution in providing connectivity to previously believed impossible-to-reach areas. Industry leading core technologies, especially designed for long distance coverage, bring high-speed connectivity to rural areas and challenging terrain equivalent to that of a wired connection.
TDMA Technology Cuts Through the Chatter, Creating Even Stabler Coverage
The DAP-3712 transmission capability is augmented thanks to its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3712 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximizing airtime efficiency, significantly cutting down interference and making for a highly scalable solution.
Form Without Sacrificing Function
It can be hard to look good while still being functional. Yet the DAP-3712 strikes the balance just right. The smooth case in crisp white makes for a low-key form that can effortlessly fit any outdoor setting without drawing attention.
Being as functional as it is well-formed, it champions an IP66 rating, fighting dust and repelling water, all while maintaining its unassuming looks.
Cutting Edge Hardware Makes the Previously Impossible, Possible
The DAP-3712 features state-of-the-art hardware, including a high-gain 23 dBi directional antennas. This powerful antenna effortlessly extends high-speed coverage to distances of up to 20 km away.
Discreet Deployment that’s Hassle-Free with Power Over Ethernet (PoE)
Power sockets can be tricky to come by, especially in outdoor deployments. But PoE makes for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.
| Features | |
| 5 GHz | Yes |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Frequency band | 5.745 - 5.825 GHz |
| Bandwidth | 0.08 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Channels quantity | 2 channels |
| Fit AP mode features | Wireless distribution system (WDS) |
| VLAN support | Yes |
| Maximum outdoor range | 20000 m |
| Transmitting power (CE) | 27 dBm |
| Security | |
| Security algorithms | 128-bit AES |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast |
| DHCP snooping | Yes |
| Management features | |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 48 V |
| Power consumption (typical) | 15 W |
| Design | |
| Placement | Pole |
| Product colour | White |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP66 |
| Reset button | Yes |
| LED indicators | Signal strength |
| Certification | CE, FCC |
| Antenna | |
| Antenna gain level (max) | 23 dBi |
| Weight & dimensions | |
| Width | 372 mm |
| Depth | 241 mm |
| Height | 372 mm |
| Weight | 900 g |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -40 - 65 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Storage relative humidity (H-H) | 0 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
