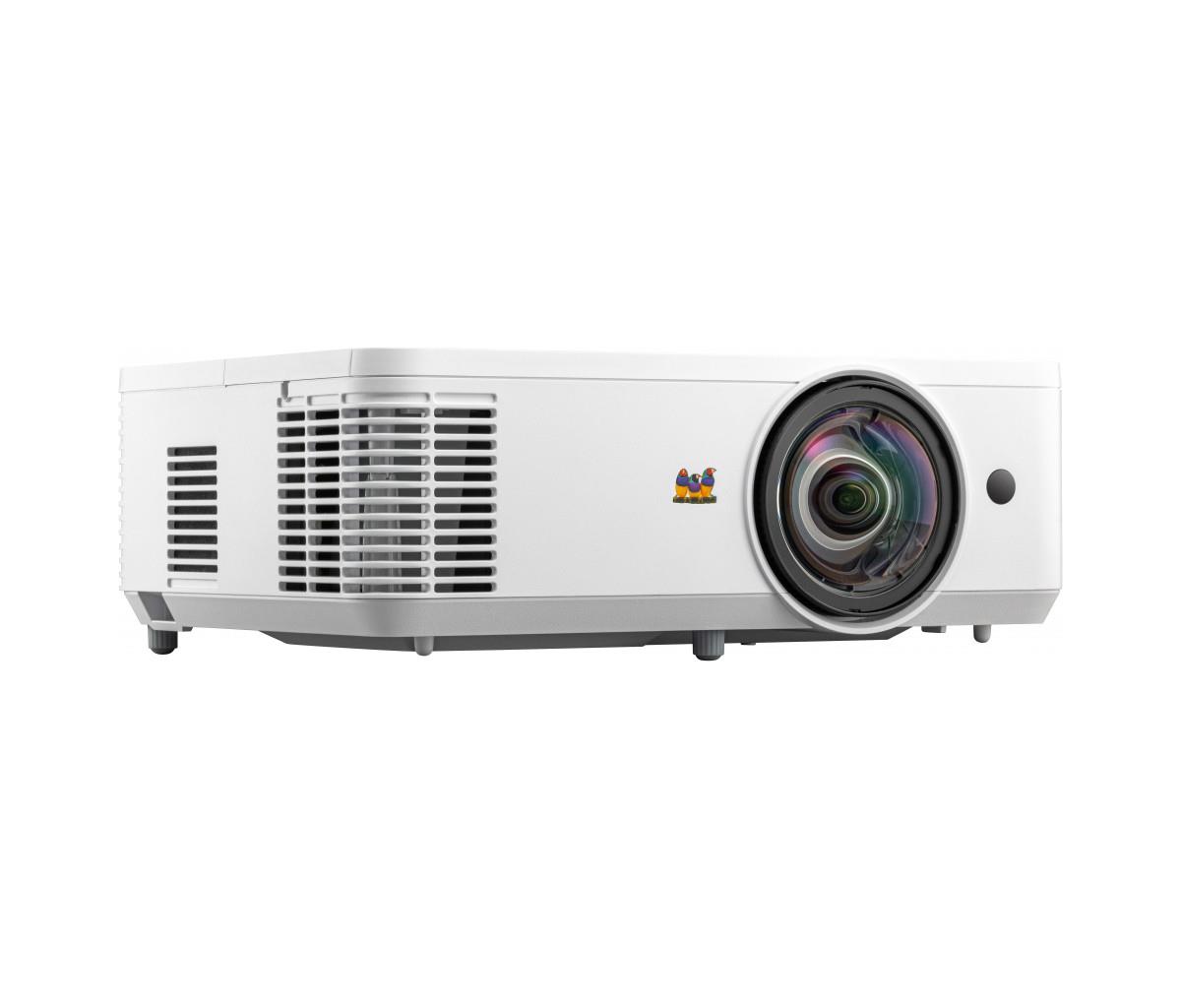

Projector PS502X XGA 4000 Lm 22000:1
ITCurry #: 11914370 | Article #: PS502X-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

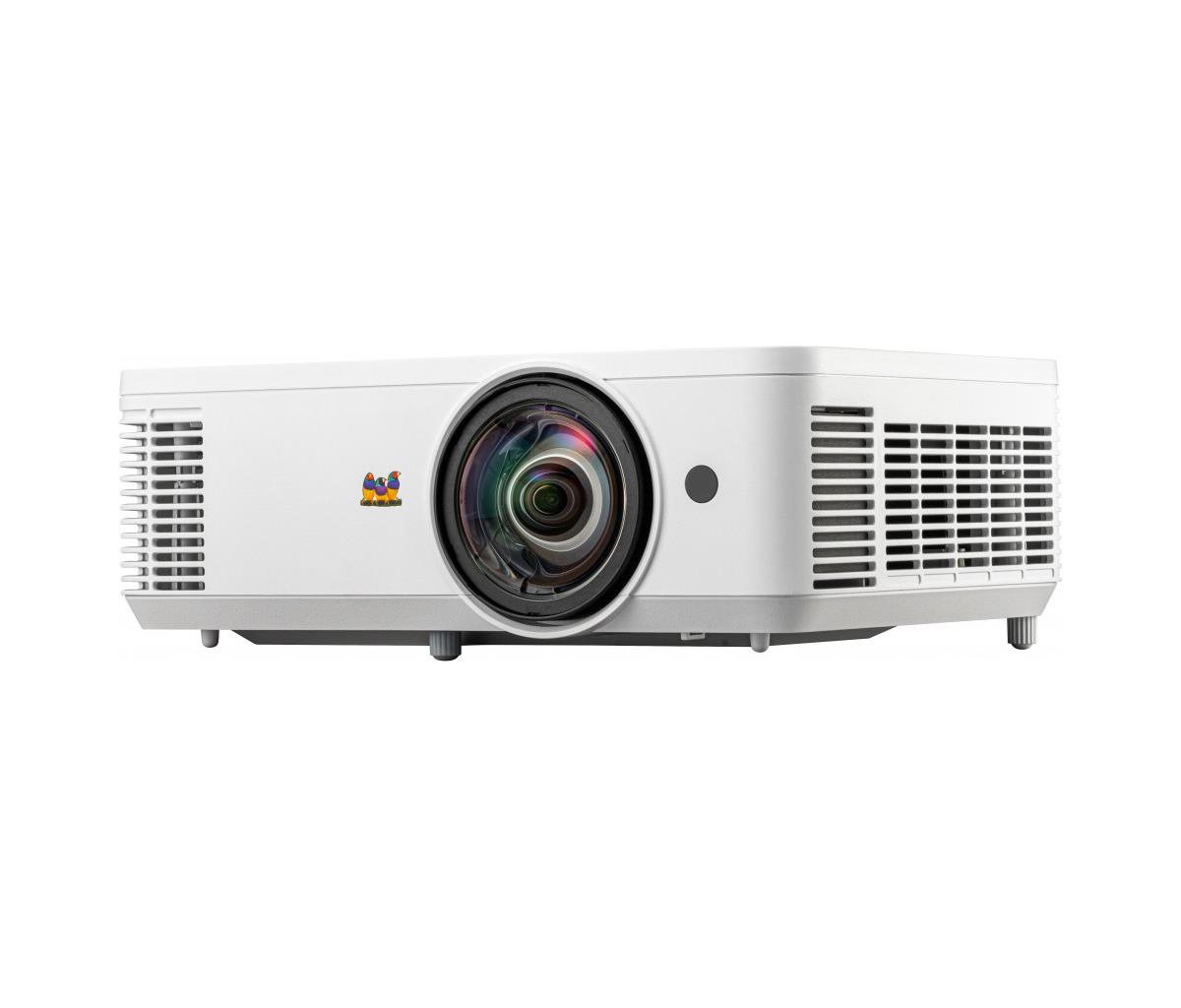

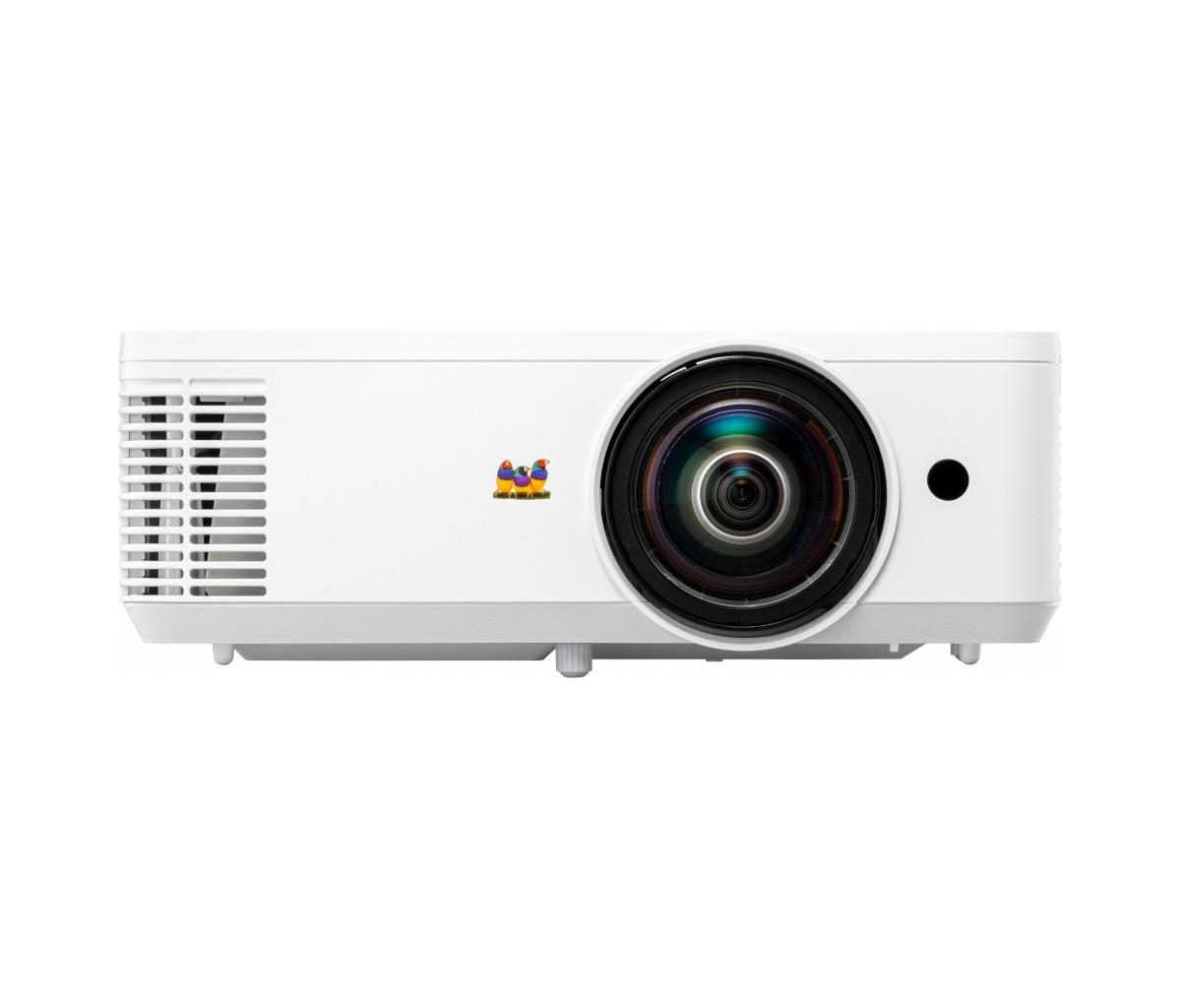

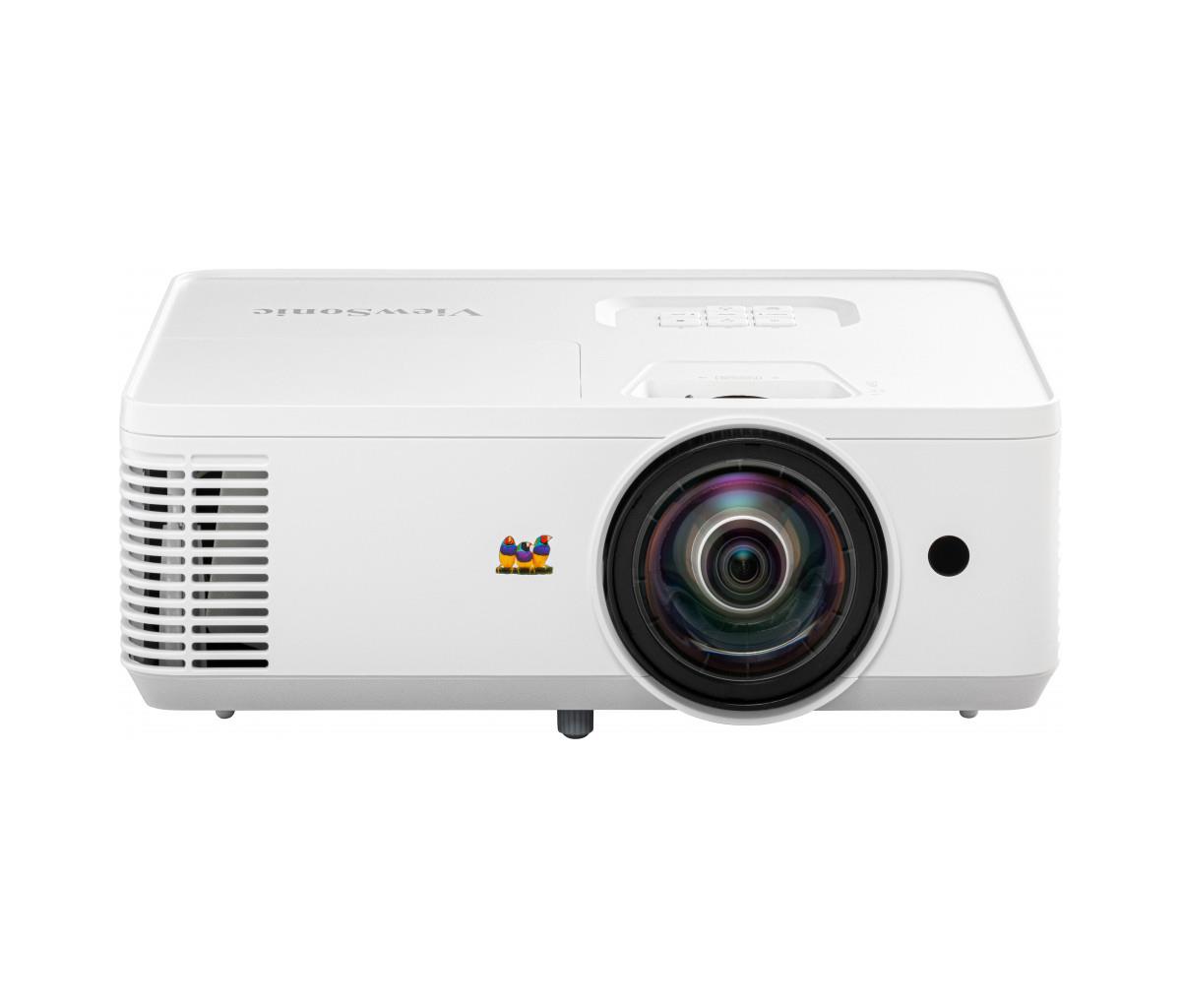

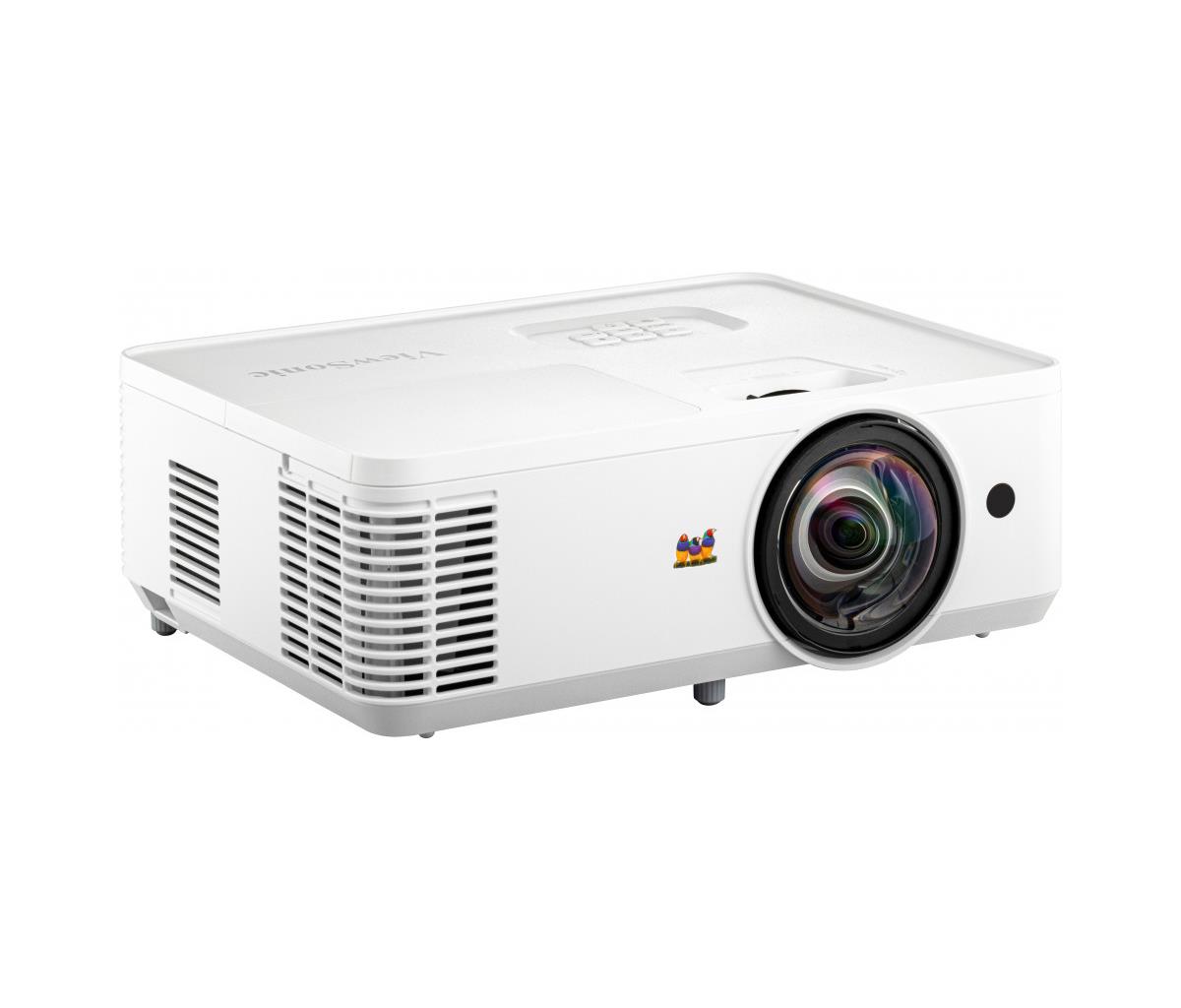

The PS502X is ViewSonic’s high brightness XGA short throw business/education projector. Boasting 4,000 ANSILumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms,classrooms, or any other bright environment. With 0.616 short throw ratio, the projector can provide 100”large screen size from only 1.3m away without being obstructed by shadows, allowing for a large screen even in smallspaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between contentsources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming moreconvenient. The projector also allows software updates via USB cable connection with simply your laptops,skipping trips to service centers.
High Brightness for Business & Education Environments?
Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
Big Screen for Small Spaces
The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.
Ultra-Large Screen with Lower Cost-per-inch??
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Easy and Flexible Connection?

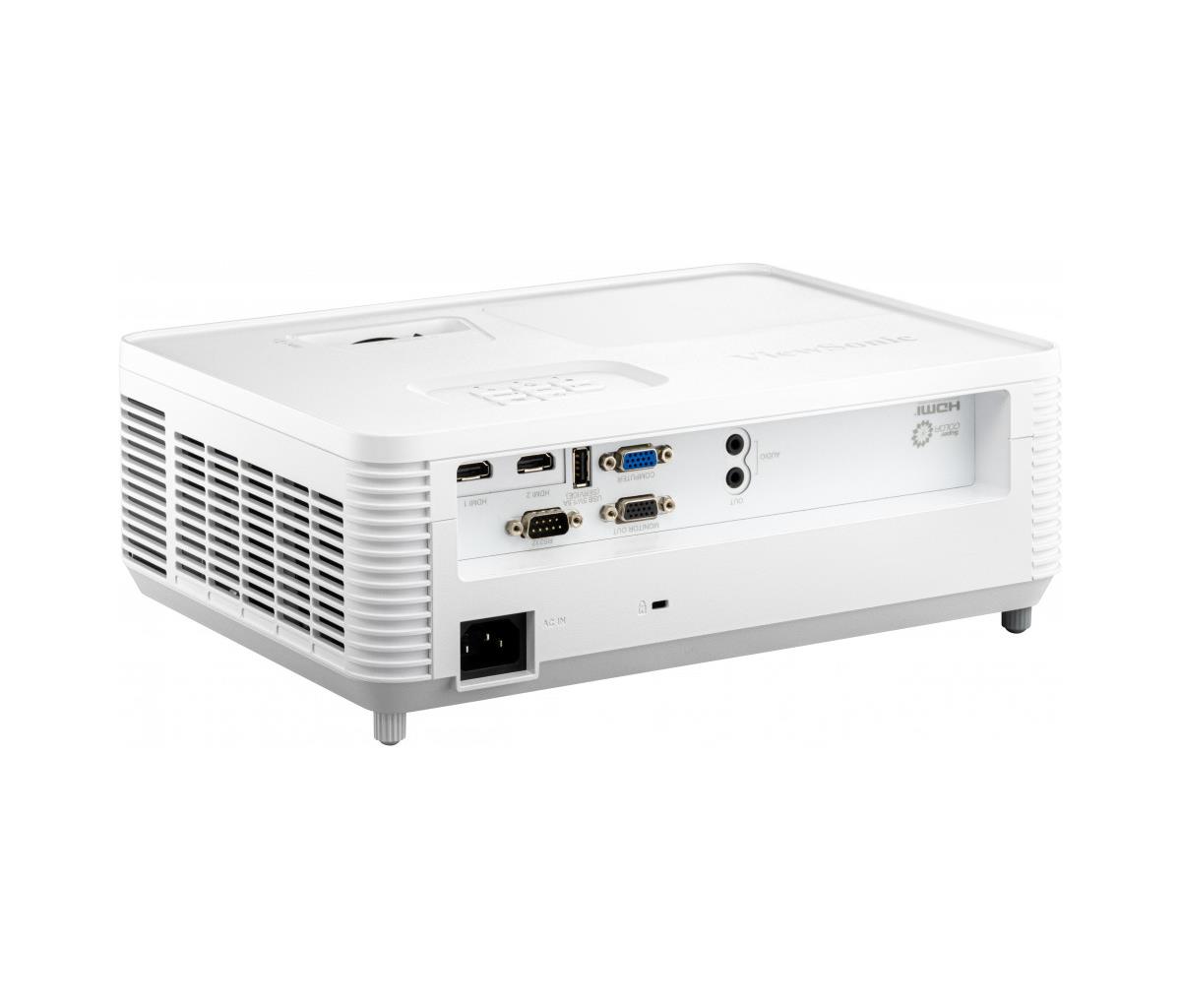

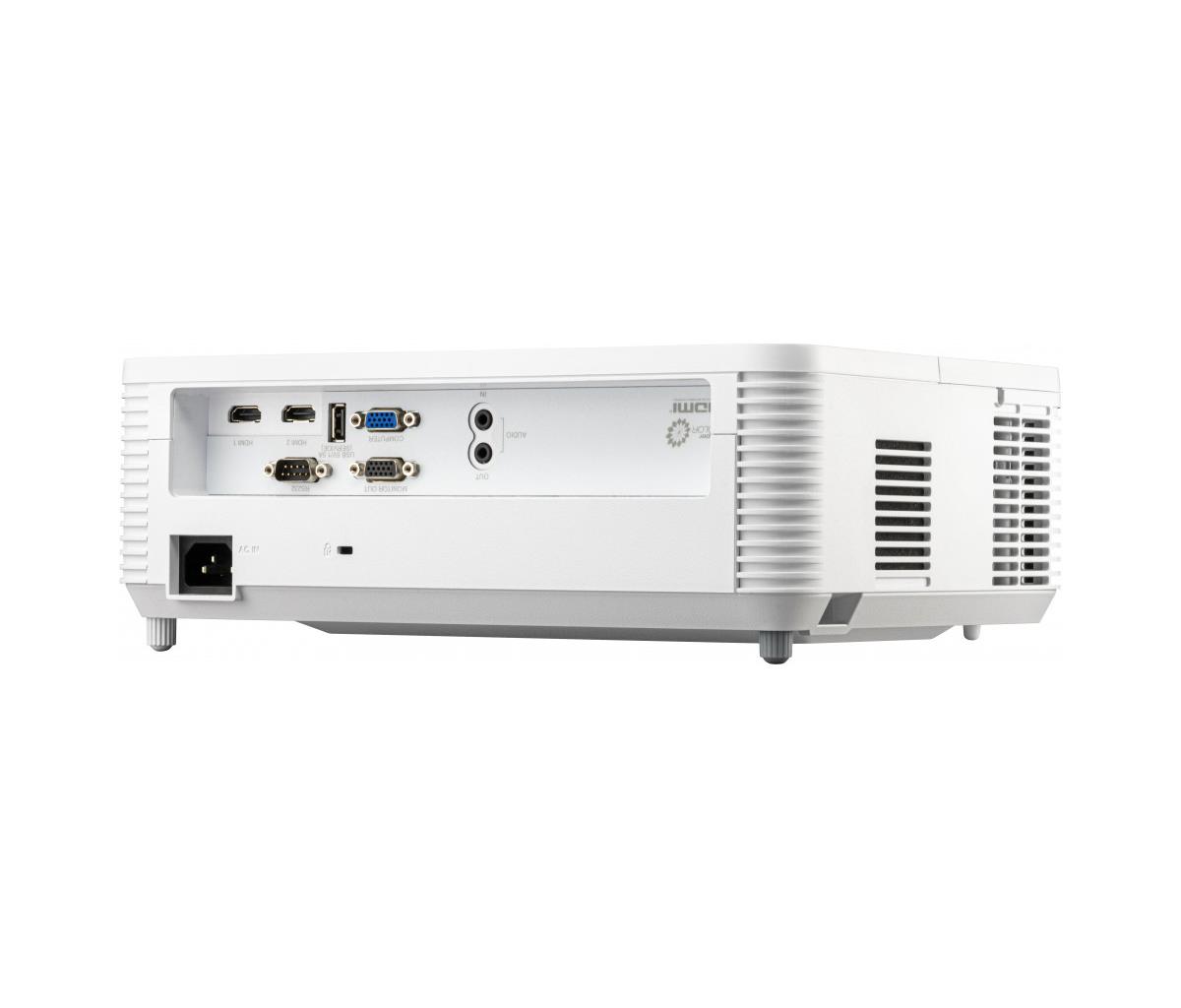

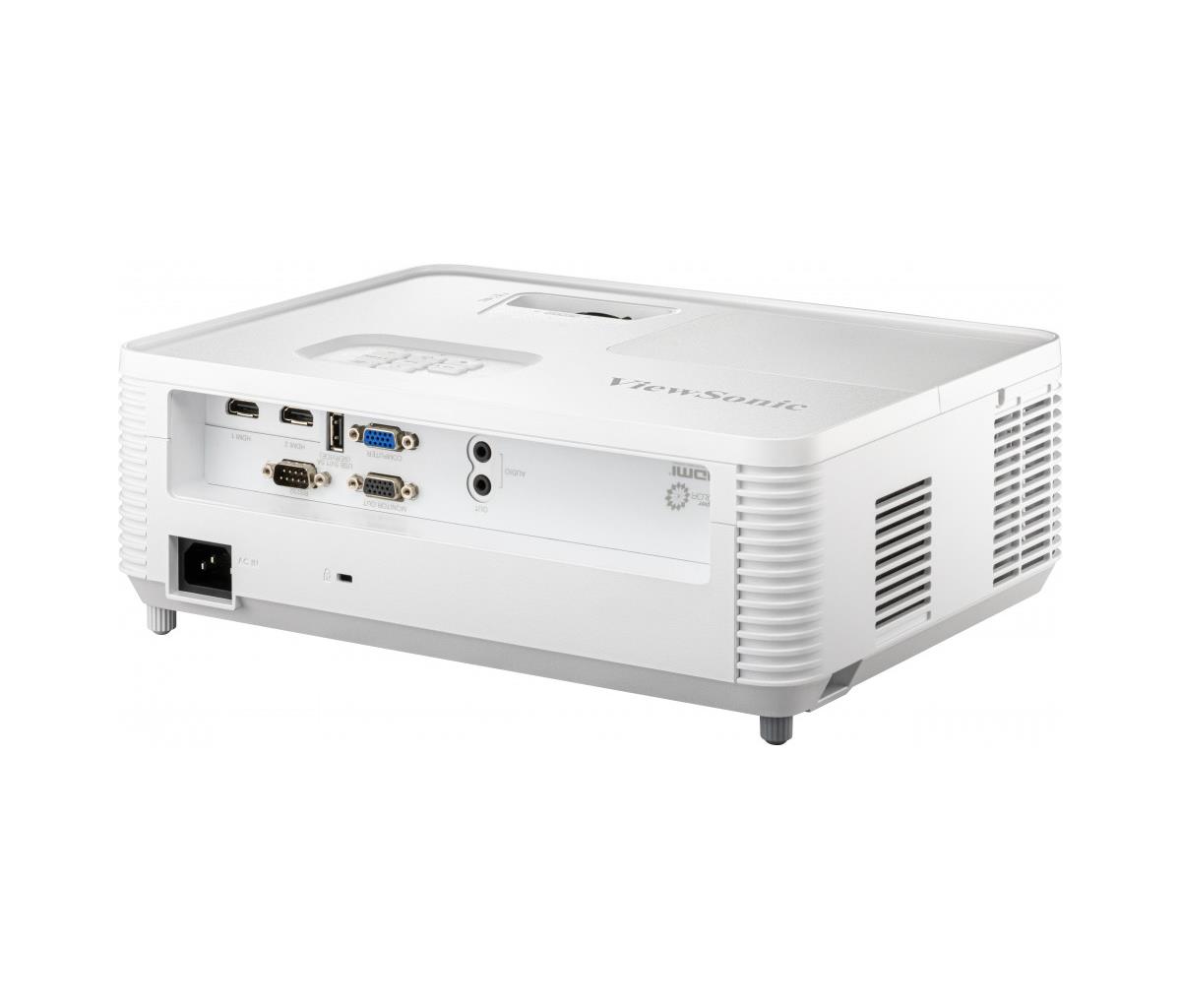

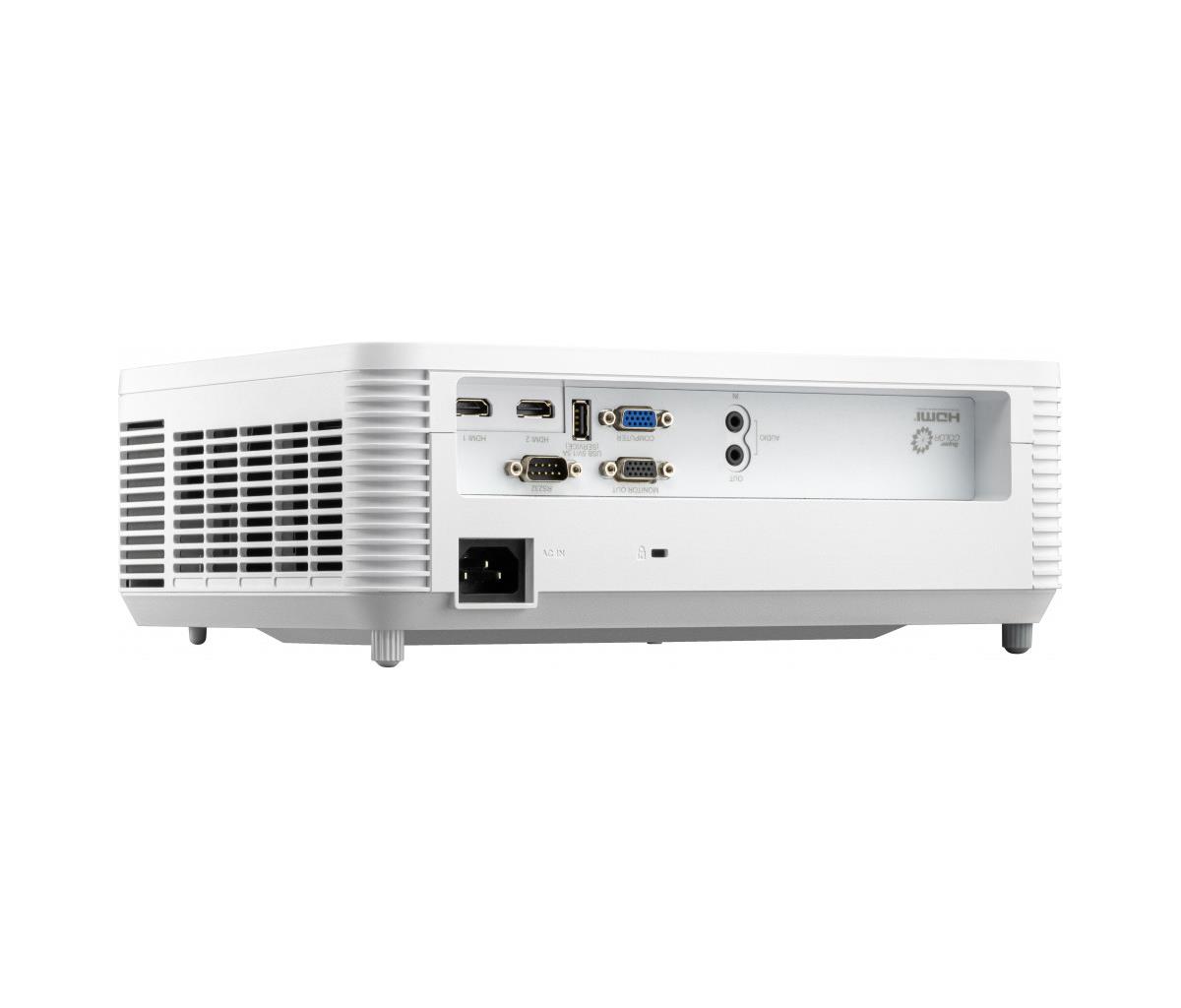

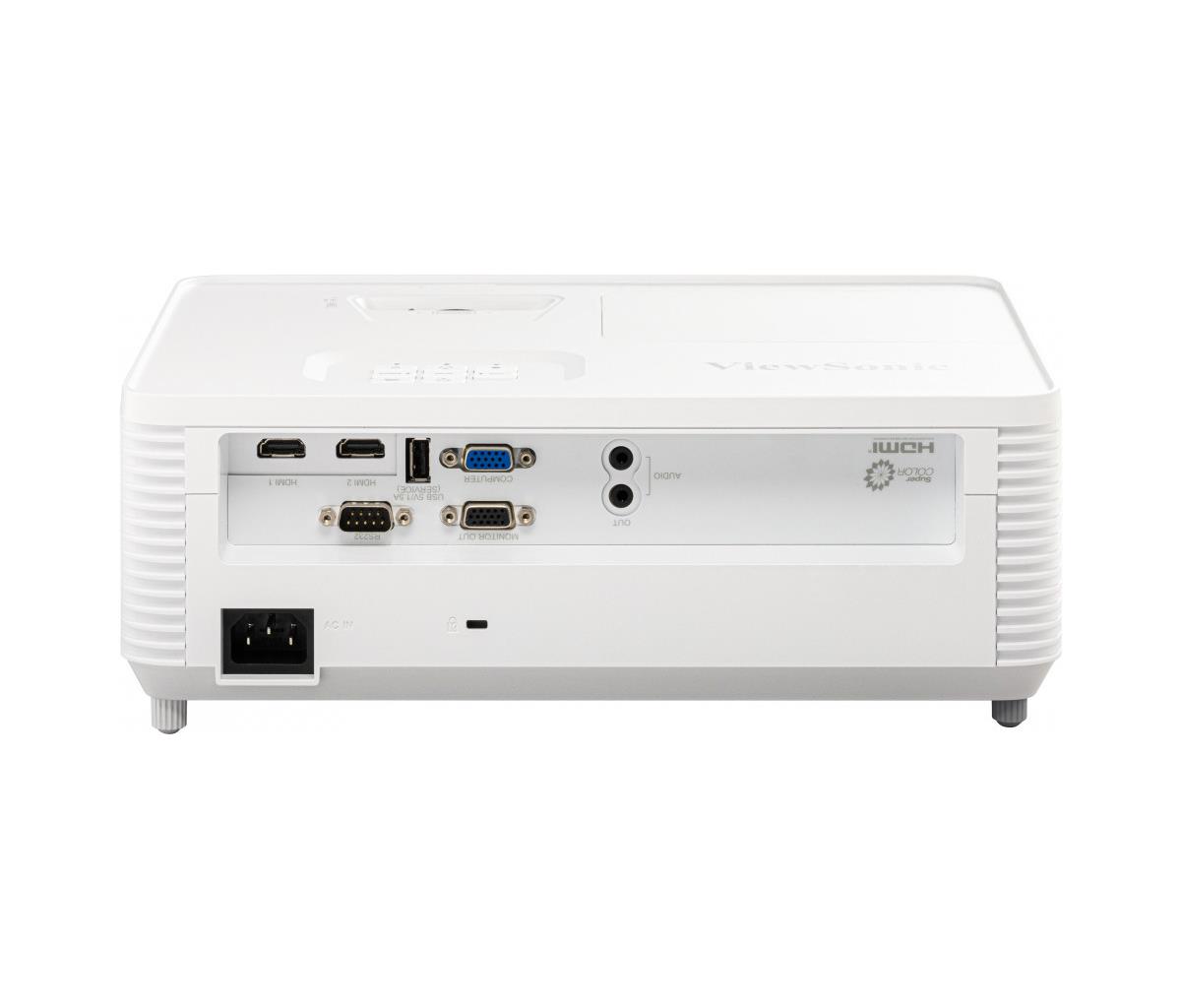

The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.?
Vibrant Colors for Captivating Presentations
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.
A Simpler Way to Update Projector Software?
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.???
???*The latest projector software update can be found in the download section at the bottom of the page when available.?
USB Type A Power Supply?
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.
Audio Right Out of the Box
The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
| Projector | |
| Smart projector | No |
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Projection distance | 0.75 - 3.76 m |
| Projector brightness | 4000 ANSI lumens |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 15000:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -19 - 19ø |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp type | UHP |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
| Lens system | |

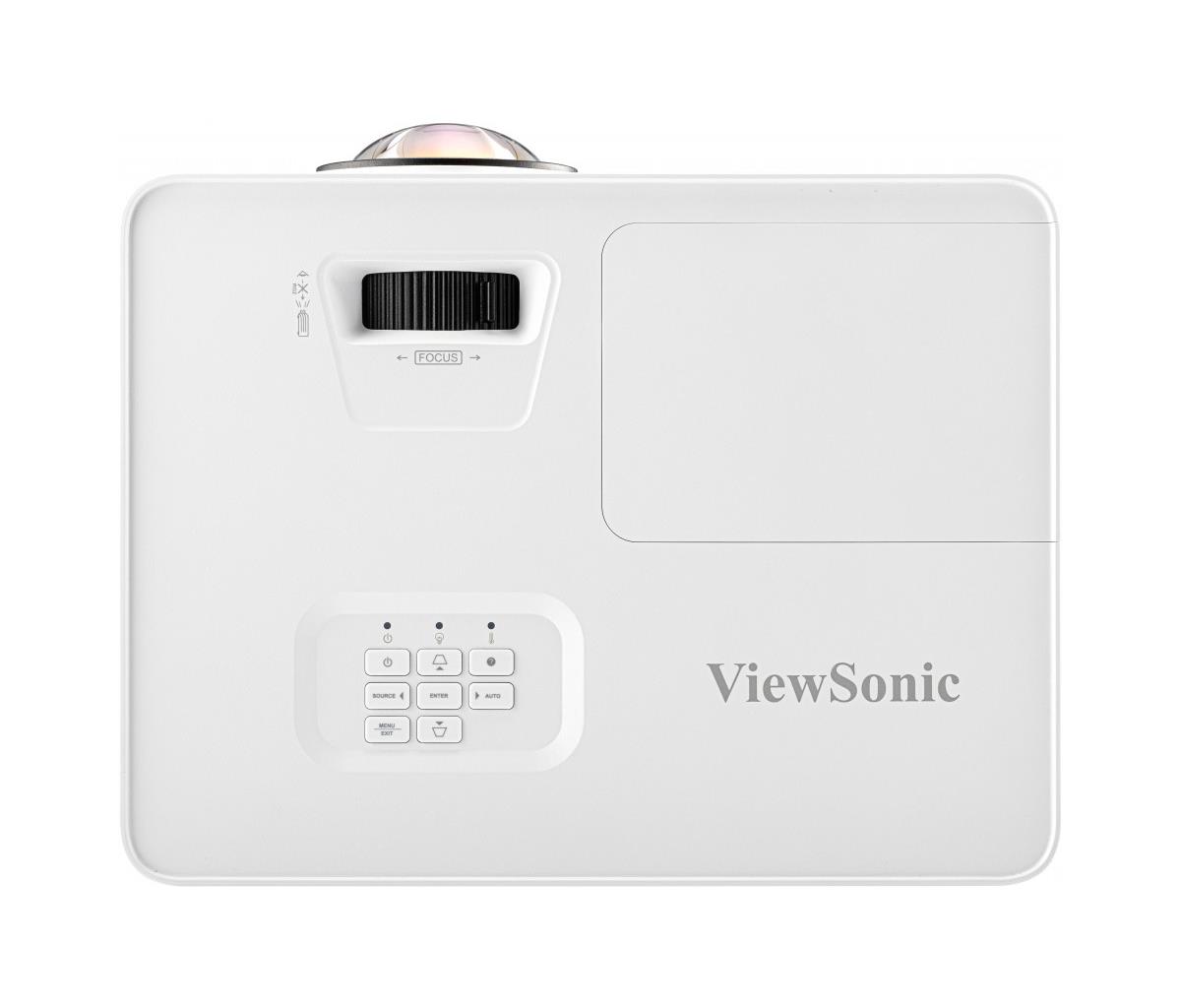

| Focus | Manual |
| Fixed focal length | 7.15 mm |
| F-number (relative aperture) | 2.7 |
| Zoom capability | Yes |
| Digital zoom | 2x |
| Throw ratio | 0.616 |
| Offset | 115% |
| Video | |
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

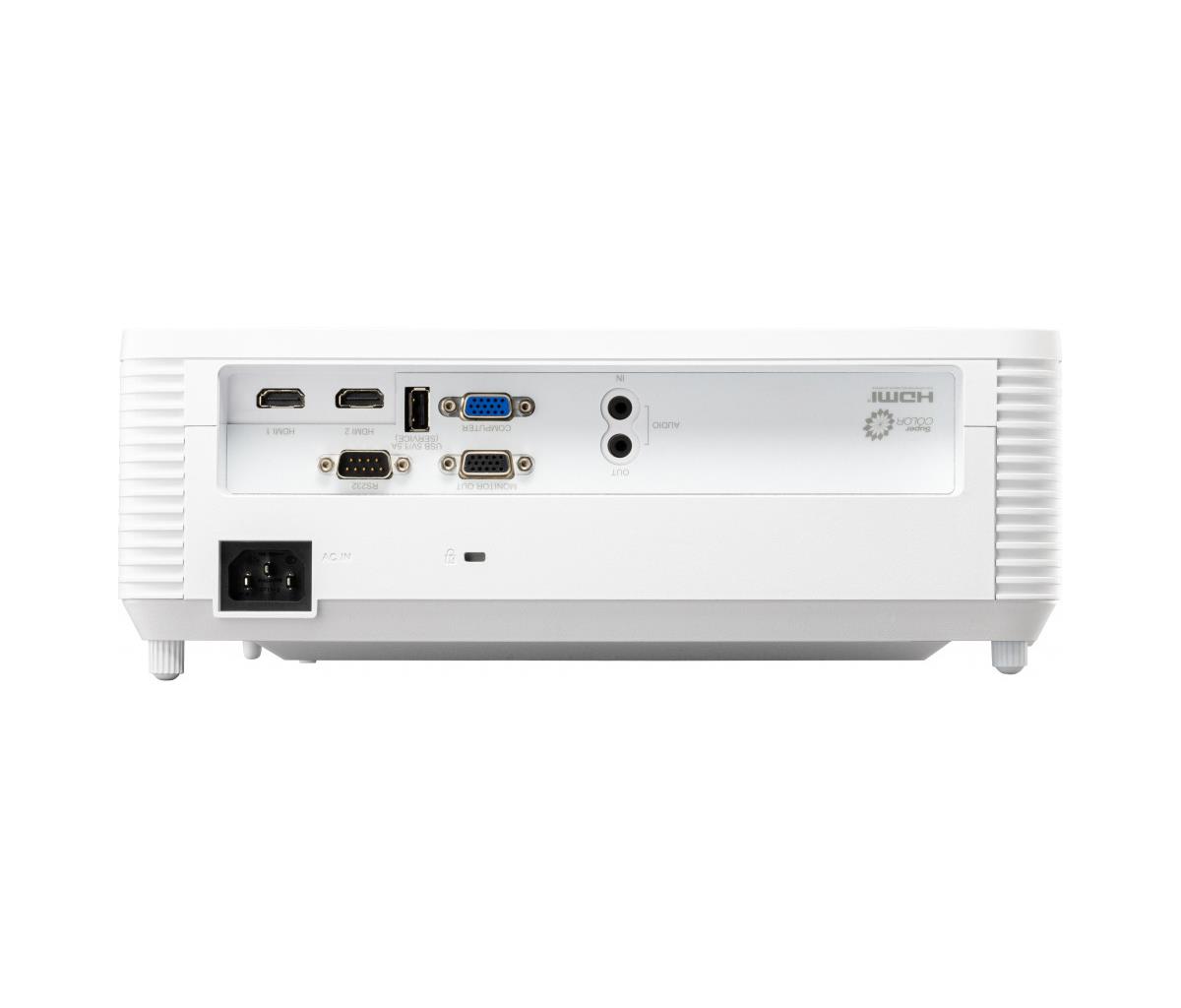

| Ports & interfaces | |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Service port type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| PC in (D-Sub) | Yes |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| DVI port | No |
| AC (power) in | Yes |
| Network | |
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | No |
| Features | |
| Interactive | No |
| Noise level (economic mode) | 25 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese |
| Number of OSD languages | 22 |
| HDCP version | 1.4 |
| Noise level | 34 dB |
| Air filter | Yes |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Design | |
| Market positioning | Education |
| Product type | Short throw projector |
| Product colour | White |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 295 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Weight & dimensions | |
| Width | 309 mm |
| Depth | 234 mm |
| Height | 115 mm |
| Weight | 2.87 kg |
| Package width | 400 mm |
| Package depth | 337 mm |
| Package height | 168 mm |
| Package weight | 4.08 kg |
| Packaging content | |

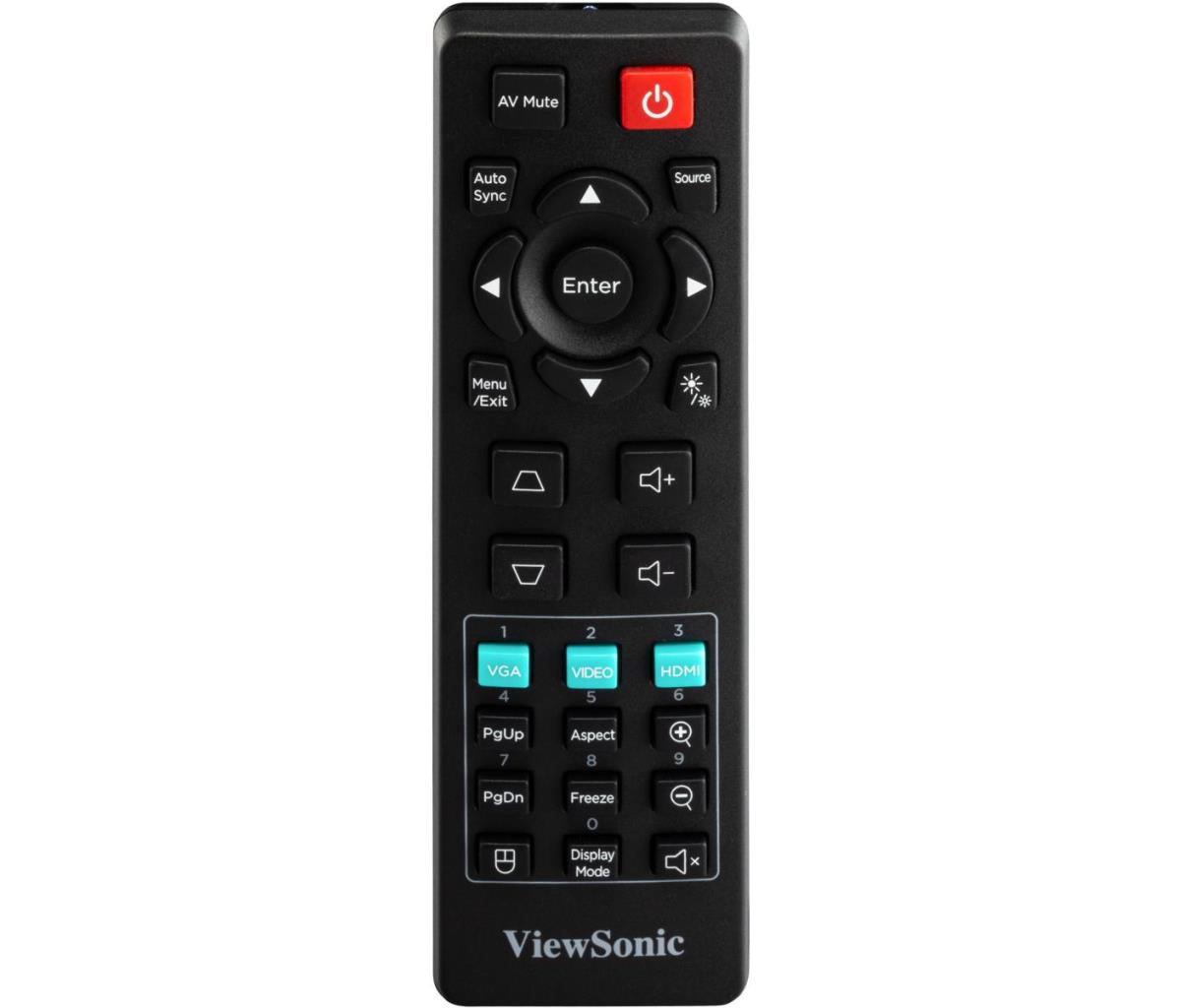

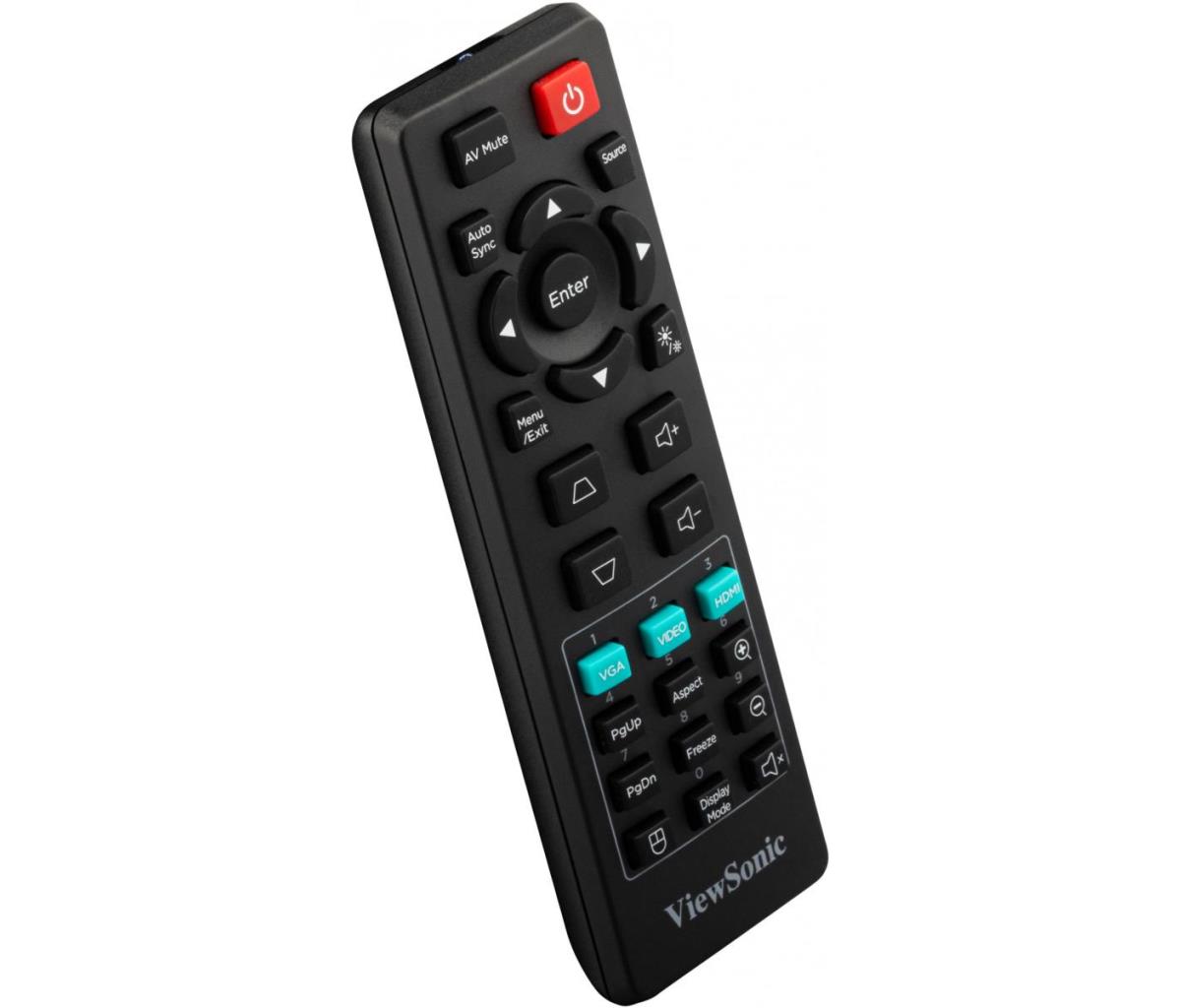

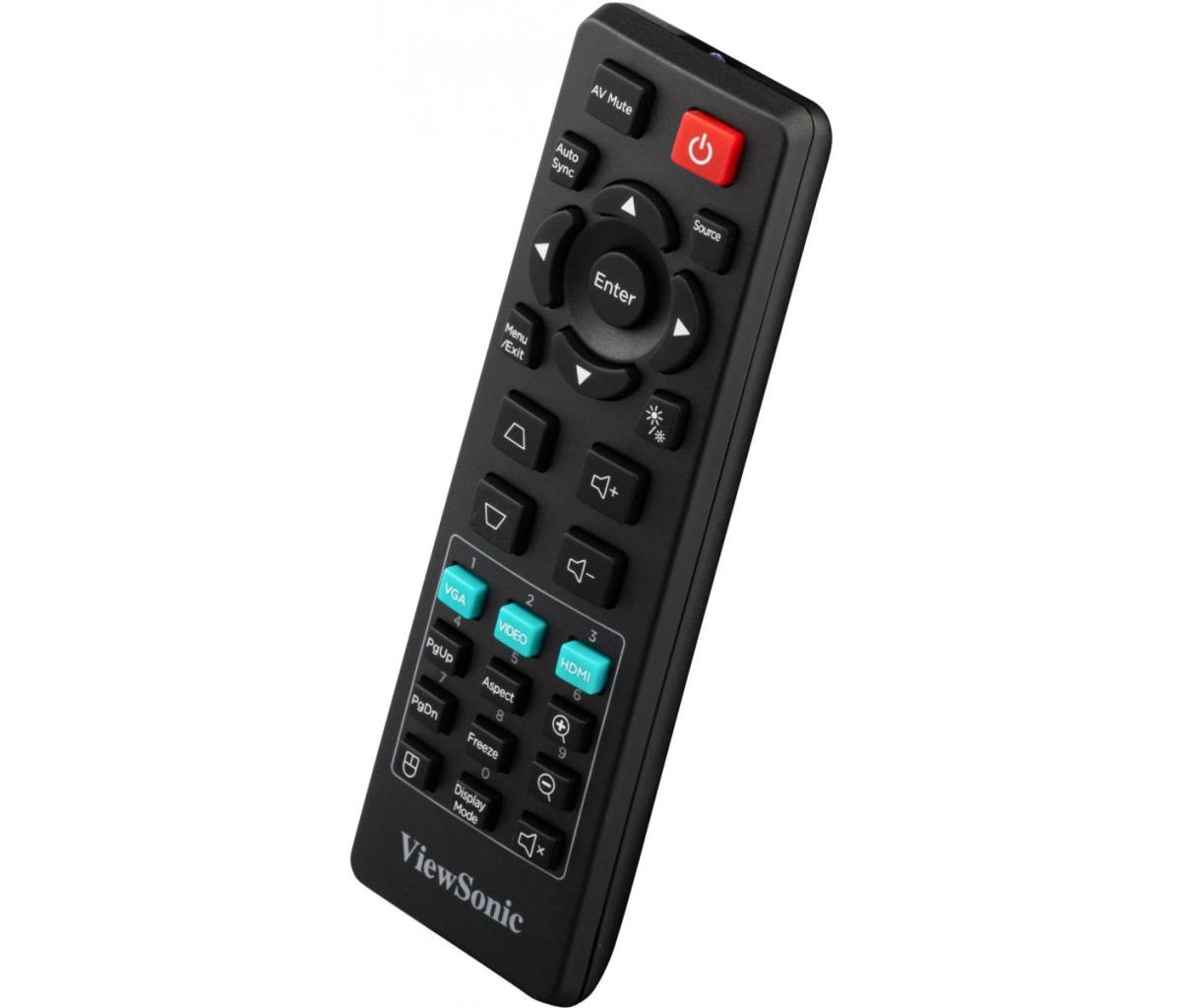

| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC, VGA |
| Quick start guide | Yes |
| Warranty card | Yes |
| Technical details | |
| Image lag time | 33.2 ms |
