Product Information

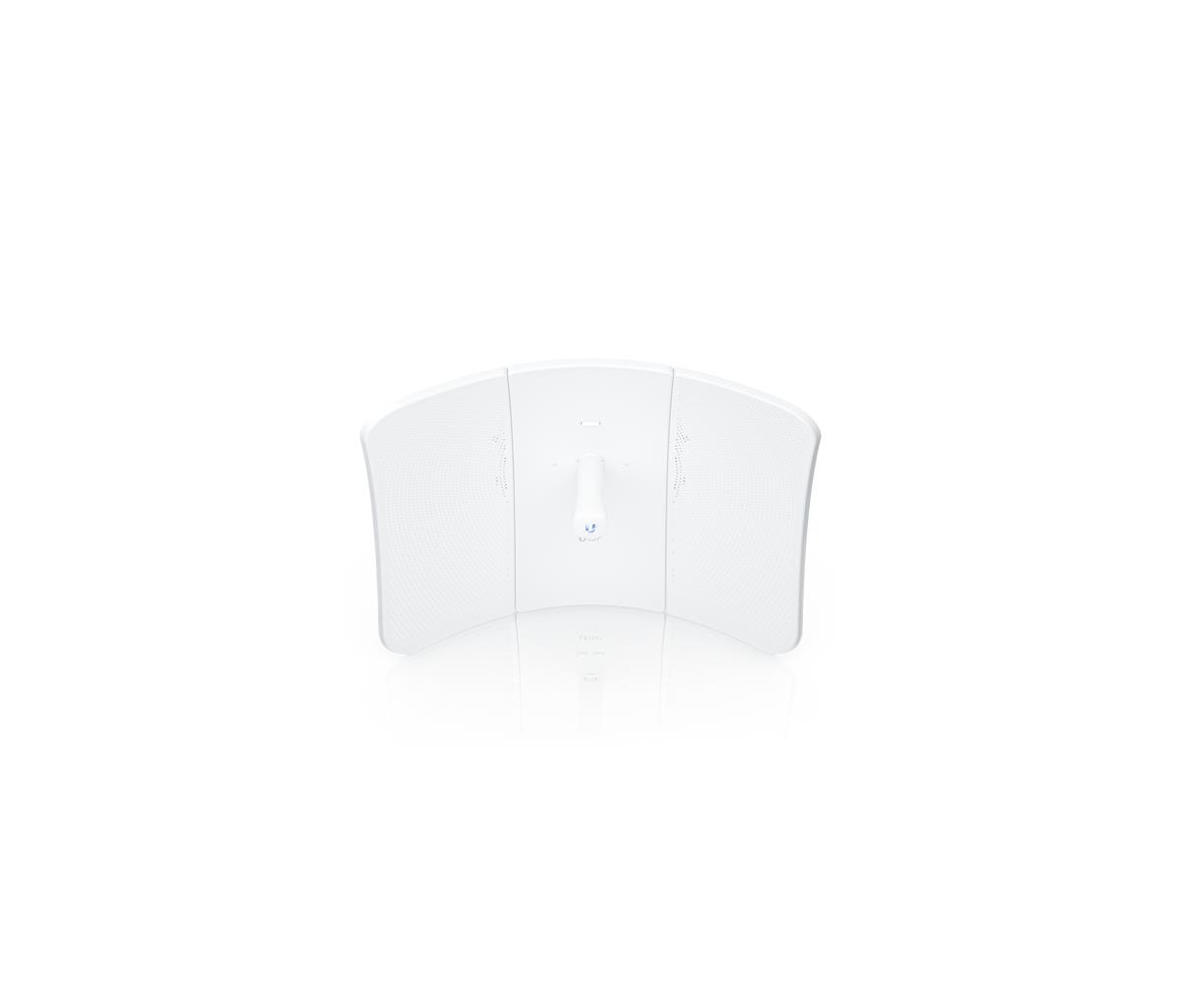

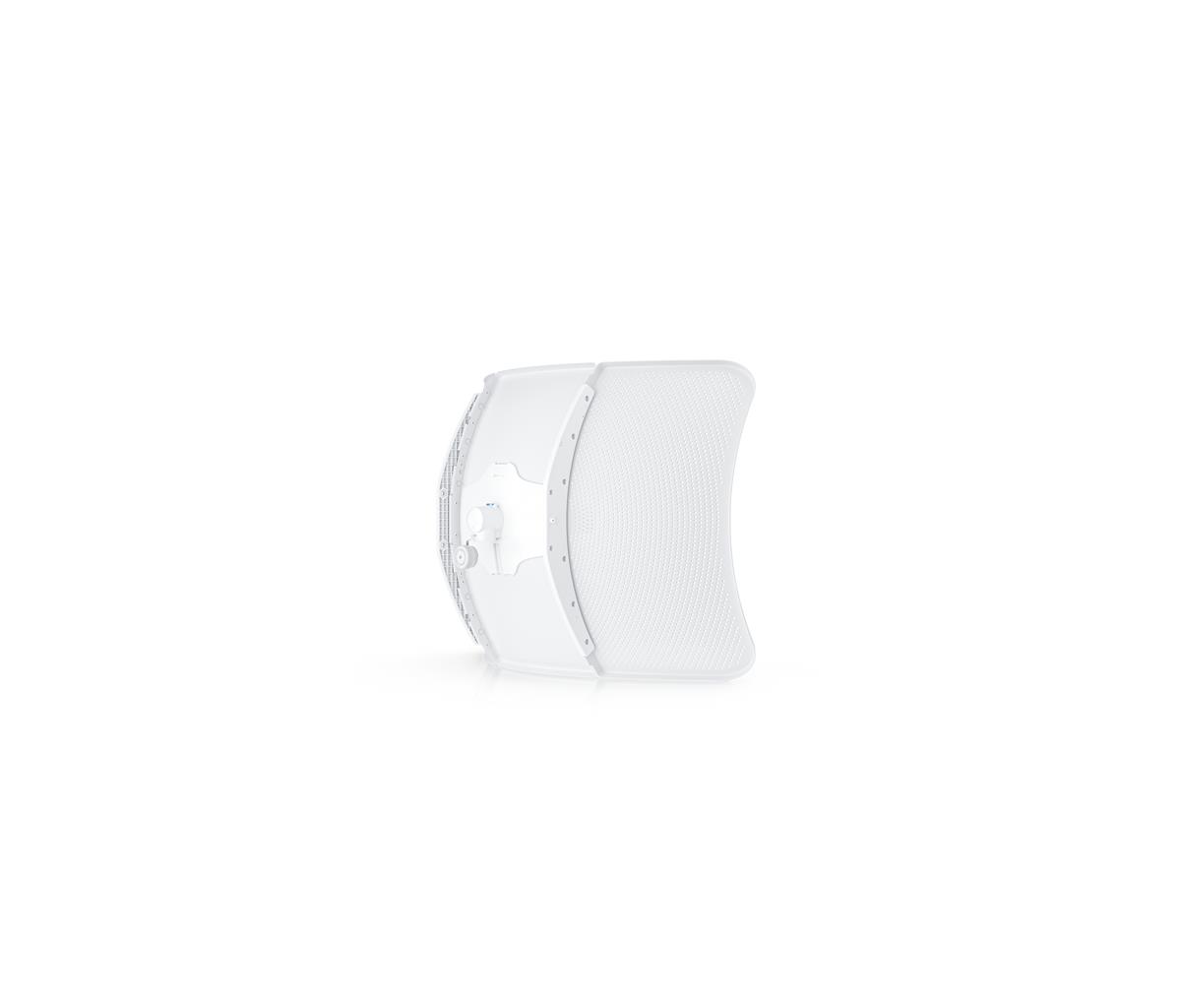

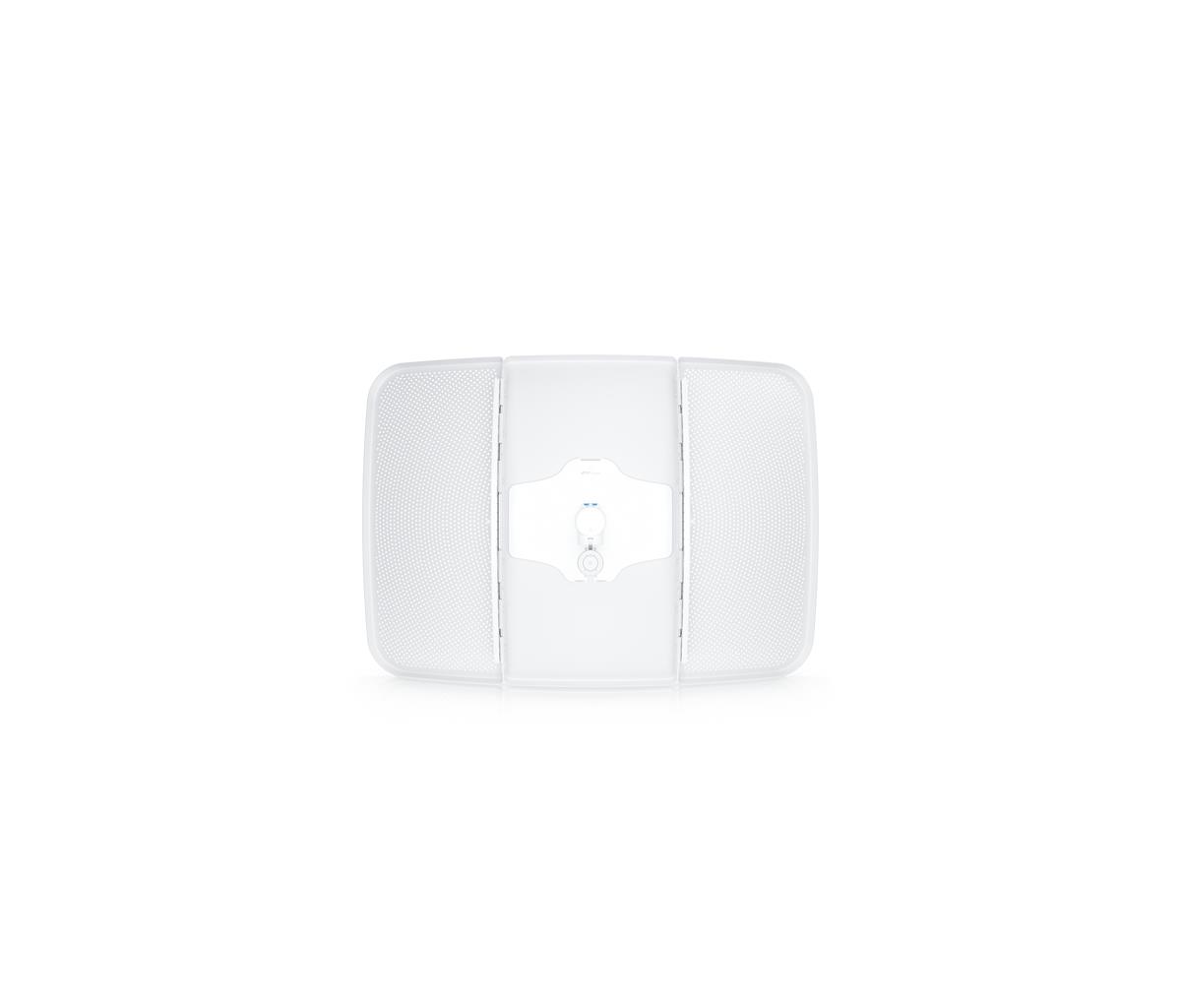

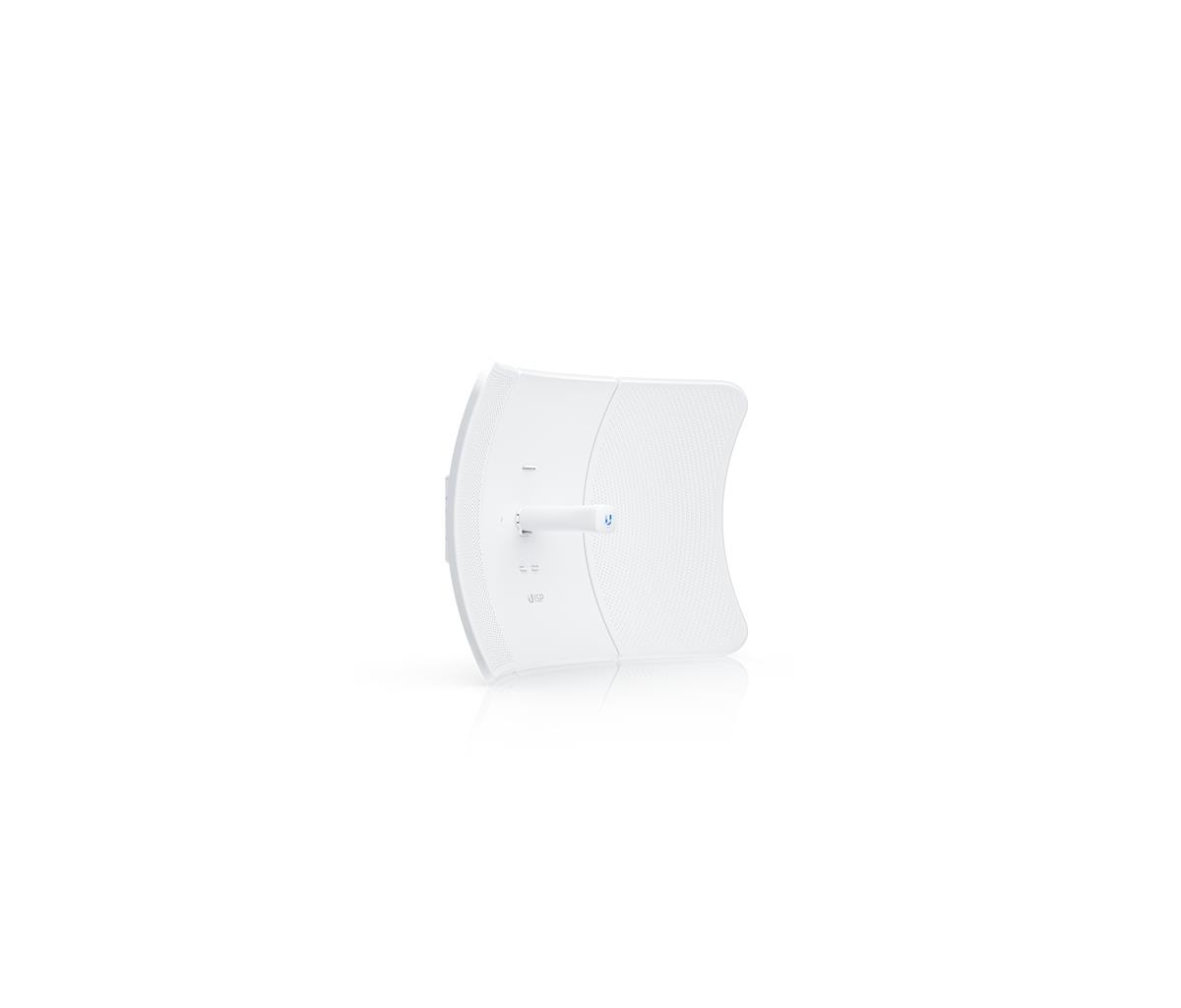

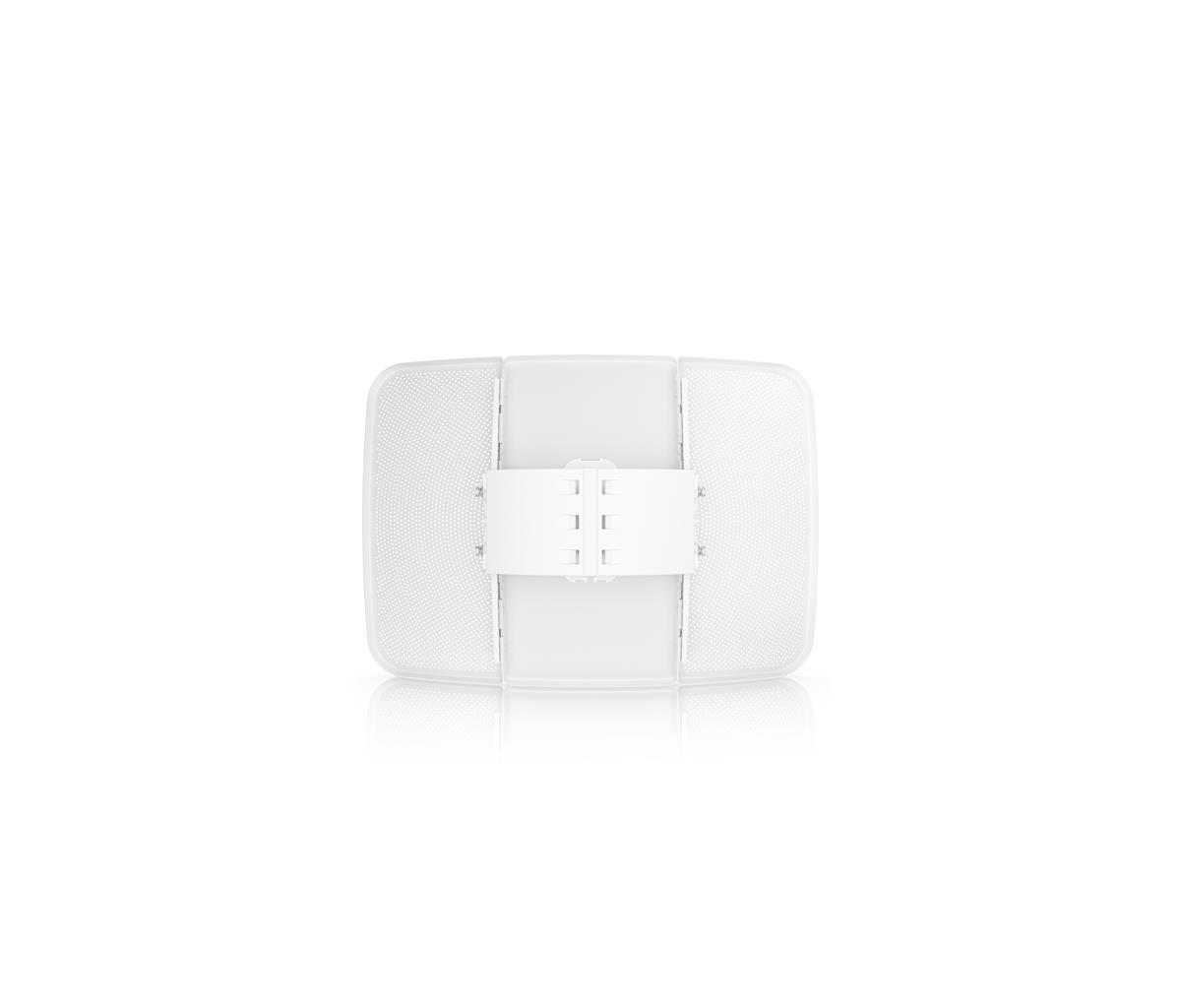

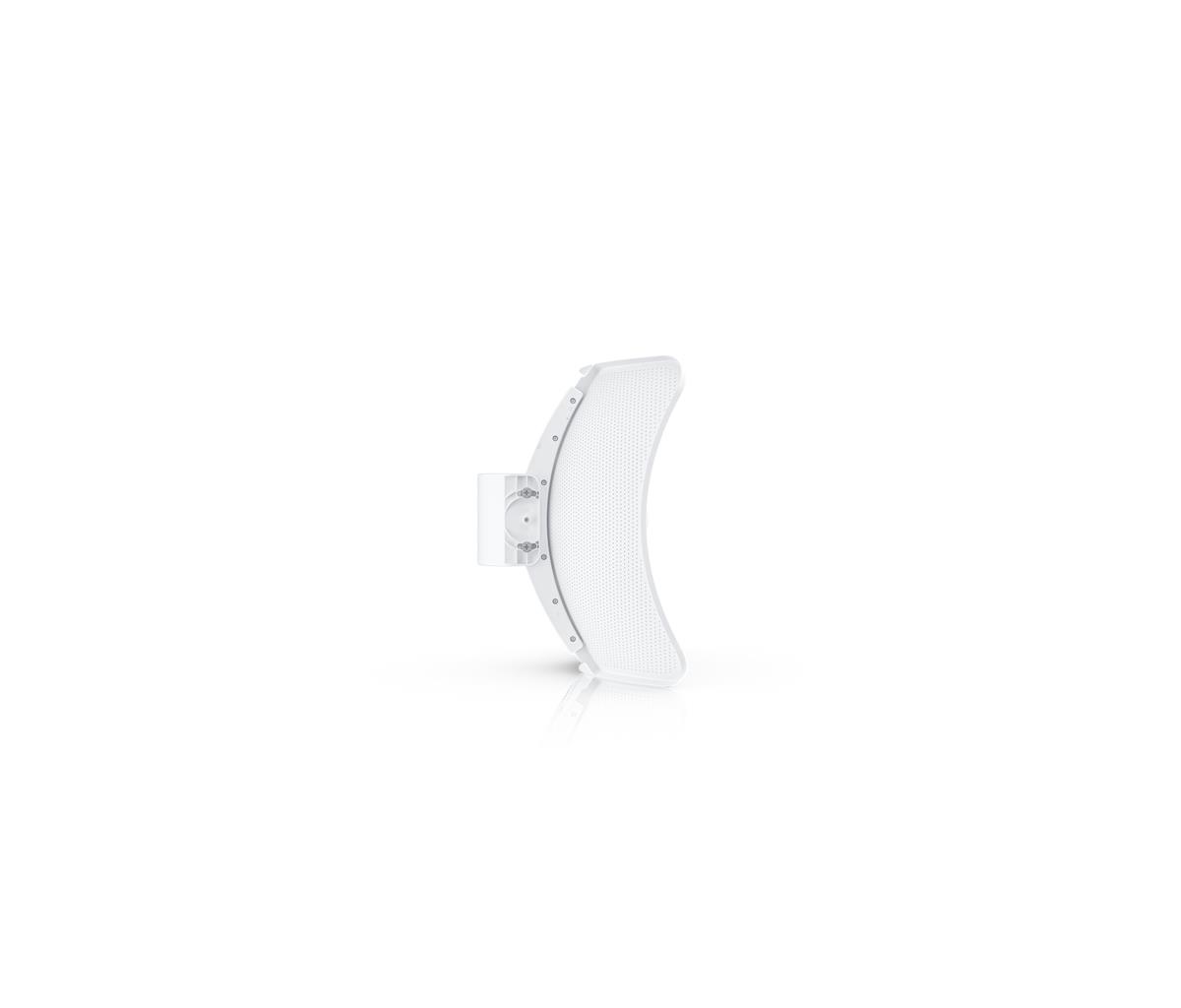

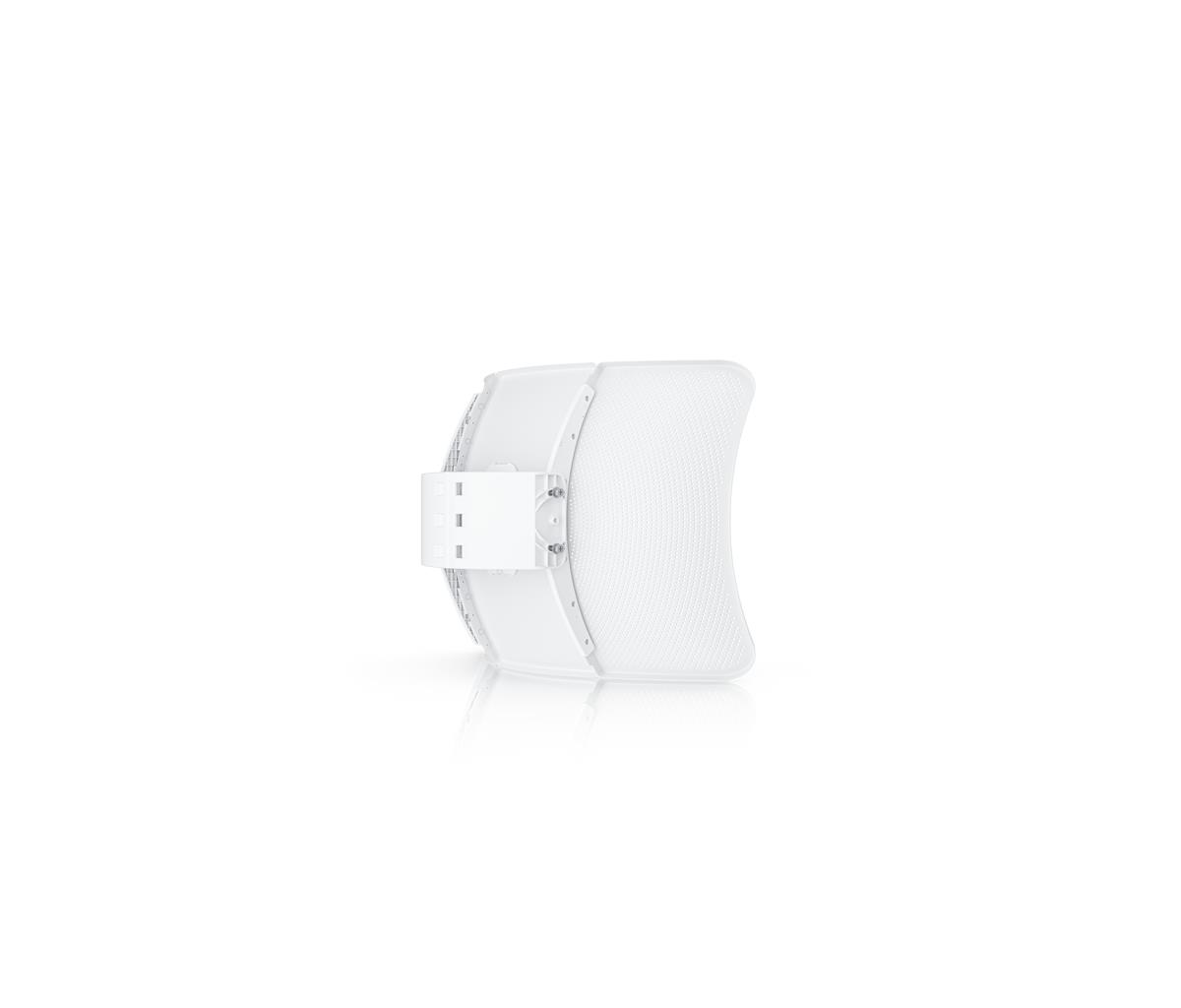

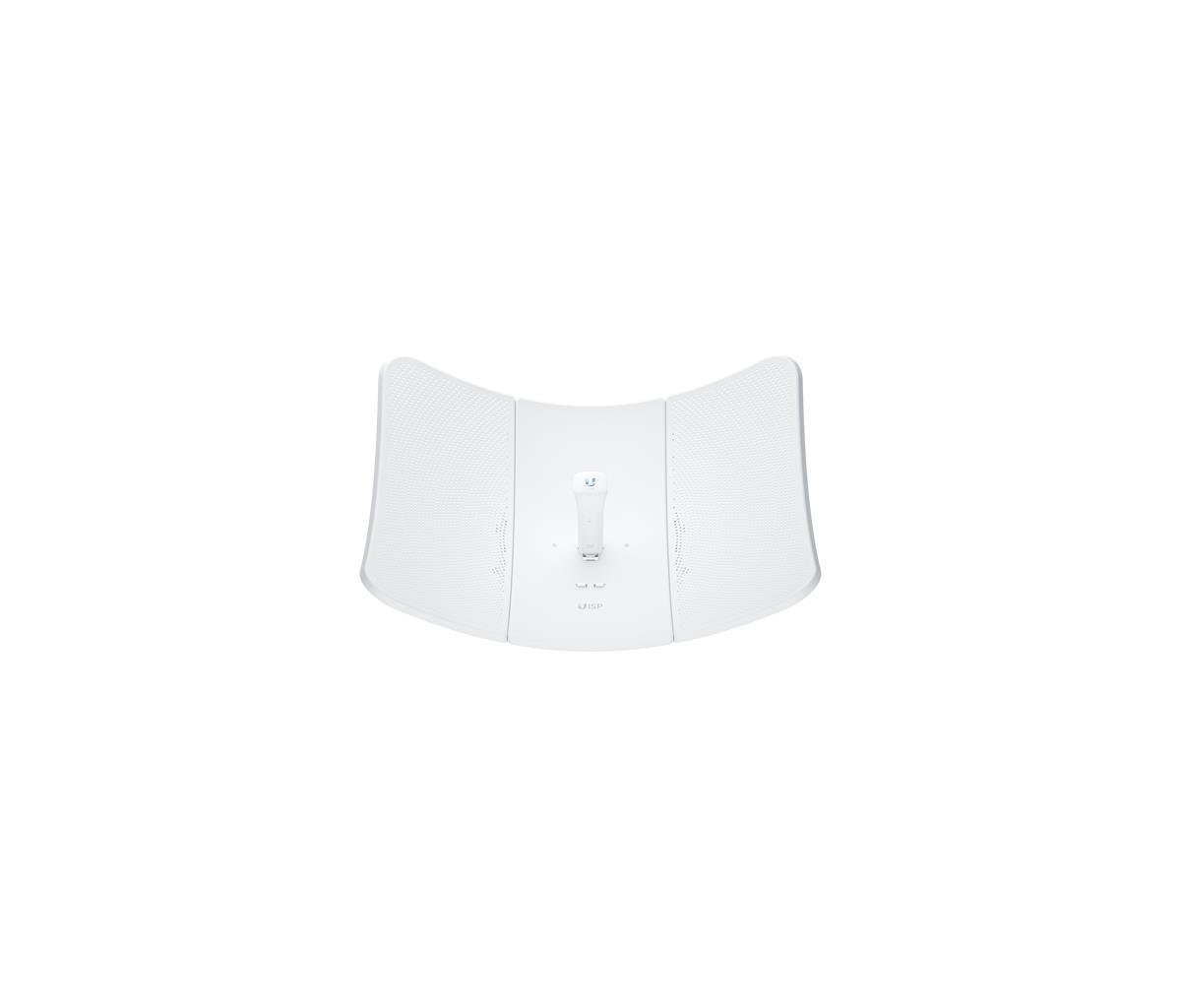

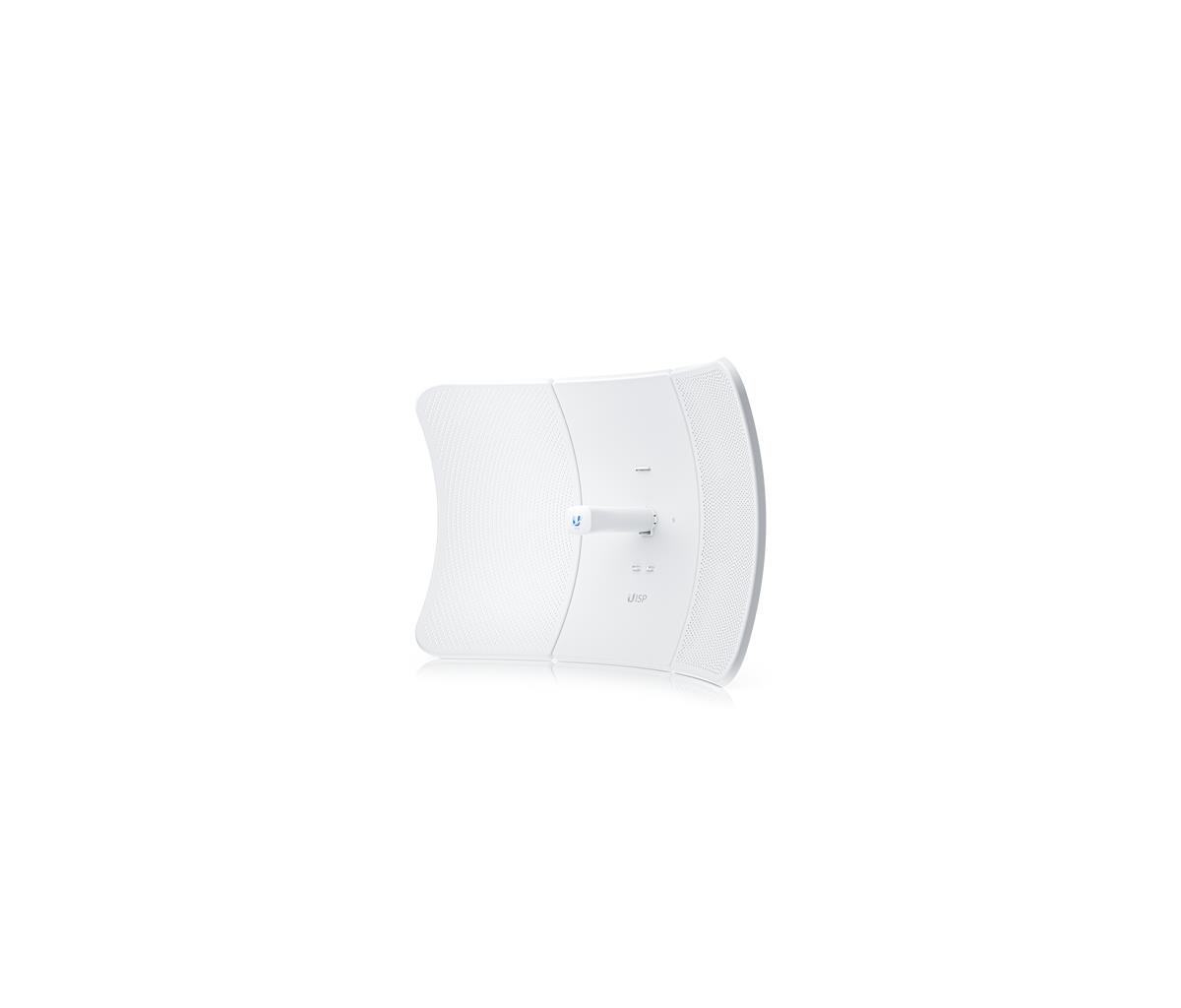

The LTU XR is a high-performance, cost-effective PtMP CPE for wireless ISPs that can reach up to a 550 Mbps throughput rate. The LTU XR also facilitates independent transmission and receives channel frequency configurations anywhere within its radio band to avoid local interference and ensure superior client performance. Additionally, the LTU XR is equipped with a Bluetooth management radio so it's easy to set up and configure with the UISP® Mobile app.
Features | |
5 GHz | Yes |
Throughput data rate | 550 Mbit/s |
Cabling technology | 10/100/1000Base-T(X) |
Bluetooth | Yes |
Modulation | 1024-QAM |
Security | |
Security algorithms | WPA2-PSK |
Management features | |
Web-based management | Yes |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Power | |
Power over Ethernet (PoE) | Yes |
Power consumption (max) | 8.5 W |
Design | |
Placement | Pole |
Product colour | White |
Housing material | Aluminium, Polycarbonate (PC) |
International Protection (IP) code | IPX6 |
Reset button | Yes |
LED indicators | LAN, Power |
Antenna | |
Antenna gain level (max) | 29 dBi |
Performance | |
Built-in processor | Yes |
Operating system installed | AirOS |
Certificates | |
Certification | FCC, IC, CE |
Weight & dimensions | |
Width | 747 mm |
Depth | 347 mm |
Height | 525 mm |
Weight | 3.2 kg |
Packaging content | |
Quantity per pack | 1 pc(s) |
Mounting kit | Yes |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | -40 - 55 øC |
Warranty | |
Base Warranty | Non Non |
