Uisp Horn Antenna
ITCurry #: N3303382 | Article #: UISP-HORNFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
166.09
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information

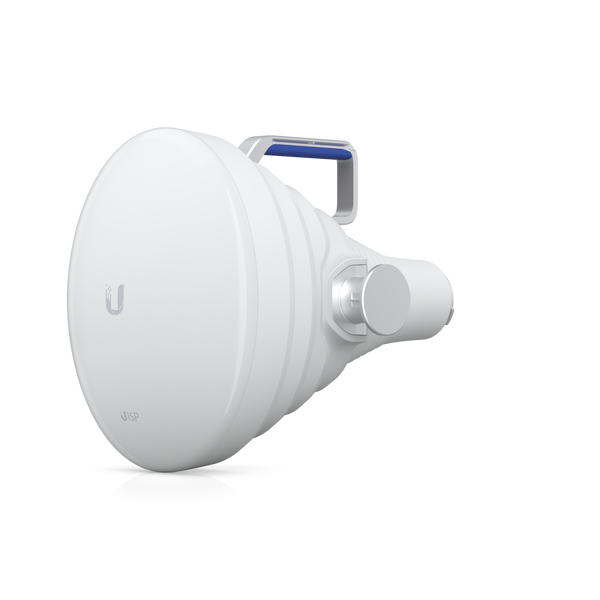

The UISP® Horn is an efficient PtMP antenna that provides high isolation within congested environments by utilizing its wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber 5XHD Radio (AF 5XHD), LTU Rocket , or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Horn also has a latch on each side for secure, snap-in radio connection. Operation frequency may vary based on regional radio frequencies and regulations.
| Performance | |
| Frequency band | 5.15 - 6.875 GHz |
| Horizontal beam width | 30ø |
| Vertical beam width | 25ø |
| Antenna gain level (max) | 19.5 dBi |
| Features | |
| Antenna type | Horn antenna |
| Polarization | Dual polarization |
| Product colour | White |
| Housing material | Aluminium, Polycarbonate (PC) |
| International Protection (IP) code | IPX6 |
| Ultraviolet (UV) resistant | Yes |
| Survival wind speed | 200 km/h |
| Wind load | 90 |
| Mounting | Pole |
| Purpose | Outdoor |
| Isolation | 20 dB |
| Mounting pipe | 25 - 70 mm |
| Compatible products | airFiber 5XHD Radio (AF 5XHD), LTU Rocket, or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC) |
| Weight & dimensions | |
| Width | 224 mm |
| Depth | 380 mm |
| Height | 282 mm |
| Weight | 3.06 kg |
| Packaging content | |
| Mounting kit | Yes |
| Warranty | |
| Base Warranty | Non Non |
