Arm Your PC with the Latest 10G SpeedsArm Your PC with the Latest 10G Speeds
PCIe 3.0 Slot to 10 Gigabit Ethernet
Upgrade to 10G Networking
10 Gigabit Ethernet reaches blazing-fast data rates up to 10 billion bits per second—10× faster than standard Gigabit Ethernet. It’s a brand-new era for all your bandwidth-intensive tasks from local data transfers to internet access.
10 Gbps Internet Access
Make Full Use of Your High-Speed Internet Access
10 Gbps NAS Connection
Lightning-Fast Local Data Transmissions
10 Gbps Host Server Building
High Hardware Configuration for a Powerful Server
Play Never Ends with 10G
With 10 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

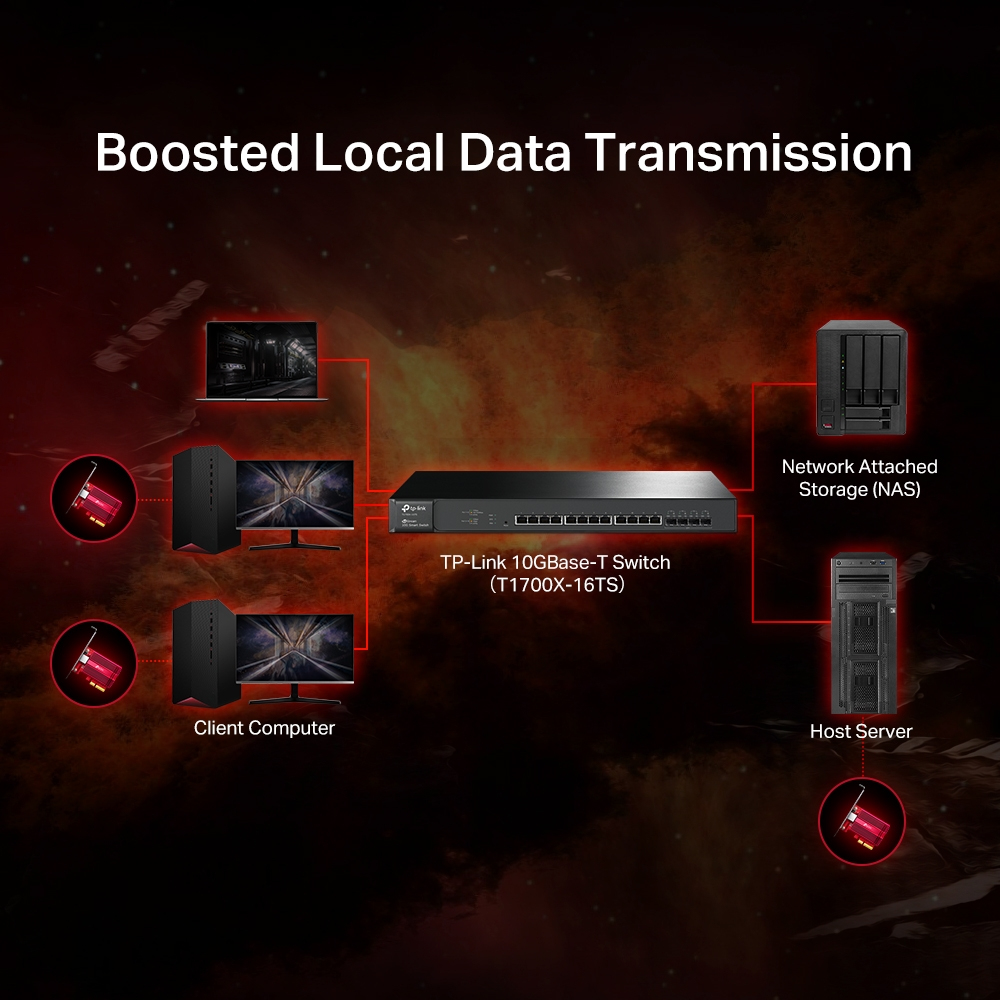

Local Data Transmissions in Seconds
For local connections, a 10G PCIe adapter helps build a lightning fast transport channel between a central server and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.
Versatile, Multi-Speed Compatibility
10GBase-T is backwards compatible with multiple data rates, including 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps Base-T connectivity. The 10G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 10G networking smoothly.
QoS Support
A Bandwidth Buff for Gaming
Quality of Service technology ensures enough bandwidth and avoids network congestion for PC gaming. It delivers prioritized performance for gamers.
Strengthened PCI Express 3.0 ×4
Supports PCI Express Gen3 ×4 for more efficient data transmissions
Easy Setup
Simple software installation with the intuitive Utility on the provided CD
Comprehensive System Support
Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux, and macOS.
Ports & interfaces | |
Connectivity technology | Wired |
Host interface | PCI Express |
Interface | Ethernet |
Ethernet LAN (RJ-45) ports | 1 |
PCI version | 3.0 |
Network | |
Maximum data transfer rate | 10000 Mbit/s |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
Design | |
Component for | PC |
Product colour | Red |
Internal | Yes |
LED indicators | Activity, Link |
System requirements | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Linux operating systems supported | Yes |
Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Sustainability | |
Sustainability compliance | Yes |
Sustainability certificates | RoHS, Federal Communications Commission (FCC), CE |
Weight & dimensions | |
Width | 120.8 mm |
Depth | 98.2 mm |
Height | 21.5 mm |
Packaging data | |
Package width | 200 mm |
Package depth | 150 mm |
Package height | 44 mm |
Package weight | 300 g |
Packaging content | |
Cables included | LAN (RJ-45) |
Mounting brackets included | Yes |
Resource CD | Yes |
Quick installation guide | Yes |
Technical details | |
Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Warranty | |
Base Warranty | Non Non |
