Mini Pci-e Gigabit Ethernet Network Adapter Nic Card
ITCurry #: 75645550 | Article #: ST1000SMPEX-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

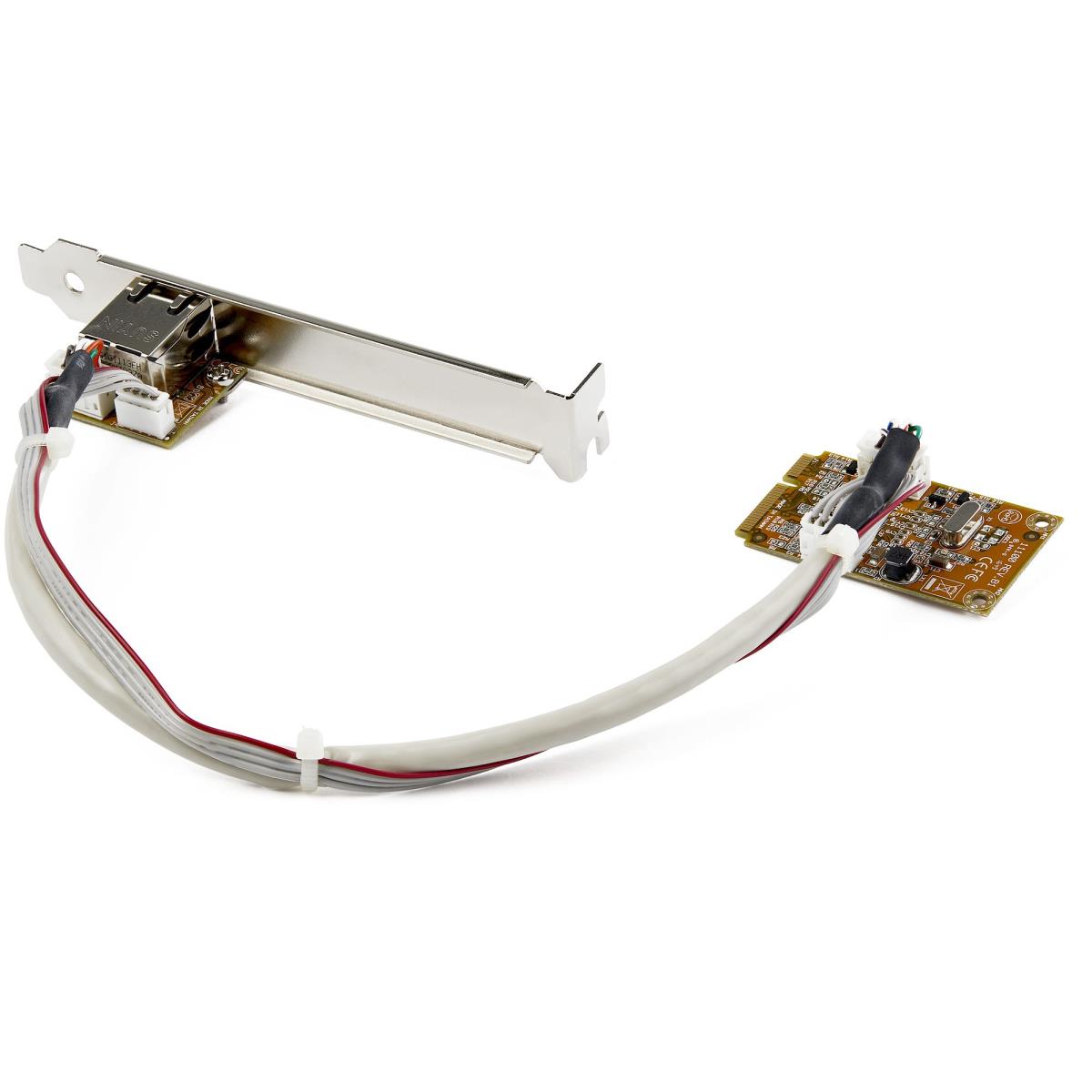

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

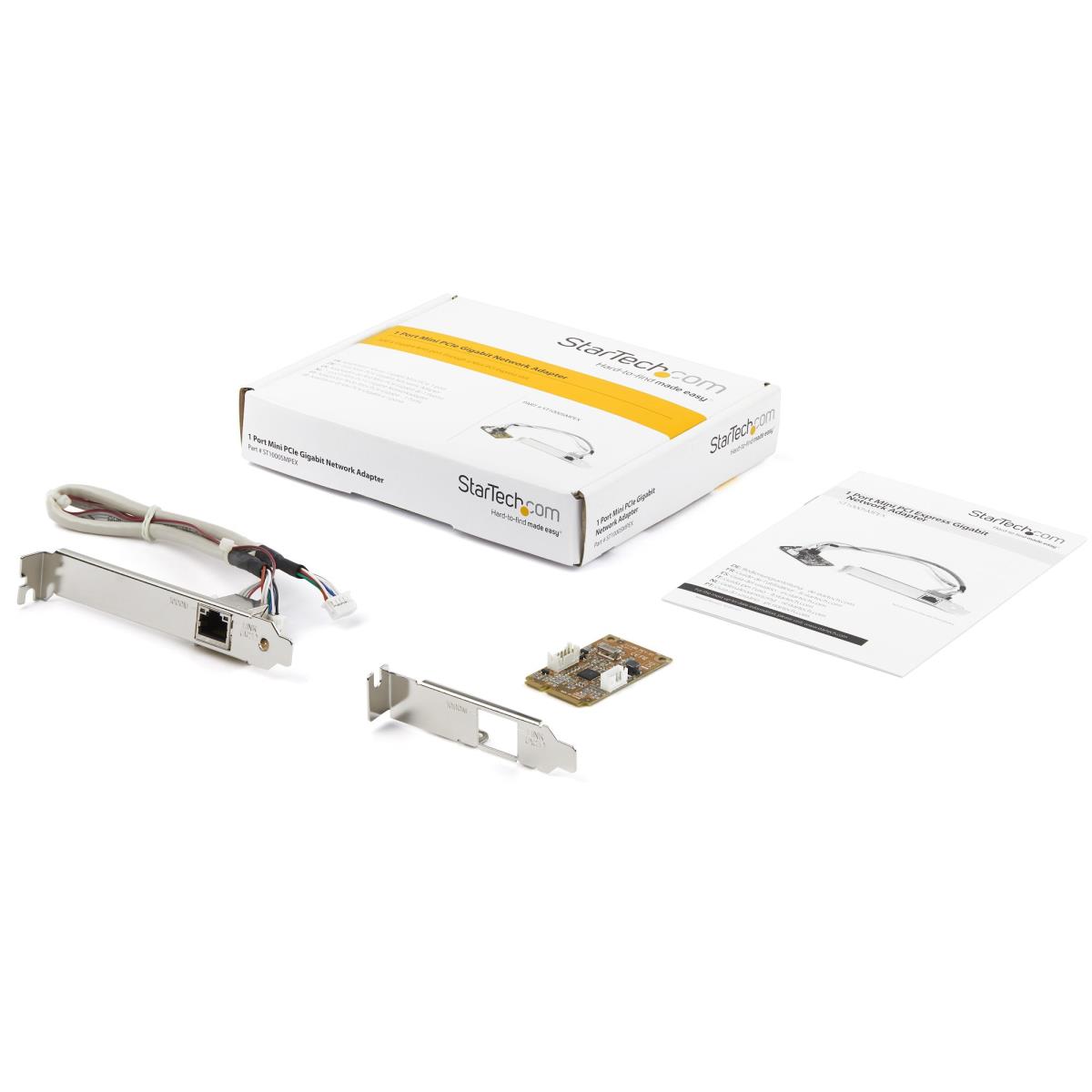

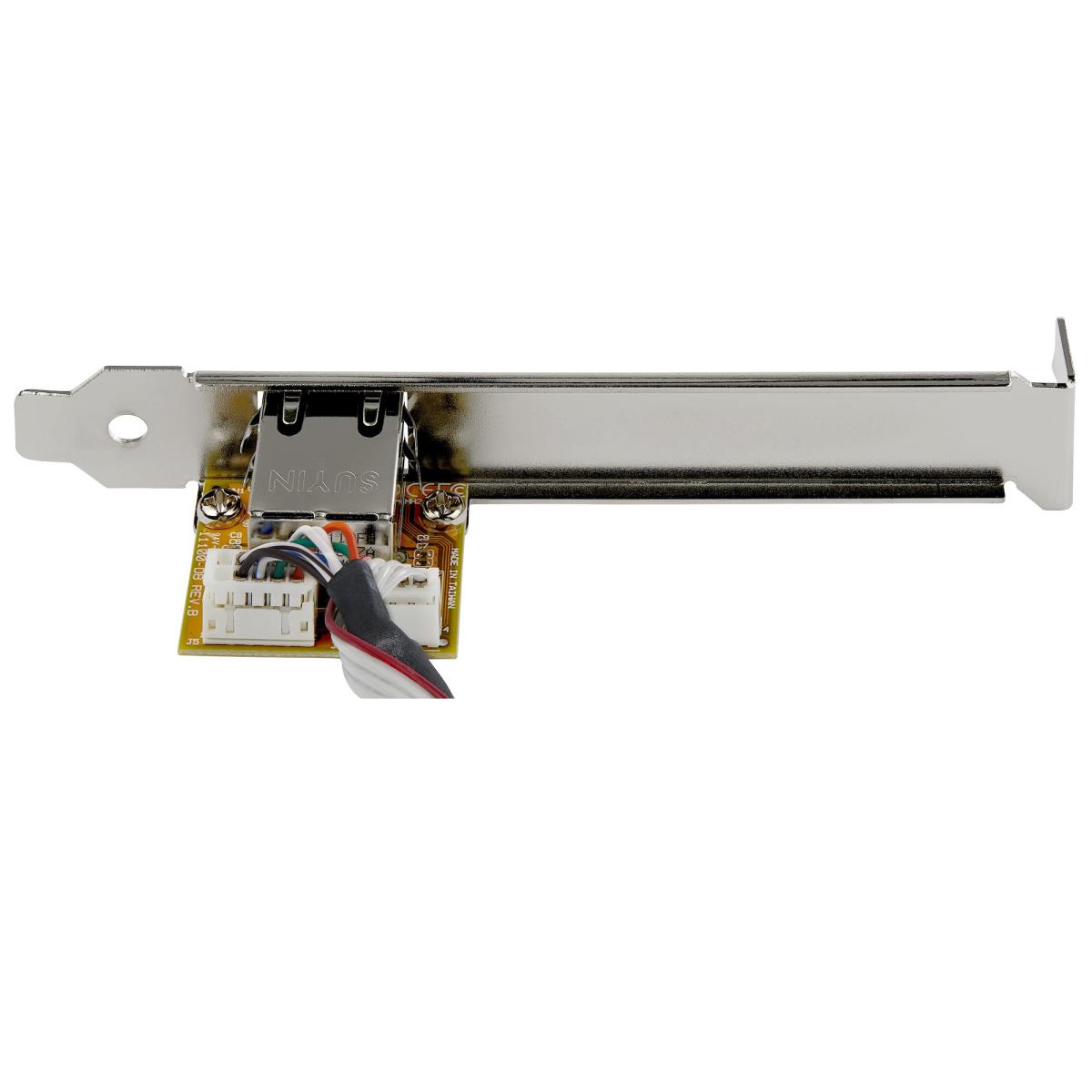

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
The StarTech.com Advantage
- Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems
- Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Mini PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| VLAN tagging | Yes |
| Design | |
| Internal | Yes |

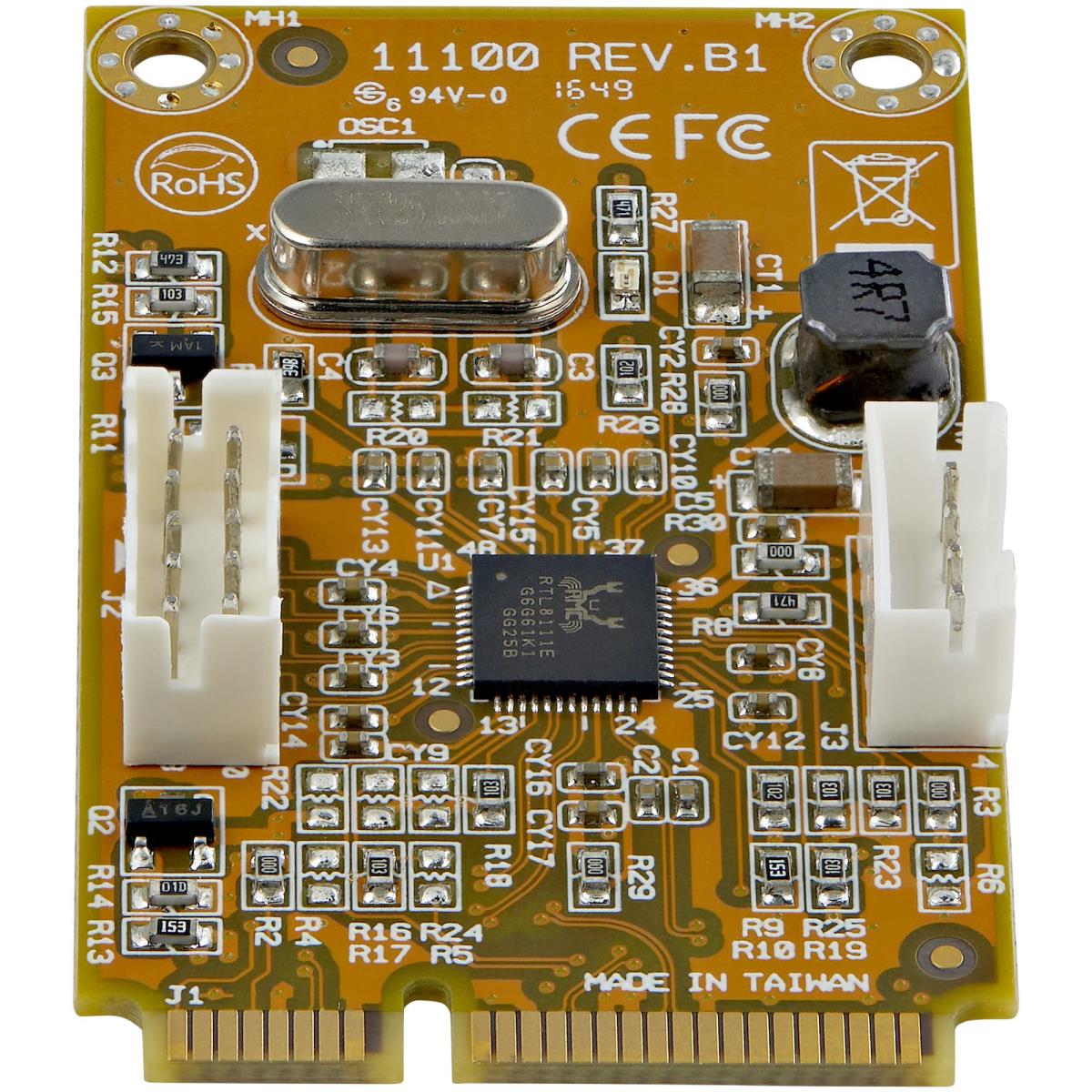

| Chipset | Realtek - RTL8111E |
| LED indicators | Activity, Link |
| Mean time between failures (MTBF) | 482765 h |
| Certification | CE, FCC |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 øC |
| Storage temperature (T-T) | -20 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 30 mm |
| Depth | 51 mm |
| Height | 8 mm |
| Weight | 6 g |
| Packaging data | |
| Quantity | 1 |
| Drivers included | Yes |
| Low-profile bracket | Yes |
| Package width | 144 mm |
| Package depth | 175 mm |
| Package height | 32 mm |
| Package weight | 150 g |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Flow control support | Yes |
