Product Information

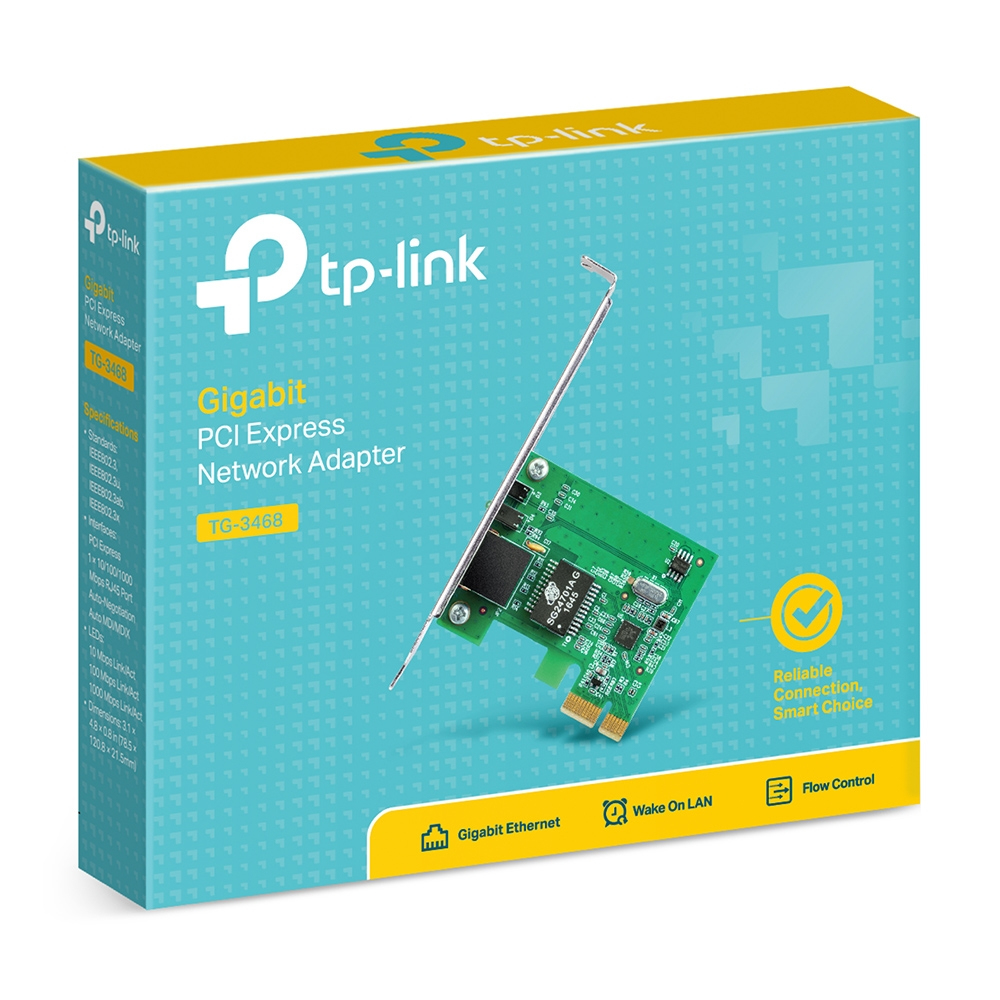

Gigabit PCI Express
Network Adapter
TG-3468
Operating System
Supports operating systems include Windows 10/8.1/8/7/Vista/XP
Low-Profile Bracket
In addition to standard bracket, low-profile bracket is also provided for mini tower computer case
Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management
Ports & interfaces | |
Connectivity technology | Wired |
Host interface | PCI Express |
Interface | Ethernet |
Ethernet LAN (RJ-45) ports | 1 |
Network | |
Maximum data transfer rate | 2000 Mbit/s |
Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Cabling technology | 10/100/1000BaseT(X) |
Wake-on-LAN ready | Yes |
Full duplex | Yes |
Jumbo frames support | Yes |
Supported network protocols | CSMA/CD, TCP/IP |
Design | |
Component for | PC/Laptop |
Product colour | Green |
Internal | Yes |
Certification | CE, FCC |
System requirements | |
Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Linux operating systems supported | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Storage temperature (T-T) | -40 - 70 øC |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Warranty | |
Base Warranty | Non Non |
Weight & dimensions | |
Width | 120.8 mm |
Depth | 78.5 mm |
Height | 20.9 mm |
Packaging data | |
Package width | 160 mm |
Package depth | 135 mm |
Package height | 30 mm |
Technical details | |
Compliance certificates | RoHS |
Other features | |
Flow control support | Yes |
Supported data transfer rates | 10/100/1000 Mbps |
Data transfer rate | 1 Gbit/s |
Operating temperature (T-T) | 32 - 104 øF |
