Connect your laptop to a remote display over standard CAT5e or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources
This multi-input video extender kit uses HDBaseT™ technology to extend your video signals up to 230 feet (70 meters) over a single CAT5e or CAT6 cable. It features a built-in video switch that enables you to choose which video source is outputted from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).The video extender supports Ultra HD 4K and Full HD 1080p video resolutions, with support for the accompanying digital 7.1 audio.

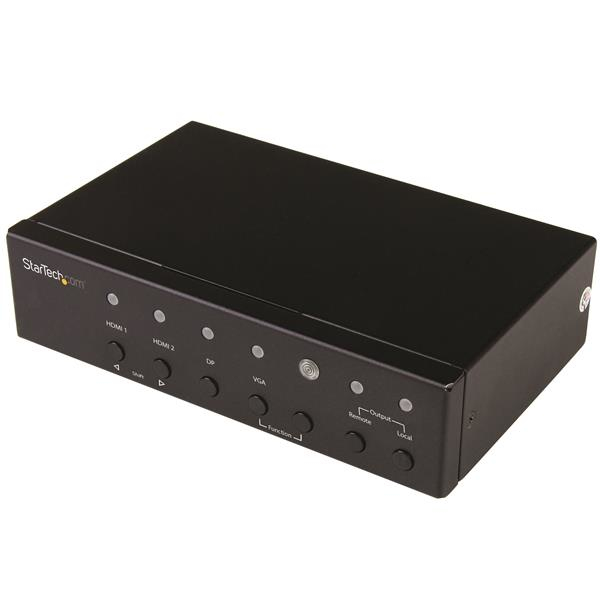

Seamless multi-interface operation, with a switch and extender in one
This HDBaseT extender features a built-in converter switch, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same remote HDMI display, without having to use additional adapters or scalers or a separate video switch.
With support for multiple video sources and HDBaseT, this extender is the perfect solution for adding a large display to your boardroom or classroom, enabling BYOD laptops with HDMI, DisplayPort or VGA outputs to share their display with the room.
Effortless control with automatic or priority switching
The extender switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching.
The multi-input video extender kit is perfect for digital signage applications, where an automatic switch can replace a failed source with a secondary input to avoid embarrassing video outages. Plus, the combined built-in HDBaseT functionality means you can connect a remote digital signage display with one kit that reduces failure points.
Hassle-free integration with your existing infrastructure
The kit extends your video signal over a single cable, unlike some video extender systems that require two cables and only offer minimal audio support. Extending your video with one cable reduces potential failure points and also lowers your cabling costs.
Using standard CAT5e, CAT6 or CAT7 cables, the HDBaseT extender works with existing Ethernet infrastructure that's already built into large commercial buildings such as shopping centers, stadiums, schools, and hospitals, making it the perfect solution for deploying digital signage.
Astonishing 4K picture quality from an impressive distance
With high-quality HDMI cables beginning signal degradation at 30 feet, it can be difficult to maintain the brilliance of 4K video even at shorter distances. But with HDBaseT, you’ll be amazed at how your Ultra HD picture -- four times the resolution of high-definition 1080p, is just as brilliant even at distances up to 130 feet from your video source.
Even if you're not running 4K, HDBaseT supports High-Definition 1080p and lower resolutions at even greater distances, up to 230 feet from your source, giving you peace of mind knowing that this extender will comfortably work with any HDMI video source and display.
What is HDBaseT?
HDBaseT is a zero-latency connectivity standard that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable. Offering greater versatility than traditional HDMI extenders and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer, because it can do so much, with just a single cable.
The STDHVHDBT is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
The StarTech.com Advantage
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Audio system | Multichannel |
| Audio output channels | 7.1 channels |
| LED indicators | Yes |
| Supported video modes | 720p, 1080p, 2160p |
| Remote control type | IrDA |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Rubber feet | Yes |
| Product colour | Black |
| HDBaseT certified | Yes |
| Certification | CE, FCC, REACH, TAA |

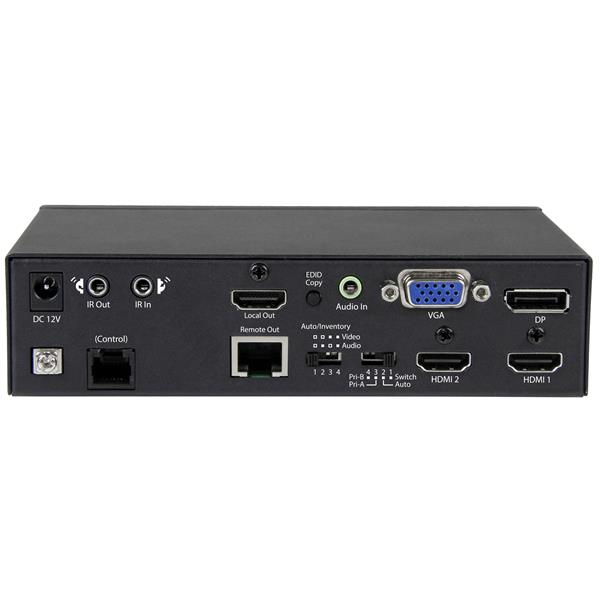

| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| DisplayPorts in | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Operating voltage | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -10 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 100 mm |
| Height | 40 mm |
| Weight | 918 g |
| Packaging data | |
| Package width | 205 mm |
| Package depth | 298 mm |
| Package height | 62 mm |
| Package weight | 1.68 kg |

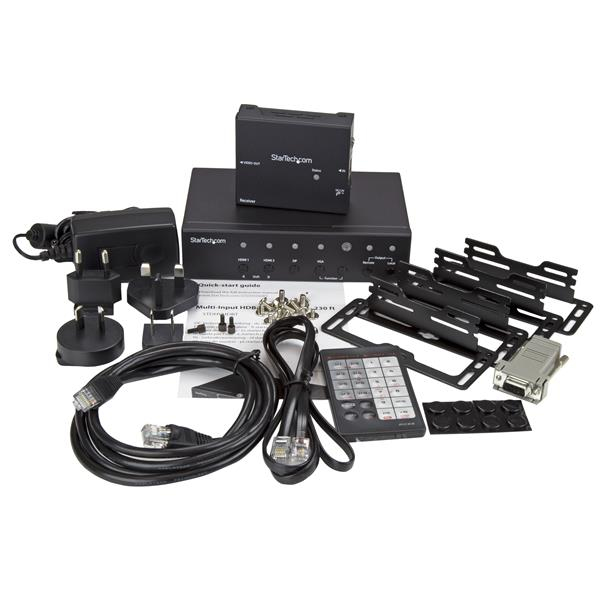

| Packaging content | |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Included power plug types | ANZ, EU, NA, UK |
| Quick start guide | Yes |
| Remote control included | Yes |
| Mounting brackets included | Yes |
| Mounting kit | Yes |
| Technical details | |
| Audio support | Yes |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 322 mm |
| Master (outer) case length | 406 mm |
| Master (outer) case height | 262 mm |
| Products per master (outer) case | 6 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
