Price:
320.75
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
Product Information
The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.

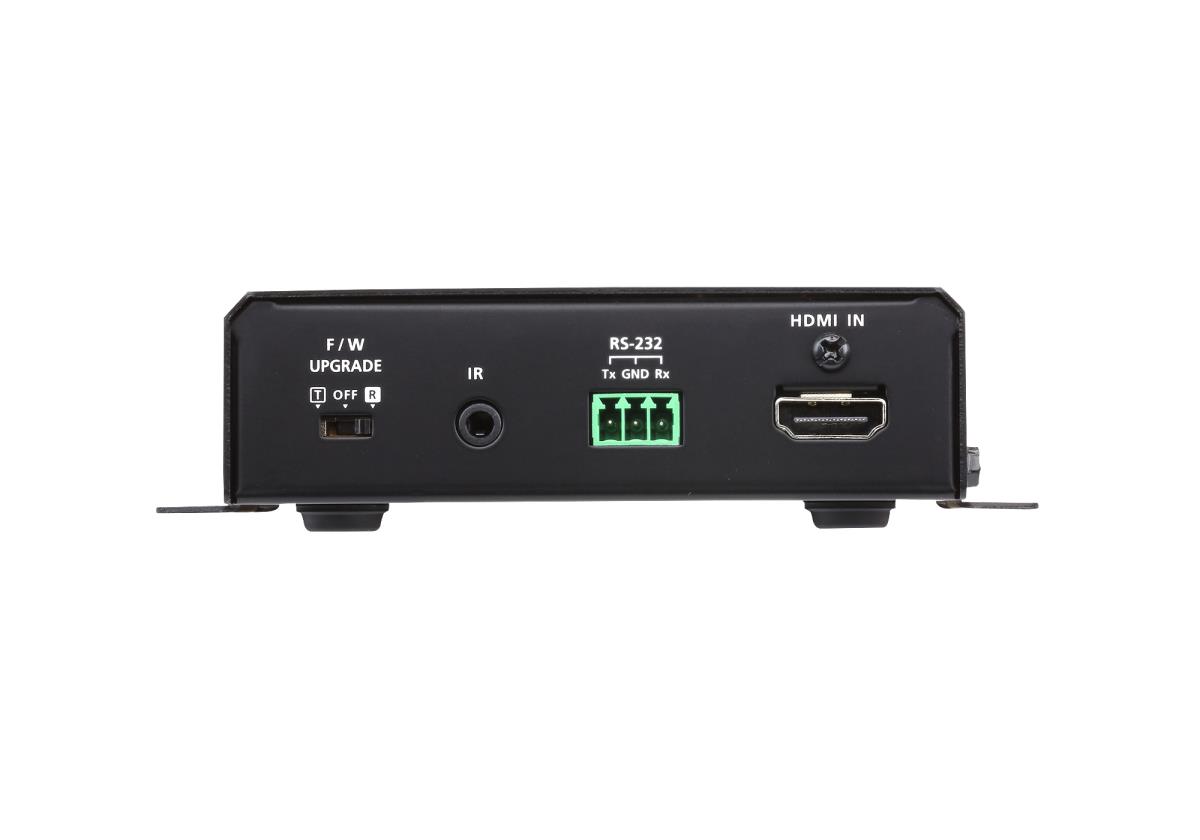

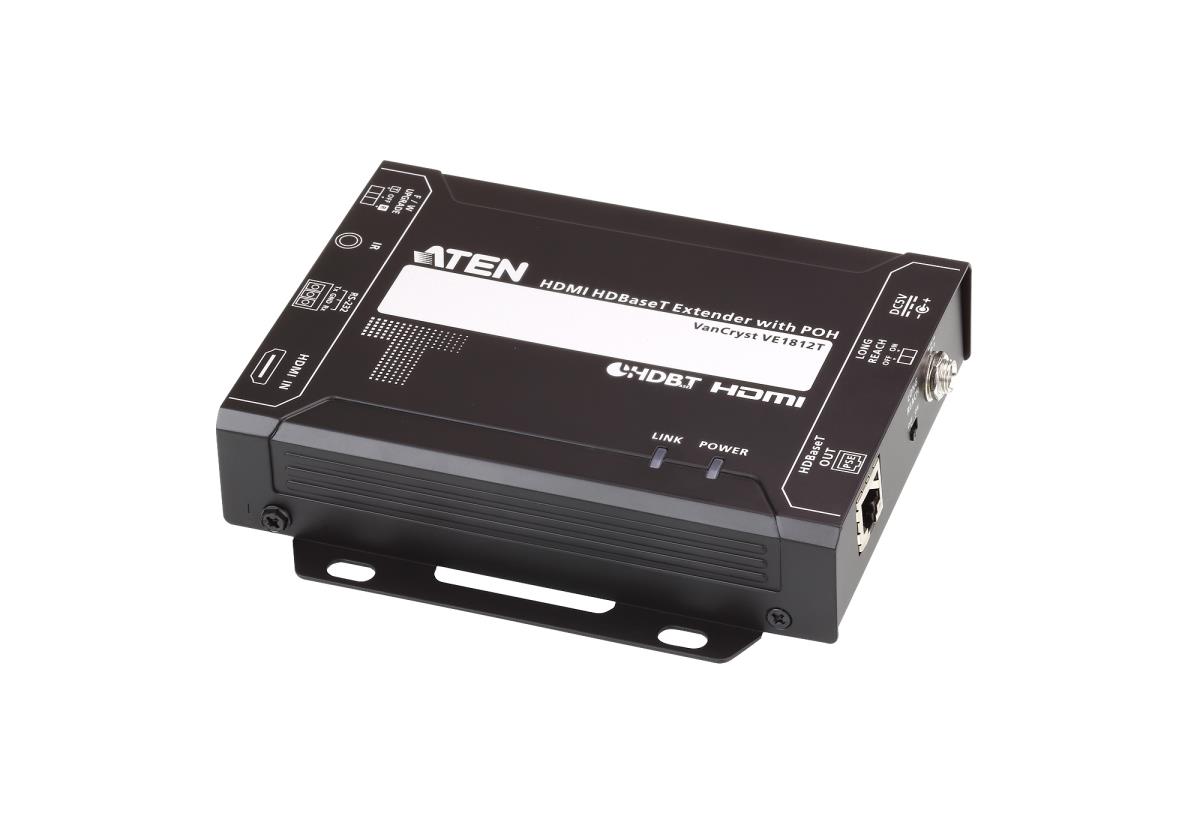

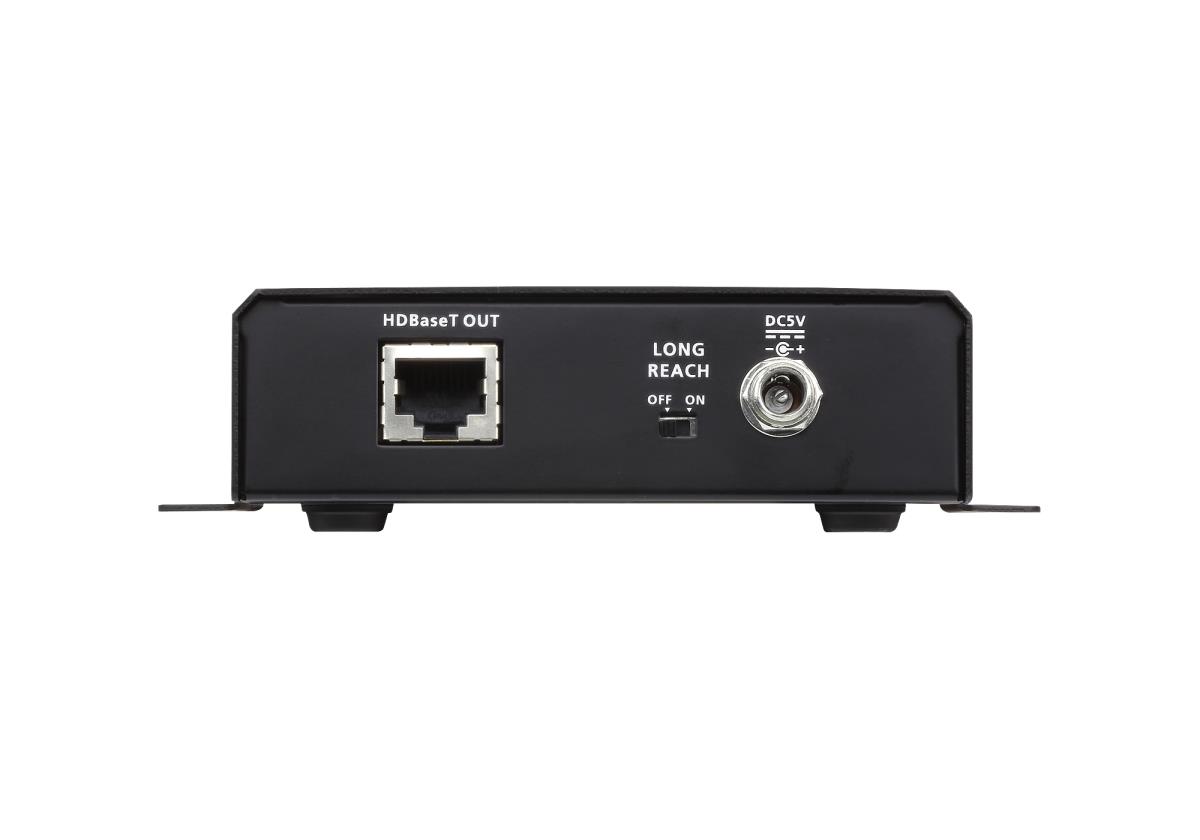

1x VE1812 HDMI HDBaseT Transmitter with POH

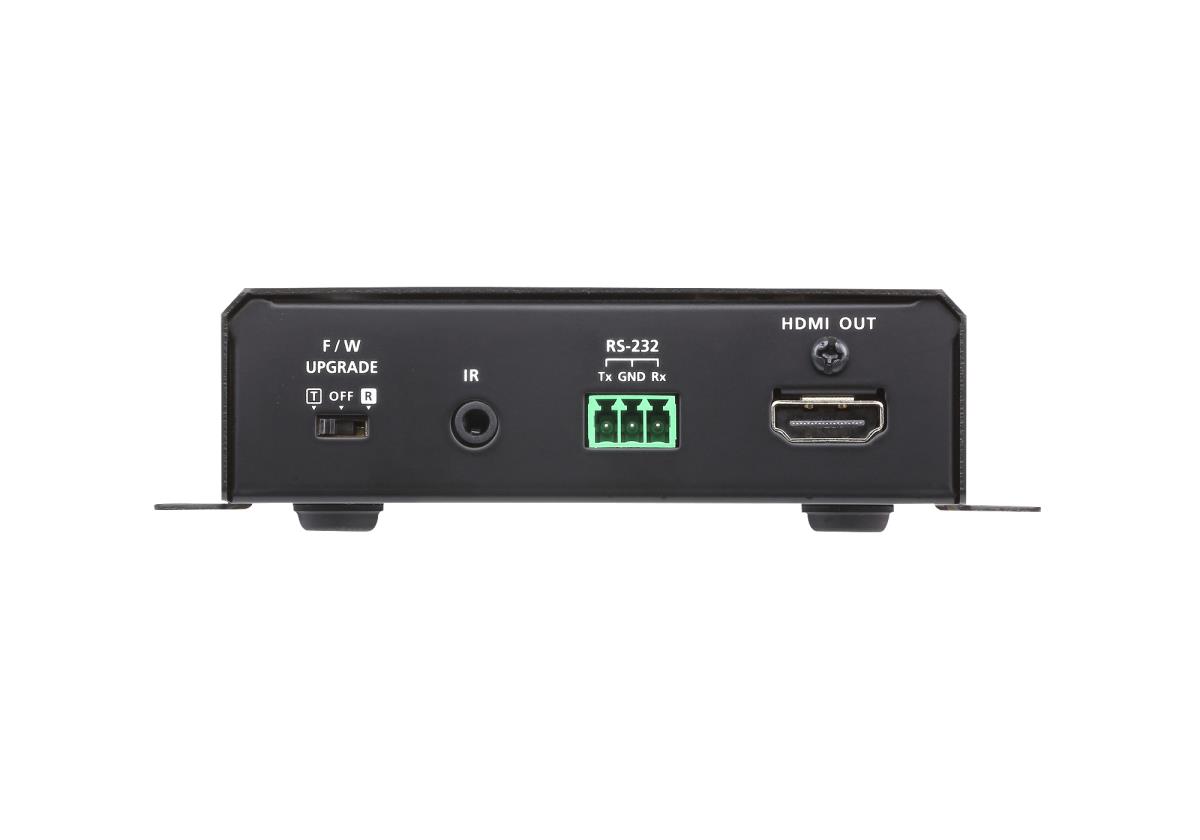

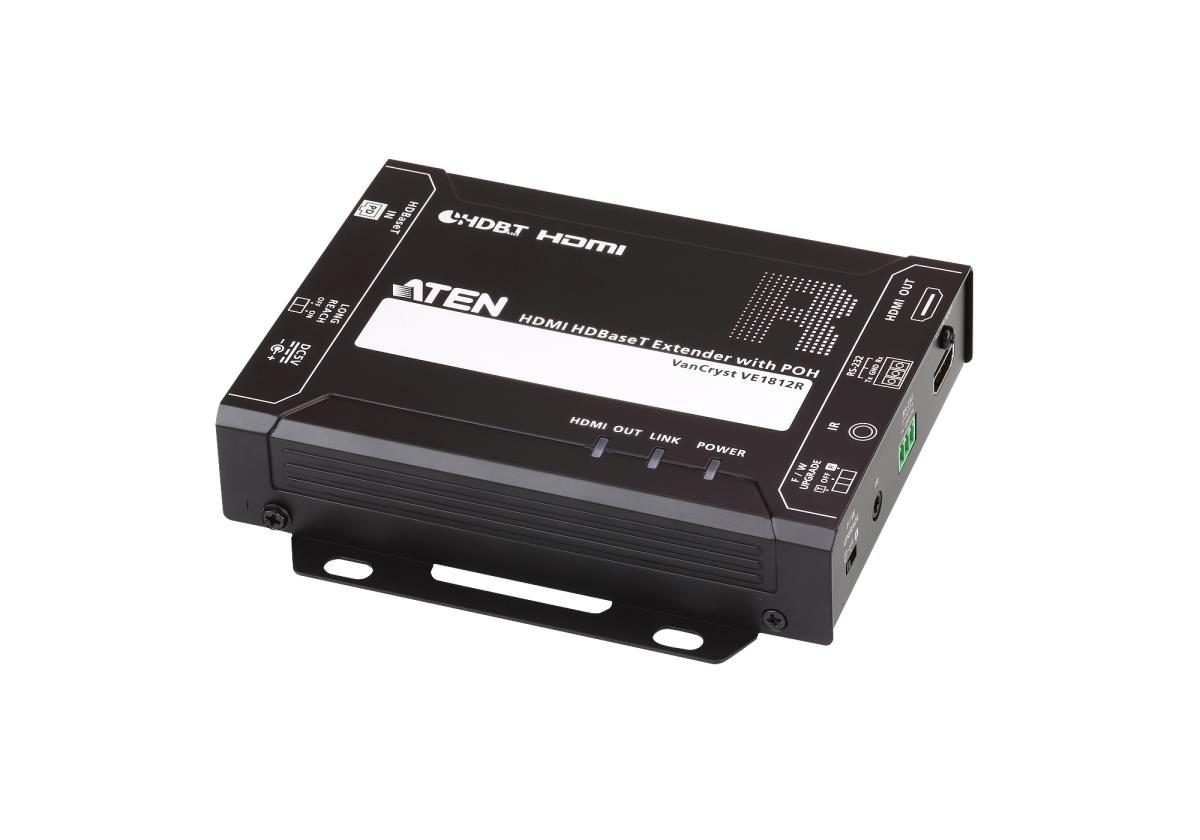

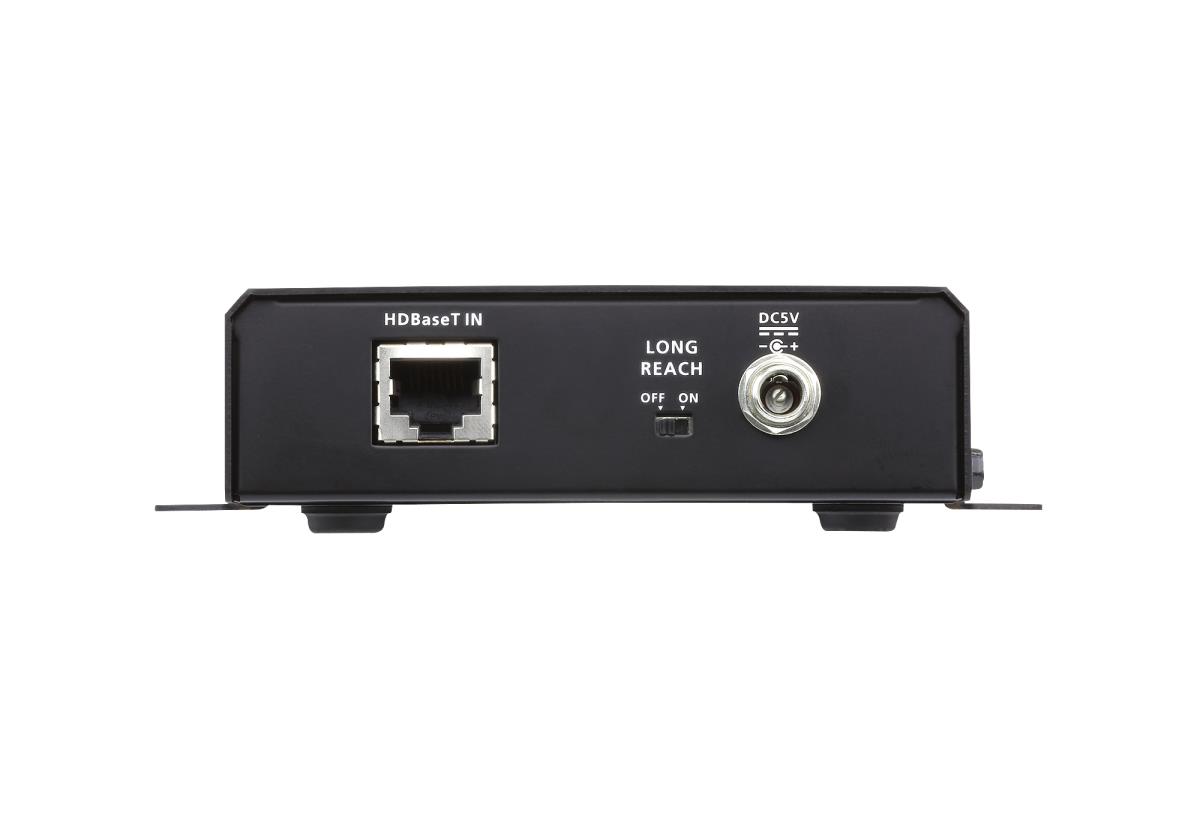

1x VE1812 HDMI HDBaseT Receiver with POH
1x 0AD8-1F05-30M1 Power Adapter
1x 2XRT-0004G IR Transmitter
1x 2XRT-0003G-1 IR Receiver
2x RS-232 Terminal Blocks
1x User Instructions
Features | |
Type | AV transmitter & receiver |
Maximum resolution | 4096 x 2160 pixels |
Cable types supported | Cat5e, Cat6, Cat6a |
Maximum transfer distance | 150 m |
LED indicators | Yes |
Supported video modes | 1080p |
Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
Bandwidth | 10.2 Gbit/s |
Bandwidth | 340 MHz |
HDCP | Yes |
Material | Metal |
3D | Yes |
Firmware upgradeable | Yes |
Consumer Electronics Control (CEC) support | Yes |
Impedance | 100 O |
HDCP version | 2.2 |
Product colour | Black |
Ports & interfaces | |
Connectivity technology | Wired |
Ethernet LAN | Yes |
RJ-45 input ports | 1 |
RJ-45 output ports | 1 |
HDBaseT port | Yes |
HDMI in | 1 |
Number of HDMI outputs | 1 |
RS-232 input ports | 1 |
RS-232 output ports | 1 |
Video in | 1 |
Video out | 1 |
3.5 mm (1/8-inch) in | Yes |
3.5 mm (1/8-inch) out | Yes |
Remote (IR) input | 1 |
Remote (IR) output | 1 |
DC-in jack | Yes |
Power | |
Operating voltage (transmitter) | 5 V |
Operating voltage (receiver) | 5 V |
Power consumption (transmitter) (max) | 3.2 W |
Power consumption (receiver) (max) | 5.33 W |
External power adapter | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Storage temperature (T-T) | -20 - 60 øC |
Operating relative humidity (H-H) | 0 - 80% |
Warranty | |
Base Warranty | Non Non |
Weight & dimensions | |
Weight | 1.3 kg |
Receiver dimensions (WxDxH) | 123 x 140.4 x 30 mm |
Receiver weight | 450 g |
Transmitter dimensions (WxDxH) | 123 x 140.4 x 30 mm |
Transmitter weight | 470 g |
Packaging data | |
Quantity per pack | 1 pc(s) |
Package width | 100 mm |
Package depth | 283 mm |
Package height | 173 mm |
Package weight | 1.4 kg |
Packaging content | |
AC adapter included | Yes |
Quick start guide | Yes |
Technical details | |
Compliance certificates | RoHS |
Logistics data | |
Master (outer) case width | 292 mm |
Master (outer) case length | 517 mm |
Master (outer) case height | 194 mm |
Master (outer) case gross weight | 6.98 kg |
Master (outer) case net weight | 6.5 kg |
Products per master (outer) case | 5 pc(s) |

4k Hdmi Extender With Poe Over CAT6a - Up To 100m
320.75
