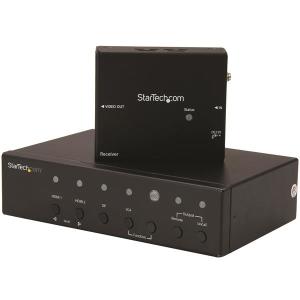

Multi-input Hdbaset Extender Kit With Built-in Switch And Video Scaler
ITCurry #: 75647858 | Article #: ST121HDBTSC-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Connect four video sources to a remote HDMI display over CAT5e/CAT6 cabling, and easily scale and switch between HDMI, DP or VGA video sourcesThis multi-input HDBaseT™ extender kit extends your A/V signals to a remote location up to 230 ft. (70 m) away. It features a built-in switch and scaler, so you can choose which video source is output from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).Seamless Integration and OperationThe HDBaseT extender’s built-in converter switch lets you connect two HDMI sources, a VGA source, and a DP source to the same remote and local HDMI display. You don’t need adapters or scalers, or a video switch.Along with manually switching your video source with easy-to-use buttons, the video extender ensures hassle-free operation with two auto-switching modes: auto-detect switching, which detects and selects a newly connected device, and priority selection, which lets you choose which port is activated by default, for automatic switching.Built-In Video ScalingThis HDBaseT extender features a built-in scaler that scales the image to 1080p, so you can rest assured your HDMI display will intuitively work with any source that’s connected through it. Scaling is easy to do, with an intuitive OSD that's accessible using buttons on the remote receiver. Newer HDMI displays no longer support legacy resolution video signals. Without support for these common VGA resolutions, your source may not work with your new HDMI display.High-Definition 1080p Video at 230 Feet (70 Meters)The extender kit maintains your HD picture quality, even at 230 ft. (70 m) away from your video source, ensuring you can provide the best possible viewing experience.The ST121HDBTSC is backed by a 2-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 2.0 channels |
| LED indicators | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Material | Aluminium |
| Rack mounting | Yes |
| HDCP & EDID bypass | Yes |
| Daisy chain | No |
| Rubber feet | Yes |
| Product colour | Black |
| Certification | CE, FCC, TAA |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| DisplayPorts in | 1 |
| VGA (D-Sub) ports quantity | 1 |
| RJ-11 ports quantity | 2 |
| AUX in | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Operating voltage | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -10 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 61 mm |
| Depth | 106 mm |
| Height | 67 mm |
| Weight | 2 kg |
| Packaging data | |
| Package width | 98 mm |
| Package depth | 160 mm |
| Package height | 40 mm |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Quick start guide | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Remote control included | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 6 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
