Mini DisplayPort Vga Video Adapter Converter
ITCurry #: 75644816 | Article #: MDP2VGA-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Connect your VGA monitor to a Mini DisplayPort equipped computer
This Mini DisplayPort to VGA adapter lets you connect your mDP computer to a VGA monitor or projector. The adapter works with Mini DisplayPort computers like your Ultrabook™ or any Microsoft® Surface™ Pro devices equipped with mDP.
Easily connect your Mini DisplayPort computer to a VGA display
The mDP to VGA adapter lets you connect your Mini DisplayPort laptop, desktop or tablet to a VGA display. The adapter is compatible with mDP ports as well as Thunderbolt 1 and Thunderbolt 2 I/O ports, and supports plug-and-play connectivity ensuring a hassle-free setup.
Works with legacy VGA monitors

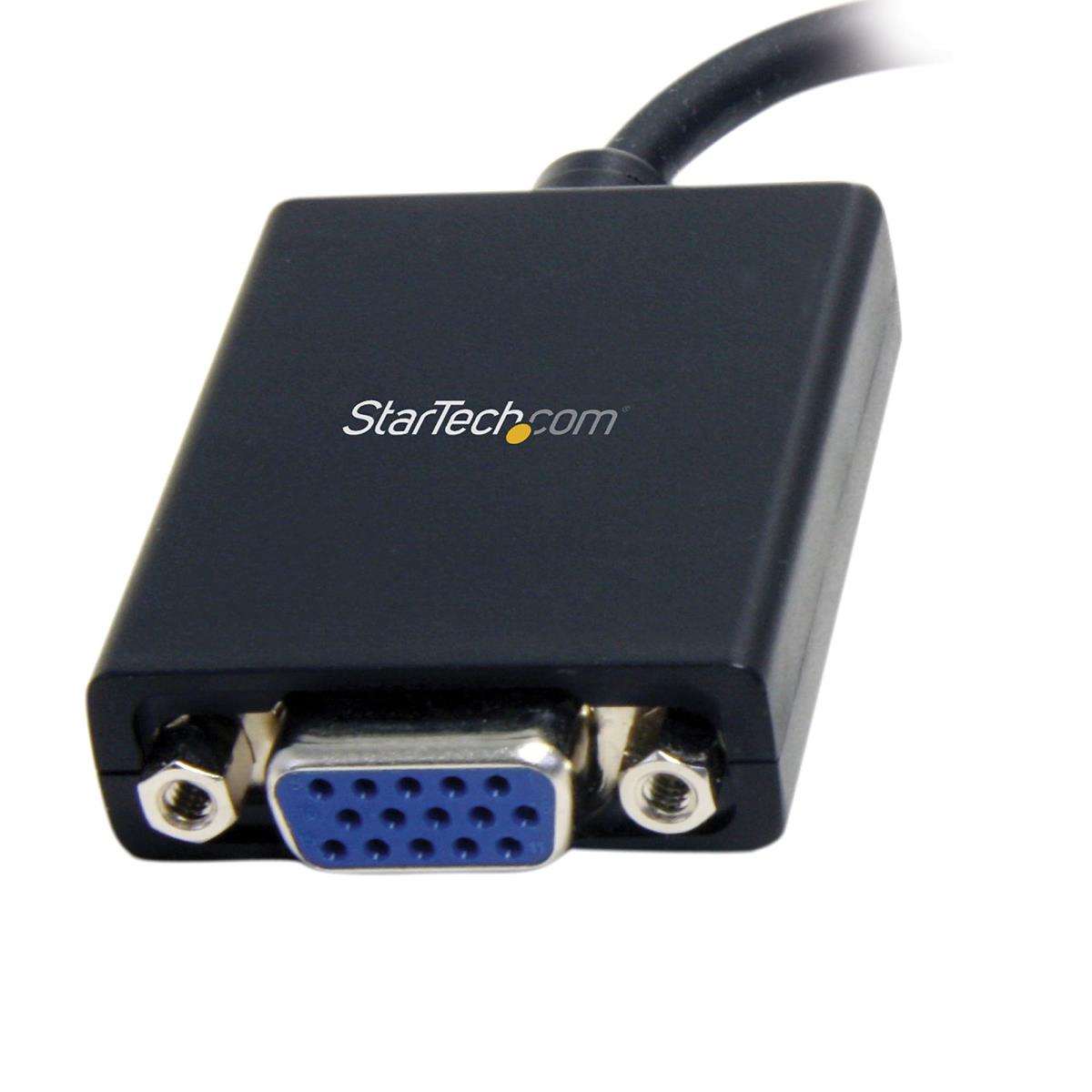

The Mini DisplayPort adapter makes your mDP computer fully compatible with existing VGA monitors or projectors in your home or around your office. The VGA connector features nuts that mate with the screws on standard VGA cables, to ensure your video cable won’t get disconnected.
Designed for maximum portability
The Mini DisplayPort to VGA converter maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your Surface Pro or Ultrabook, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.
Crystal-clear picture quality
With support for video resolutions up to 1920x1200 or 1080p, you’ll be surprised at the picture quality the adapter provides, even when connected to a legacy VGA monitor, projector or television. The adapter harnesses the video capabilities built into your mDP connection to deliver every detail in stunning high-definition.
The MDP2VGA is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.13 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| DisplayPort version | 1.2 |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 720p, 1080p |
| HBR2 support | Yes |
| Product colour | Black |
| Plug and Play | Yes |
| Converter type | Active video converter |
| Certification | RoHS, CE, FCC |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Weight | 28 g |
| Width | 35.6 mm |
| Depth | 185 mm |
| Height | 19 mm |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 6 mm |
| Package weight | 37 g |
| Technical details | |
| Compliance certificates | RoHS, CE |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 169 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case height | 113 mm |
| Products per master (outer) case | 120 pc(s) |
